iHome iBT374 Bedienungsanleitung
Color Changing Rechargeable
Bluetooth Speaker
with Speakerphone
instruction manual
CHARGE
BEFORE
USE
Model: iBT374
Introduction
Thank you for purchasing the iHome iBT374. This product is designed to
provide high quality wireless sound for your Bluetooth audio device
wherever you take it. iP67 rating means the unit is tested to be waterproof
and dustproof. It also meets military specs for being shockproof.
This instruction booklet explains the basic operation and care of the unit.
Please read it carefully and keep for future reference.
Maintenance
• Place the unit on a level surface away from sources of direct sunlight or
excessive heat.
• Protect your furniture when placing your unit on a natural wood and
lacquered finish. A cloth or other protective material should be placed
between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water.
Stronger cleaning agents, such as thinner or similar materials can damage
the surface of the unit.
iBT374
1
iBT374

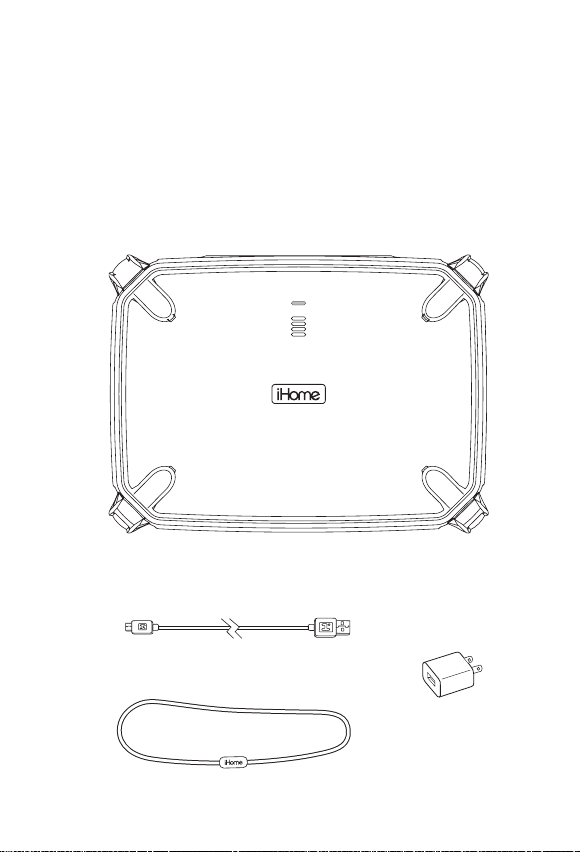

What’s Included
• iBT374 speaker
• USB charging cable
• Carry strap
• USB AC adaptor
iBT374
2
Carry strap
USB charging cable
USB AC adaptor
iBT374
IMPORTANT INFORMATION ABOUT
WATERPROOF OPERATION
3
water
tight
not
water
tight
For proper waterproof operation, make sure the waterproof cover
on the right side of the unit is completely flush with the unit by
pressing along the entire edge of the cover until it is completely
and securely in place.
• The unit is IP67 waterproof rated, meaning it is immersible for
up to 30 minutes at a depth of 1 meter (3 feet). It will typically
withstand rain, snow and being submersed in shallow water.
Longer duration or deeper immersion that exceeds the tested
limits may cause product failure and void the warranty.
• DO NOT immerse the unit in water for extended periods.
• DO NOT immerse the unit in water deeper than 1 meter (about
3 feet).
• Make sure cover and surrounding surfaces are completely dry
before opening cover to prevent moisture from damaging the
internal electronics.
• Keep rubber cover free of dirt, sand, or other objects that can
interfere with proper sealing. If for any reason the waterproof
cover is not making a tight waterproof seal water may enter
the unit.
• Rinse with tap water after immersion in salt water or
swimming pool.
• DO NOT clean unit with oily soaps or use chemicals or
solvents. Clean with damp cloth.
iBT374
Front
Right Side
(under rubber seal)
USB In
Charging Port
USB Out
Charging Port
Aux-in Jack
Reset Port
Meet Your iBT374
Top
Bluetooth Status
Indicator Light
4
Color Mode
Button
Power
Button
Lower/Raise Volume
Buttons
Bluetooth/
Speakerphone
Button
Play/Pause/
Voice Command
Button
Microphone
Battery Status
Indicator Lights
(portable/battery
mode only)
Getting Started: Carry Strap
The iBT374 has a channel on the left
side of the unit to attach the included
carry strap. To attach the carry strap,
form a small loop in one end of the
carry strap. Insert this loop through
the desired channel, then pull the loop
back through the larger loop formed in
the carry strap to tighten.
CHARGE UNIT BEFORE USE/KEEP UNIT OFF FOR FASTER CHARGING
1. Connect the micro USB plug on the included USB charging cable to the
micro USB IN Charging USB Port on the right side of the unit under the
rubber seal.
2. Connect the standard USB plug end of the cable to a power USB port on
a computer, a USB AC adaptor or other USB charging device. For first
time use, charge unit for about 4 hours. The status indicator LEDs on
front of the unit cycle progressively while charging and turn solid once
unit is fully charged.
iBT374
5
Charge via computer USB port, USB AC adaptor or other powered USB port
USB AC adaptor
(included)
USB AC adaptor
connected to working outlet
iHome iBT374 USB
in Charging port
Reviewing Battery Charge Level
(Portable/Battery Mode: Charger is Disconnected and unit is ON)
When unit is ON but not charging (operating on battery, micro USB cable
not connected) you can review the current battery status on the Battery
Status Indicator Lights (four white LEDs on front of the unit above the
iHome badge) any time a button is pressed.
6
TIP: On some iOS (Apple) devices, you can
view the iBT374 battery status on your
device’s screen. When device is paired
and connected, look for a vertical battery
icon next to the Bluetooth icon on the
upper right corner of the
device’s screen.
iBT374
Battery
dead
(no charge)
Battery
low
(needs
charging)
Battery
half
charged
Battery
good
mostly
charged
Battery
fully
charged
Battery Indication During Charging
While the battery is charging, the Battery Status Indicator Lights will flash in
a continuous cycle showing progressively fuller battery. The LEDs will stop
flashing once the battery is fully charged.
Pairing Your Device
Pairing is the set-up process to introduce your Bluetooth-capable device to
the iBT374. Once your device is paired, the iBT374 can recognize it and you
can play your audio through it.
1. Turn on your Bluetooth device and make it “discoverable”
by turning on Bluetooth mode (check in Options or
Settings).
2. Press and hold the Power Button for 2 seconds to turn on
the iBT374. The first time the unit is powered on, it will
enter auto-pairing mode: the unit will beep, the Bluetooth
status indicator light on front of the unit will flash quickly
and a voice will announce “PAIRING” while the unit attempts
to pair. (If Color Mode is on, the accent lights will flash blue
and red.)
3. “iHome iBT374” should appear in your device’s Bluetooth
menu. Select “iHome iBT374” on device to complete pairing.
If prompted for a passcode, enter “1234” on your device’s
keypad. 1 beep will sound, the voice will announce
“CONNECTED” and the Bluetooth status indicator light will
appear solid blue (in Color Mode, cabinet will flash blue
twice), indicating the iBT374 is paired and ready to play
music. There should also be an indication on your device.
If no device is successfully paired within 3 minutes the
iBT374 will default to previous mode.
4. To pair with a different device or at a different time, make
sure unit is powered on, then press and hold the
Bluetooth/Speakerphone Button for 2 seconds. Select
“iHome iBT374” on device to pair.
Once the iBT374 is paired to a device, it will attempt to
autolink when the device is within range (about 33 feet).
To delete all Bluetooth paired devices from the iBT374,
press and hold the Bluetooth/Speakerphone Button for
10 seconds.
7
Using the iBT374
iHome iBT374
Playing Audio Via Bluetooth
1. Press and hold the Power Button for 2 seconds to turn on the unit. The
Bluetooth status indicator will glow solid blue when a linked device is in
range and detected. You can then listen to audio streamed wirelessly from
your paired Bluetooth device.
2. Press the Play/Pause/Voice Command Button to play and pause tracks.
3. Press the or Button to adjust the iBT374 volume. You can also adjust
volume on your device.
4. When done listening, press and hold the Power Button for 2 seconds to
turn the unit OFF.
Speakerphone Operation
NOTE: The unit must be powered on and linked to a Bluetooth phone to
receive a call.
1. When a call is received, playing music is muted to hear the ring tone and
the cabinet lights flash green. Press the Bluetooth/Speakerphone
Button to answer the call, or press and hold to reject the call. For call
waiting function, press the button again to answer a second call, and once
more to return to the original call. Press and hold to end the current call
and return to a remaining call.
2. When a call is completed, press the
Bluetooth/Speakerphone Button
to end the call and resume previous function.
Voice Commands
NOTE: The unit must be powered on and linked to a Bluetooth phone to use voice
commands.
Press and hold the Play/Pause/Voice Command Button to access the
voice command protocol associated with your device’s operating system
(Siri for iOS devices, “OK, Google” for Android devices, etc.
8
Using the iBT374
Playing Audio via Aux In
1. Connect a standard stereo audio cable (not included) to the Aux-in Jack
on the right side of the unit and connect the other end to the headphone
or line-out jack on your audio device.
2. Press and hold the Power Button for 2 seconds to turn on the unit.
3. Power on the audio device and use the controls on the device to play or
pause audio and to navigate tracks.
4. Press the or Button to adjust the iBT374 volume. You can also adjust
volume on your device.
5. When done listening, press and hold the Power Button for 2 seconds to
turn off the unit. Remember to turn off your device, too.
NOTE: Any Bluetooth audio must be paused or you will not hear Aux-in audio.
Using Color Modes
There are six color modes, which you cycle through in this order:
a. Slow Fade (colors slowly fade from one into the next
b. Fast Change (colors change rapidly)
c. One Color (select a favorite color)
d. Pulse to Music (lights flash to the beat of the music)
e. Preset Pulsing (each light array pulses through its own preset pattern of
colors)
f. Off (no display)
1. Press and hold the Power Button for 2 seconds to turn on the unit.
2. Press the Color Mode Button repeatedly to cycle to the desired color
mode. For One Color mode, first cycle to Fast Change mode and press the
Color Mode Button when the desired color appears. For Pulse to Music,
make sure the volume on your connected Bluetooth device is above 30%.
3. Press and hold the Power Button for 2 seconds to turn the unit off.
9
Using the iBT374
