IHome IDM11 Bedienungsanleitung

Model: iDM11

iDM11 IB (English)

Size: 153mm x 120mm

Printing color: Black

Date: Nov 15, 2011 P1

Portable Rechargeable

Bluetooth Speaker

with Speakerphone

Questions? Visit www.ihomeaudio.com

Table of Contents

Meet Your Unit...................................................................................................1-2

Charging the Unit................................................................................................. 3

Using Bluetooth:Pairing Your Device ......................................................................... 4

Playing Audio Via Bluetooth.................................................................................... 5

Using the Speakerphone........................................................................................ 5

Playing Audio Via Aux/ Troubleshooting .................................................................. 6

Consumer Product Safety Guide.............................................................................. 7

Introduction

Thank you for purchasing this unit. This product is designed to provide high quality wireless

sound for your iPad, iPhone, iPod, computer, PDA or other Bluetooth audio device.

Along with the included Quick Bluetooth Connection Guide,this instruction booklet explains the

basic operation and care of the unit. Please read them carefully and keep for future reference.

Maintenance

• Place the unit on a level surface away from sources of direct sunlight or excessive heat.

• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth

or other protective material should be placed between it and the furniture.

• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning

agents, such as Benzene, thinner or similar materials can damage the surface of the unit.

SRS WOW®, which features TruBass®, significantly improves the playback quality of audio, delivering a

dynamic 3D entertainment experience with deep, rich bass and high frequency clarity for crisp detail.

is a registered trademark of SRS Labs, Inc. TruBass technology is incorporated under license from SRS Labs, Inc.

FCC Information

This equipment complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These limits

provide reasonable protection against radio and TV interference in a residential area.

However, your equipment might cause TV or radio interference even when it is operating properly. To eliminate

interference you can try one or more of the following corrective measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and the radio or TV.

• Use outlets on different electrical circuits for the equipment and the radio or TV.

• Consult your dealer or an experienced radio/television technician if the problem still exists.

Modifying or tampering with your system’s internal components can cause a malfunction and might invalidate the system’s

warranty and void your FCC authorization to operate it.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

This device complies with Part 15 of the FCC Rules, operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

FCC ID:EMOIDM11

IC:986B-IDM11

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This Device complies with RSS-210 of the IC Rules; Operation is subject to the following two conditions:

(1) This device may not cause interference and

(2) This device must accept any interference received, including interference that may cause undesired

operation

Internal Rechargeable Lithium-ion Battery

This device uses an internal rechargeable lithium-ion battery that should last the lifetime of the device. If you

suspect your battery may be dead, try charging it several times. If the battery does not recharge, please contact

us for repair information.

WARNING/DISPOSAL OF UNIT

Please do NOT attempt to change the battery yourself. If the battery has died and you do not want us to replace your

battery, you should follow the disposal instructions below:

• Never dispose of used batteries/electronics with ordinary solid wastes, since they contain toxic substances.

• Always dispose of used batteries/electronics in accordance with the prevailing community regulations that apply

to the disposal of batteries/electronics. If there are no local regulations concerning battery/electronics disposal,

please dispose of the device in a waste bin for electronic devices.

• Many electronics retailers now recycle batteries and other electronic components at no charge. Check to see

which ones in your area do so.

CAUTION

The battery used in this device may present a risk of fire, explosion or chemical burn if

mistreated

• Never use or charge the battery if it appears to be leaking, discolored, deformed, or in any way abnormal.

• Never disassemble the unit or attempt to remove battery as that could cause leakage of alkaline solution or other

electrolytic substance.

• Always confirm that the temperature is 5°C – 35° C (41° - 95° Fahrenheit) before you charge the battery.

Leakage or deterioration of the battery may occur if this warning is not heeded.

• Never expose the battery to any liquid.

• Never expose the battery to excessive heat such as direct sunlight or fire. Never use the battery pack in an

unventilated vehicle where excessive internal temperatures may be encountered.

• Always keep the battery out of the reach of infants and small children.

Meet Your Unit

Travel Lock/Aux/

Bluetooth Switch

Micro USB

Charging/

Audio in Port

Rear of Speaker

Bluetooth/Speakerphone/Play

/Pause Button

Built-in Microphone

Top/Front

of Speaker

Power Button

Power/Charging/Pairing

Indicator Light (in light up base)

Volume Down Button

Volume Up Button

Built-in microphone

Power/Charging/Pairing

Indicator Light (in base)

Meet Your Unit

Included

• iDM11 system (1 speaker)

• 24 inch micro USB to USB/3.5 mm charging

and aux. audio cable

Travel Lock:

a. Move the Travel Lock switch on the back of the

speaker to the position to temporarily disable the

unit and prevent accidental button activation during

travel that might drain the battery. Move switch to

Bluetooth or Aux position for normal operation.

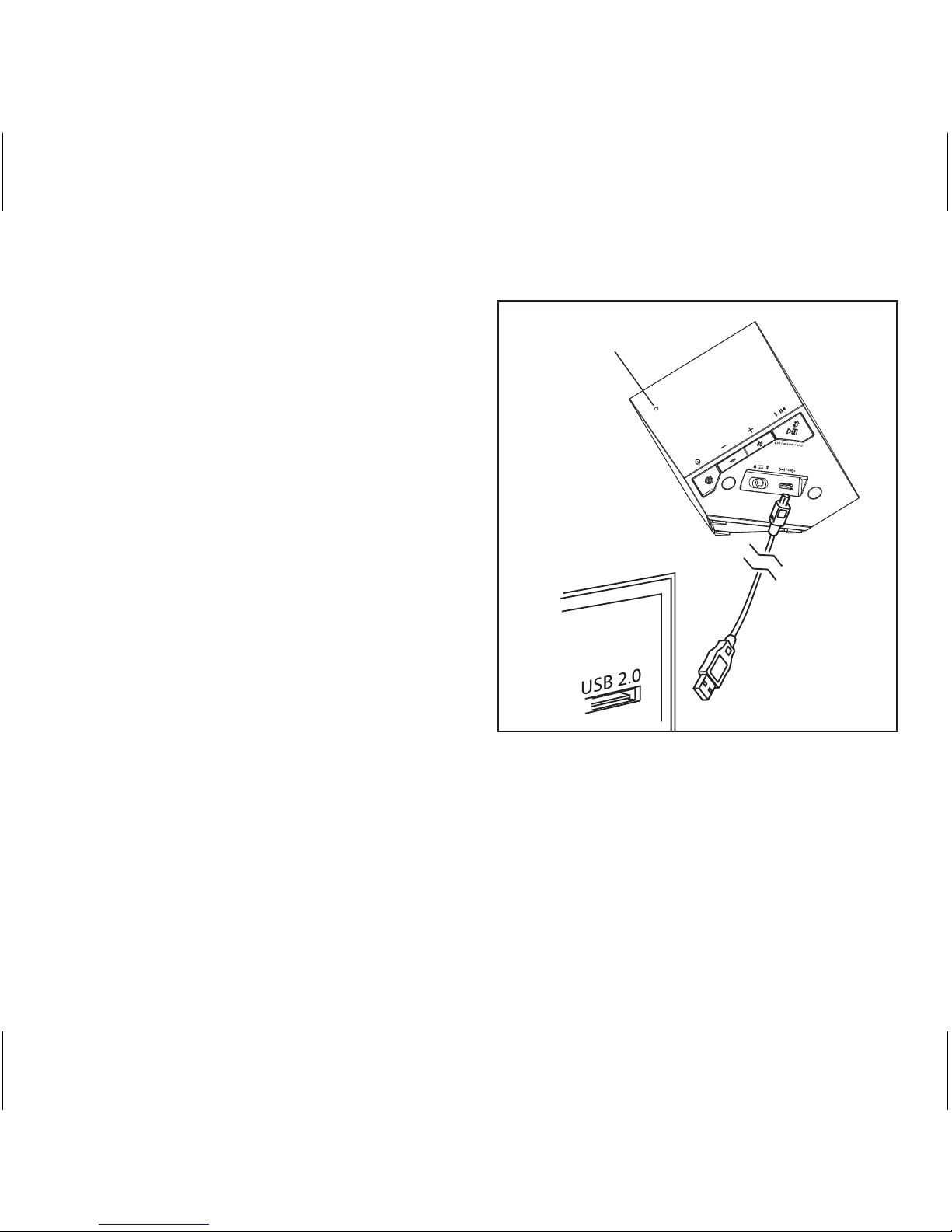

Charging the Unit

1. Connect the micro USB plug to the micro

USB charging port on the back of the

speaker.

2. Connect the standard USB plug end of the

cable to a powered USB port on a

computer or other USB charging device.

For first time use, charge unit for about 8

hours.

3. A red light pulses slowly through the

base while the unit is charging and

glows steadily blue once unit is fully

charged.

NOTE: When the unit is ON and not

connected to power source, a pulsing blue

light indicates low battery (25% - 10%),

and a quickly flashing red light indicates

battery needs charging (less than 10%).

Built-in mic

Using Bluetooth: Pairing Your Device

NOTE: See the iDM11 Bluetooth Connection Guide for complete pairing details.

1. Move the Travel Lock/Aux/Bluetooth Switch on the back of the speaker to the Bluetooth

position (right).

2. Press and hold the Button to turn on the unit (release when a light appears on the base).

3. Turn on Bluetooth capability on your device and make it discoverable (see your device’s

instructions to add or setup a Bluetooth device).

4. Press and hold the Bluetooth/Speakerphone Button on the unit until the base flashes red

and blue alternately and the unit beeps twice to indicate pairing attempt. The lights will

flash while the unit attempts to pair. If your device asks for a password, enter 1234 on

the keyboard of your device.If no device is paired within 2 minutes, the base will glow

red for 2 seconds accompanied by a long beep and the unit will power off. If this occurs,

retry steps 2-4.

5. Once paired with a device, a blue light will glow steadily and two beeps will confirm that

pairing is complete. There should also be an indication on your device that pairing is

complete. On some devices, you must then select “use as a stereo audio device” or

similiar on the device’s Bluetooth menu. Once paired, your device should link to the

iDM11 whenever within range.

Playing Audio Via Bluetooth

1. Move the Travel Lock/Aux/Bluetooth Switch to the Bluetooth position to listen to audio

streamed wirelessly from your paired iPad, iPhone, iPod or other Bluetooth device.

2. Press and hold the Button for 2 seconds to turn on the unit. The blue light will flash as the

unit searches for a previously paired device, and then turn solid blue when a previously

paired device is detected.

3. Press and release the Button to play or pause audio from your Bluetooth device.

NOTE: Play/Pause only works in Bluetooth mode. It does not control aux line-in devices.

4. Use the Volume +/- Buttons to adjust volume.

5. When done listening, press and hold the Button for 2 seconds to turn the unit off.

1. Move the Travel Lock/Aux/Bluetooth Switch to the Bluetooth position to use the speaker as a

speakerphone for a linked Bluetooth-capable phone during an incoming or active call.

3. Press and hold the Button to turn on the unit (release when blue light appears).

4. Use the Volume +/- Buttons to adjust volume. You may wish to adjust the volume on your audio device,

too.

5. When a call is received, playing music is muted to hear the ring tone. Press the Button to

answer the call, or press the Button to ignore it.

6. When the call is completed, press the Button or Button to end the call and resume previous

function.

Using the Speakerphone

P10

1. Move the Travel Lock/Aux/Bluetooth Switch to the Aux position to listen to audio via aux line-in.

2. Connect the micro USB plug to the micro USB charging port on the back of the speaker and

connect the 3.5 mm audio plug to the headphone or line-out jack on your audio device.

4. Press and hold the Button to turn on the unit (release when blue light appears).

5. Use the Volume +/- Buttons to adjust volume. You may wish to adjust the volume on your audio

device, too.

6. When done listening, press and release the Button to turn the unit off. Remember to turn off

your audio device, too.

Playing Audio via Aux

Unit doesn’t respond (no power)

• Make sure unit is completely charged. Check that all connections are correct and properly plugged

in. Make sure your device is properly paired with the iDM11.

• Make sure the Travel Lock/Aux/Bluetooth Switch is not in the position, as this will disable

operation.

Resetting the unit

If the unit does not respond properly or appears to be “frozen”, you may wish to try resetting it. To do so,

press and hold the Power Button and the Volume + Button simultaneously for about 3 seconds. Doing so

will restore the unit to default settings. NOTE: After a reset, you will need to re-pair your Bluetooth device(s).

Trouble pairing device/computer with iDM11

Bluetooth implementation varies depending on your computer’s hardware and operating system. Please

see our website for updates on pairing.

• Make sure you have the latest firmware for your iPad, iPhone or iPod (update via iTunes if needed).

• Make sure your device is working properly. Check your device’s manual for details on Bluetooth

pairing and linking.

For further information and to see the latest instructions,visit www.ihomeaudio.com/support

Troubleshooting
