Ikelite 6242.11 Betriebsanleitung
Digital Housing
Supplemental Instructions
6242.11 Canon S110 LTRAcompact
Size and Weight
Width ......................6.1 in. (155mm) including controls
Height ....................4.5 in. (114mm) including controls
Depth ......................4.4 in. (112mm) including controls & lens port
Weight ....................1.4 lb (635g)
Buoyancy ................Neutrally buoyant underwater
2
Initial Camera Setup
- Set camera mode switch to “Av” Aperture Priority.
- Set DR Correction to “Off” and ISO to “80.”
- Set White Balance to auto “AWB” and Frame to “Single Shot.”
- Set Light etering to “Center Weighted Avg.”
- Set ND Filter to “ND Off”, and Still Image Aspect Ratio to “4:3.”
- Set Image Type to “JPEG” and Image Size to “L.”
- Set AF Frame to “1-point” and AF Frame Size to “Normal.”
- Set Digital Zoom to “Off” and AF-Point Zoom to “Off.”
- Set Servo AF to “On” and Continuous AF to “On.”
- Set Touch Shutter to “Off” and AF-assist Beam to “Off.”
- Set Review to “5 Seconds.”
- In the Flash Settings menu, set the Flash ode to “Auto.”
Set Shutter Sync to “1st-curtain.”
Set Red-Eye Correction and Red-Eye Lamp to “Off.”
Set Safety FE to “On.”
- Set Spot AE Point to “AF Point” and Safety Shift to “On.”
- Set Review to “4 seconds” and Review Info to”Off.”
- Set Blink Detection to “On” and IS ode to “Continuous.”
- Set Control Ring Func. to “STD” Default Control Av.
- Set Flash to forced ON (flash always fires) “ .”
Setup Notes:
If shadows are present, use two external strobes. Also, you can set
Shadow Correct to “Auto”, which will help to lighten shadowed areas.
Set acro ode to “On” when shooting very close subjects.
The camera does NOT operate with TTL “automated” flash when in the
“ ” manual mode. “ ” manual mode should NOT be used with the AF35
strobe.
3
Attaching the Control Ring Gear (see illustration below)
The supplied Control Ring Gear is attached to the camera control ring by
3 small nylon allen Set Screws. Place the Control Ring Gear over the
camera’s control ring before installing the camera in the housing. The
gear is a “press fit” over the lens and goes on one way with the allen
screws closer to the
camera body than the
end of the lens. Gently
tighten all three allen
screws with the supplied
Allen Wrench as show in
the Diagram. Do not
overtighten or you will
damage the gear. ake
sure to test it’s function
once installed.
When installing the camera in the housing, make sure that the Control
Ring Gear meshes properly with the small black housing gear.
Canon
S110
Camera functions can be assigned to the Control Ring by pressing the
Ring Function button. Depress the Ring Function button until the
desired function is highlighted in the camera LCD screen. Once the
function is highlighted, it can be adjusted using the Control Ring.
Refer to your camera owner’s manual for additional information.
To use the camera in anual mode, rotate the ode Dial to “Tv” and set
the shutter speed. Then, rotate the ode Dial to “ ” anual ode.
Press the Ring Function repeatedly until it is set to “STD.” Then, use the
Control Ring to adjust Aperture setting as needed.
Control Ring Gear
(properly installed)
Setup Notes (continued)
Set Screw
Allen
Wrench
4
Parts of the Housing - Front View
Shutter Button
ode Dial
Zoom Lever Power Button
Control Ring Tray ount
Lens Port
Attaching the Control Ring Gear (continued)
When removing the Gear, leave the Set Screws in the Gear. The Set
Screws are very small and easy to lose. Extra Set Screws are included
with your housing. We recommend that you leave the gear installed as it
makes rotating the camera control ring easier when out of the housing.
ULTRA
compact
Made in USA
46
3
7
12
5
9
8
5
Parts of the Housing - Back View
1. Ring Function Selector
2. ovie Button
3. Exposure Comp. ,
4. acro , F,
5. FUNC./SET Button
6. Flash Button ,
7. Display
8. Playback Button
9. ENU Button
Latch
Lanyard
6
Ikelite W-20 (6420) and W-30 (6430)
Wide-Angle Conversion Lenses
The front of the lens port accepts the 6420 W-20, 6430 W-30, and other
67mm threaded wide angle and macro lenses or diopters without the
need for an adapter. An external wide angle conversion lens increases
angle of coverage so you can get closer to the subject while still fitting
everything in the frame.
Vignetting will occur at widest angle camera lens setting with these
lenses. Zoom in slightly to eliminate, or crop the image in post
processing.
NOTE: Bayonet mount lenses cannot be used with this housing.

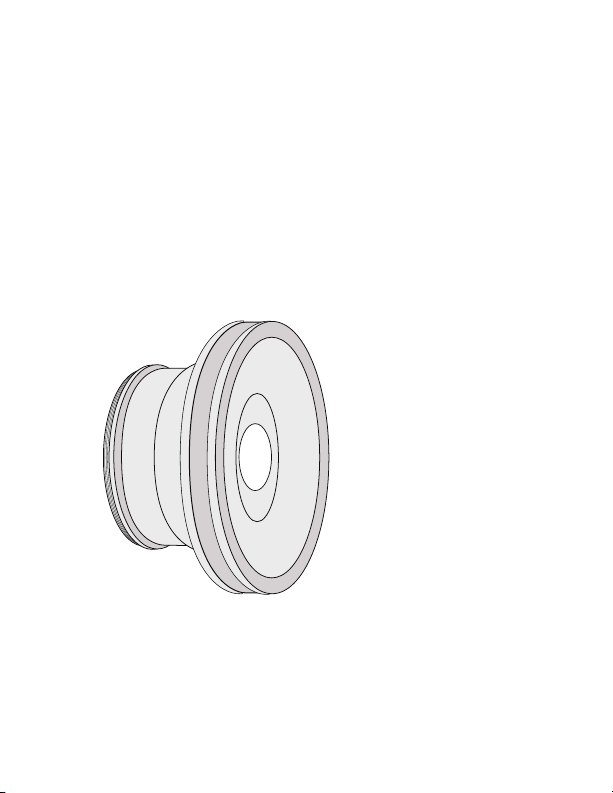

Ikelite W-30 Wide Angle
Conversion Lens
External Accessory Lenses
AF35 Strobe Package 4035
Ikelite strobes are much more powerful, recycle
more quickly, and eliminate more backscatter
than the camera's built-in flash.The AutoFlash
AF35 (pictured at right) is an easy and
affordable way to add a strobe to your system.
The AF35 is effective up to approximately 5 feet
(1.5m) from the subject and restores the colors
that are otherwise lost.
The AF35 is a great compliment, and an
effortless, affordable way to add a flash to your
new Ikelite point and shoot camera system.
Everything you need to get started is in the box.
Just attach it to the bottom of your housing and
start taking pictures!
ikelite
35
AF
ikelite
AUTOFLASH
7
A full range of accessories is available to support your housing. Please
visit www.ikelite.com to see the most current information about
recommended accessories for your housing.
AF35 AutoFlash kit includes:
- AF35 strobe
- Flex arm
- AutoFlash sensor
- Handle with rubber grip
- Tray (single or dual)
- ounting hardware
Ikelite nderwater Systems
50 West 33rd Street
Indianapolis, IN 46208 SA
6242.11_Canon_S110-01-1012
www.ikelite.com
