Ikelite 6430 W-30 Bedienungsanleitung

Thank you for your purchase of Ikelite equipment. Please read this

instruction manual completely before attempting to operate or dive

with this product. Please refer to the back page of this manual to

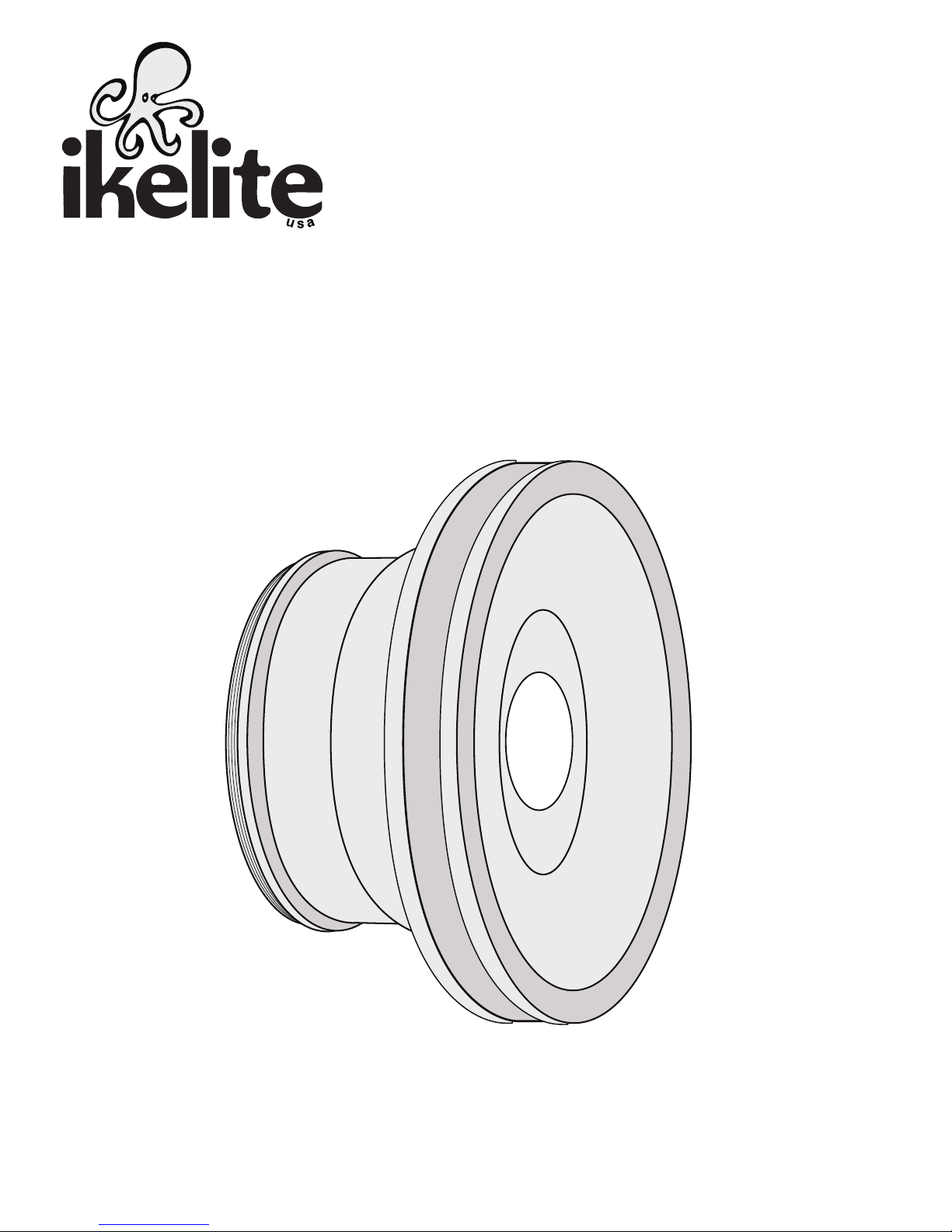

6430 W-30

Wide-angle Conversion Lens

Instruction Manual

T ble of Contents

Specific tions ..............................................................P. 3

Supplied Accessories ................................................P. 3

About the Lens ............................................................P. 3

Att ching the Lens to Housing ..............................P. 4

T king Photo with the Lens ......................................P. 5

M inten nce nd Stor ge ..........................................P. 5

Limited W rr nty ........................................................P. 6

Returning Products for Service ................................P. 7

Technic l Support ......................................................P. 7

Product Registr tion ..................................................Back Page

Specific tions

M gnific tion ..................0.59x

Di meter ..........................3.8in (96mm)

Length ..............................2.1in (53mm)

Depth ................................5.5in (140mm)

Weight ..............................1.3 lb (595g)

Buoy ncy ........................Approximately 0.76 lb (345g) negative

Depth R ting....................200ft (60m)

Lens Element ..................4 Group / 4 Elements

Lens M teri l ..................Optical Glass

Body M teri l ..................Aluminum Alloy

Att chment ......................67mm threaded

Blue W ter Filter..............6441.42

Green W ter Filter ..........6441.82

About the Lens

Featuring a new are-earth lens element, the W-30 provides improved

permeability, clarity and brightness. Specifically designed for digital

cameras with 28mm focal length and wider, the W-30 is compatible with

Ikelite Video and Digital Still housings using 67mm threaded ports.

Supplied Accessories

- Front Cap

- ear Cap

- Pouch

- Lens Cloth

- Silicone Lubricant

1. Makes sure the threads of the lens and the housing port are clean of

dirt, sand, or other debris.

2. Apply a small amount of silicone grease to the port threads on the

housing and to the threads at the rear of the W-20 Lens.

3. Facing the front of the housing, gently screw the lens clockwise

and straight into the port of the housing until it securely fastens.

Do not overtighten or use excessive force when connecting the

lens to the housing port. If the W-30 lens is overtightened, accidental

removal of the housing port can occur when disconnecting the W-30.

This lens can be safely connected and disconnected from the housing

while underwater. For correct operation of the optical system, make sure

that the space between the housing port and the rear of the W-30 lens is

filled with clean water and free of air bubbles.

Ikelite Compact and ULT Acompact housings with a 2.2” port diameter

require a 9306.81 adaptor to attach this lens.

Att ching the Lens to Housing

M inten nce nd Stor ge

After using the W-30 lens in water (especially salt water), rinse with fresh

tap water and dry with a soft non-abrasive cloth. The lens surface has an

anti-reflective coating. Wipe the surface of the lens gently with the soft

non-abrasive cloth to prevent debris buildup that can cause spotting and

deterioration of the coating.

C ution: Do not attempt to dry the lens by exposing it to heat from a hair

dryer, radiator, etc. This will damage the lens.

Store the lens in a cool, dry place with the front and rear lens caps fitted.

Do not store the lens attached to a housing port. Temperature changes

can make the lens hard to remove from the port and cause accidental

removal of the port.

T king Photos with the Lens

1. After entering the water, check that all of the air has escaped from the gap

between the lens and the housing port, and that no air bubbles are present.

This step is important and can affect the camera’s ability to focus. If air

bubbles are present it may be necessary to remove and reinstall the lens

underwater.

2. Zoom the camera to its widest-angle setting. If vignetting occurs at this

setting (i.e. you can see the edges of the lens in the corners of the

picture), zoom the lens in slightly to eliminate.

3. Best photo results will occur under well-lit conditions. The built-in flash of

the camera will not supply sufficient light to obtain good results. When

using the lens in poorly lit areas, the use of an Ikelite DS Substrobe is

strongly recommended.

This Ikelite product is warranted against any manufacturing defects for a

period of one (1) year from the original date of purchase. Defective

products should be returned to Ikelite postage paid. Ikelite will, at its sole

discretion, repair or replace such products, and will return to customer

postage paid. All other claims of any nature are not covered. Except as

mentioned above, no other warranty expressed or implied applies to this

Ikelite product.

Limited W rr nty

Ikelite Technic l Support

Email: [email protected]

Phone 317.923.4523

Fax 317.924.7988

Technic l Support

Returning Products for Service (outside the United St tes)

For the separate international customs documentation form that you

complete to accompany the shipment, please state or designate that the

enclosed products were originally manufactured in the USA and are

being returned to the manufacturer for repair service. Value of the

equipment listed for customs purposes should be zero.

Ikelite is most interested in performing any service to ensure that all

products perform as intended. Evidence of purchase date must be

provided to obtain warranty service.

No prior authorization is required. You may return directly to us or

through your dealer. Please include a brief description of the problem,

any relevant email correspondence, and/or instructions on what you

want us to do. Always include name, shipping address, email address,

and phone number inside of the package. Send postage paid to:

Ikelite Under ater Systems

Attention: Service Department

50 West 33 Street

Indianapolis, IN 46208 USA

No reimbursements for postage paid will be issued.

You may also want to insure the package.

Returning Products For Service

Ikelite Underw ter Systems

50 West 33rd Street

Indi n polis, IN 46208 USA

6430_W30_Conversion_Lens_01-0912

www.ikelite.com

Product Registr tion

Please go to www.ikelite.com to register your Ikelite housing within 15

days of purchase.
