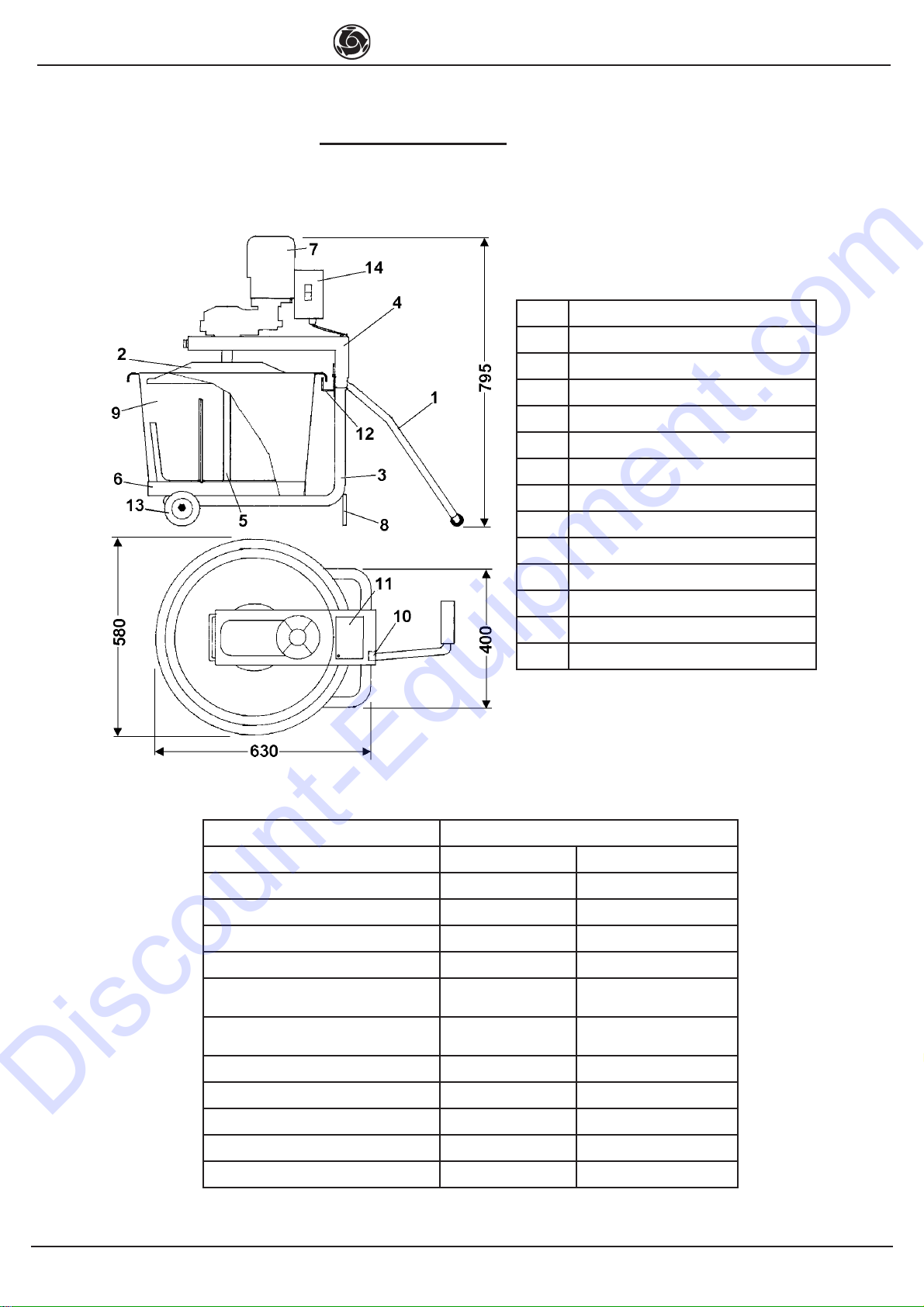

MIX 60 PLUS
Dear Customer,
Congratulations on your choice of purchase: IMER mixers are uni-
versal machines for MIX series: the MIX series mixers are ideal for
mixing dry or wet fine particle material (gypsum, cement, ceramic
tile adhesives, plaster, epoxy resin or proprietary mixed products).
WORKING IN SAFETY
To work in complete safety, read the following instructions
carefully.
- This OPERATION AND MAINTENANCE manual must be kept
on site by the person in charge, e.g. the SITE FOREMAN, and
must always be available for consultation.
- The manual is to be considered integral part of the machine and
must be kept for future reference until the machine is disposed of.
If the manual is damaged or lost, a replacement may be requested
from the saw manufacturer.
- The manual contains important information regarding site pre-
paration, machine use, maintenance procedures, and requests
for spare parts. Nevertheless, the installer and the operator must
both have adequate experience and knowledge of the machine
prior to use.
- To guarantee complete safety of the operator, safe operation
and long life of equipment, follow the instructions in this manual
carefully, and observe all safety standards currently in force for
the prevention of accidents at work (use of safety footwear and
gloves in accordance with S.I. N°3073 of 30/11/92).
Pay special attention to warnings bearing the following symbol:
-
MAKE SURE THAT SIGNS ARE LEGIBLE.
-It is strictly forbidden to carry out any form of modifi-
cation to the steel structure or working parts of the machine.
IMER INTERNATIONAL declines all responsibility for non-
compliance with laws and standards governing the use of this
equipment, in particular; improper use, defective power supply,
lack of maintenance, unauthorised modifications, and partial or
total failure to observe the instructions contained in this manual.
1. DESIGN STANDARDS
The MIX 60 mixer has been designed and constructed in accor-
dance with the following standards:
I.E.C.34.4; EN 60204-1; EN
392 (91/368 CEE).
2. NOISE EMISSION LEVEL
Operator exposure to sound emission levels: the MIX 60 PLUS
mixer noise level during operation is measured at 65 dB(A).
3. OPERATION SAFETY
- The Imer MIX 60 PLUS cement mixer may only be used when
fitted with all required safety devices which must be in perfect
working condition.
- Keep well clear of the mixing tank during operation.
- Never connect MIX 60 PLUS to defective power lines.
- Make electrical connections on the construction site where they
will not be subject to damage.
- Lay power cables where they are not subject to risk of damage
or penetration of water into connectors. Only use connectors
electrically protected against water sprays.
- Never connect the mixer to makeshift mains connections. If
necessary, consult qualified personnel.
- Repairs to electrical installations must only be carried out by
qualified technicians. Do not operate the mixer during mainte-
nance or repairs.
- Observe all accident prevention and safety standards in the
work area.
4. ELECTRICAL SAFETY
The IMER MIX 60 PLUS is designed in compliance with EN
60204-1 standards and features water spray protection (IP54)
and overload protection.
The mixer is also fitted with a safety system comprising a limit
switch which shuts off machine operation whenever the reduction
unit support is lifted.
To reset, press the green pushbutton located in the electrical
cabinet.
5. ASSEMBLY

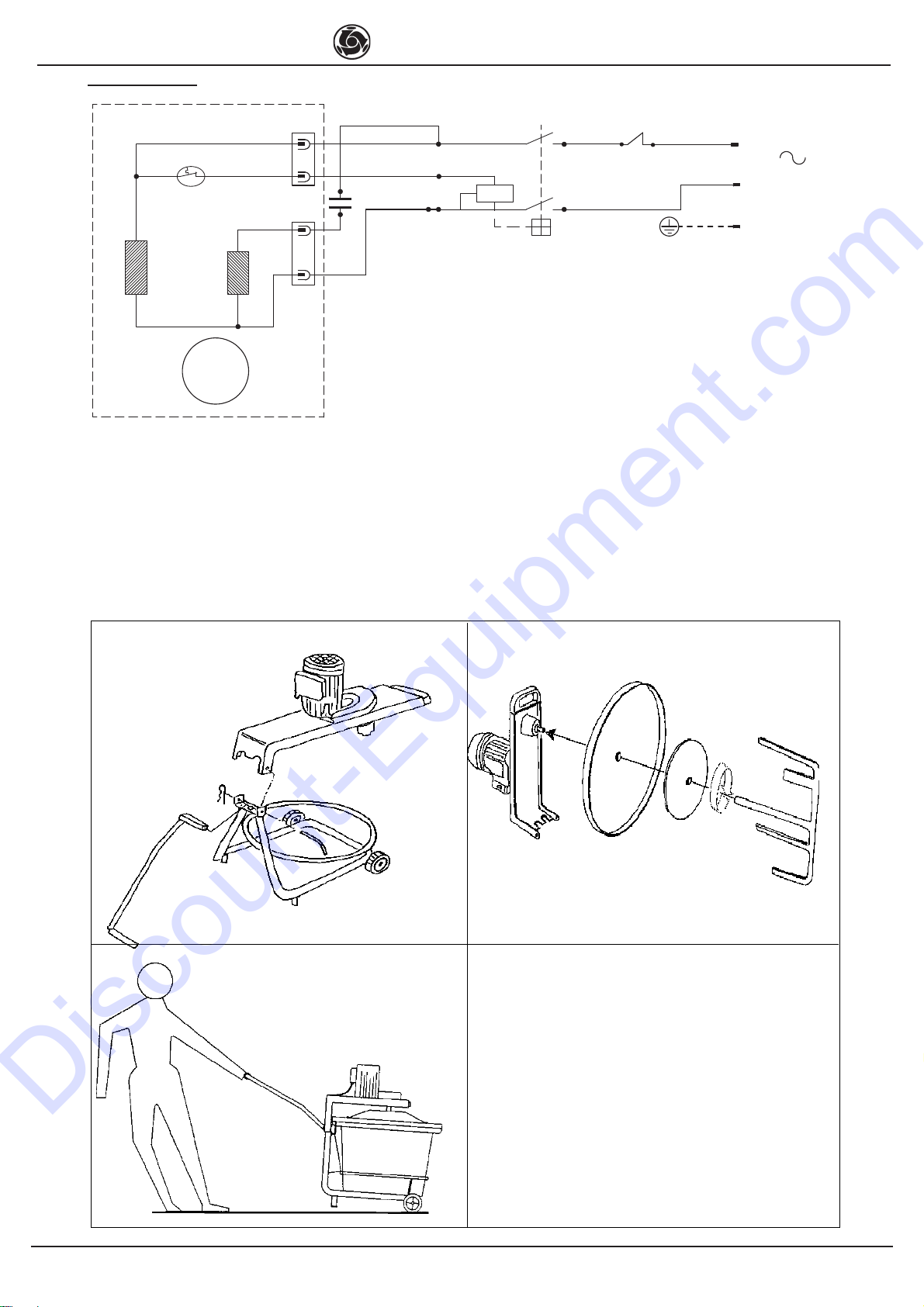

- Position the frame and handle as shown in fig.2.
- Insert the link pin and the cotter pin and tighten.
- Insert the tank in the circular housing, ensuring that the four
handles fit onto the steel brackets. to prevent tank rotation during
operation.
- Fit the safety grid, blade cover and screw the blade fully down
(fig.3).
6. TRANSPORT
- Warning: Always unplug the mixer from the power
supply before handling.
- MIX 60 PLUS is easily transported; use the handle indicated in
fig.4 for manual transport of the mixer.
- Never use the power cable to pull the machine.
- Never pull the power cable to unplug the machine.
7. INSTALLATION
- Remove the machine from the packaging.
- Install the mixer on level and solid ground
- Do not tilt the mixer during operation.
-When transporting the machine ensure that there are no obsta-
cles which may impair stability.
8. ELECTRICAL CONNECTION
- Ensure that mains voltage and cable sizes correspond to
specifications.
- MIX 60 PLUS is fitted with an ac motor which must be connected
to a 115 V power supply with a cable fitted with suitable wear-
resistant, anti-crushing and weatherproof sheathing.
Cable length must not exceed 50 yards.
-MIX 60 PLUS must only be used when fitted with all
required safety devices, which must be in perfect working
condition.
- Lay power cables where they are not subject to risk of
damage or penetration of water into the connectors.
- Only use connectors electrically protected against water
sprays. Do not stand the machine on the power cable.
- Never use the mixer with a makeshift power connection.
-The electrical connection must be carried out by a qua-
lified technician.
- Ensure that the cable is securely clamped inside the plug and socket.
- Observe all accident prevention and safety standards in
the work area.
- During mixer operation, do not insert tools or other objects in the tank
to avoid damage to the mixer or operator safety hazard.
9. START-UP
Press the green botton to start the mixer.
If the mixer blades do not rotate the overload cutout switch trips to
shut down the machine. Press “ON” to resume operation.
10. OPERATION
- Ensure that the power cable is fitted with a residual current
circuit breaker upline of the machine.
- Make sure that all other persons keep clear of the mixer during
operation.
- Do not use the mixer in areas subject to the risk of fire.
- Switch the mixer off before leaving it unattended.
- Make sure that the mixer is completely immobile before handling
or installation.
- Make sure that the mains voltage corresponds with the indications
on the mixer data plate.
- Make sure that the mixer blades rotate clockwise.
- Make sure that no clothing comes into contact with
mixing blades.
- Warning: Never start the mixer without the safety grid
fitted; the cover is a safety device and must be fitted to avoid
direct contact with the mixer blades.
