Impex MARCY JX-7038 Bedienungsanleitung

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

JX-7038

Retain This

Manual for

Reference

131101

ASSEMBLY &

OWNER'S

MANUAL

CLUB REVOLUTION CYCLE

JX-7038

IMPEX®INC.

2801 S. Towne Ave., Pomona, CA 91766

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

info@impex-fitness.com

©IMPEX INC. www.impex-fitness.com1

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................….. 1

IMPORTANT SAFETY NOTICES..................................................................…. 2

WARNING LABEL PLACEMENT…………………………………………………. 3

HARDWARE PACK……….....…....................................................................…. 4

ASSEMBLY INSTRUCTIONS........................................................................…. 6

EXPLODED DIAGRAM……………………………………………………………... 8

PARTS LIST...................................................................................................….. 9

CARE, MAINTENANCE, AND STORAGE………………………………………… 10

OPERATING NOTES………………………………………………………………… 10

EXERCISE GUIDELINES……………………………………………………………. 11

WARRANTY.................................................................................................……. 13

ORDERING PARTS.....................................................................................……. 13

BEFORE YOU BEGIN

Thank you for selecting the MARCY Club Revolution Cycle JX-7038 by IMPEX®

INC. For your safety and benefit, read this manual carefully before using the bike.

As a manufacturer, we are committed to provide you complete customer

satisfaction. If you have any questions, or find there are missing or damaged parts,

we guarantee you complete satisfaction through direct assistance from our factory.

To avoid unnecessary delays, please call our TOLL-FREE customer service

number. Our Customer Service Agents will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

info@impex-fitness.com

©IMPEX INC. www.impex-fitness.com2

IMPORTANT SAFETY NOTICE

This exercise bike is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire

manual before you assemble or operate your bike. In particular, note the following

safety precautions:

PRECAUTIONS

1. Keep children and pets away from the exercise bike at all times. DO NOT leave

children unattended in the same room with the bike.

2. Only one person at a time should use the bike.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the bike on a clear, leveled surface. DO NOT use the bike near water or

outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or

other clothing that could become caught in the bike. Running or aerobic shoes are

also required when using the bike.

7. Use the bike only for its intended use as described in this manual. DO NOT use

attachments not recommended by the manufacturer.

8. Do not place any sharp object around the bike.

9. Disabled person should not use the bike without a qualified person or physician in

attendance.

10. Before using the bike to exercise, always do stretching exercises to properly warm

up.

11. Never operate the bike if it is not functioning properly.

12. Read all warnings posted on the exercise bike.

13. Inspect the exercise bike for worn or loose component prior to use. Tighten/replace

any loose or wore components prior to use.

14. Care should be taken in mounting or dismounting the exercise bike.

15. This exercise bike is for consumer and home use only.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE

AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY

DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

©IMPEX INC. www.impex-fitness.com3

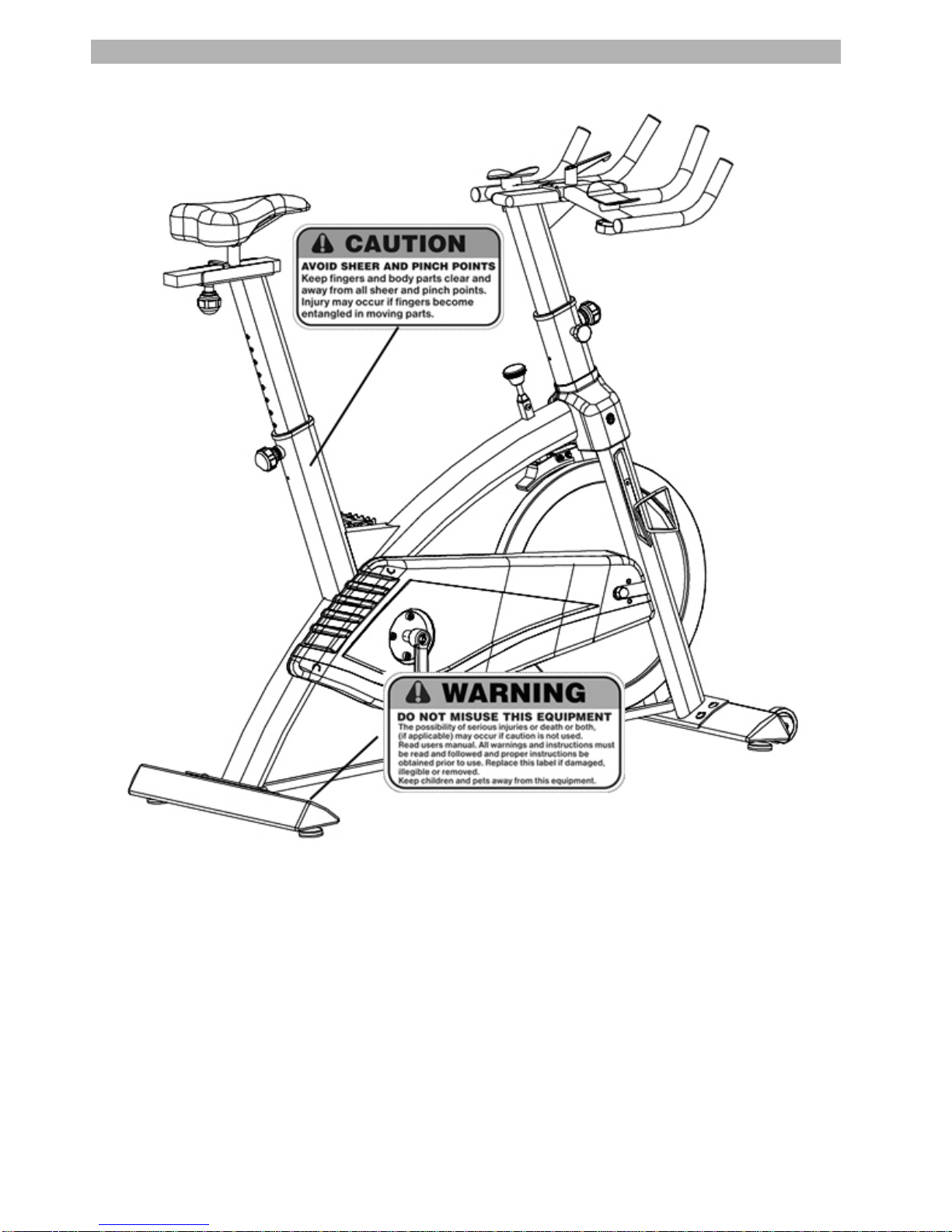

WARNING LABEL PLACEMENT

The Warning Labels and Caution Label shown here have been placed on the Rear Stabilizer and Main

Frame.

If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply

the labels in location shown.

©IMPEX INC. www.impex-fitness.com4

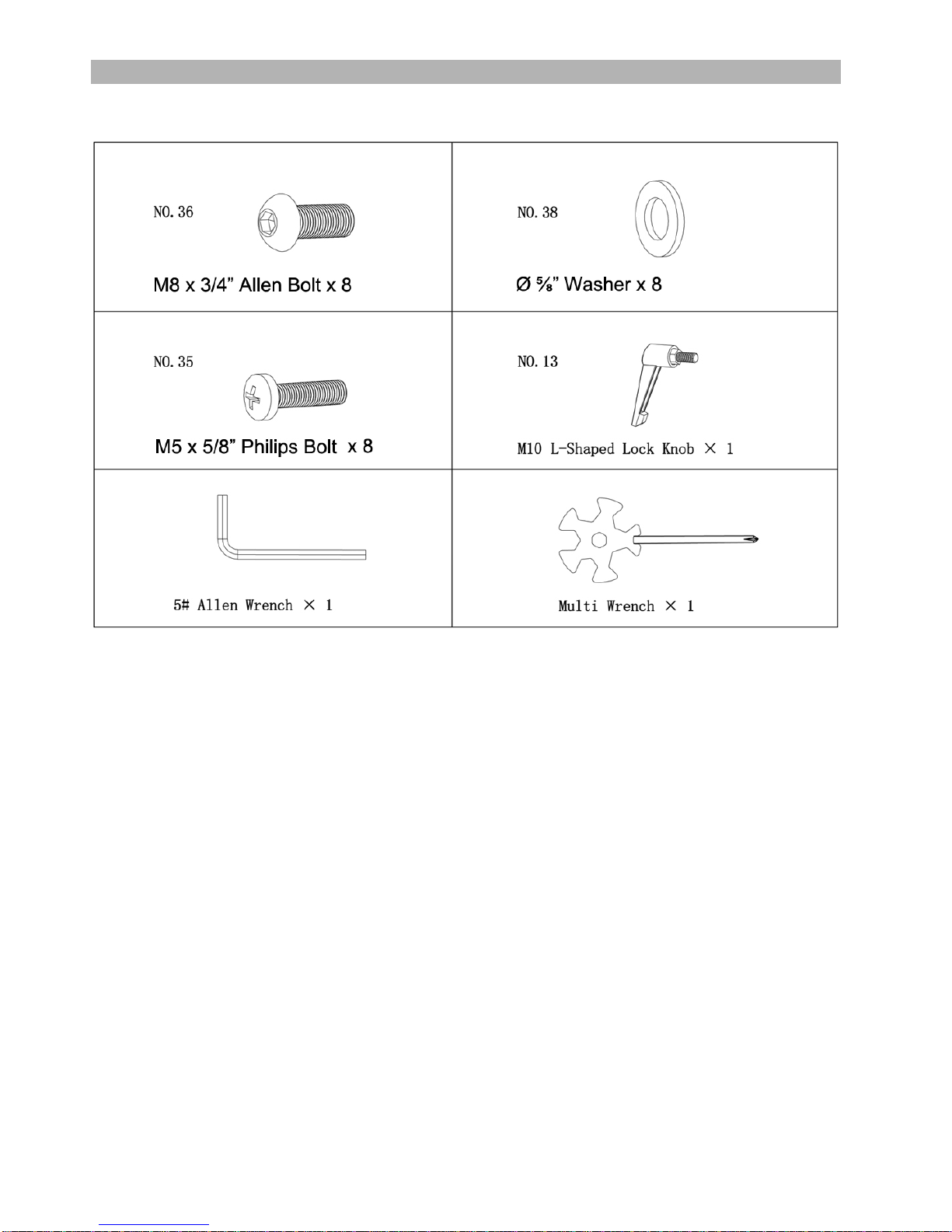

HARDWARE PACK

NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

©IMPEX INC. www.impex-fitness.com5

COMPONENTS FOR ASSEMBLY

©IMPEX INC. www.impex-fitness.com6

ASSEMBLY INSTRUCTION

•Tools Required For Assembling the Bike: One Crossing Wrench and Allen Wrench,

provided by manufacturer.

•NOTE: It is strongly recommended that two or more people assemble this bike to

avoid possible injury.

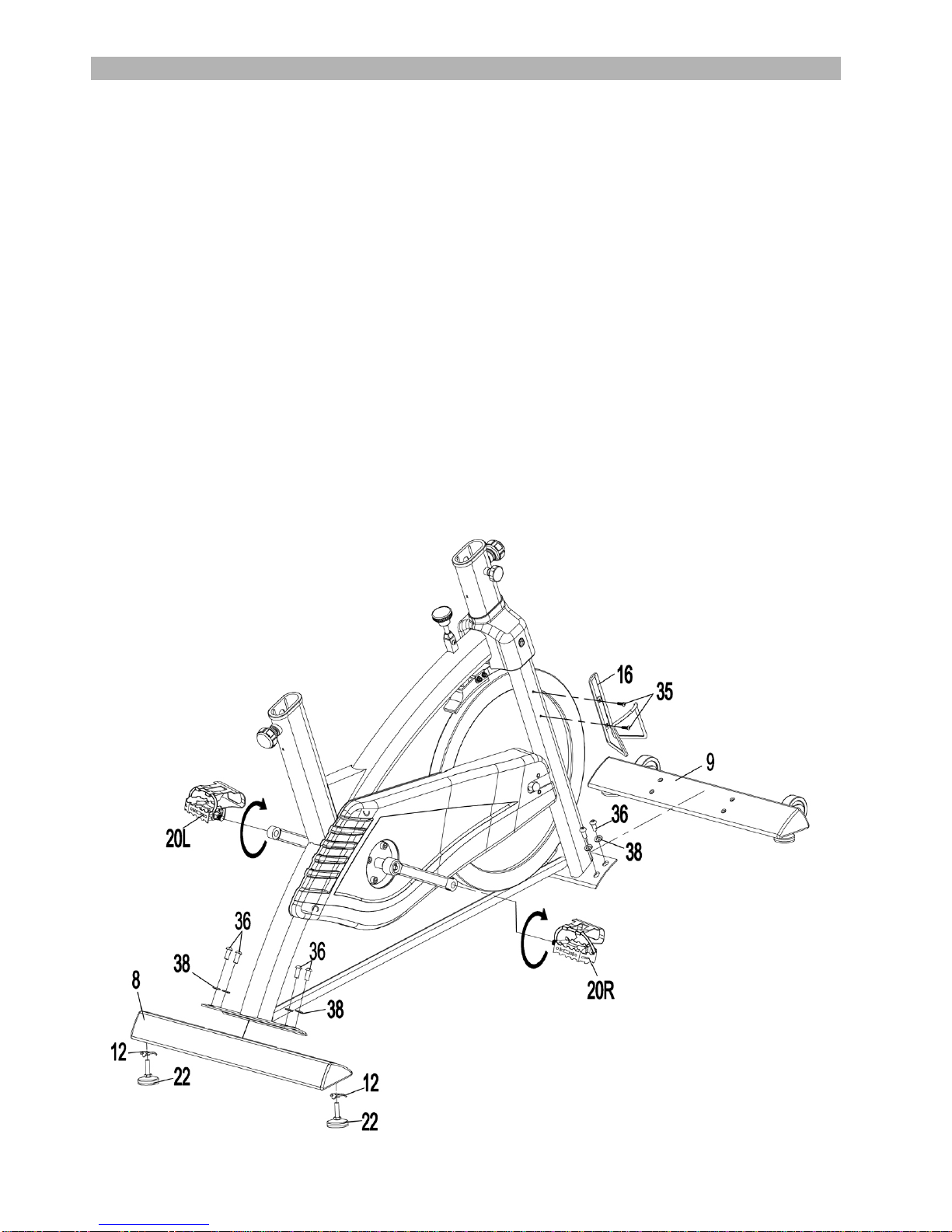

STEP-1

A.) Attach the Front Stabilizer (#9) to the Main Frame (#1). Secure it with four M8x ¾” Allen Bolts (#36)

and four Ø ⅝” Washers (#38).

B.) Attach the Rear Stabilizer (#8) to the Main Frame (#1). Secure it with four M8 x ¾” Allen Bolts (#36),

and four Ø ⅝” Washers (#38).

C.) Thread the Pedal (#20R) clockwise onto the right Crank (#17R).

D.) Thread the Pedal (#20L) counterclockwise onto the left Crank (#17L)

E.) Attach Water Bottle Rack (#16) to the Main Frame (#1), Secure with two M5 x 5/8” Philips Bolts

(#35).

F.) Use the two Level adjustment knobs (#22) to stabilize the Bike on floor.

©IMPEX INC. www.impex-fitness.com7

STEP 2

A.) Insert the Handle Post (#3) into the front opening on Main Frame (#1). Use the M16 Lock Knob

(#19) to hold the Handle Post at selected height. And lock the Handle Post (#3) by using M8 x

½” Lock Knob (#43).

B.) Attach the Handle (#2) to the Handle Post (#3). Secure them together with one M10 L-shaped

Lock Knob (#13) and Handle Sliding Block (#10) (which was pre -fitted inside of the tube).

C.) Attach two Elbow Supports (#6) into the split on the handle (#2), secure each of them with one

Rubber Spacer (#25) , one R29 Arc Washer (#7) and one M6 Knob (#18).

D.) Insert the Seat Post (#4) into the opening on Main Frame. Use the M16 Lock Knob (#19) to hold

the Seat Post at selected height.

E.) Flip over the Seat Pad (#14). Insert the tube on the Seat Support (#5) into the open slot and

securely fasten the two Nuts to secure the Seat Pad to the tube.

F.) Insert the Seat Support (#5) through the open slot on Seat Post. Use the M10 Seat Lock Knob

(#29) to hold the Seat at selected position.

©IMPEX INC. www.impex-fitness.com8

EXPLODED DIAGRAM

©IMPEX INC. www.impex-fitness.com9

JX-7038 PARTS LIST

PART NO.

DESCRIPTION

SPEC.

QUANTITY

Main Frame

Handle

Handle Post

Seat Post

Sliding Seat Support

Elbow Support

Arc Washer

R29

Rear Stabilizer

Front Stabilizer

Handle Sliding Block

Seat Support Sleeve

Level Knob Locking Nut

M12

L-shaped Lock Knob

M10

Seat Pad

Roller Wheel Sleeve

Water Bottle Rack

Crank L/R

Elbow Support Pad Lock Knob

Lock Knob

M16

Pedal L/R

Tension/Brake Knob

Level Adjustment Knob

Handle Cone-shaped End Cap

Ø 1”

Handle End Cap

Ø 1”

Rubber Spacer

Handle Support End Cap

2 ⅜” x ¾”

Sliding Seat Support End Cap

1 ⅝” x ¾”

Sleeve

1 ⅝” x 3 ⅛”

Seat Lock Knob

M10

Plastic Cover

Belt Cover

Stabilizer Right End Cap

Stabilizer Left End Cap

Roller Wheel

Philips Bolt

M5 x ⅝”

Allen Bolt

M8 x ¾”

Allen Bolt

M6 x 1 ⅝”

Washer

Ø ⅝”

Washer

Ø ½”

Aircraft Nut

Lower Handle Foam Grip

Upper Handle Foam Grip

Lock Knob

M8 x ½”
