Impex IGS-6500 Bedienungsanleitung

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

IGS-6500

Retain This

Manual for

Reference

11-26-07

OWNER'S

MANUAL

IRON GRIP STRENGTH

POWER SYSTEM

IGS-6500

IMPEX®INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................… 1

IMPORTANT SAFETY NOTICES.................................................................... 2

FUNCTIONAL TRAINER HARDWARE PACK….......…................................... 4

FUNCTIONAL TRAINER ASSEMBLY INSTRUCTIONS................................. 5

FUNCTIONAL TRAINER EXPLODED DIAGRAM………………………………. 12

FUNCTIONAL TRAINER PARTS LIST………..…………………………………. 13

MULTI-PURPOSE BENCH HARDWARE PACK………………………………. 14

MULTI-PURPOSE BENCH ASSEMBLY INSTRUCTIONS.............................. 15

MULTI-PURPOSE BENCH EXPLODED DIAGRAM……………………………. 20

MULTI-PURPOSE BENCH PARTS LIST………………………………………… 21

WARRANTY.................................................................................................… 22

ORDERING PARTS......................................................................................... 22

BEFORE YOU BEGIN

Thank you for selecting the IRON GRIP STRENGTH IGS-6500 POWER

SYSTEM by IMPEX®INC. For your safety and benefit, read this manual

carefully before using the machine. As a manufacturer, we are committed to

provide you complete customer satisfaction. If you have any questions, or find

there are missing or damaged parts, we guarantee you complete satisfaction

through direct assistance from our factory. To avoid unnecessary delays,

please call our TOLL-FREE customer service number. Our Customer Service

Agents will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

13. Maximum user’s weight on bench is 300 lbs.

CARE AND MAINTENANCE

1. Lubricate moving parts with WD-40 or light oil periodically.

2. Inspect and tighten all parts before using the machine.

3. The Frame and Seat Pad of the machine can be cleaned using a damp cloth and mild

non-abrasive detergent. DO NOT use solvents.

4. Use clean cloth with light pressure to clean the Weight Stack Cover. Clean the covers

with product specifically labeled as safe for Plexiglas or Acrylic Products. DO NOT use

window cleaner, alcohol, or solvents.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE

OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY

DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

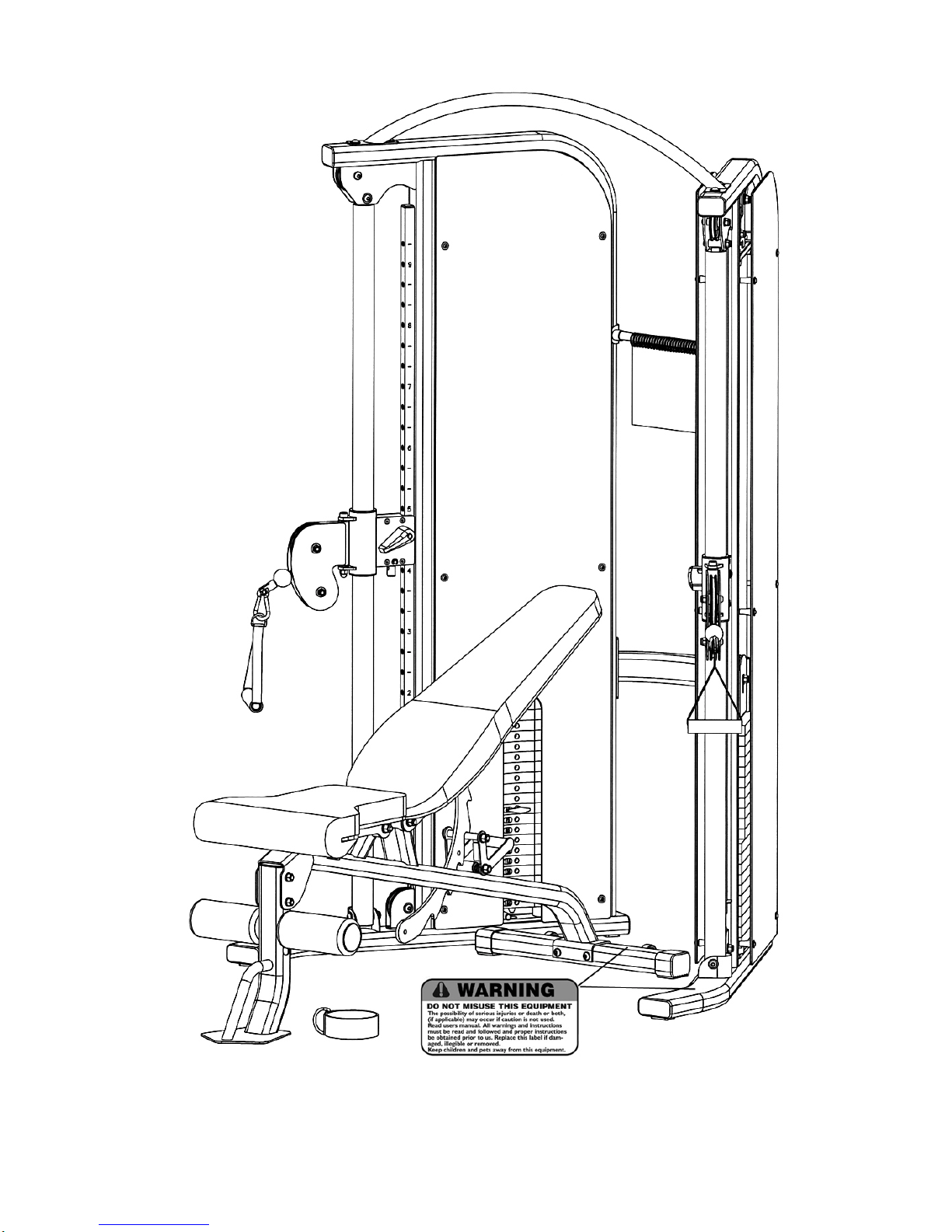

WARNING LABEL PLACEMENT

The warning labels have been placed on the unit in location shown. If the labels are missing or

illegible, please call customer service at 1-800-888-8899 for replacements. Apply the labels in location

shown. 3

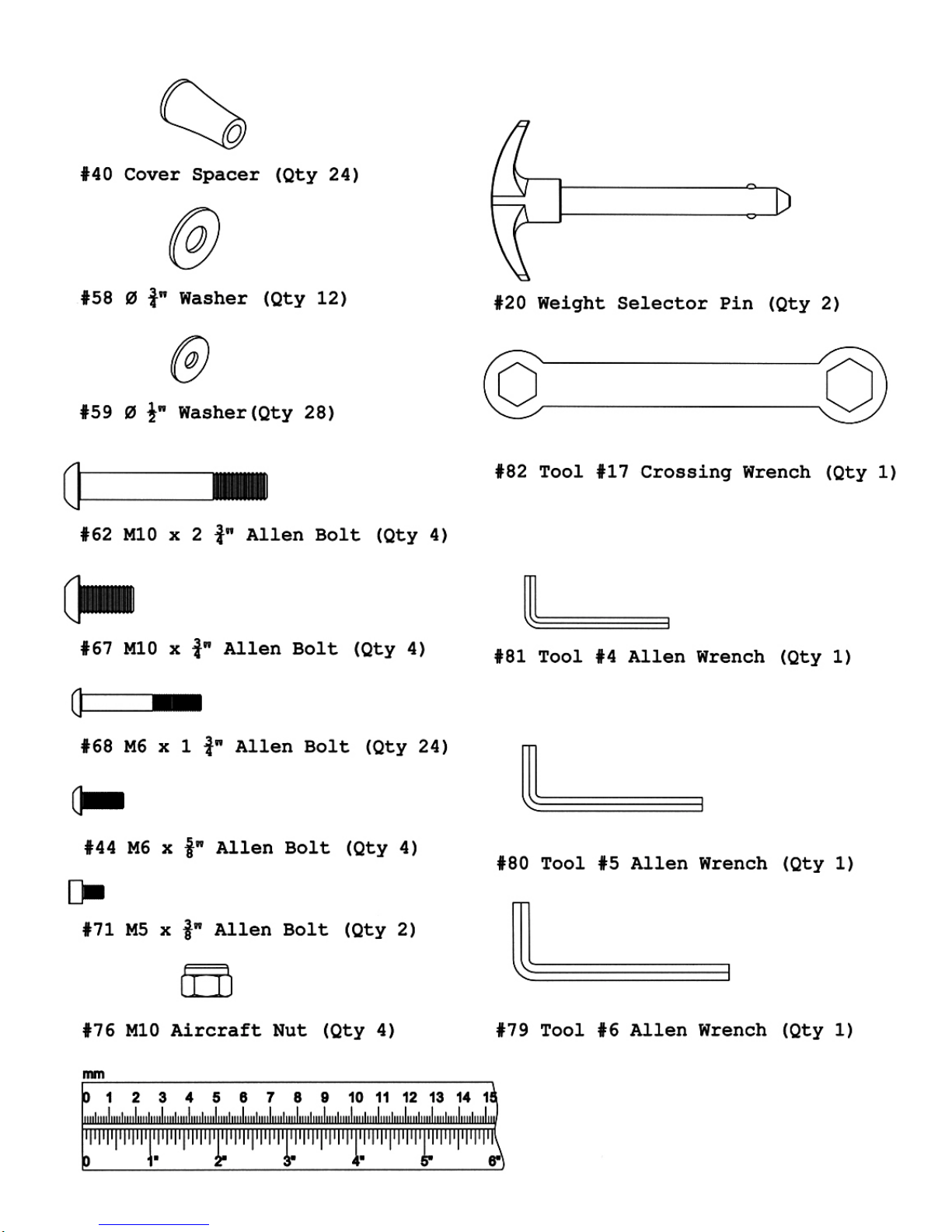

FUNCTIONAL TRAINER HARDWARE PACK

FUNCTIONAL TRAINER ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Crossing Wrench and Allen Wrenches.

NOTE: Two or more people assembling this machine is a must. Do NOT attempt to

assemble this machine alone.

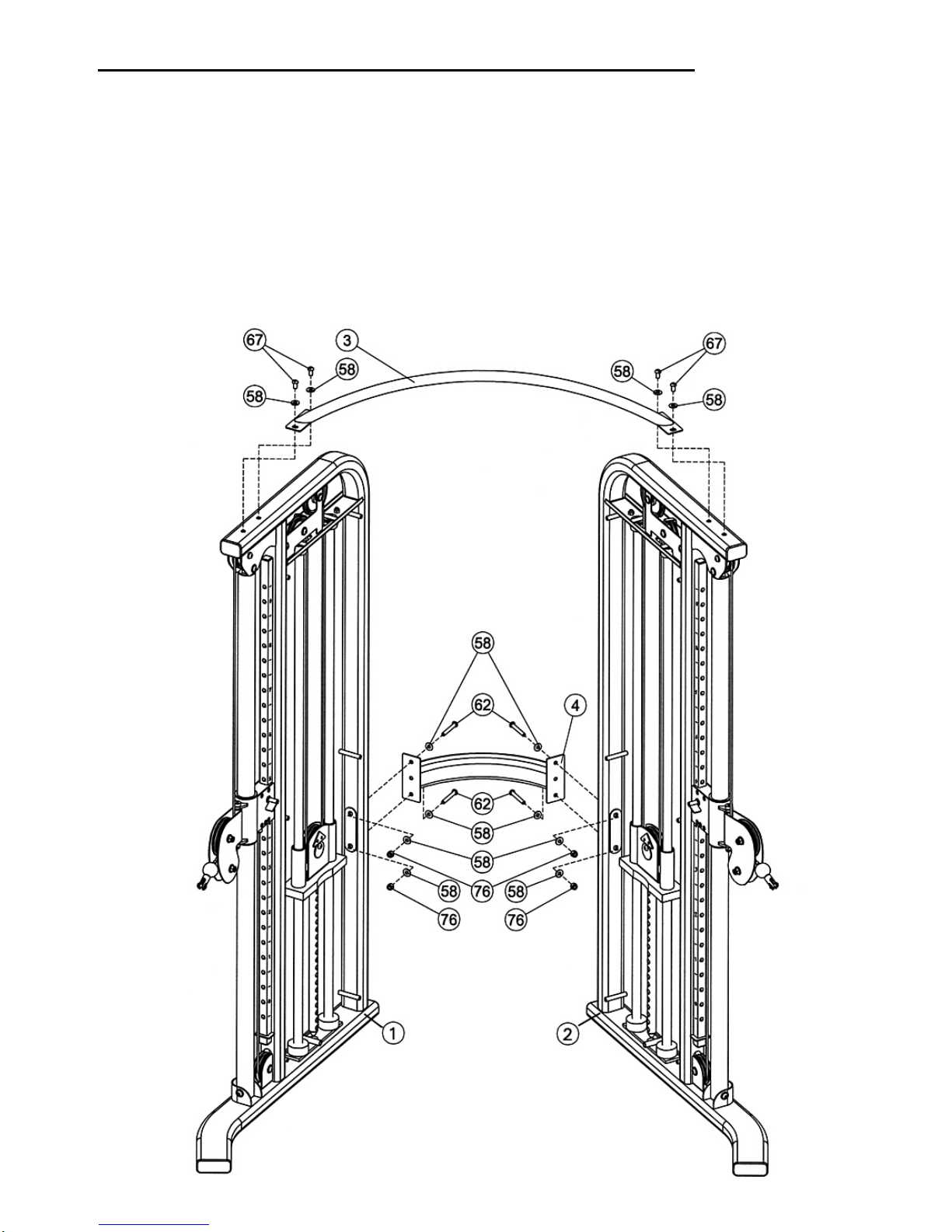

STEP 1 (See Diagram 1)

A.) Place the Cross Brace (#4) between the Right & Left Stations (#1 & #2) in the mid-span.

B.) Attach one end of the Cross Brace to the Right Station. Secure it with two M10 x 2 ¾”

Allen Bolts (#62), four Ø ¾” Washers (#58), and two M10 Aircraft Nuts (#76).

C.) Repeat the same procedure to install the other side.

D.) Place the Chin-up Bar (#3) on top of the Right and Left Stations.

E.) Secure each end with two M10 x ¾” Allen Bolts (#67) and Ø ¾” Washers (#58).

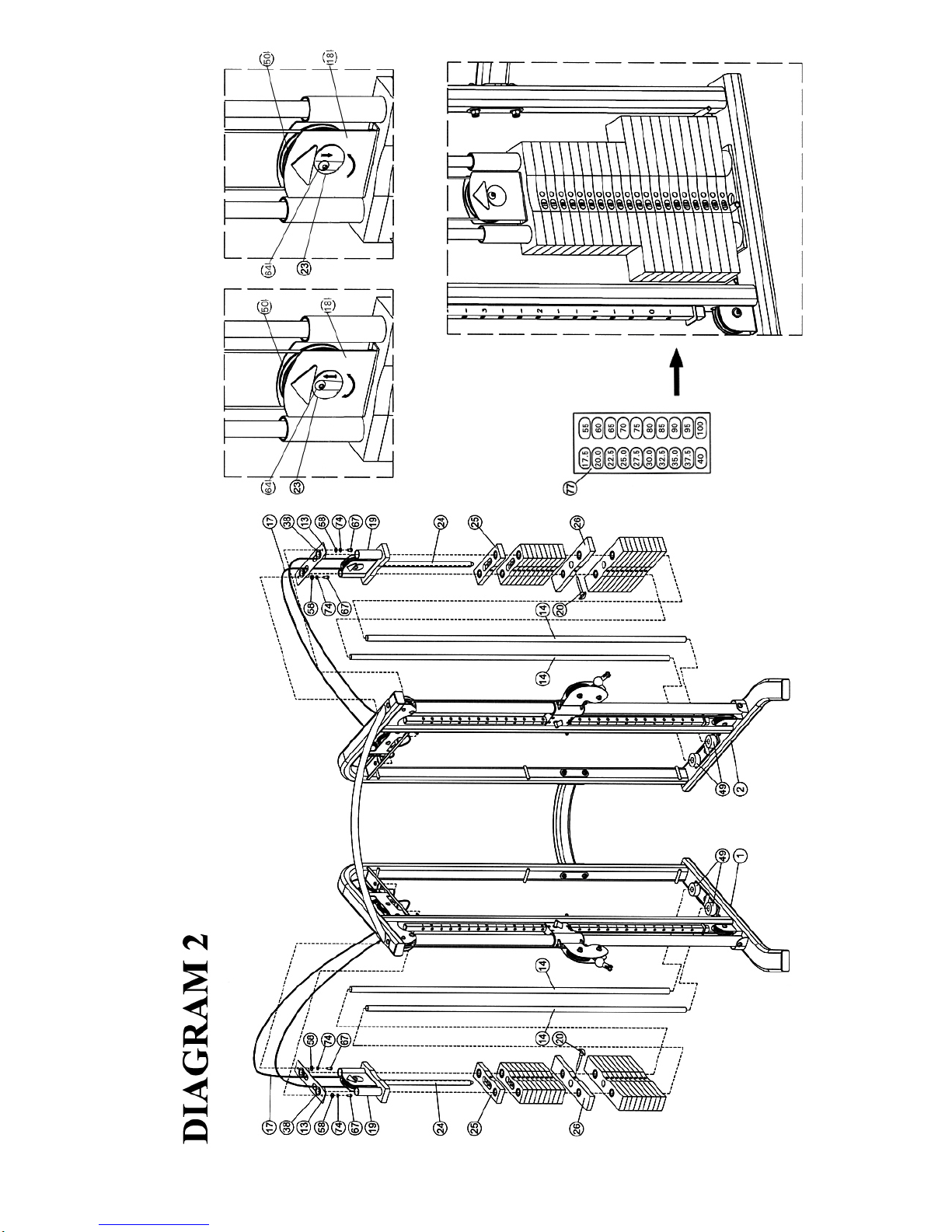

STEP 2 (See Diagram 2)

A.) Lift up the Selector Stem (#19) on the Right Station (#1) and hold it still to release the

tension on the cables. Remove the two M10 x ¾” Allen Bolts (#67), Ø ¾” Spring

Washers (#74), and Ø ¾” Washers (#58) which were pre-assembled in the factory to

hold the Guide Rod Bracket (#13).

B.) Pull the two Guide Rods (#14) away from the Upright. Remove the Guide Rod

Bracket (#13) from the top of the Guide Rods.

C.)Remove the Selector Stem (#19) from the Guide Rods.

D.)Slide ten 10lb Weight Plates (#26) from top of Guide Rods down to the Rubber

Bumpers (#49). Slide ten 5lb Weight Plates (#25) onto the Guide Rods. Make sure

the curved-side of the plates all facing the inside of the machine.

E.) Slide the Selector Stem back onto the Guide Rods. Still hold the Selector Stem above

the weight stack for easier to re-install Guide Rods and Bracket.

F.) Re-install the Guide Rod Bracket (#13) onto the Guide Rods.

G.)Push the Guide Rod Bracket back into the upright.

H.)Secure the Bracket back to the upright frame with the two M10 x ¾” Allen Bolts, Ø ¾”

Spring Washers (#74), Ø ¾” Washers (#58).

I.) Lay down the Selector Stem onto the top of the weight stack.

J.) Check all the cables to make sure they are on track on the pulleys.

K.) Peel off the weight resistance label from the Resistance Label Set (#77) and attach to

the plates.

L.) Insert the Weight Selector Pin (#20) into the weight stack. Refer to the Weight

Resistance Chart on Page 11.

M.)Lubricate the Guide Rods with WD-40 or light oil.

N.)Adjust the Cable tension by first loosen the M10 x 2” Allen Bolt (#64). Then rotate the

Tension Adjustment Plate (#23) clock or counterclockwise to move the Bolt and the

Large Pulley (#50) up and down along the open track inside the U-shaped Pulley

Bracket (#18). Rotate the Plate counterclockwise to increase the tension to remove

the slack in the cables. Securely tighten the Bolt back.

O.)Repeat the Procedure A through N above to install the other set of weight plates to

the Left Station (#2).

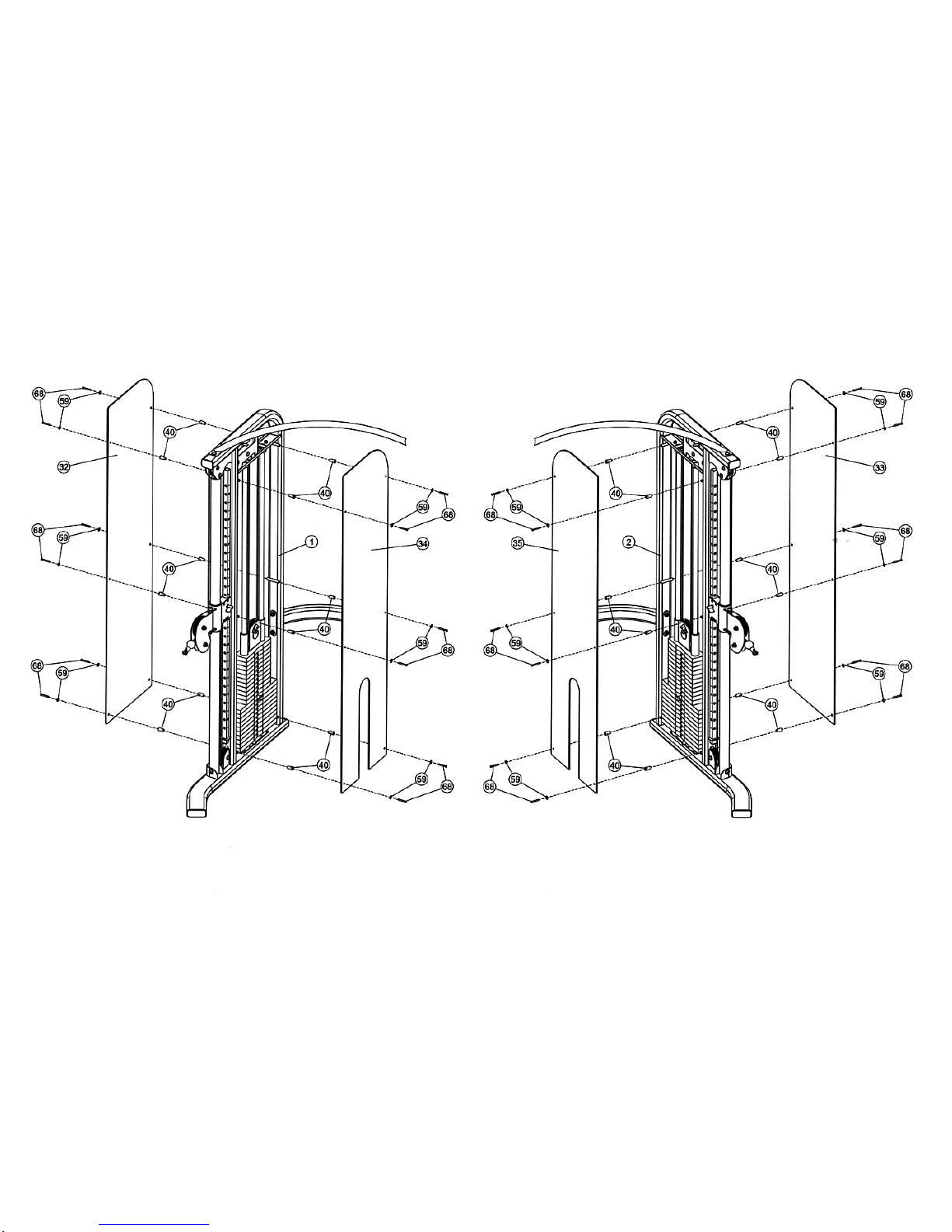

STEP 3 (See Diagram 3)

A.) Peel off the cover paper on the surface of the Right Outer Cover (#32) and Right

Inner Cover (#34).

B.) Attach the Right Outer Cover to the Right Station from the outside. Secure it with

six M6 x 1 ¾” Allen Bolts (#68), Ø ½” Washers (#59), and Cover Spacers (#40).

C.)Attach the Right Inner Cover (#34) to the Right Station from the inside. Secure it

with six M6 x 1 ¾” Allen Bolts (#68), Ø ½” Washers (#59), and Cover Spacers

(#40).

D.)Note: Do not over tighten the Bolts to avoid cracking the Covers.

E.) Repeat Procedures A through C above to install the other side.

DAIGRAM 3

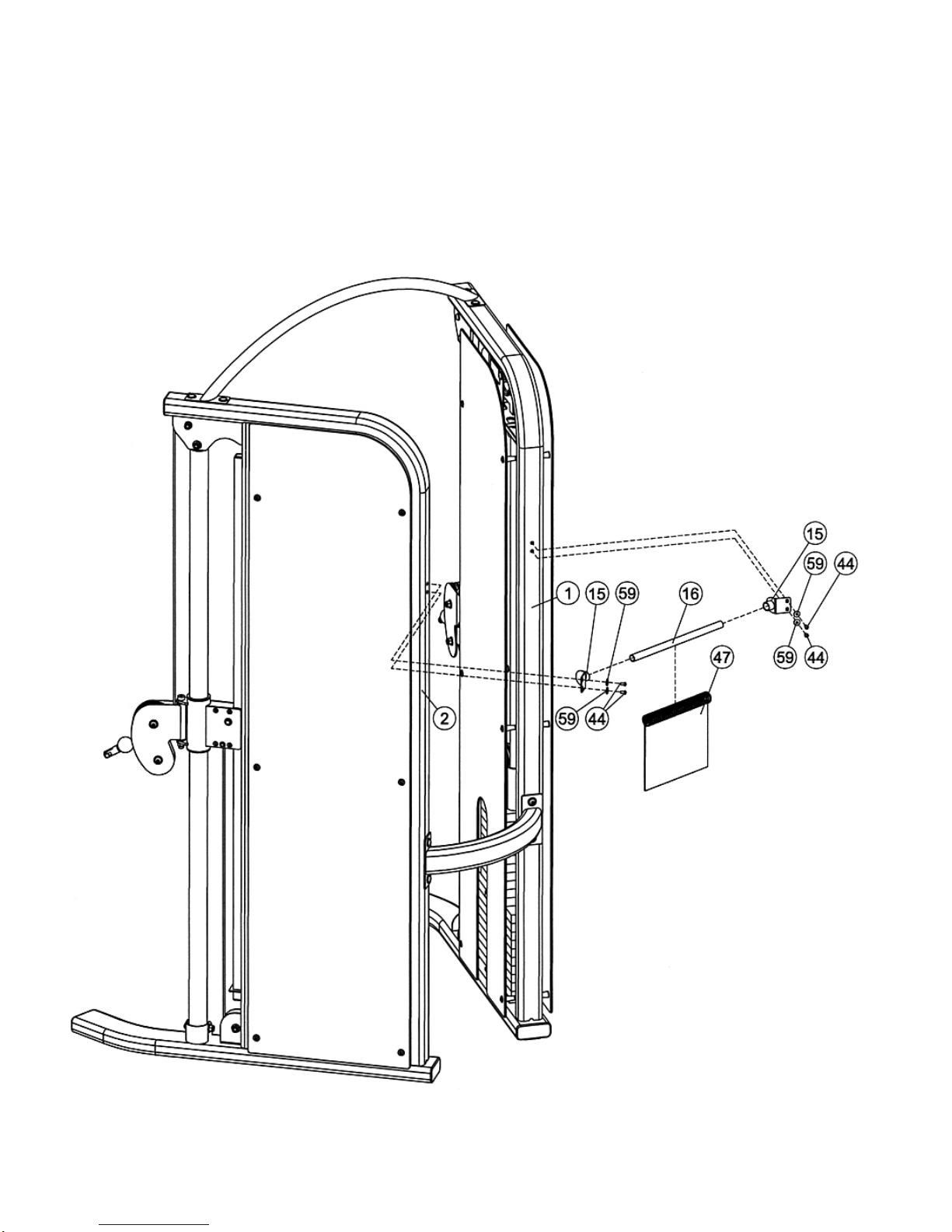

STEP 4 (See Diagram 4)

A.) Attach one Hanger Bracket (#15) to the Right Station (#1). Secure it with two M6 x 5/8” Allen

Bolts (#44) and Ø ½” Washers (#59). Do not tighten the Bolts yet.

B.) Slide the Flip Exercise Chart onto the Hanger (#16).

C.)Attach the Hanger (#16) to the Brackets (#15).

D.)Secure the other Bracket to the Left Station (#2) with two M6 x 5/8” Allen Bolts (#44) and Ø

½” Washers (#59).

E.) Securely tighten all Bolts installed. DIAGRAM 4
