Impex PREMIER Bedienungsanleitung
NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Resistance Chart
Warranty
Ordering Parts
Model
PREMIER
Retain This
Manual for
Reference
09-23-02
OWNER'S
MANUAL
MARCY PREMIER
HOME GYM
IMPEX FITNESS PRODUCTS
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
TABLE OF CONTENTS
BEFORE YOU BEGIN....................................................................................……….. 1
IMPORTANT SAFETY NOTICES...................................................................……….. 2
HARDWARE IDENTIFIER.....….....................................................................……….. 3
ASSEMBLY INSTRUCTIONS.........................................................................……….. 4
PARTS LIST…………………………………………………………………………………..16
RESISTANCE CHART………….......................................................................……….17
WARRANTY.................................................................................................………….18
ORDERING PARTS.......................................................................................…………18
BEFORE YOU BEGIN
Thank you for selecting the MARCY PREMIER HOME GYM by IMPEX FITNESS
PRODUCTS. For your safety and benefit, read this manual carefully before using
the machine. As a manufacturer, we are committed to provide you complete
customer satisfaction. If you have any questions, or find there are missing or
damaged parts, we guarantee you complete satisfaction through direct
assistance from our factory. To avoid unnecessary delays, please call our TOO-
FREE customer service number. Our Customer Service Agents will provide
immediate assistance to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. – Fri. 9 a.m. – 5 p.m. PST
www.impex-fitness.com
1
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF
35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO
RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY
OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2
3
ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches.
NOTE: It is strongly recommended this machine to be assembled by two or more people to
avoid possible injury.

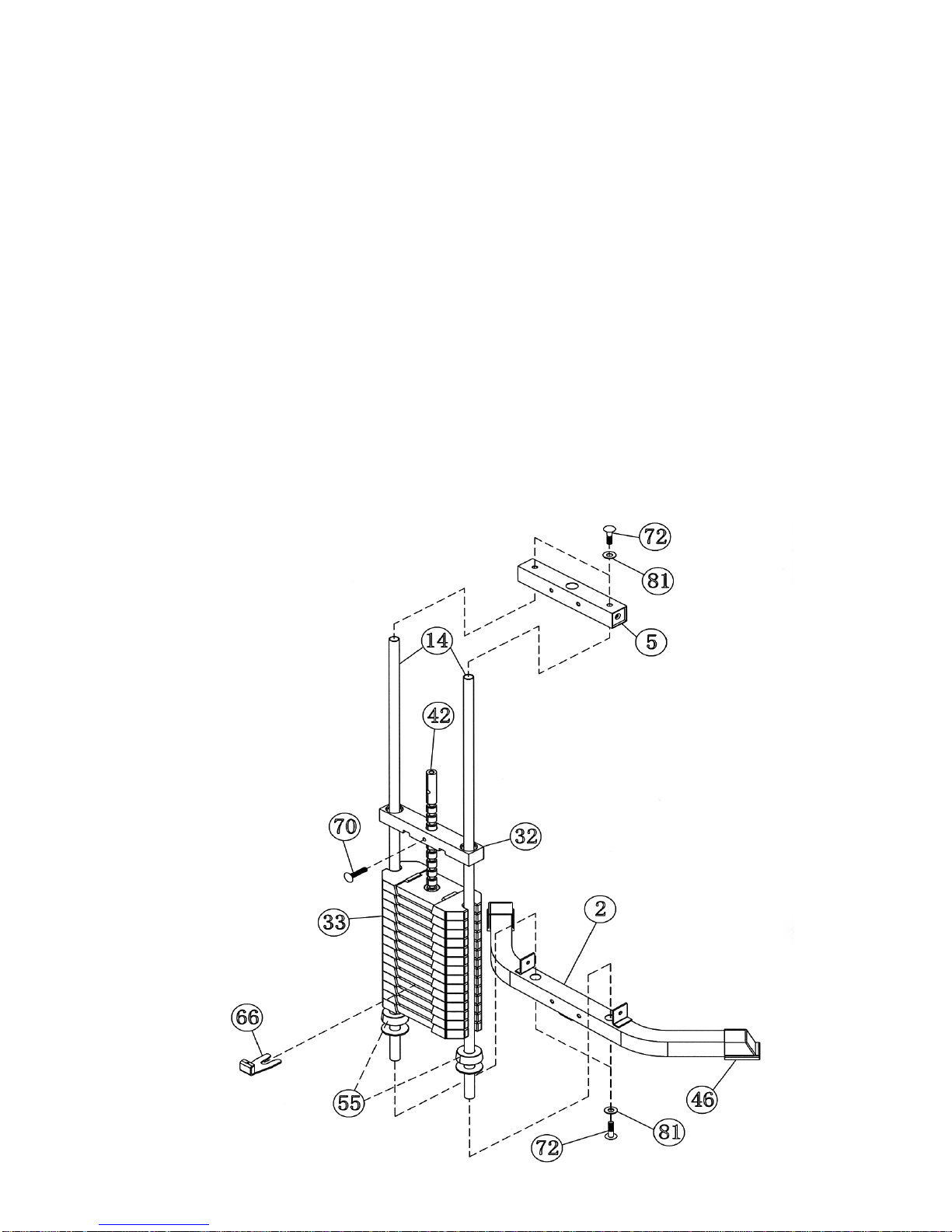

STEP 1 (See Diagram 1)
A.) Slide two Round Rubber Bumpers (#55) onto the Guide Rods (#14). Align the holes and push
two Guide Rods (#14) into the Rear Stabilizer (#2). Secure each Guide Rod with one M10 x ¾”
Allen Bolt (#72) and ∅¾” Washer (#81) on the bottom.
B.) Install fourteen Weight Plates (#33). To install the plate, hold the plate at an angle and place it
in between the two Guide Rods then drop it down. NOTE: Make sure the groves on the plastic
covers all face up. Insert the Selector Rod (#42) into the center hole on the Plates. Slide the
Selector Stem (#32) onto the Guide Rods from the top. Align the holes and secure the
Selector Stem (#32) to the Selector Rod (#42) with a M10 x 1 ¾” Socket Bolt (#70). Use the
Weight Select Pin (#66) to secure the Plates. Make sure the magnet on the Pin faces up.
C.)It is strongly recommended to spray lubricant such as WD-40 on the two Guide Rods to
minimize friction. Please note this machine comes with 14 plates. You can purchase another 5
more plates (Model No. WK51) in the future to increase the weights.
D.)Attach the Top Socket Assembly (#5) to the top of the Guide Rods. Secure the Assembly to
the Guide Rods with two M10 x ¾” Allen Bolts (#72) and ∅¾” Washers (#81).
DIAGRAM 1
4

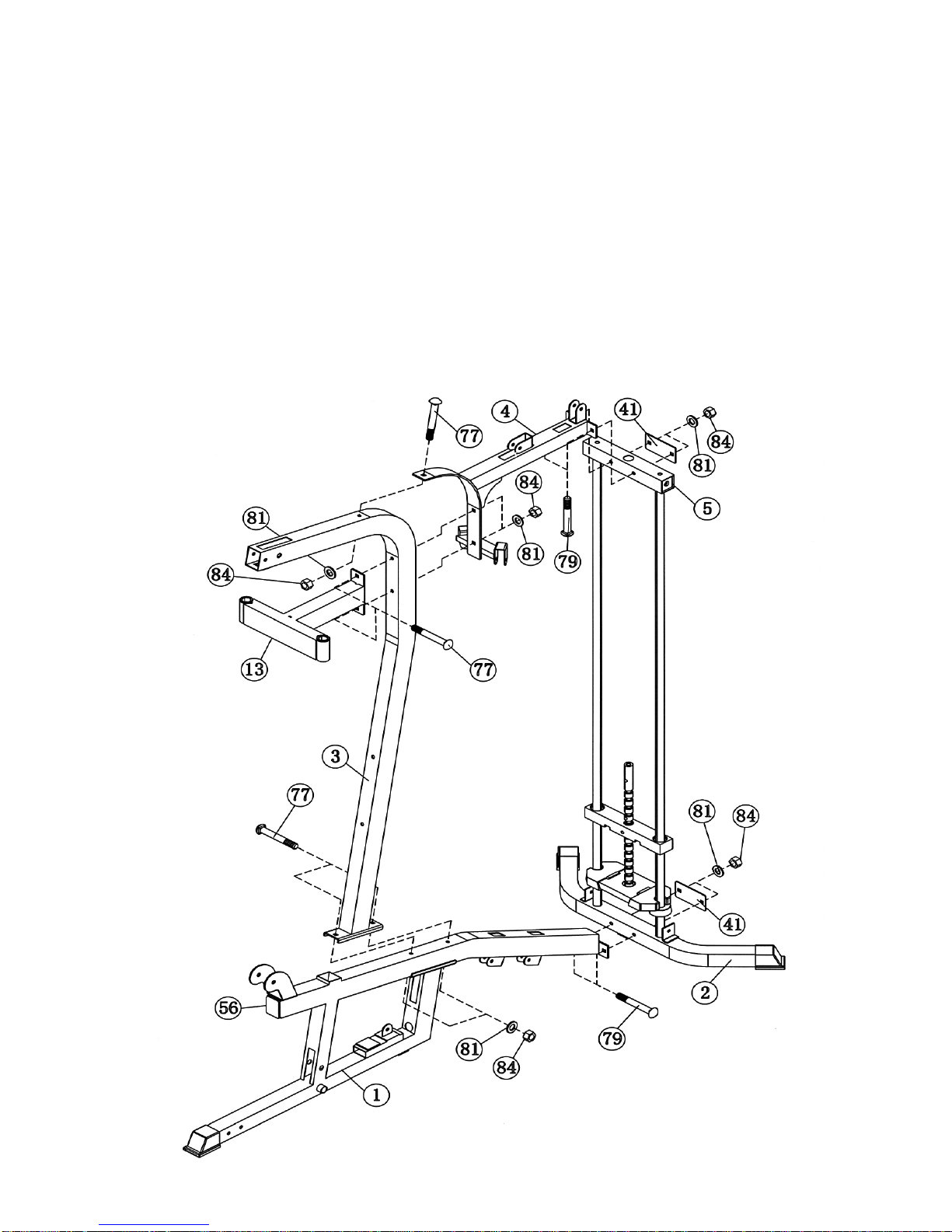

STEP 2 (See Diagram 2)
A.) Attach the Main Base Frame (#1) to the Rear Stabilizer (#2). Secure it with one Bracket
(#41), two M10 x 2 ¾” Carriage Bolts (#79), ∅¾” Washers (#81), and M10 Aircraft Nuts
(#84). Do not tighten the Nuts and Bolts yet.
B.) Attach the bottom of the Vertical Beam (#3) to the Main Base Frame (#1). Secure it with two
M10 x 3 ½” Carriage Bolts (#77), ∅¾” Washers (#81), and M10 Aircraft Nuts (#84). Do not
tighten the Nuts and Bolts yet.
C.)Attach the Butterfly Support Frame (#13) to the front of Vertical Beam (#3). Attach the front
end of Upper Frame (#4) to the back of Vertical Beam. Align the holes and secure them
together with three M10 x 3 ½” Carriage Bolts (#77), ∅¾” Washers (#81), and M10 Aircraft
Nuts (#84).
D.)Attach the rear end of Upper Frame (#4) to the Top Socket Assembly (#5). Secure it with
one Bracket (#41), two M10 x 2 ¾” Carriage Bolts (#79), ∅¾” Washers (#81), and M10
Aircraft Nuts (#84). Securely tighten all the Nuts and Bolts previously installed.
DIAGRAM 2
5
STEP 3 (See Diagram 3)
A.) Attach the Left and Right Front Presses (#6 & 7) to the pivot on the Main Base Frame (#1).
Secure them together with a M10 x 8 1/8” Axle (#38), two ∅¾” Washers (#81), and two M10
Aircraft Nuts (#84).
B.) Attach the Front Press Bracket (#15) to the Front Presses. Secure it with two M10 x 3 1/8”
Carriage Bolts (#78), ∅¾” Washers (#81), and M10 Aircraft Nuts (#84).
C.) Attach the Seat Pad (#30) to the Seat Incline Adjustment (#12). Secure it with two M8 x 1
5/8” Allen Bolts (#75), and ∅5/8” Washers (#82). Insert the Seat Incline Adjustment into the
opening on the Main Base Frame. Lock the desired incline position with a Lock Knob (#65).
D.) Attach two Foot Plates (#25) to the Main Base Frame (#1). Secure it with two M10 x 2 ¾”
Carriage Bolts (#79), ∅¾” Washers (#81), and M10 Aircraft Nuts (#84). DIAGRAM 3
6

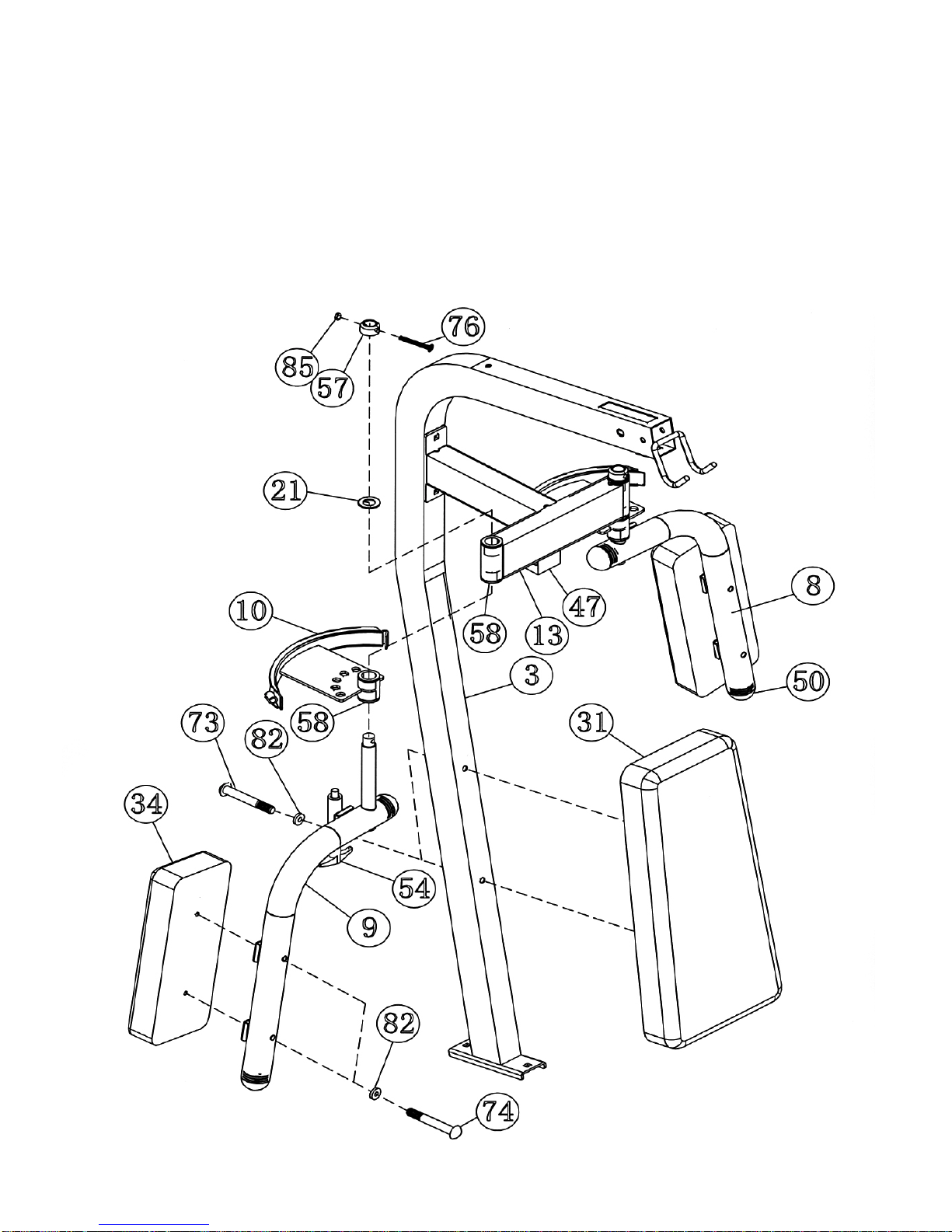

STEP 4 (See Diagram 4)
A.) Slide one Butterfly Support Bracket (#10) onto the Right Butterfly (#9). Insert the Right
Butterfly into the pivot on the Butterfly Support Frame (#13) from the bottom. Secure it with
one ∅1 ½” Washer (#21), ∅1 3/8” Lock Ring (#57), M6 x 1 5/8” Hex Bolt (#76), and M6
Aircraft Nut (#85).
B.) Attach the Butterfly Arm Pad (#34) to the Right Butterfly. Secure it with two M8 x 2 ¾” Allen
Bolts (#74) and ∅5/8” Washers (#82).
C.)Repeat steps A & B above to install the Left Butterfly (#8).
D.)Attach the Backrest Board (#31) to the Vertical Beam (#3). Secure it with two M8 x 3 ½”
Allen Bolts (#73) and ∅5/8” Washers (#82). DIAGRAM 4
7

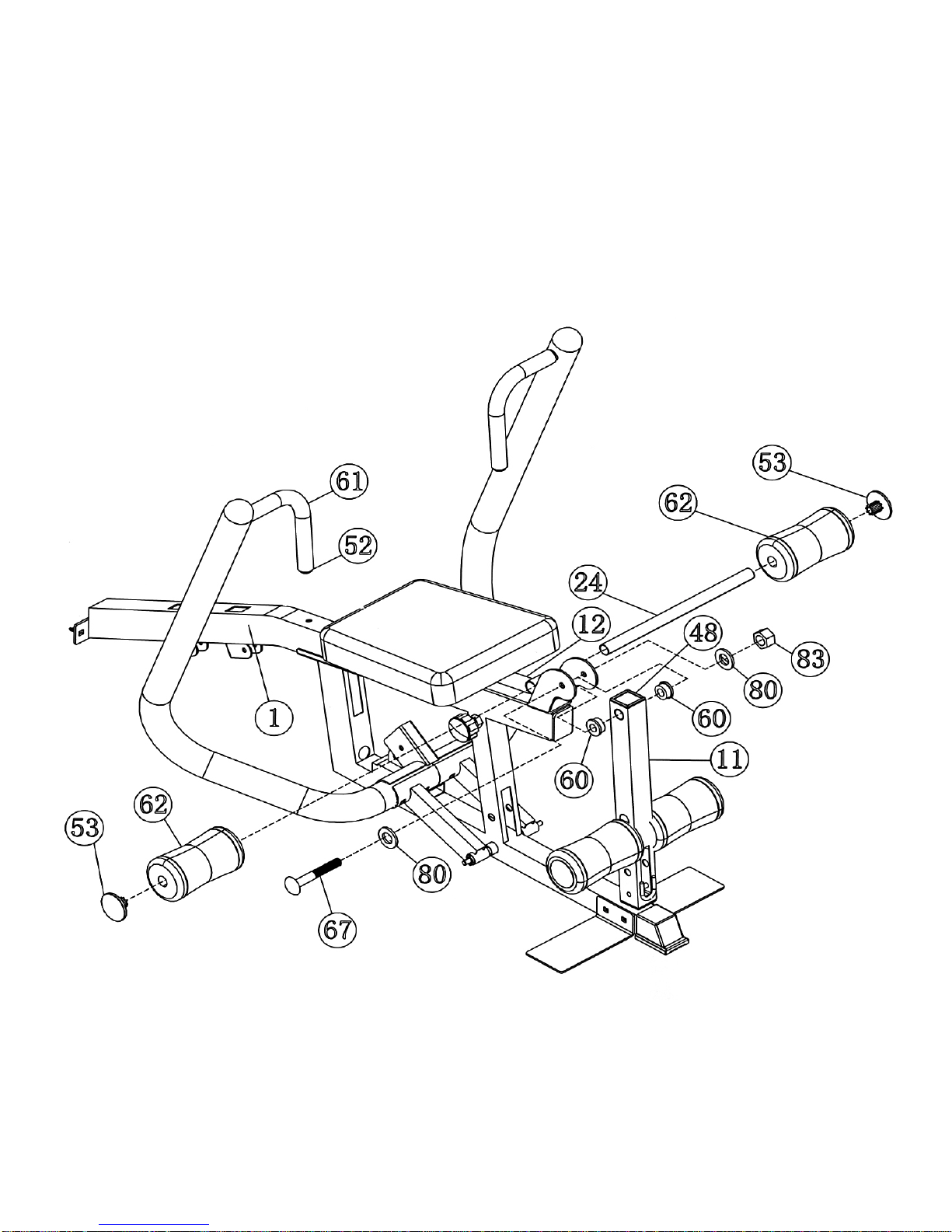

STEP 5 (See Diagram 5)
A.) Attach two ∅1” x ¼” Bushings (#60) to the pivot on the Leg Developer (#11). Attach the
Leg Developer (#11) to the Bracket in front of the Seat. Secure it with one M12 x 3 1/8”
Allen Bolt (#67), two ∅1” Washers (#80) and one M12 Aircraft Nut (#83).
B.) Insert two Foam Roll Tubes (#24) halfway through the holes on the Seat Incline Adjustment
(#12) and Leg Developer (#11). Push four Foam Rolls (#62) onto the Tubes from both
ends. Plug four ∅2 5/8” Foam Roll End Caps (#53) to the ends.
DIAGRAM 5
8

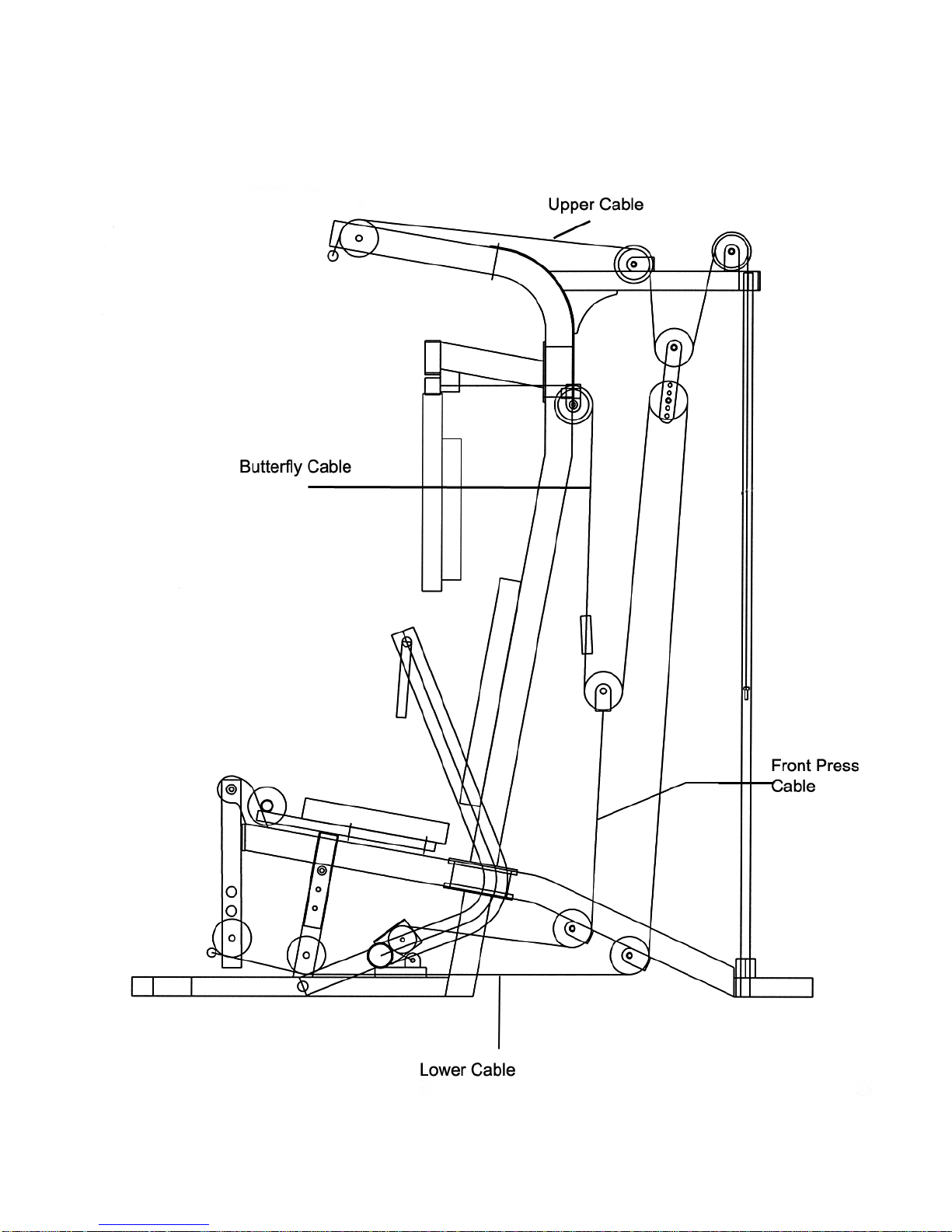

CABLE LOOP DIAGRAM
9
