Impex IGS-8861 Bedienungsanleitung

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

IGS-8861

Retain This

Manual for

Reference

09-28-07

OWNER'S

MANUAL

IRON GRIP STRENGTH

OLYMPIC BENCH

IGS-8861

IMPEX®INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN....................................................................................……….. 1

IMPORTANT SAFETY NOTICE...................................................................……….. 2

HARDWARE PACK……….....….....................................................................……….. 4

ASSEMBLY INSTRUCTIONS.........................................................................……….. 6

EXPLODED DIAGRAM…………………………………………………………………….. 11

PARTS LIST………….………….......................................................................………. 12

WARRANTY.................................................................................................…………. 13

ORDERING PARTS.......................................................................................………… 13

BEFORE YOU BEGIN

Thank you for selecting the IRON GRIP STRENGTH IGS-8861 Olympic

Bench by IMPEX INC. For your safety and benefit, read this manual

carefully before using the machine. As a manufacturer, we are committed

to provide you complete customer satisfaction. If you have any questions,

or find there are missing or damaged parts, we guarantee you complete

satisfaction through direct assistance from our factory. To avoid

unnecessary delays, please call our TOLL-FREE customer service

number. Our Customer Service Agents will provide immediate assistance

to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. – Fri. 9 a.m. – 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

13. Maximum user’s weight: 300 lbs.

14. Maximum weight on uprights: 600 lbs.

15. Maximum weight on leg developer: 100 lbs.

CARE AND MAINTENANCE

1. Inspect and tighten all parts before using the machine.

2. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.

DO NOT use solvents.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE

AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ

ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY

DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

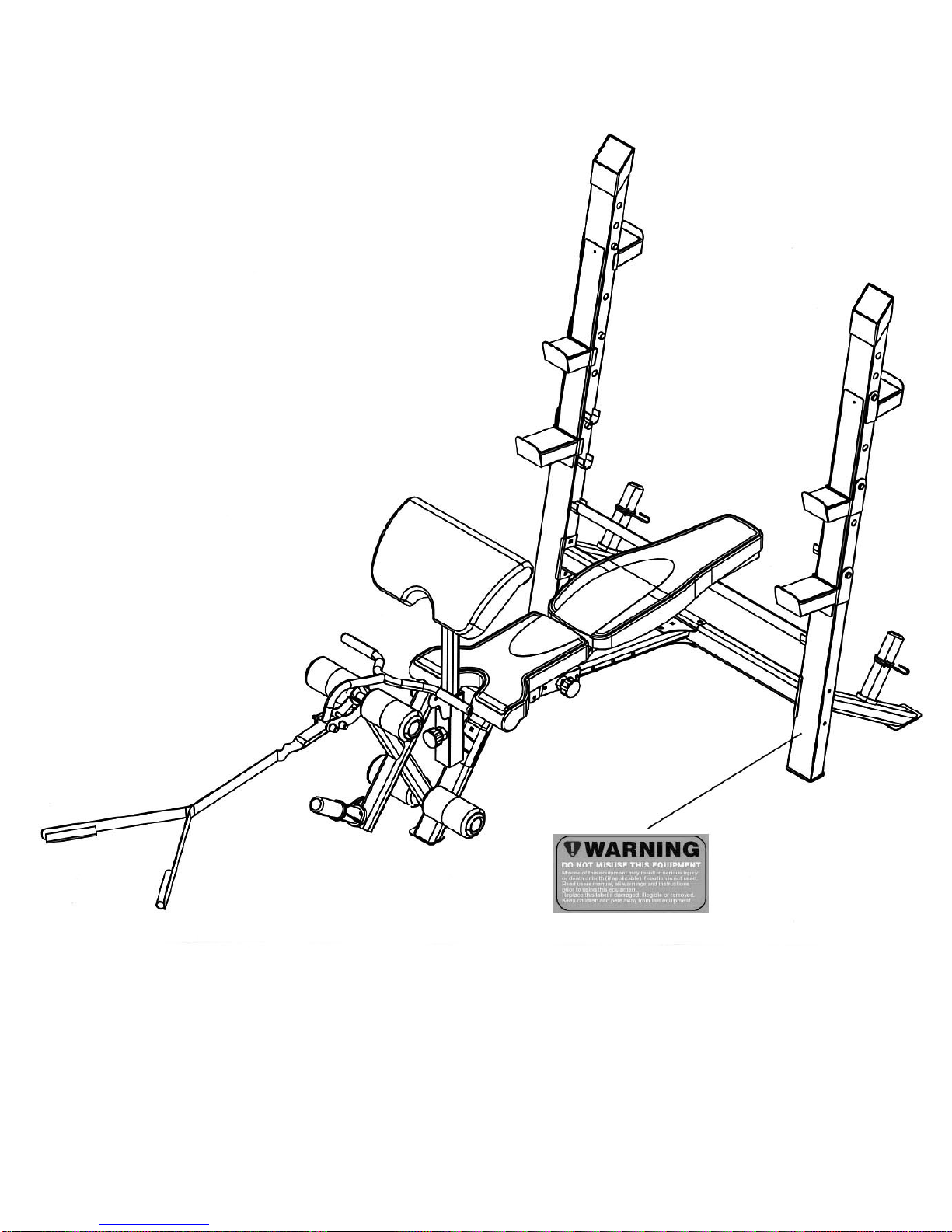

WARNING LABEL REPLACEMENT

The Warning Label shown here has been placed on the Left Upright Beam. If the label is missing or

illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in location shown

HARDWARE PACK

NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

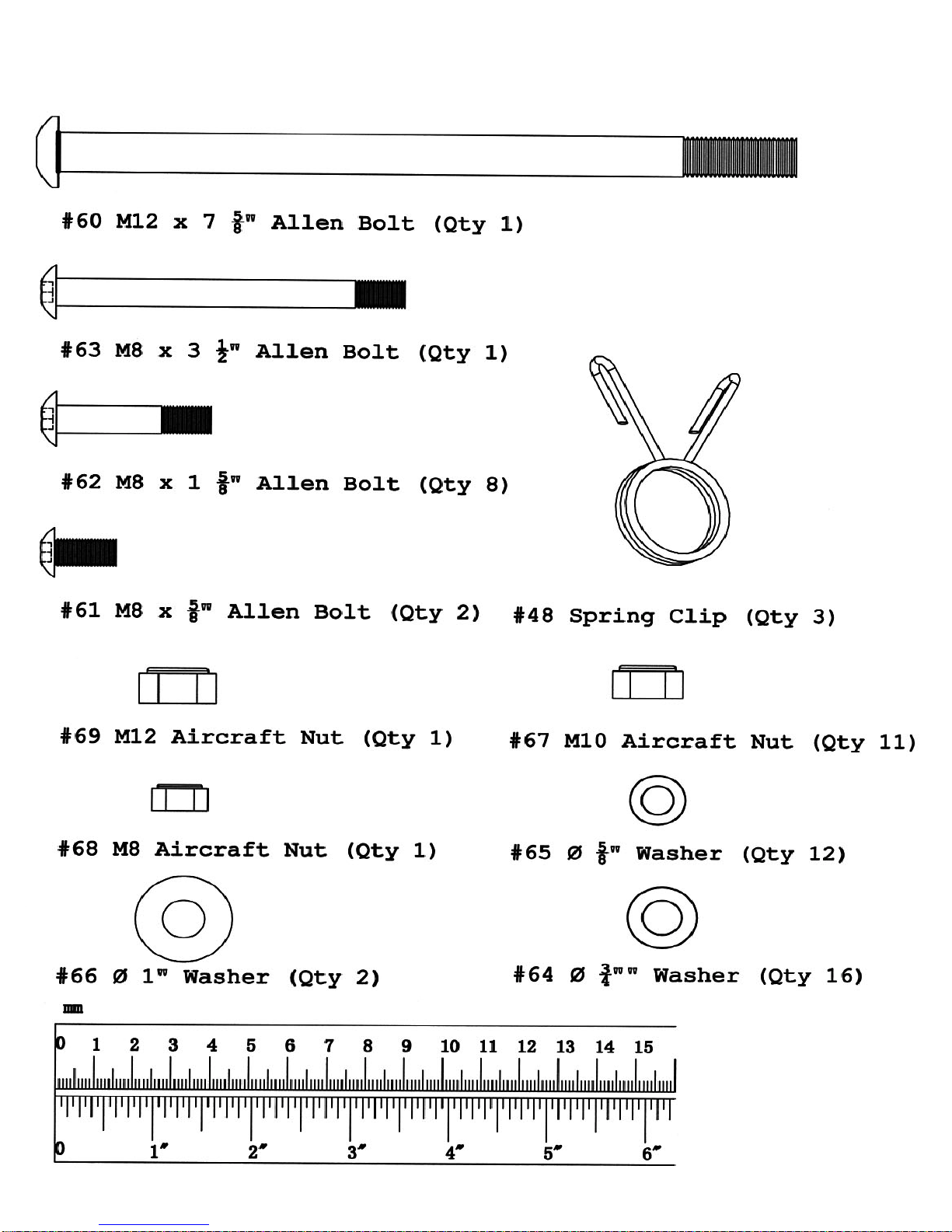

HARDWARE PACK

NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches.

NOTE: It is strongly recommended two or more people assembling this machine to avoid

possible injury.

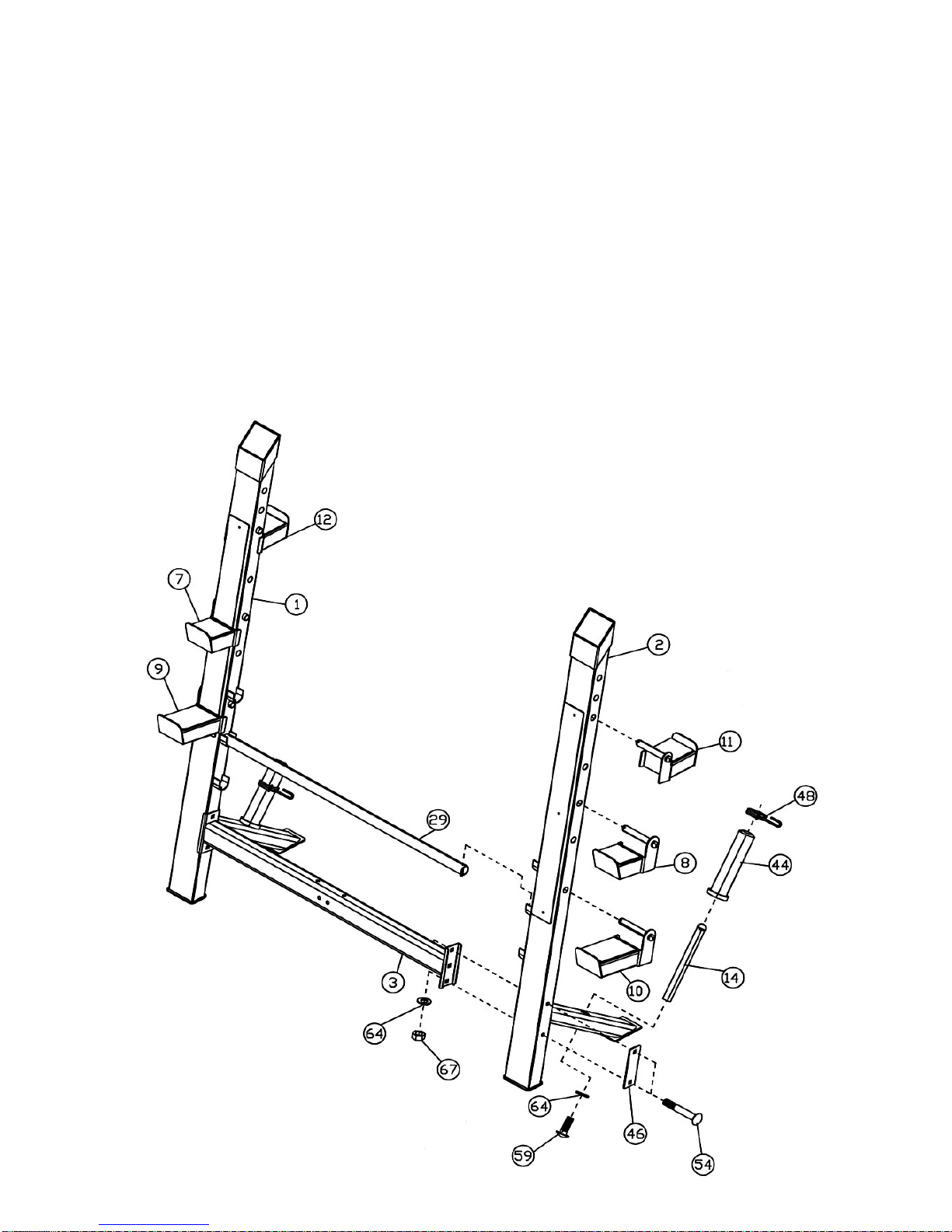

STEP 1 (See Diagram 1)

A.) Connect the Right and Left Upright Beams (#1 & #2) with a Cross Brace (#3) in the mid-span.

Secure each end with two M10 x 4 ¾” Carriage Bolts (#54), one 5 ½” x 2” Bracket (#46), two Ø

¾” Washers (#64), and two M10 Aircraft Nuts (#67).

B.) Attach a Weight Post (#14) to the rear diagonal support on the Left Upright Beam. Secure it

with one M10 x ¾” Allen Bolt (#59) and ∅¾” Washer (#64). Slide an Olympic Sleeve (#44)

onto the Weight post. Attach a Spring Clip (#48) to the Sleeve. Repeat the same procedure to

install the other side.

C.)Place the Backrest Adjustment Bar (#29) onto the selected slot on the Upright Beams.

D.)Attach the Left & Right Squat Bar Catches (#11 & #12) onto the two Upright Beams. Insert the

Right & Left Bar Catches (#7 & #8), Right & Left Safety Catches (#9 & #10) into the selected

holes on the two Upright Beams.

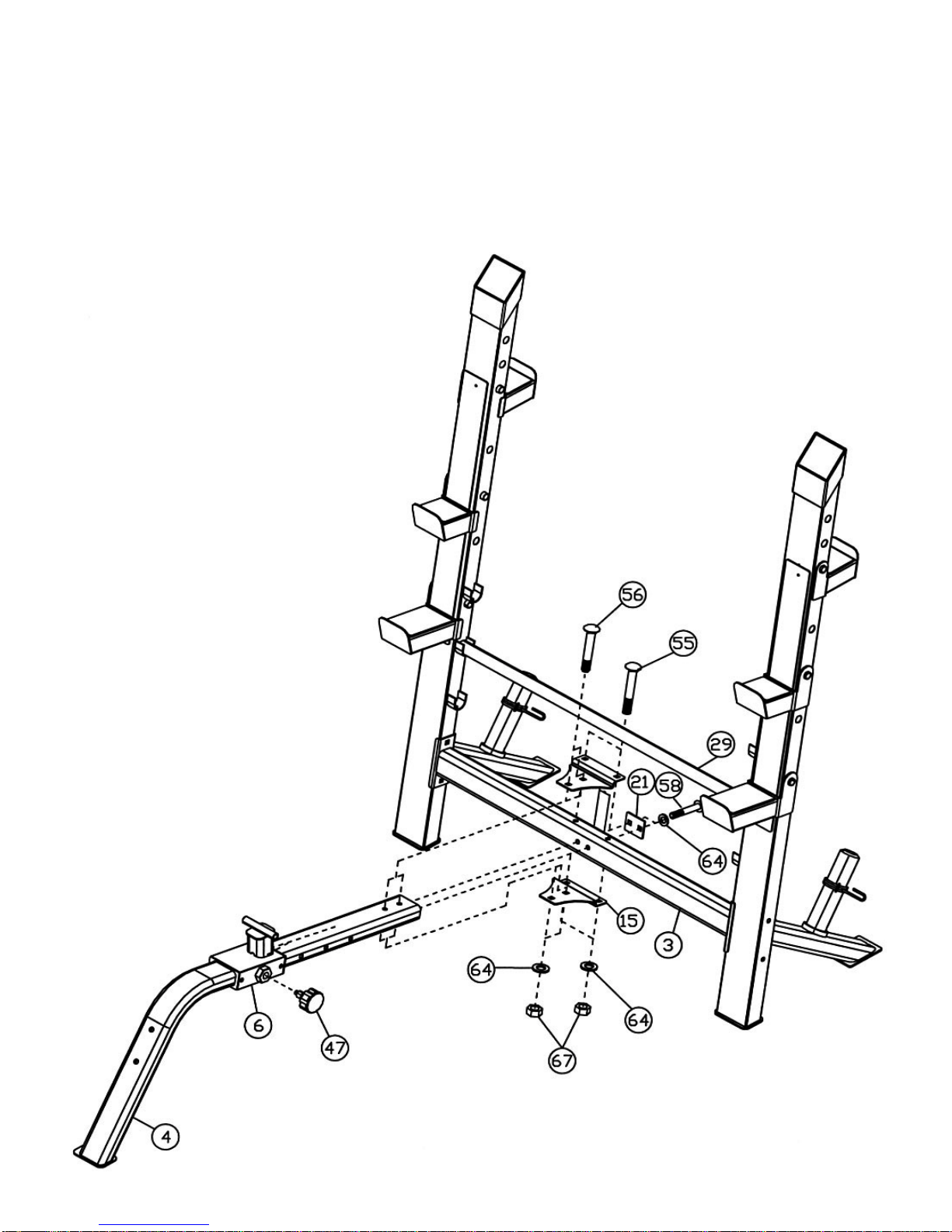

STEP 2 (See Diagram 2)

A.) Slide the Sliding Block (#6) onto the Main Seat Support (#4). Thread a M18 x ∅5/8” Lock

Knob (#47) into the selected hole to hold the Sliding Block in position.

B.) Attach the Main Seat Support to the Cross Brace (#3).

C.)Secure it from the rear of the Cross Brace with two M10 x 2 ¾” Allen Bolts (#58), one 2 ½”

x 2” Bracket (#21), and two ∅¾” Washers (#64).

D.)Secure it from the top of Cross Brace and Main Seat Support with two M10 x 3 ½” Carriage

Bolts (#55), two M10 x 2 3/8” Carriage Bolts (#56), two Triangular Brackets (#15), four Ø

¾” Washers (#64), and four M10 Aircraft Nuts (#67).

STEP 3 (See Diagram 3)

A.) Attach the brackets at the end of the Backrest Supports (#32) to the pivot on the Sliding

Block (#6). Align the holes on the Seat Support (#16) to the brackets on the Backrest

Supports. Secure them together with one M12 x 7 5/8” Allen Bolt (#60), two ∅1”

Washers (#66) and one M12 Aircraft Nut (#69).

B.) Attach the Backrest Board (#26) to the Backrest Supports. Secure it with four M8 x 1 5/8”

Allen Bolts (#62) and Ø 5/8” Washers (#65). Place the other end of Backrest Board rest

against the Backrest Adjustment Bar.

C.) Place the Seat Pad (#27) onto the Seat Support (#16). Secure it with four M8 x 1 5/8”

Allen Bolts (#62) and Ø 5/8” Washers (#65).

D.) Insert a 4 ¾” Lock Pin (#36) into the selected hole on the Seat Support to obtain the

desired Seat inclined position.

STEP 4 (See Diagram 4)

A.) Insert two M10 x 2 3/8” Carriage Bolts (#56) all the way through the holes on the Leg

Developer Holder (#5), then insert the two Bolts through the holes on the Main Seat

Support (#4). Attach the Leg Developer Holder to the Main Seat Support. Secure them with

the two M10 x 2 3/8” Carriage Bolts, one 4 ¾” x 2” Bracket (#45), two Ø ¾” Washers (#64),

and two M10 Aircraft Nuts (#67). Thread a M18 x Ø 5/8” Lock Knob (#47) into the nut on

the Leg Developer Holder.

B.) Attach the Leg Developer (#13) to the Leg Developer Holder. Secure it with one M10 x 3

½” Allen Bolt (#57), two ∅¾” Washers (#64), and one M10 Aircraft Nut (#67).

C.)Insert two Foam Tubes (#18) halfway through the holes on the Leg Developer. Push four

Foam Rolls (#37) onto the Tubes from both ends. Plug four Foam Roll End Caps (#43)

into the ends.

D.)Slide an Olympic Sleeve (#44) onto the weight post on the Leg Developer. Attach a Spring

Clip (#48) to the Sleeve.

E.) Attach the Arm Curl Handle (#30) to the back holes on the Leg Developer. Secure it with

one 3” Lock Pin (#35). Attach the Abdominal Strap (#31) to the front holes on the Leg

Developer. Secure it with another 3” Lock Pin. DIAGRAM 4
