Impex MWM 2001 Bedienungsanleitung

NOTE:

Please read all instructions

carefully before using this

product

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Resistance Chart

Warranty

Ordering Parts

Model

MWM 2001

Retain This

Manual for

Reference

Version I

06-01-01

OWNER'S

MANUAL

MARCY MWM 2001

HOME GYM

IMPEX FITNESS PRODUCTS

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICES..................................................................... 2

HARDWARE IDENTIFIER.....…....................................................................... 3

ASSEMBLY INSTRUCTIONS........................................................................... 4

PARTS LIST......................................................................................................12

RESISTANCE CHART……………………………………………………………… 13

HOW TO USE…………................................................................................… 14

WARRANTY.................................................................................................… 15

ORDERING PARTS......................................................................................... 15

BEFORE YOU BEGIN

Thank you for selecting the MARCY MWM 2001 PERSONAL TRAINER by IMPEX

FITNESS PRODUCTS. For your safety and benefit, read this manual carefully

before using the machine. As a manufacturer, we are committed to provide you

complete customer satisfaction. If you have any questions, or find there are missing

or damaged parts, we guarantee you complete satisfaction through direct

assistance from our factory. To avoid unnecessary delays, please call our TOLL-

FREE customer service number. Our Customer Service Agents will provide

immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply whenever

you operate a piece of exercise equipment. Be sure to read the entire manual before you

assemble or operate your machine. In particular, note the following safety precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN

IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN.

THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS

WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING

ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL

INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS

PRODUCT.

SAVE THESE INSTRUCTIONS.

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches

NOTE: It is strongly recommended this machine to be assembled by two or more people to

avoid possible injury.

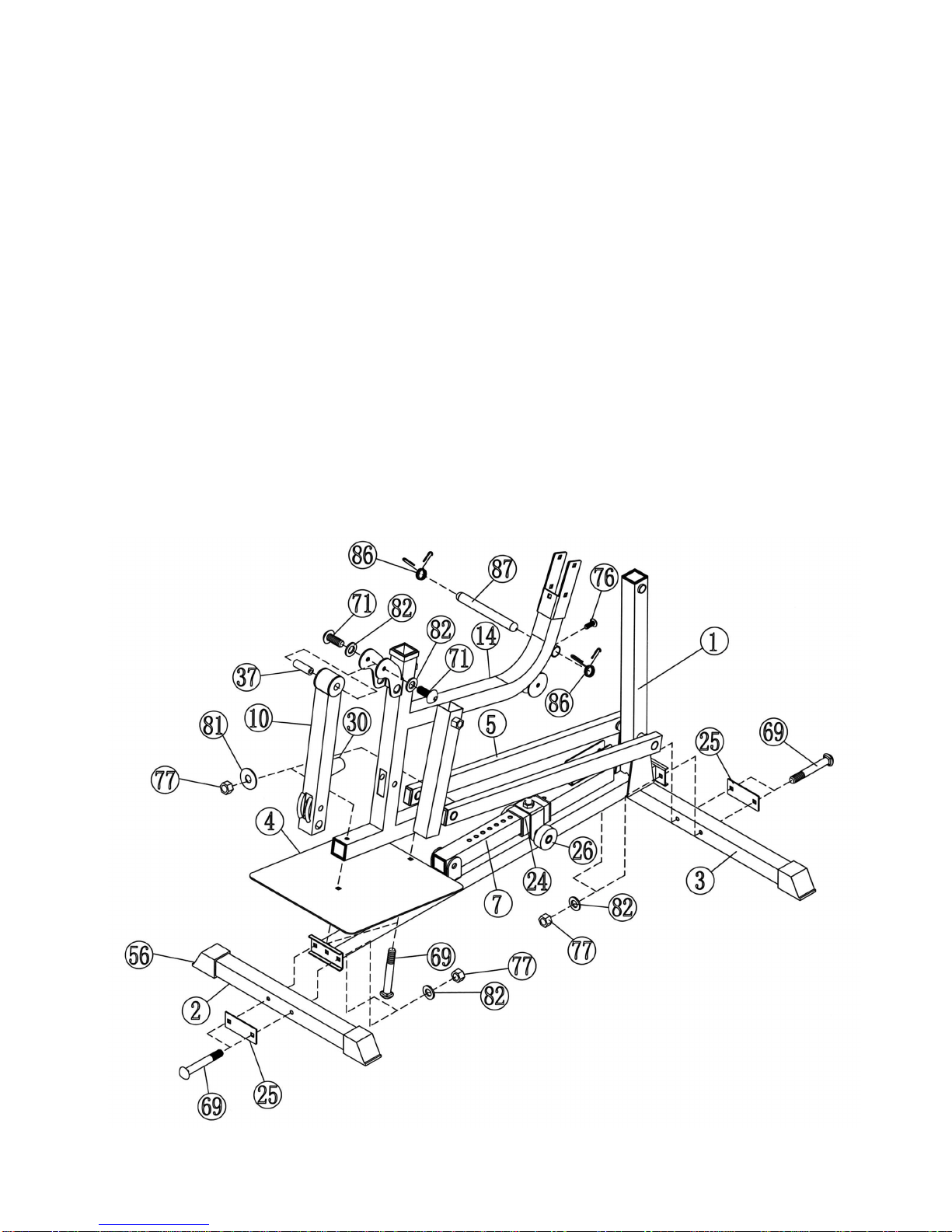

STEP 1 (See Diagram 1)

A.) Connect the Front Stabilizer (#2) to the front of Main Base Frame (#1). Secure it with two M10

x 2 3/4” Carriage Bolts (#69), one Bracket (#25), two ∅7/8” Washers (#82), and two M10

Aircraft Nuts (#77). Repeat the same step to connect Rear Stabilizer (#3) to the back of Main

Base Frame (#1).

B.) Place the Foot Platform (#4) underneath the base of Lower Main Frame (#14). Align the two

holes and secure them with two M10 x 2 ¾” Carriage Bolts (#69), Large Washers (#81), and

two M10 Aircraft Nuts (#77).

C.) Insert a Leg Developer Axle (#37) into the top opening on the Leg Developer (#10). Attach

the Leg Developer (#10) to the bracket on the Lower Main Frame (#14). Secure it with two

M10 x 5/8” Allen Bolts (#71) and ∅7/8” Washers (#82).

D.) Insert a Weight Holder (#87) through the hole on the Lower Main Frame (#14). Secure it with a

M6 x 5/8” Screw (#76). Attach two Spring Clips (#86) to the Weight Holder (#87).

DIAGRAM 1

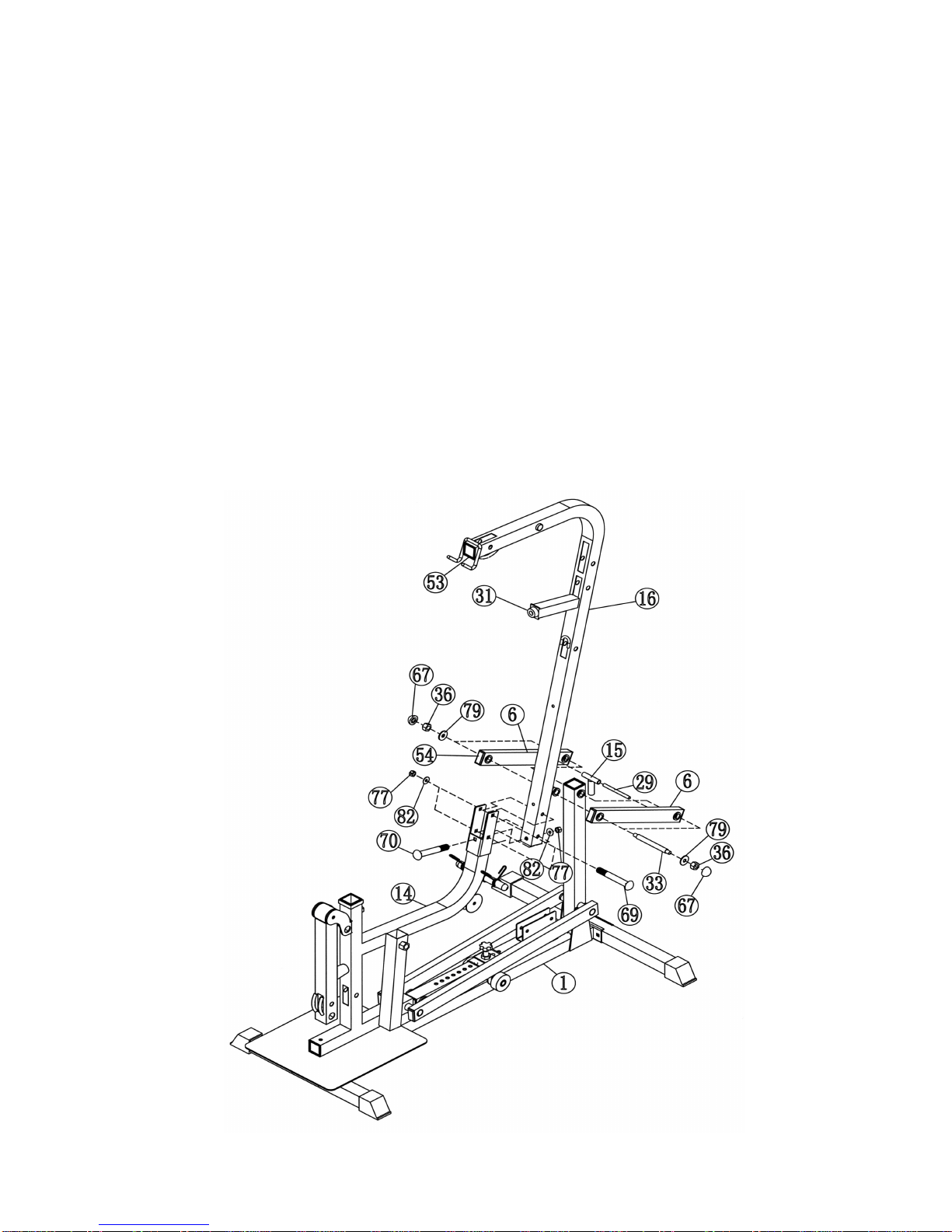

STEP 2 (See Diagram 2)

A.) Attach the Vertical Frame (#16) to the Lower Main Frame (#14). Secure it with two M10 x

2 ¾” Carriage Bolts (#69), ∅7/8” Washers (#82), and M10 Aircraft Nuts (#77) from the side of

the Lower Main Frame (#14). Secure it from the front of Lower Main Frame (#14) with one M10

x 2 ½” Carriage Bolt (#70), one ∅7/8” Washer (#82) and M10 Aircraft Nut (#77).

B.) Attach the Short Pivot Support Bars (#6) to the pivot located on the back of the Vertical Frame

(#16). Align the holes and Insert a M12 x 6 ½” Short Pivot Axle (#33) through the holes. Secure

them with two ∅1” Washers (#79) and M12 Aircraft Nuts (#36). DO NOT tighten the nuts yet.

C.)Insert a 4 ½” Axle (#29) into the T-shaped Cable Connector (#15). Place the T-shaped Cable

Connector in between the two Short Pivot Support Bars (#6). Both ends of the Axle should fit

into the holes on the Support Bars.

D.)Attach the back end of the Short Pivot Support Bars (#6) to the holes on the top of the Main

Base Frame (#1). Align the holes and insert another M12 x 6 ½” Short Pivot Axle (#33).

Secure them with two ∅1” Washers (#79) and M12 Aircraft Nuts (#36). Cover both ends with

two Cone-shaped End Caps (#67).

E.) Secure the two nuts installed in Step B above. Cover both ends with two Cone-shaped End

Caps (#67). NOTE: DO NOT over-tighten the nuts on these pivots. DIAGRAM 2

STEP 3 (See Diagram 3)

A.) Attach the top of the Bench Press Frame (#23) to the top of the Vertical Frame (#16). Align the

holes and insert a M12 x 6 ½” Axle (#33) through the holes. Secure it with two ∅1” Washers

(#79) and M12 Aircraft Nuts (#36). Covered by two Cone-shaped Caps (#67). Make sure the

Bench Press Frame can rotate freely on the Axle.

B.) Attach the Left Butterfly Arm (#13) to the left bracket on the Bench Press Frame (#23). Insert a

M12 x 4” Axle (#34) through the holes. Secure it with two ∅1 ½” Washers (#80) and M12

Aircraft Nuts (#36). Covered the ends with two Cone-shaped Caps (#67). Make sure the Arms

can rotate freely on the Axle. Otherwise, release the nuts.

C.)Repeat the Step B above to install the Right Butterfly Arm (#12).

DIAGRAM 3

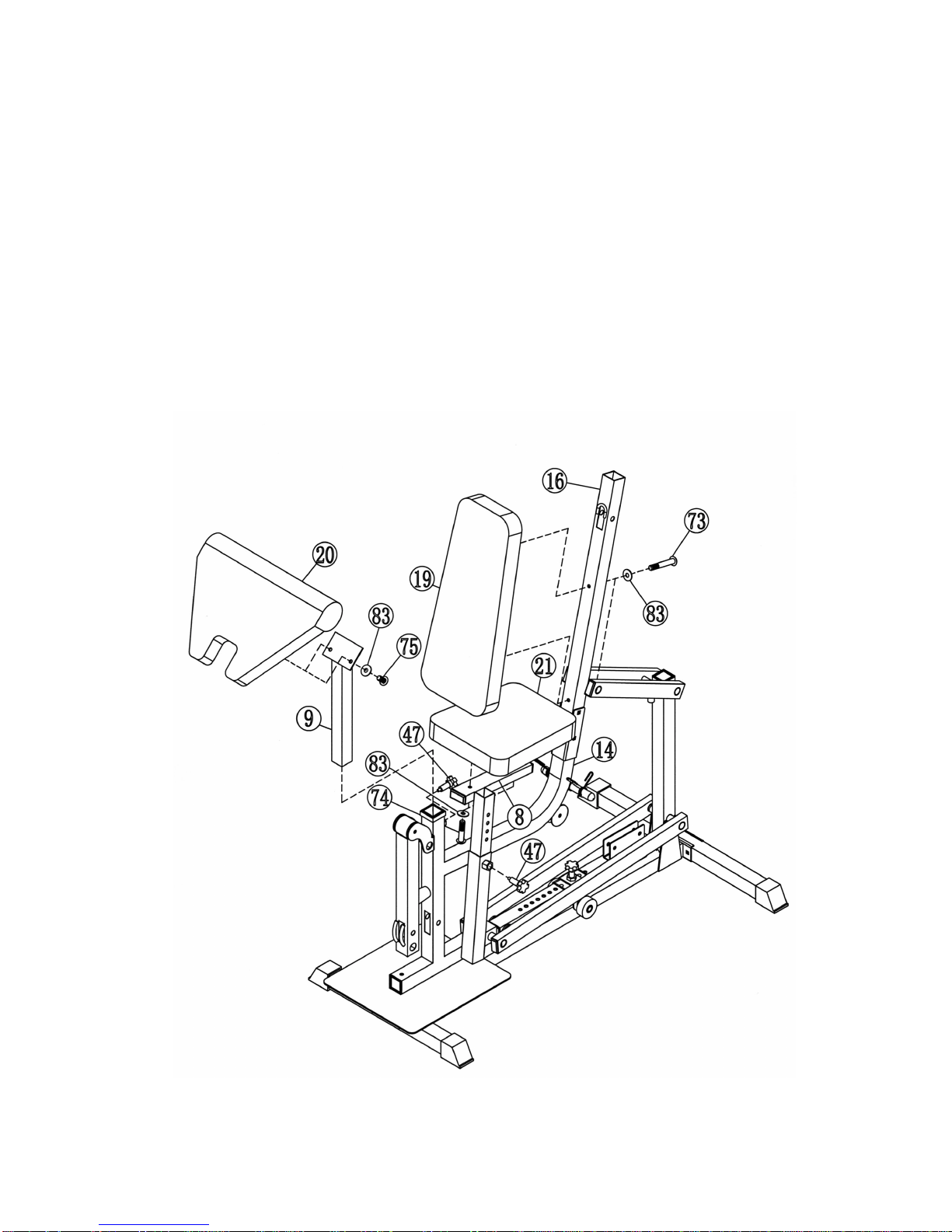

STEP 4 (See Diagram 4)

A.) Attach the Backrest Pad (#19) to the Vertical Frame (#16). Align the holes and secure it with

two M8 x 2 ½” Allen Bolts (#73) and ∅3/4” Washers (#83).

B.) Attach the Seat (#21) onto the top of Seat Support (#8). Align the holes and secure it with two

M8 x 1 ¾” Allen Bolts (#74) and ∅3/4” Washers (#83). Insert the Seat Support (#8) into the

opening on the Lower Main Frame (#14). Insert a Lock Knob (#47) to secure the Post.

C.)Attach the Arm Curl Pad (#20) to the Arm Curl Stand (#9). Secure it with two M8 x 5/8” Allen

Bolts (#75) and ∅3/4” Washers (#83). Insert the Arm Curl Stand into the top opening in front of

the Seat. Insert a Lock Knob (#47) to obtain the selected arm curl stand height.

DIAGRAM 4

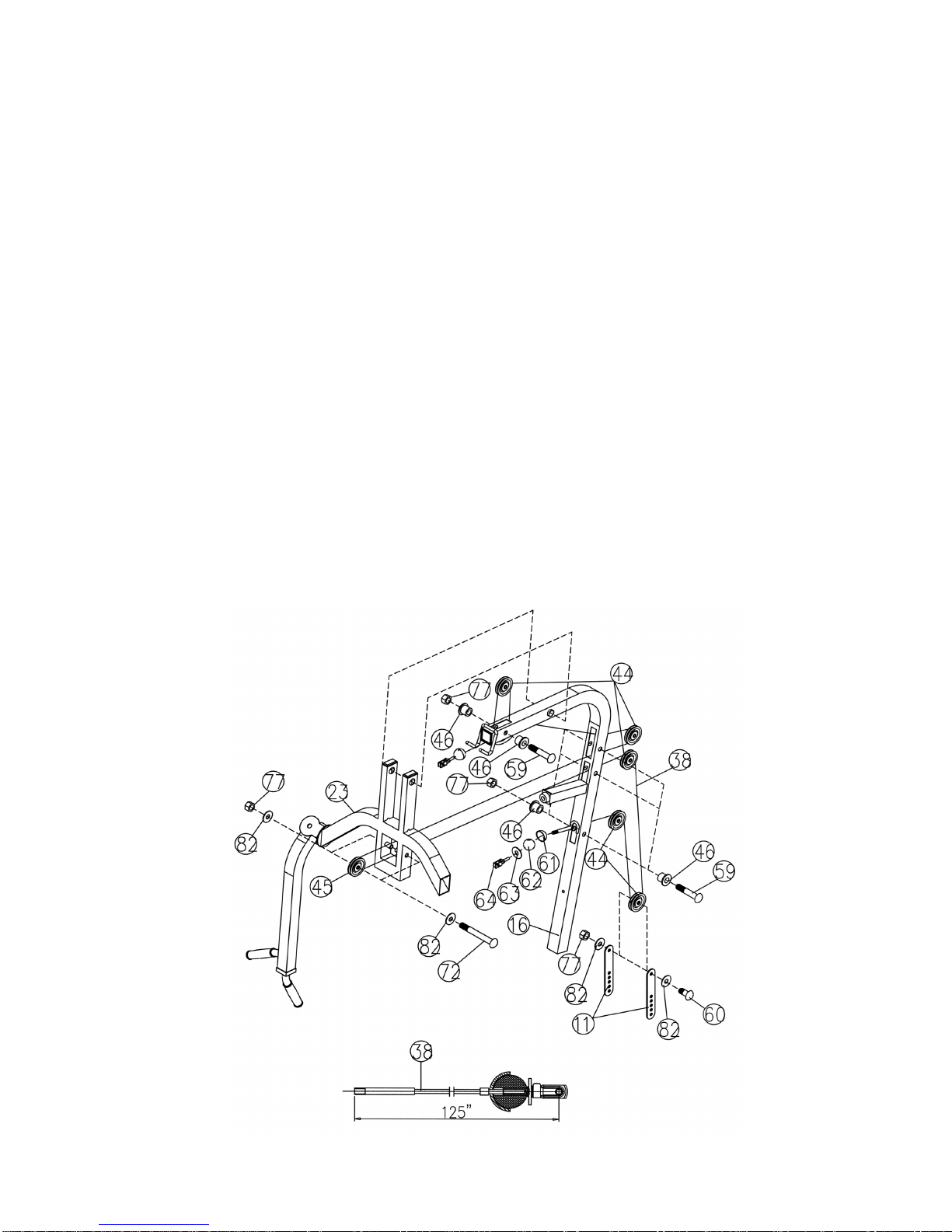

STEP 5 (See Diagram 5 & Cable Loop Diagram)

A.) Attach the Ball-end of the 125” Upper Cable (#38) to the front top of the Vertical Frame (#16).

Push two Bushings (#46) into the holes from both sides. Install a Small Pulley (#44) into the

open slot. Make sure the Cable goes over the Pulley and the Ball-end is underneath the

frame. Secure the Pulley with a M10 x 2 ½” Allen Bolt (#59) and M10 Aircraft Nut (#77).

B.) Draw the cable towards the back of the machine to the first slotted hole on the Vertical Frame

(#16). Install a Small Pulley (#44) with two Bushings (#46), one M10 x 2 ½” Allen Bolt (#59),

and one M10 Aircraft Nut (#77). Pull the Cable over the Pulley then come back towards front

of the machine.

C.) Draw the Cable to the Bench Press Frame (#23). Install a Big Pulley (#45) in between the two

vertical frames. Secure the Pulley with a M10 x 5 ½” Allen Bolt (#72), two ∅7/8” Washers

(#82), and one M10 Aircraft Nut (#77).

D.) Draw the Cable over the Big Pulley (#45) towards the back of the machine to the second

slotted hole on the Vertical Frame (#16). Install another Pulley by repeating STEP B above.

E.) Pull the Cable downward then attach a Small Pulley (#44) to the Cable. Install two Floating

Double Pulley Brackets (#11) to the Pulley. Secure it with a M10 x 1 ¾” Allen Bolt (#60), two

∅7/8” Washers (#82), and one M10 Aircraft Nut (#77). Let the Bracket hanging for now.

F.) Pull the Cable upward towards the third slotted hole on the Vertical Frame (#16). Install a

Small Pulley. Draw the Cable over the pulley through the hole to the front of the Frame. Slide

a Cone Shaped Stopper (#61), Rubber Ball Bumper (#62), and Cable Washer (#63) on to the

bolt on the end of the Cable. Secure the Bolt with a Cable Connector (#64). DIAGRAM 5

STEP 6 (See Diagram 6 & Cable Loop Diagram)

A.) Attach the Ball-end of the 108” Lower Cable (#39) to the open slot on the Leg Developer (#10).

Insert the Cable through both openings on the Leg Developer and Lower Main Frame (#14)

towards the back of the machine.

B.) Insert a Pulley (#44) into the open slot on the Leg Developer (#10). Make sure the Pulley is

above the Cable. Secure it with one M10 x 2 ½” Allen Bolt (#59), two Pulley Bushings (#46),

and a M10 Aircraft Nut (#77). Repeat the same step to install another Pulley to the open slot

on the Lower Main Frame (#14).

C.)Pull the Cable towards the back of the machine to the bracket underneath the seat. Install a

Pulley with a M10 x 1 ¾” Allen Bolt (#60), two ∅7/8” Washers (#82), and a M10 Aircraft Nut

(#77). Make sure the Cable is above the Pulley.

D.)Pull the Cable downward to the first hole on the Weight Adjustment Bar. Install a Pulley with a

M10 x 1 ¾” Allen Bolt (#60), two ∅7/8” Washers (#82), and a M10 Aircraft Nut (#77).

E.) Pull the Cable upward towards the Floating Double Pulley Bracket (#11) previously installed in

STEP 5E. Select the lowest hole located on the bracket and install another Pulley with one

M10 x 1 ¾” Allen Bolt (#60), two ∅7/8” Washers (#82), and one M10 Aircraft Nut (#77). Note:

The Cable might get loose after a period time of use. Simply raise the Pulley up to a higher

hole on the Floating Double Pulley Brackets (#11) to take off the slack.

F.) Pull the Cable downward to the second hole on the Weight Adjustment Bar (#7). Install another

Pulley. Then pull the Cable upward to the T-shaped Connector (#15). Secure the bolt on the

end of the Cable into the T-shaped connector. DIAGRAM 6
