Impex PHC -265 Bedienungsanleitung

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

PHC 265

Retain This

Manual for

Reference

08-07-02

OWNER'S

MANUAL

POWERHOUSE BENCH

PHC -265

IMPEX FITNESS PRODUCTS

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN....................................................................................……….. 1

IMPORTANT SAFETY NOTICE.....................................................................……….. 2

HARDWARE IDENTIFIER.....….....................................................................……….. 3

ASSEMBLY INSTRUCTIONS.........................................................................……….. 4

EXPLODED DIAGRAM……….........................................................................………..8

PARTS LIST…………………………………………………………………………………..9

WARRANTY.................................................................................................…………. 10

ORDERING PARTS.......................................................................................…………10

BEFORE YOU BEGIN

Thank you for selecting the POWERHOUSE PHC 265 BENCH by IMPEX

FITNESS PRODUCTS. For your safety and benefit, read this manual

carefully before using the machine. As a manufacturer, we are committed

to provide you complete customer satisfaction. If you have any questions,

or find there are missing or damaged parts, we guarantee you complete

satisfaction through direct assistance from our factory. To avoid

unnecessary delays, please call our TOLL-FREE customer service

number. Our Customer Service Agents will provide immediate assistance

to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire

manual before you assemble or operate your machine. In particular, note the following

safety precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN

IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE

AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY

DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

ASSEMBLY INSTRUCTION

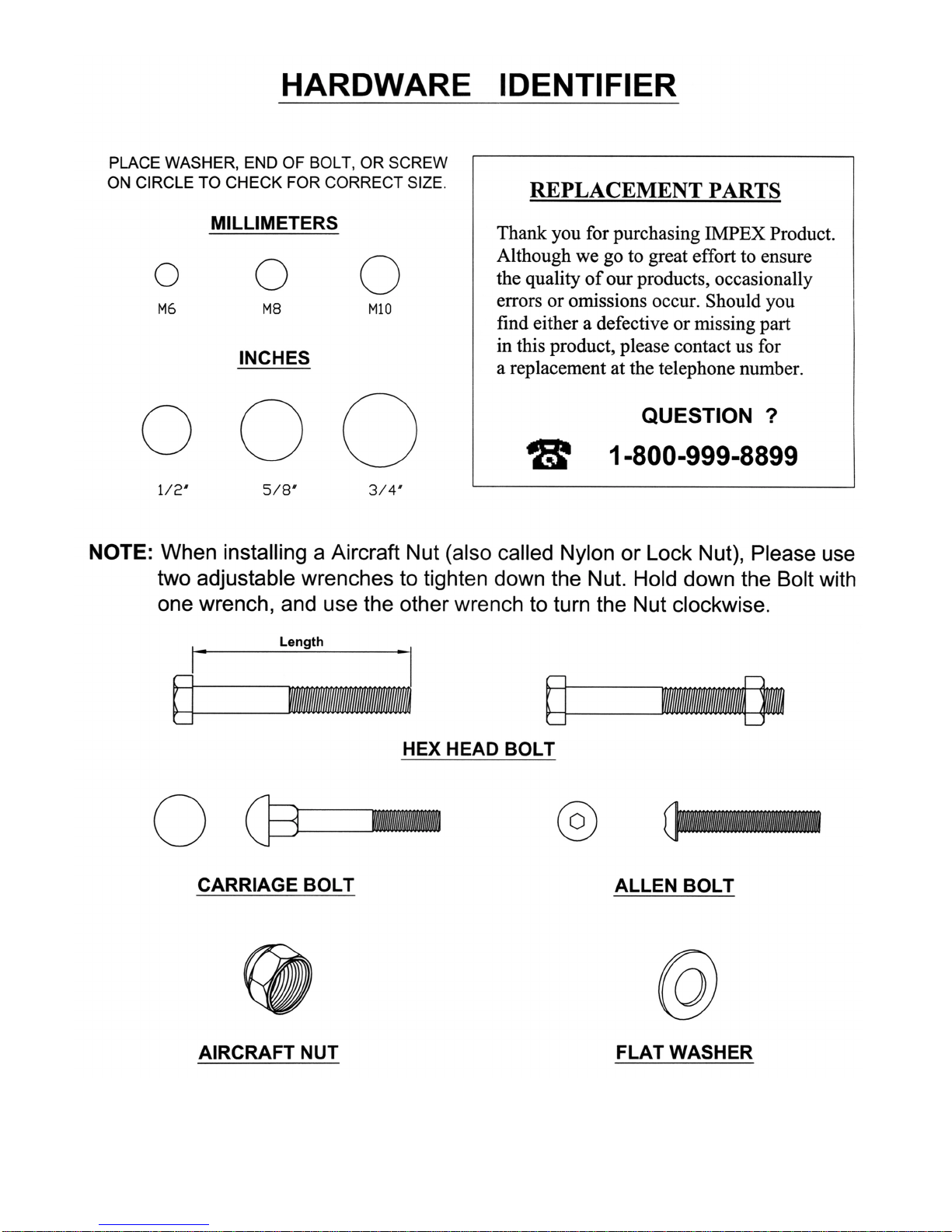

Tools Required Assembling the Machine: Two Adjustable Wrenches.

NOTE: It is strongly recommended two or more people assembling this machine to avoid

possible injury.

STEP 1 (See Diagram 1)

A.) Connect the two Rear Upright Beams (#1) by the Cross Brace (#2) in the mid-span. Align the

holes then secure each end of Cross Brace with one Bracket (#13), two M10 x 2 3/8” Hex

Bolts (#25), four ∅¾” Washers (#33), and two M10 Aircraft Nuts (#30).

B.) Insert the Backrest Adjustment Bar (#6) through the selected holes on the Rear Upright

Beams to obtain the desired Backrest incline.

C.)Attach the Left and Right Safety Hooks (#16) & (#17) to the top of the Upright Beams. Secure

each Hook with a M6 Aircraft Nut (#32). DIAGRAM 1

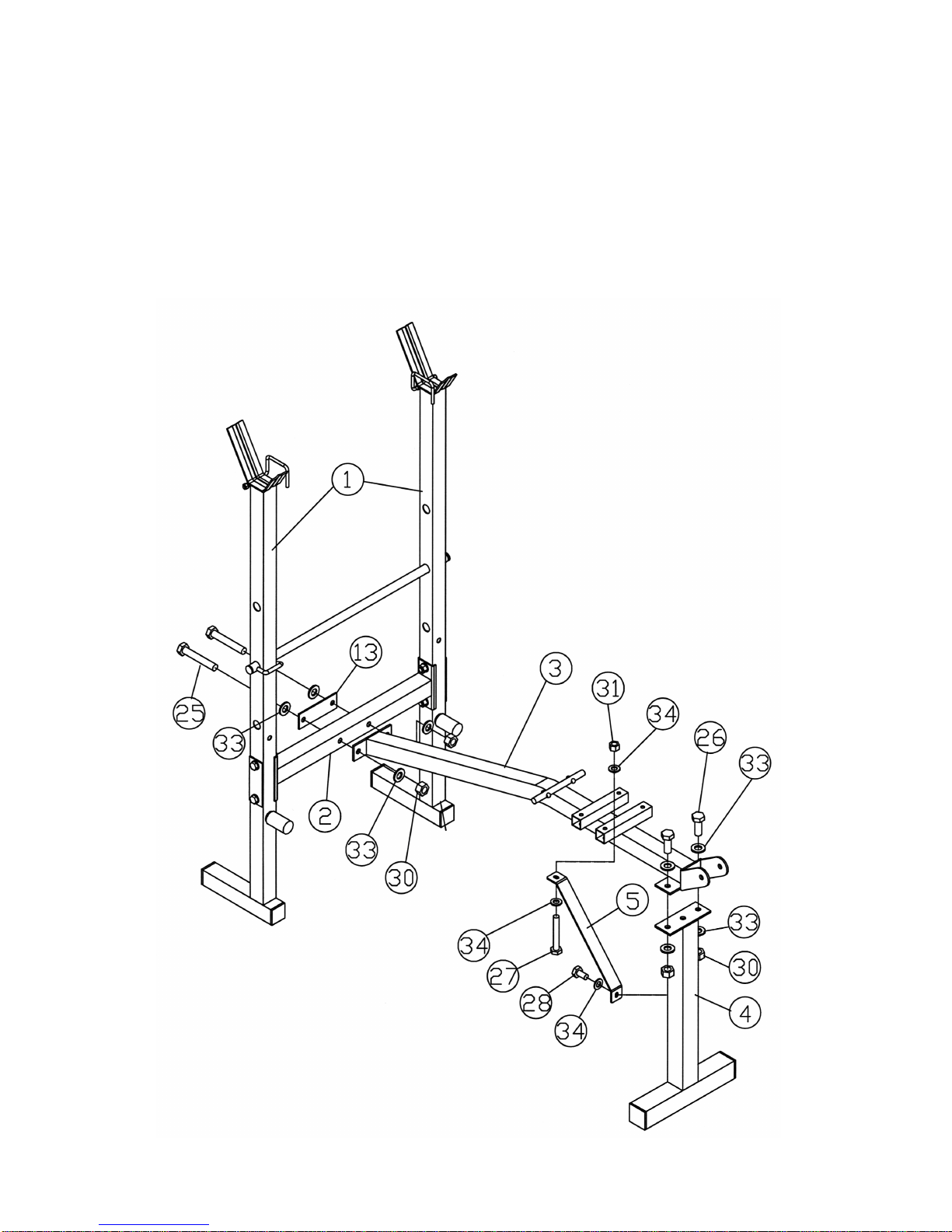

STEP 2 (See Diagram 2)

A.) Attach the rear of the Main Seat Support (#3) to the Cross Brace (#2). Secure it with one

Bracket (#13), two M10 x 2 3/8” Hex Bolts (#25), four ∅¾” Washers (#33), and two M10

Aircraft Nuts (#30).

B.) Attach the front of the Main Seat Support (#3) to the Front Support (#4). Secure them with

two M10 x 1” Hex Bolts (#26), four ∅¾” Washers (#33), and two M10 Aircraft Nuts (#30).

C.)Attach one end of the Diagonal Support (#5) to the Main Seat Support (#3) and secure it with

one M8 x 2 1/8” Hex Bolt (#27), two ∅5/8” Washers (#34), and one M8 Aircraft Nut (#31).

Attach the other end of Diagonal Support (#5) to the Front Support (#4). Secure it with one

M8 x 5/8” Hex Bolt (#28) and ∅5/8” Washer (#34).

DIAGRAM 2

STEP 3 (See Diagram 3)

A.) Attach the front holes on the Backrest Supports (#7) to the pivot on the Main Seat Support

(#3). Place the other end of the Backrest Supports (#7) on the Backrest Adjustment Bar (#6).

Place the Backrest Board (#8) onto the Backrest Supports (#7). Secure it with four M6 x 1

3/8” Hex Bolts (#29) and ∅½” Washers (#35).

B.) Place the Seat Pad (#9) onto the Main Seat Support (#3). Secure it with four M6 x 1 3/8” Hex

Bolts (#29) and ∅½” Washers (#35).

DIAGRAM 3

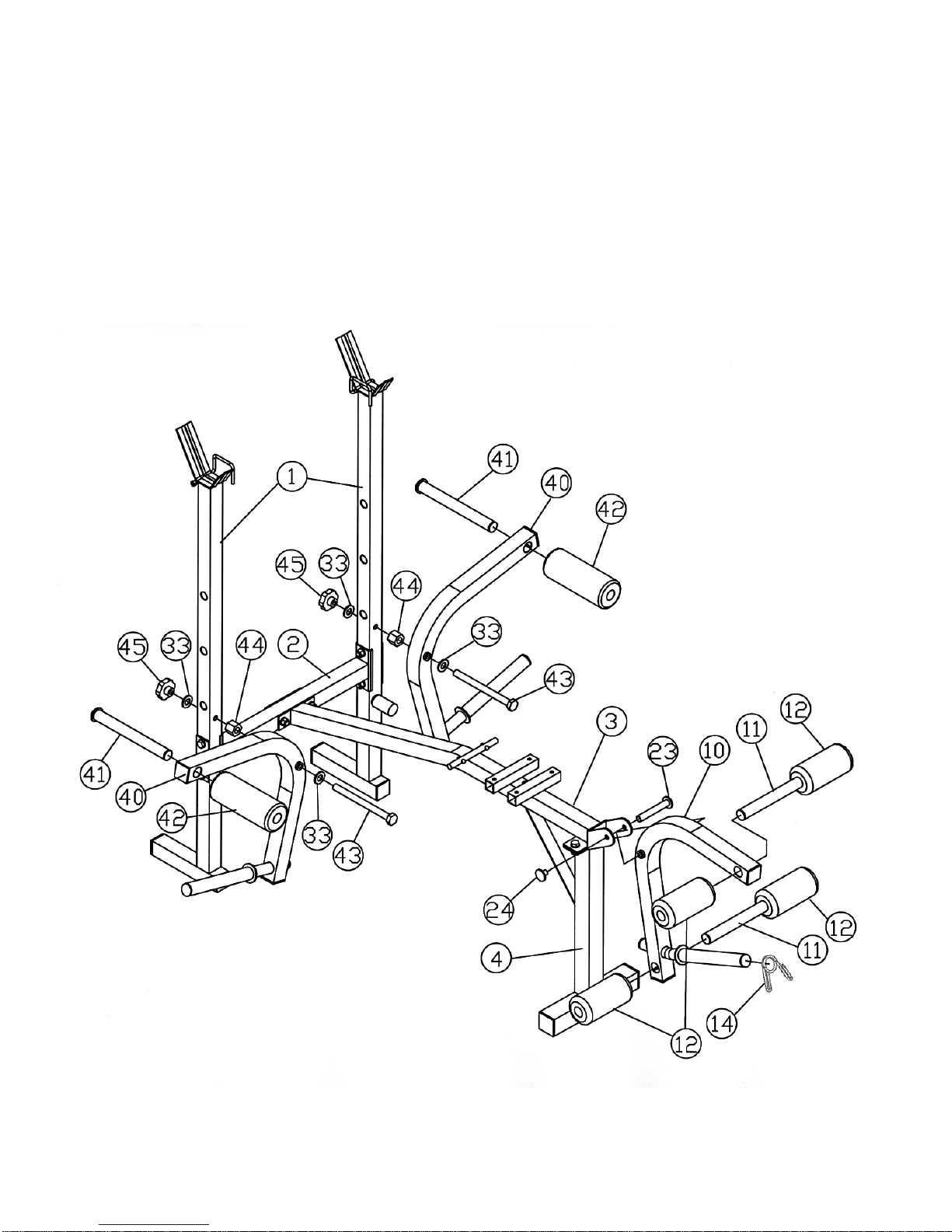

STEP 4 (See Diagram 4)

A.) Attach the Leg Developer (#10) to the front of Main Seat Support (#3). Secure it with a

Hex Socket Axle (#23) and Hex Socket Screw (#24). Attach one Spring Clip (#14) onto

the weight post on the Leg Developer.

B.) Insert the two Foam Roll Tubes (#11) halfway through the holes on the Leg Developer.

Push four Foam Rolls (#12) onto the Foam Roll Tubes from both ends.

C.)Attach a ∅3/4” Washer (#33) onto a M10 x 4 ½” Hex Bolt (#43). Insert the Bolt through

the Butterfly (#40) and secure it with a M10 Regular Nut (#44). Insert the Bolt through

the Upright Beam (#1) and secure it with a ∅3/4” Washer (#33) and M10 Knob (#45).

D.)Insert the Butterfly Foam Roll Tube (#41) through the hole on the Butterfly. Push the

Butterfly Foam Roll (#42) onto the Tube.

E.) Repeat Step C & D above to install the other side. DIAGRAM 4

PARTS LIST

KEY NO. DESCRIPTION Q’ty

1 Rear Upright Beam 2

2 Cross Brace 1

3 Main Seat Support 1

4 Front Support 1

5 Diagonal Support 1

6 Backrest Adjustment Bar 1

7 Backrest Support 2

8 Backrest Board 1

9 Seat Pad 1

10 Leg Developer 1

11 Foam Roll Tube 2

12 Foam Roll 4

13 Bracket 3

14 Spring Clip 3

15 ∅1” Sleeve 2

16 Left Safety Hook 1

17 Right Safety Hook 1

18 Bushing 6

19 1 ½” Square End Cap 12

20 1” Square End Cap 2

21 ∅1” End Cap 16

22 ∅¾” End Cap 2

23 Hex Socket Axle 1

24 Hex Socket Screw 1

25 M10x 2 3/8” Hex Bolt 6

26 M10 x 1” Hex Bolt 2

27 M8 x 2 1/8” Hex Bolt 1

28 M8 x 5/8” Hex Bolt 1

29 M6 x 1 3/8” Hex Bolt 8

30 M10 Aircraft Nut 8

31 M8 Aircraft Nut 1

32 M6 Aircraft Nut 2

33 ∅¾” Washer 20

34 ∅5/8” Washer 3

35 ∅½” Washer 8

36 Weight Bar 1

37 Weight Plate 25# 2

38 Weight Plate 15# 2

39 Weight Plate 10# 2

40 Butterfly 2

41 Butterfly Foam Roll Tube 2

42 Butterfly Foam Roll 2

43 M10 x 4 ½” Hex Bolt 2

44 M10 Regular Nut 2

45 M10 Knob 2 9
