NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Exploded Diagram
Parts List
Warranty
Ordering Parts
Model
MD-860
Retain This
Manual for
Reference
07/10/09
OWNER'S
MANUAL
TABLE OF CONTENTS
BEFORE YOU BEGIN...................................................................................... 1
IMPORTANT SAFETY NOTICE....................................................................... 2
HARDWARE PACK………............................................................................... 4
ASSEMBLY INSTRUCTIONS........................................................................... 6
EXPLODED DIAGRAM.................................................................................... 11
PARTS LIST..................................................................................................... 12
WARRANTY..................................................................................................... 13
ORDERING PARTS.......................................................................................... 13
BEFORE YOU BEGIN
Thank you for selecting the MARCY DIAMOND WEIGHT BENCH MD-860 by
IMPEX®INC. For your safety and benefit, read this manual carefully before
using the machine. As a manufacturer, we are committed to provide you
complete customer satisfaction. If you have any questions, or find there are
missing or damaged parts, we guarantee your complete satisfaction
through direct assistance from our factory. To avoid unnecessary delays,
please call our TOLL-FREE customer service number. Our Customer
Service Agents will provide immediate assistance to you.
1
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT leave children
unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms,
STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine near water or
outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or other
clothing that could become caught in the machine. Running or aerobic shoes are also
required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO NOT use
attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or physician in
attendance.
10. Before using the machine to exercise, always do stretching exercises to properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. A spotter is recommended during exercise.
13. Maximum user’s weight: 300 lbs.
14. Maximum weight on uprights: 600 lbs.
15. Maximum weight on leg developer: 100 lbs.
CARE AND MAINTENANCE
1. Inspect and tighten all parts before using the machine.
2. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT
YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS
OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH
PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS
EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL
INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF
THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2
WARNING LABEL PLACEMENT
The Warning Labels shown here have been placed on the Cross Brace and Rear Stabilizer.
If the labels are missing or illegible, please call customer service at 1-800-999-8899 for
replacement. Apply the labels in location shown
3
HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
4
HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
5
ASSEMBLY INSTRUCTION
Tools Required For Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches. NOTE: It is strongly recommended for two or more people to assemble this
machine to avoid possible injury.
STEP 1 (See Diagram 1)
A.) Do not tighten Nuts and Bolts until instructed to do so.
B.) Attach an Upright Beam (#1) onto a Rear Base Frame (#2). Secure them together with
two M10 x 3 ¾” Carriage Bolts (#35), one 5 ½” Curved Bracket (#13), two Ø ¾” Washer
(#43), and two M10 Aircraft Nuts (#46) from bottom. Repeat the same step to install the
other Upright Beam onto the other Rear Base Frame.
C.)Connect the two Upright Beams with a Cross Brace (#3) in the mid-span. Secure each
end to an Upright Beam with two M10 x 3 ¾” Allen Bolts (#37), two Ø ¾” Washer (#43),
and one 3 ½” Curved Bracket (#14).
D.)Securely tighten all Nuts and Bolts.
E.) Insert two Crutches (#4) into the two Upright Beams. Insert two M18 Lock Knobs (#22)
through the selected holes to obtain desired height. DIAGRAM 1
6
STEP 2 (See Diagram 2)
A.) Do not tighten Nuts and Bolts until instructed to do so.
B.) Attach the Main Seat Support (#6) to the Rear Stabilizer (#8). Secure it with two M10 x 3 ¾”
Carriage Bolts (#35), one 5 ½” Curved Bracket (#13), two Ø ¾” Washers (#43), and two
M10 Aircraft Nuts (#46).
C.) Attach the Main Seat Support to the Front Post (#5). Secure it with one 3 ½” Curved Bracket
(#14), one M10 x 3 ¾” Carriage Bolts (#35), one Ø ¾” Washers (#43), and one M10 Aircraft
Nut (#46) through the lower hole, one M10 x 3 ¾” Allen Bolt (#37), one Ø ¾” Washer (#43)
through the upper hole.
D.) Securely tighten all nuts and bolts. DIAGRAM 2
7
STEP 3 (See Diagram 3)
A.) Attach two Incline Support Frames (#15) to the Main Seat Support (#6) from both sides.
Alignthe holes. Securethe Incline Support Frames to the Main Seat Support with three M10
x 3 ½” Allen Bolts (#38), six Ø ¾” Washers (#43), and three M10 Aircraft Nuts (#46).
B.) Attach the Incline Support (#11) to the side-holes on the two Backrest Supports (#9). Align
the holes. Secure it with one M10 x 6 1/8” Allen Bolt (#36), two Ø ¾” Washers (#43), and
one M10 Aircraft Nut (#46). Place the other end of Incline Support to the selected slot on
Incline Support Frame to hold the desired Backrest Incline.
C.) Attach the holes on the end of the Backrest Supports to the pivot on the Main Seat Support.
Align the holes. Secure the two Backrest Supports to the pivot with one M12 x 6 1/8” Hex
Bolt (#34), two Ø 1” Washers (#42), and one M12 Aircraft Nut (#45).
D.) Do not over tighten the Nuts and Bolts. Make sure the Backrest Supports and Incline
Support are able to swivel. DIAGRAM 3
8
STEP 4 (See Diagram 4)

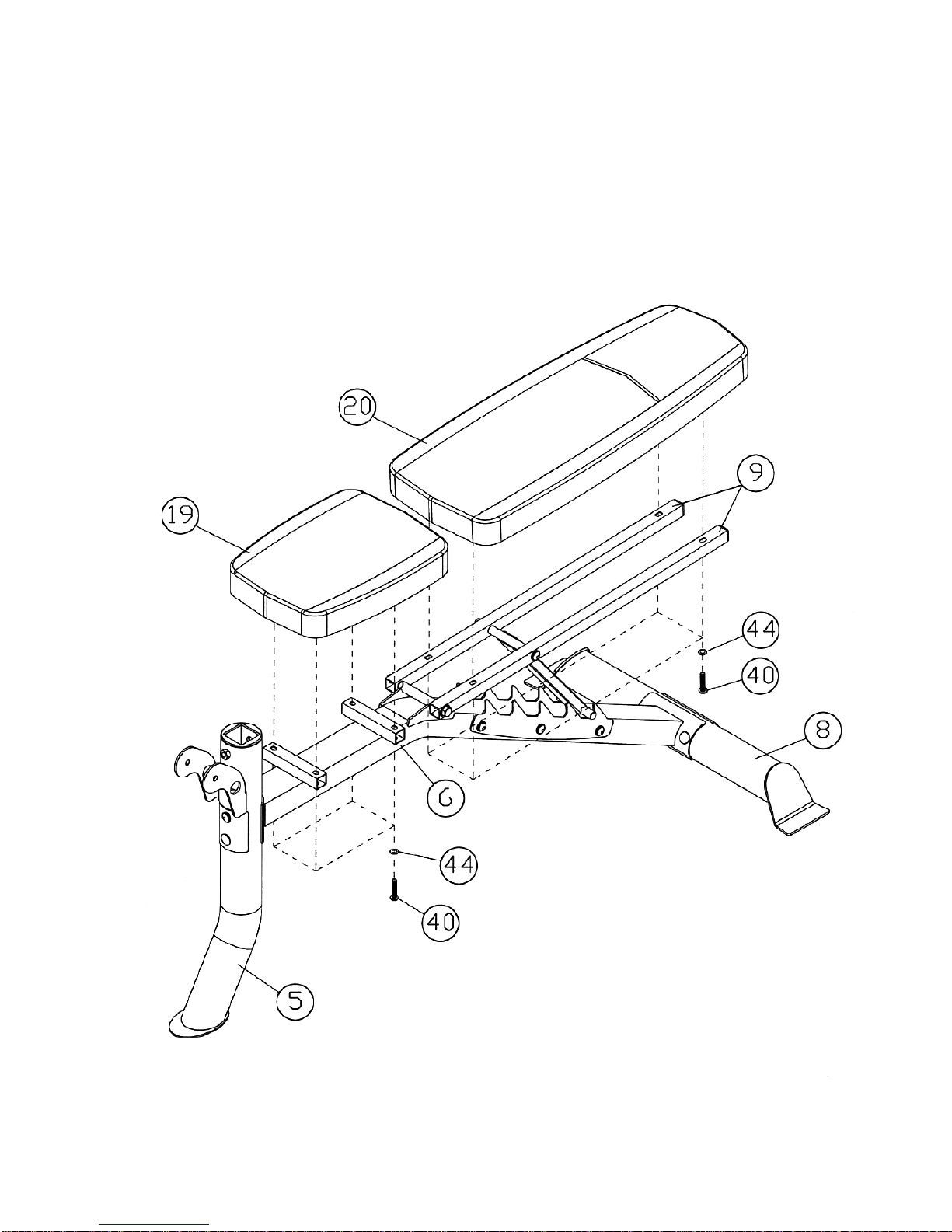

A.) Attach the Backrest Board (#20) to the Backrest Supports (#9). Secure it with four M8 x 1
5/8” Allen Bolts (#40) and four Ø 5/8” Washers (#44).
B.) Place the Seat Pad (#19) onto the seat bracket on Main Seat Support (#6). Secure it with
four M8 x 1 5/8” Allen Bolts (#40) and four Ø 5/8” Washers (#44). DIAGRAM 4
