INDIWORK BMW Easy Access Bedienungsanleitung

BMW Easy Access Seats

Release Date: 2014 - 05 -08

Components

Save the seat position

Module POWER / CAN Cable

Dip Switch Settings

OFF

ON: ▼OFF: ▲

No.1 No.2 No.3 No.4 No.5 No.6 Car Models

OFF(▲) OFF(▲) OFF(▲) OFF(▲) OFF(▲) OFF(▲)1, 3, 4 Series(F20, F30, F32)

ON(▼)OFF(▲) OFF(▲) OFF(▲) OFF(▲) OFF(▲)5 Series(F10) *6-Pin LVDS(2013+)

OFF(▲)ON(▼)OFF(▲) OFF(▲) OFF(▲) OFF(▲)5 Series(F10) *4-Pin LVDS(-2012)

Version Information

Model Name BMW Easy Access

Latest Firmware Date 2014 -05 -08

Manual Version Rev. 1.0

Manual Release Date 2014 -05 -08

Easy Access ‘ON-OFF’ Settings

Button Operation

Push to the Left(◁)Push the dial to the left 5 times,

quickly.

IN CAN H

IN CAN L

BMW-F30 4th PIN

BMW-F30 7th PIN

BAT +

GROUND

ⓐ ⓑ

Button Function

Memory No.2(ⓐ)Save a comfortable position of the

seat, when you get out of the car.

Memory No.1(ⓑ)Save a comfortable position of the

seat, when you get in the car.

Driver's seat is moved between position No.1 and position

No.2 automatically, when you turn on or turn off the ignition.

Connector Specification

AUDI KEY IN

AUDI KEY OUT

(Only for BMW 1, 3, 4 Series)

(Only for AUDI)

Installation Manual

BMW Easy Access Seats

5 Series(F10) 2013+(6-Pin LVDS)

Release Date: 2014 - 05 -08

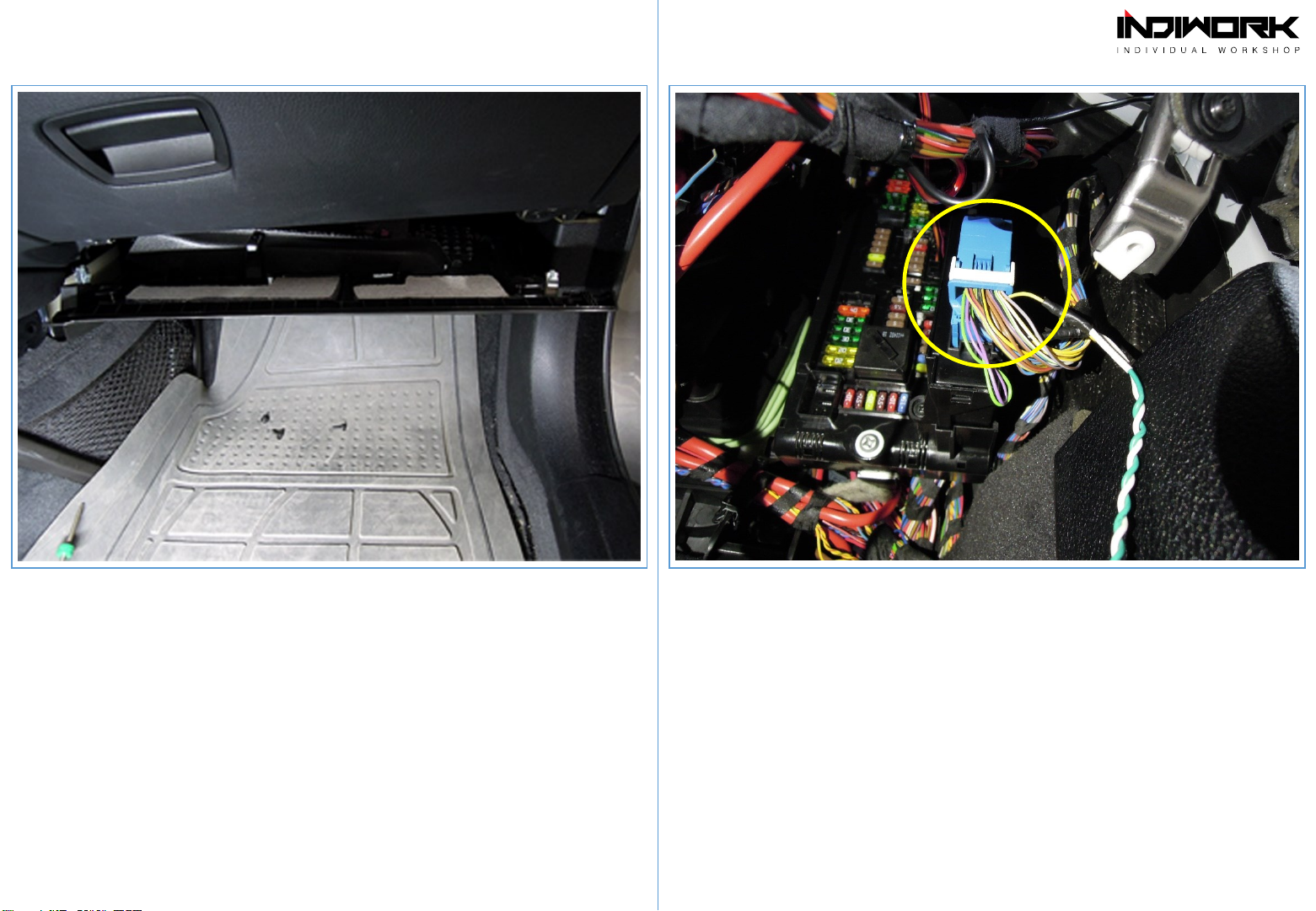

1) Remove the glovebox under cover. 2) Unplug the ’54-pin connector(Light Blue)’ of fuse box.

※CAUTION ※

You have to unplug the connector after turn off the ignition.

3) Splice the ‘IN CAN H(No.3 / White) wire’ to

‘No.1 wire(Yellow/Red)’ of the 54-pin connector.

< CAN HIGH connection >

4) Splice the ‘IN CAN L(No.4 / Green) wire’ to

‘No.2 wire(Yellow/Brown)’ of the 54-pin connector.

< CAN LOW connection >

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

5) Remove the relay in front of fuse box.

(Rotate it counterclockwise.)

Fixing Pin

(Engine room direction)

6) Splice the ‘BAT+(No.1 / Yellow) wire’ to

‘Red wire in the direction of the engine room(Battery power)’.

< No.2(GROUND)wire should be connected with ground of the car.>

1 2 3 4 5 6 7 8

7) Set the DIP switch for BMW 5 Series(F10 / 6-Pin LVDS).

8) Driver’s seat is moved to the memory position No.1(ⓐ)

automatically, when you turn on the ignition.

The seat is moved back to the memory position No.2(ⓑ),

when you turn off the ignition.
