InFocus Projector Setup Guide for a Macintosh Laptop

How to connect a laptop computer to an InFocus projector

M1-DA

Component Composite

S-video

VGA RS-232

Table of Contents

- If you have an Apple iBook G3/G4, see page 2.

- If you have an Apple PowerBook G4 12 inch, see pages 3-5.

- If you have an Apple PowerBook G4 15 inch, see pages 6-7.

- If you have an Apple PowerBook G4 17 inch, see pages 8-9.

For more information and troubleshooting...

Read the common issues on pages 10-15.

Projector Connector Panel

M1-DA

Composite

S-video

RS-232

connector panel may vary from actual product

Video

ProjectorNet

Setup Requirements

Connecting an Apple iBook to an InFocus projector with a VGA cable

Power on the projector, then the

computer. If the image does not appear

on the screen, see Common Issues.

M1 to VGA/USB cable (6 ft)

(InFocus standard accessory)

We recommend connecting the computer to external

speakers to provide the best audio experience.

connector panel may vary from actual product

Apple iBook Connector Panel

Connect to computer speakers or

projector (if supported).*

VGA connector

M1-A connector

M1-DA

Composite

S-video

RS-232 Video

ProjectorNet USB connector for Microsoft PowerPoint

or mouse control with InFocus remote.

(Not required for projector use)

Apple VGA adapter

Apple iBook with Monitor/Video Out Port

Projector with M1 port

M1 to VGA/USB cable (6 ft, InFocus part #SP-DVI-A)

Apple VGA adapter (Apple part# M8639G/A)

Plug the Apple VGA adapter

into the monitor/video out port.

Plug the VGA connector into

the adapter.

Plug the M1-A connector into

the M1 port on the projector.

Monitor/video out port

USB port

connector panel may vary from actual product

Apple PowerBook G4 (12-inch - DVI) Connector Panel

Projector Connector Panel

M1-DA

Composite

S-video

RS-232

connector panel may vary from actual product

Video

ProjectorNet

Setup Requirements

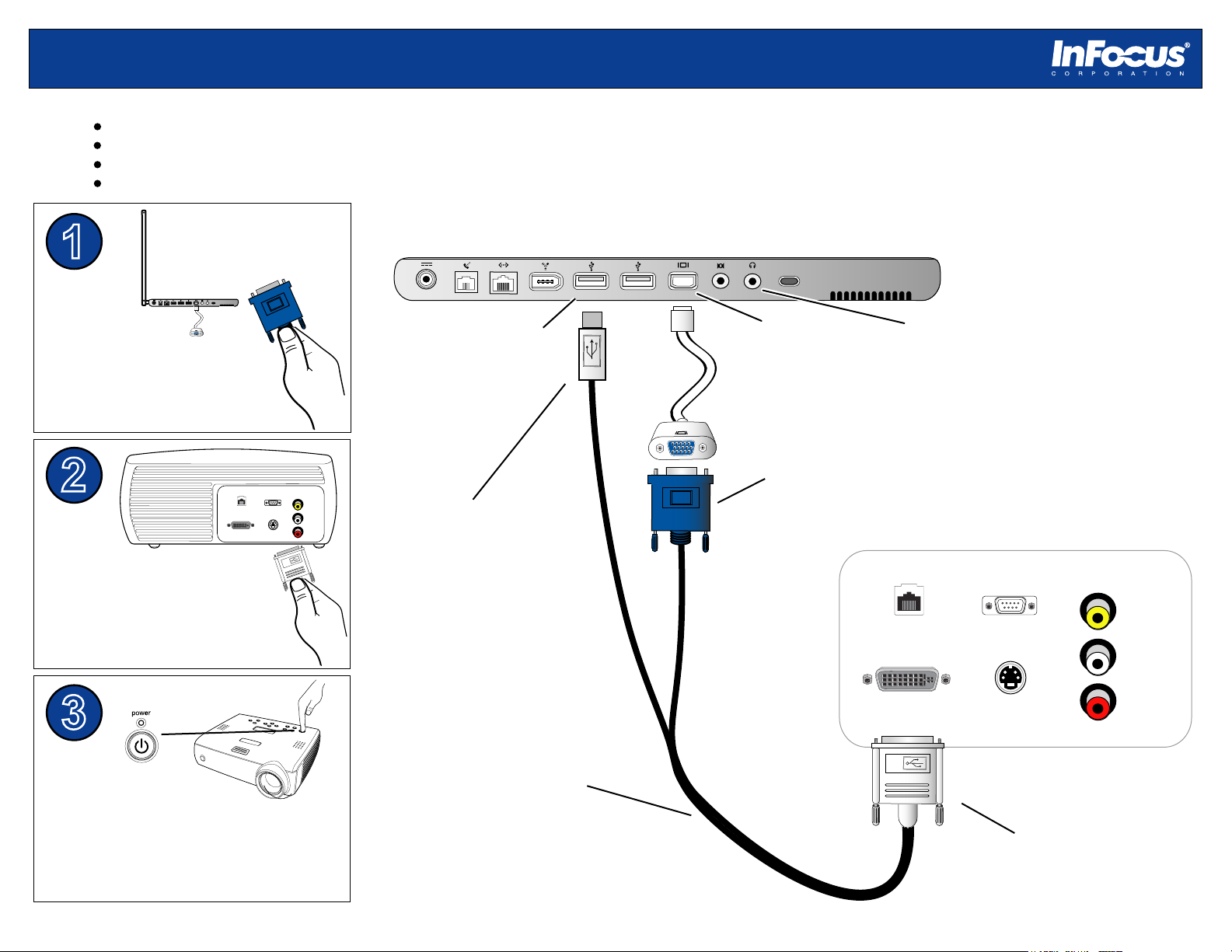

Connecting an Apple PowerBook G4 (12-inch/DVI) to an InFocus projector with a VGA cable

M1 to VGA/USB cable (6 ft)

(InFocus standard accessory)

We recommend connecting the computer to external

speakers to provide the best audio experience.

VGA connector

M1-A connector

M1-DA

Composite

S-video

RS-232 Video

ProjectorNet USB connector for Microsoft PowerPoint

or mouse control with InFocus remote.

(Not required for projector use)

Apple VGA adapter

Apple PowerBook G4 (12-inch/DVI) with Mini-DVI out port

Projector with M1 port

M1 to VGA/USB cable (6 ft, InFocus part #SP-DVI-A)

Apple Mini-DVI to VGA adapter (Apple Part#M9320G/A)

Plug the Apple VGA adapter

into the mini-DVI out port.

Plug the VGA connector into

the adapter.

Good

Connect to computer speakers or

projector (if supported).*

Mini-DVI out port

USB port

Power on the projector, then the

computer. If the image does not appear

on the screen, see Common Issues.

Plug the M1-A connector into

the M1 port on the projector.

Projector Connector Panel

M1-DA

Composite

S-video

RS-232

connector panel may vary from actual product

Video

ProjectorNet

Setup Requirements

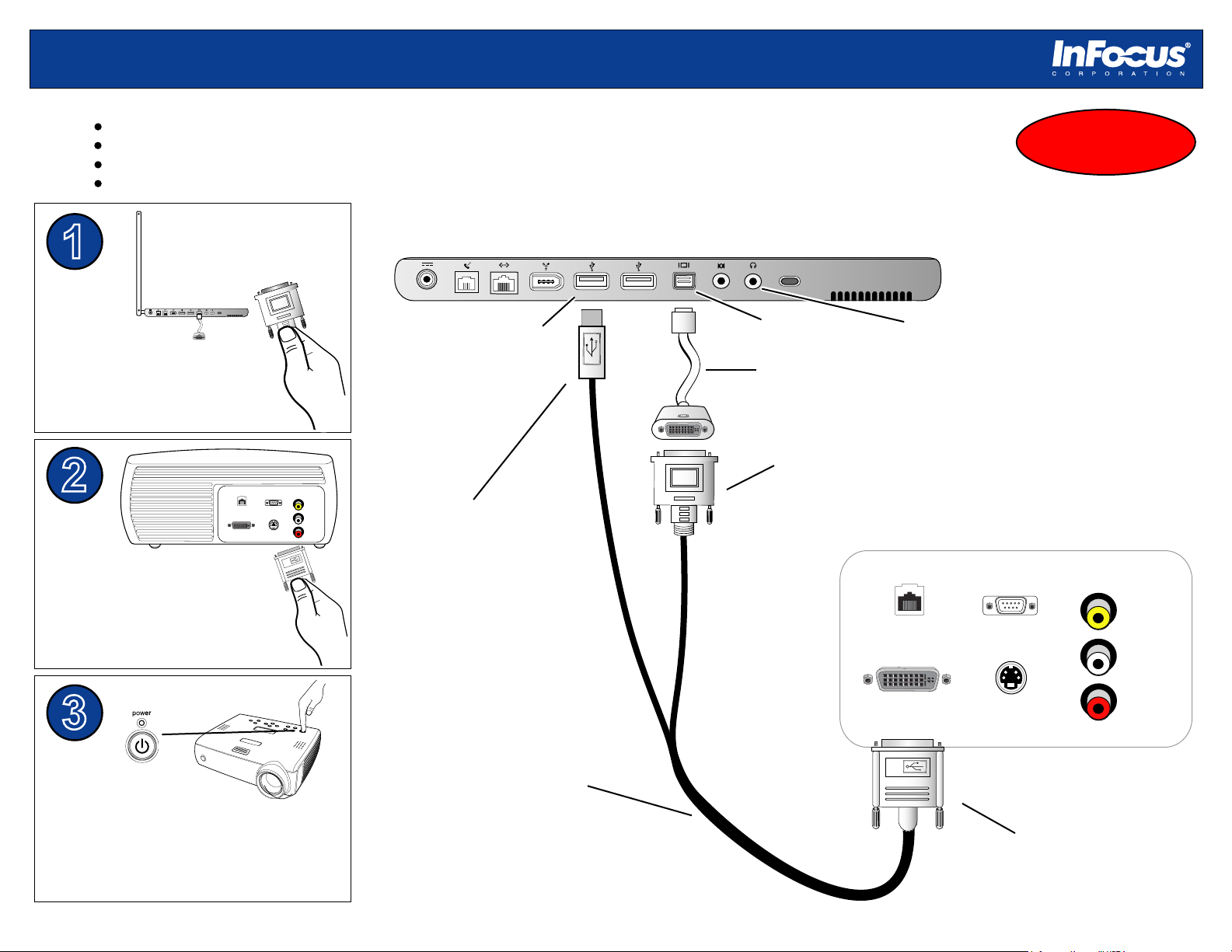

Connecting an Apple PowerBook G4 (12-inch/DVI) to an InFocus projector with a DVI cable

M1 to DVI/USB cable (6 ft)

(InFocus optional accessory)

We recommend connecting the computer to external

speakers to provide the best audio experience.

connector panel may vary from actual product

Apple PowerBook G4 (12-inch/DVI) Connector Panel

Connect to computer speakers or

projector (if supported).*

DVI connector

M1-D connector

M1-DA

Composite

S-video

RS-232 Video

ProjectorNet USB connector for Microsoft PowerPoint

or mouse control with InFocus remote.

(Not required for projector use)

Apple DVI adapter

Apple PowerBook G4 (12-inch/DVI) with Mini-DVI out port

Projector with M1 port

M1 to DVI/USB cable (6 ft, InFocus part #SP-DVI-D)

Apple Mini-DVI to DVI adapter (Apple part #M9321G/A)

Plug the Apple DVI adapter

into the mini-DVI out port.

Plug the DVI connector into the

adapter.

Better

Power on the projector, then the

computer. If the image does not appear

on the screen, see Common Issues.

Plug the M1-D connector into

the M1 port on the projector.

Mini-DVI out port

USB port

Projector Connector Panel

M1-DA

Composite

S-video

RS-232

connector panel may vary from actual product

Video

ProjectorNet

Setup Requirements

Connecting an Apple PowerBook G4 (12-inch) to an InFocus projector with a VGA cable

M1 to VGA/USB cable (6 ft)

(InFocus standard accessory)

We recommend connecting the computer to external

speakers to provide the best audio experience.

connector panel may vary from actual product

Apple PowerBook G4 (12-inch) Connector Panel

VGA connector

M1-A connector

M1-DA

Composite

S-video

RS-232 Video

ProjectorNet USB connector for Microsoft PowerPoint

or mouse control with InFocus remote.

(Not required for projector use)

Apple PowerBook G4 (12-inch) with Monitor/video out port

Projector with M1 port

M1 to VGA/USB cable (6 ft, InFocus part #SP-DVI-A)

Apple VGA adapter (Apple part# M8639G/A)

Connect to computer speakers or

projector (if supported).*

monitor/video

out port

USB port

Plug the Apple VGA adapter

into the monitor/video out port.

Plug the VGA connector into

the adapter.

Power on the projector, then the

computer. If the image does not appear

on the screen, see Common Issues.

Plug the M1-A connector into

the M1 port on the projector.

Projector Connector Panel

M1-DA

Composite

S-video

RS-232

connector panel may vary from actual product

Video

ProjectorNet

Setup Requirements

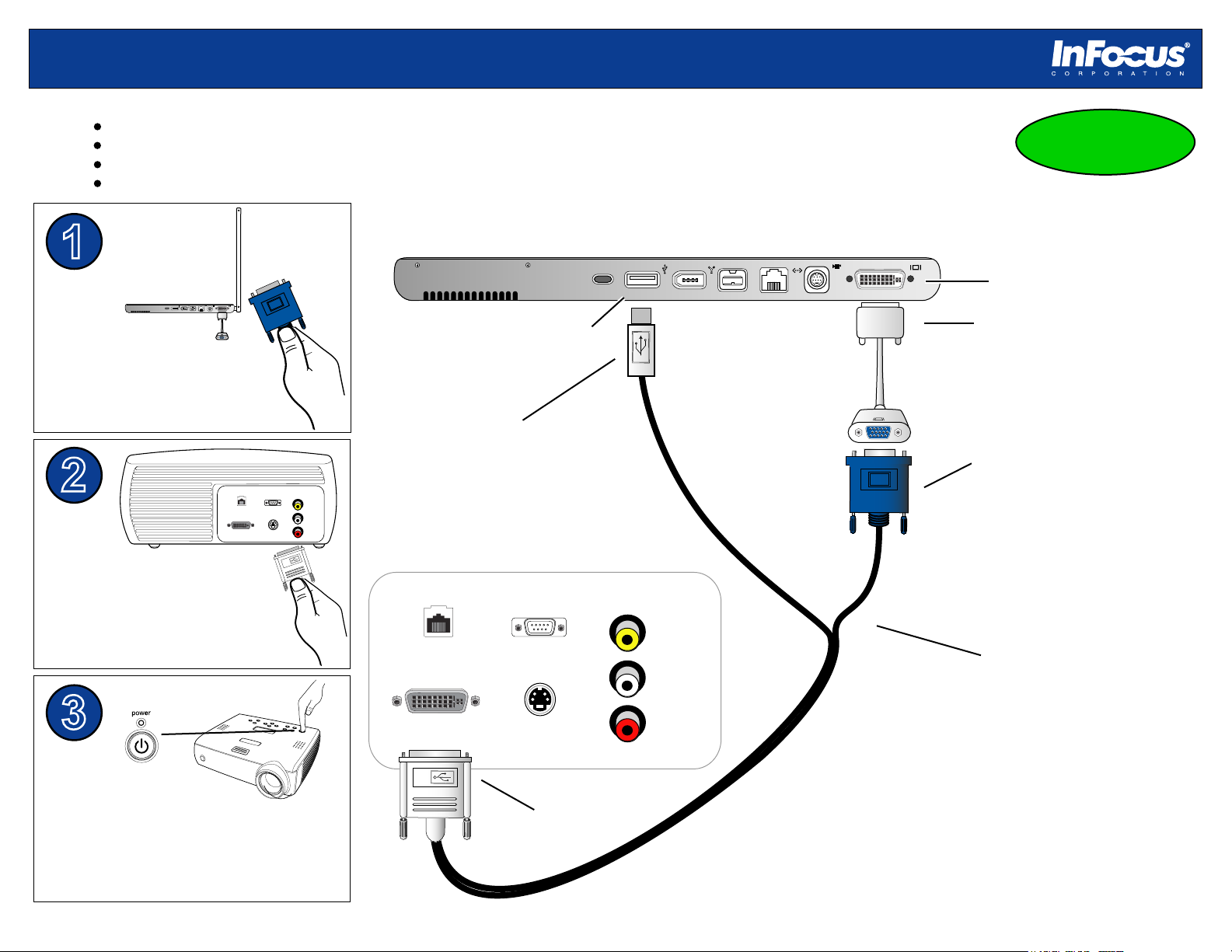

Connecting an Apple PowerBook G4 (15-inch/DVI) to an InFocus projector with a VGA cable

M1 to VGA/USB cable (6 ft)

(InFocus standard accessory)

connector panel may vary from actual product

Apple PowerBook G4 (15-inch/DVI) Connector Panel

VGA connector

M1-A connector

M1-DA

Composite

S-video

RS-232 Video

ProjectorNet

USB connector for Microsoft PowerPoint

or mouse control with InFocus remote.

(Not required for projector use)

Apple DVI-VGA adapter

Apple PowerBook G4 (15-inch/DVI) with DVI-I out port

Projector with M1 port

M1 to VGA/USB cable (6 ft, InFocus part #SP-DVI-A)

Apple DVI to VGA adapter (Apple part #M8754G/A)

Good

OUT

DVI-I port

USB port

NOTE: We recommend connecting the computer to external

speakers to provide the best audio experience.

Plug the Apple DVI-VGA

adapter into the DVI out port.

Plug the VGA connector into

the adapter.

Power on the projector, then the

computer. If the image does not appear

on the screen, see Common Issues.

Plug the M1-A connector into

the M1 port on the projector.

Projector Connector Panel

M1-DA

Composite

S-video

RS-232

connector panel may vary from actual product

Video

ProjectorNet

Setup Requirements

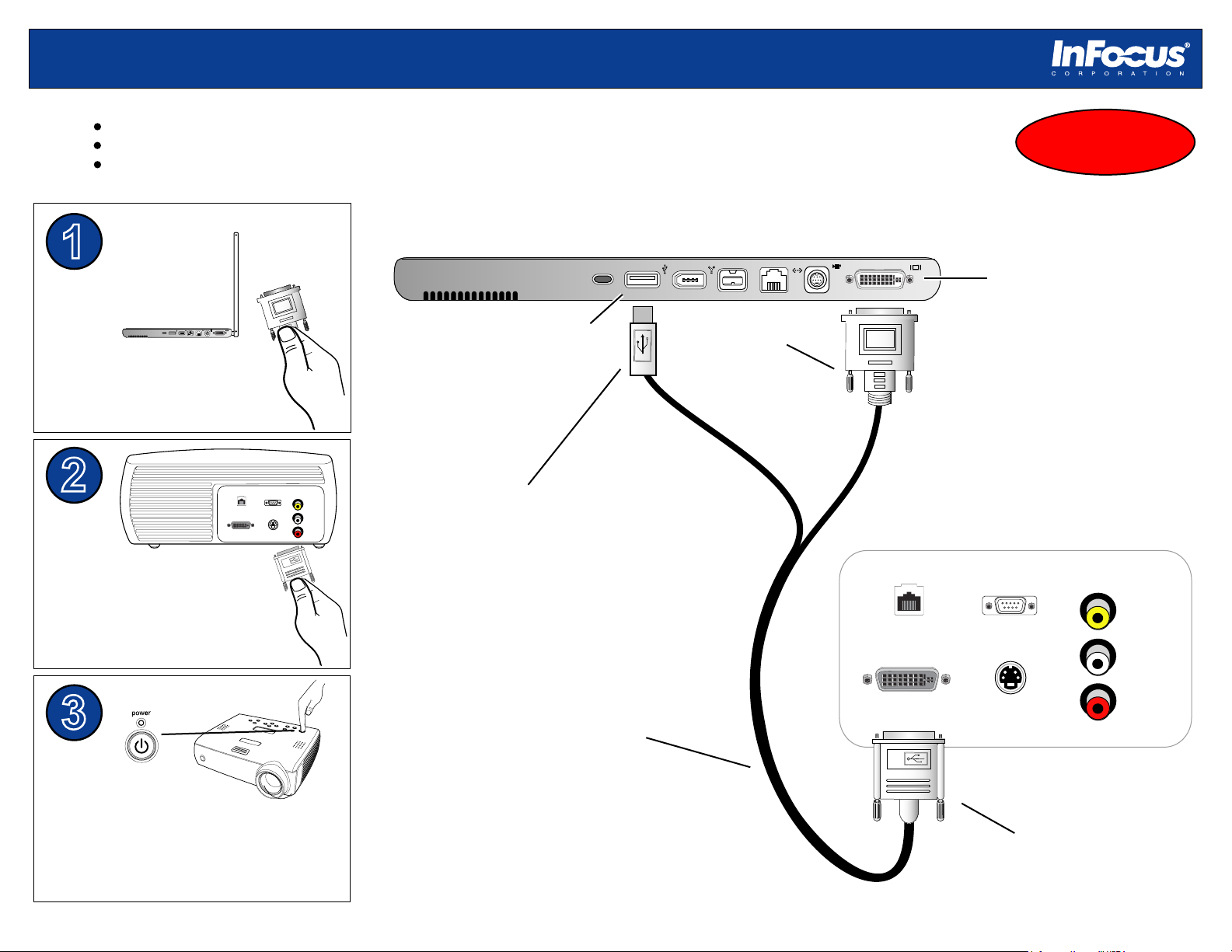

Connecting an Apple PowerBook G4 (15-inch/DVI) to an InFocus projector with a DVI cable

Connect the M1-D connector

to the M1 port on the projector.

3M1 to DVI/USB cable (6 ft)

(InFocus optional accessory)

NOTE: We recommend connecting the computer to external

speakers to provide the best audio experience.

connector panel may vary from actual product

Apple PowerBook G4 (15-inch/DVI) Connector Panel

DVI-D connector

M1-D connector

M1-DA

Composite

S-video

RS-232 Video

ProjectorNet USB connector for Microsoft PowerPoint

or mouse control with InFocus remote.

(Not required for projector use)

Apple PowerBook G4 (15-inch/DVI) with DVI-I out port

Projector with M1 port

M1 to DVI-D/USB cable (6 ft, InFocus part #SP-DVI-D)

Plug the DVI connector into the

DVI port on the computer.

Better

OUT

DVI-I port

USB port

Power on the projector, then the

computer. If the image does not appear

on the screen, see Common Issues.

Projector Connector Panel

M1-DA

Composite

S-video

RS-232

connector panel may vary from actual product

Video

ProjectorNet

Setup Requirements

Connecting an Apple PowerBook G4 (17-inch) to an InFocus projector with a VGA cable

3M1 to VGA/USB cable (6 ft)

(InFocus standard accessory)

We recommend connecting the computer to external

speakers to provide the best audio experience.

connector panel may vary from actual product

Apple PowerBook G4 (17-inch) Connector Panel

VGA connector

M1-A connector

M1-DA

Composite

S-video

RS-232 Video

ProjectorNet

USB connector for Microsoft PowerPoint

or mouse control with InFocus remote.

(Not required for projector use)

Apple DVI-VGA adapter

Apple PowerBook G4 (17-inch) with DVI-I out port

Projector with M1 port

M1 to VGA/USB cable (6 ft, InFocus part #SP-DVI-A)

Apple DVI to VGA adapter (Apple part #M8754G/A)

Good

OUT

DVI-I port

USB port

Plug the Apple DVI-VGA

adapter into the DVI out port.

Plug the VGA connector into

the adapter.

Power on the projector, then the

computer. If the image does not appear

on the screen, see Common Issues.

Plug the M1-A connector into

the M1 port on the projector.

Projector Connector Panel

M1-DA

Composite

S-video

RS-232

connector panel may vary from actual product

Video

ProjectorNet

Setup Requirements

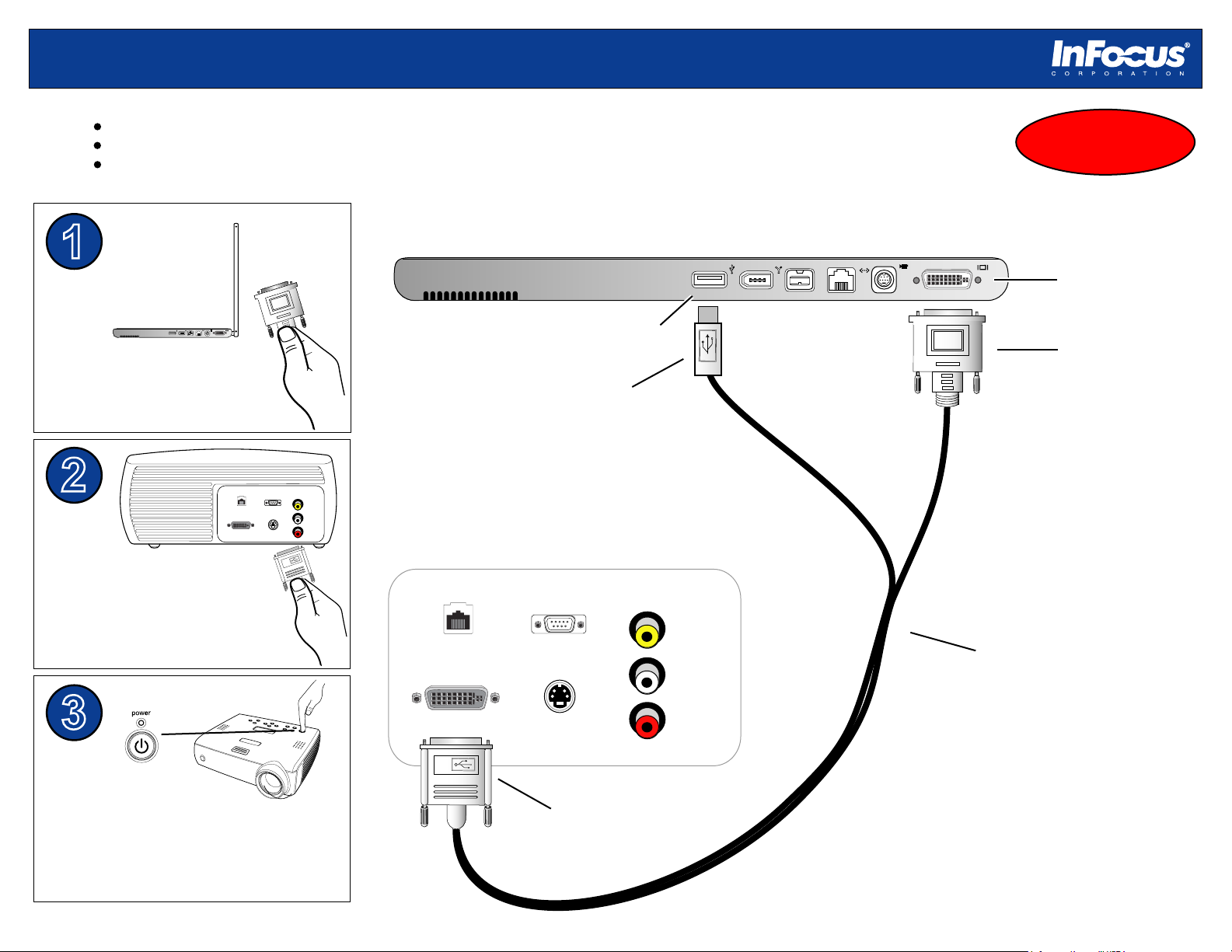

Connecting an Apple PowerBook G4 (17-inch) to an InFocus projector with a DVI cable

M1 to DVI/USB cable (6 ft)

(InFocus optional accessory)

NOTE: We recommend connecting the computer to external

speakers to provide the best audio experience.

connector panel may vary from actual product

Apple PowerBook G4 (17-inch) Connector Panel

DVI-D connector

M1-D connector

M1-DA

Composite

S-video

RS-232 Video

ProjectorNet

USB connector for Microsoft PowerPoint

or mouse control with InFocus remote.

(Not required for projector use)

Apple PowerBook G4 (17-inch) with DVI-I out port

Projector with M1 port

M1 to DVI-D/USB cable (6 ft, InFocus part #SP-DVI-D) Better

OUT

DVI-I port

USB port

Connect the M1-D connector

to the M1 port on the projector.

Plug the DVI connector into the

DVI port on the computer.

Power on the projector, then the

computer. If the image does not appear

on the screen, see Common Issues.

Common Issues

How do I get my computer image on the projector?

1. Make sure your cables are securely seated on the projector and computer.

2. Turn on the projector ﬁrst, then the computer.

3. If no image appears, make sure the resolution and refresh rate are conﬁgured to match the native resolution of the projector. Most InFocus projectors are

either 800 x 600 (SVGA) or 1024 x 768 (XGA)

4. To conﬁrm or set the resolution, go to Apple Menu > System Preferences > Displays. In the Display dialog box, select the appropriate resolution.

(The actual screens may vary, depending on which operating system and computer model you have.)

5. See next page for more information.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere InFocus Projektor Handbücher

InFocus

InFocus LitePro 580 Bedienungsanleitung

InFocus

InFocus IN24 Handbuch

InFocus

InFocus LP 650 Bedienungsanleitung

InFocus

InFocus Learn Big IN5102 Bedienungsanleitung

InFocus

InFocus LP130 Bedienungsanleitung

InFocus

InFocus Projector Bedienungsanleitung

InFocus

InFocus IN5542 Bedienungsanleitung

InFocus

InFocus LP 600 Bedienungsanleitung

InFocus

InFocus IN5122 Bedienungsanleitung

InFocus

InFocus ScreenPlay 5000 Bedienungsanleitung

InFocus

InFocus X6 Bedienungsanleitung

InFocus

InFocus IN112x Bedienungsanleitung

InFocus

InFocus X2 multi-use perfomance Bedienungsanleitung

InFocus

InFocus SP7200 Bedienungsanleitung

InFocus

InFocus LP 120 Bedienungsanleitung

InFocus

InFocus LP280 Konfigurationshandbuch

InFocus

InFocus LiteBoard IN3902LB Bedienungsanleitung

InFocus

InFocus ScreenPlay 4800 Bedienungsanleitung

InFocus

InFocus A4 Bedienungsanleitung

InFocus

InFocus in5316HD Bedienungsanleitung

InFocus

InFocus LP810 Gebrauchs- und Pflegehandbuch

InFocus

InFocus IN3924 Bedienungsanleitung

InFocus

InFocus SP4800 Handbuch

InFocus

InFocus IN5132 Kurzanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung

Asus

Asus ZenBeam Latte Bedienungsanleitung
