InHand ER805-NRQ3 Bedienungsanleitung

InHand ER805-NRQ3 User Manual

www.inhand.com.cn

Beijing InHand Networks Technology Co., Ltd.

InHand ER805-NRQ3 5G Edge Router

User Manual

V1.0—2021.09

InHand ER805-NRQ3 User Manual

Declaration

Thank you for choosing our product. Before using this product, please read this manual carefully.

The contents of this manual cannot be copied or reproduced in any form without the written

permission of InHand.

Due to continuous updating, InHand cannot promise that the contents are consistent with the actual

product information, and does not assume any disputes caused by inconsistency of technical

parameters. The information in this document is subject to change without notice. InHand reserves the

right of final change and interpretation.

Conventions

Symbol

Indication

1 1 Button name, for example, ‘click Save button’.

“” Indicates a window name or menu name, for example, the pop-up window “New

User”.

A multi-level menu is separated by the double brackets “>>”. For example, the

multi-level menu File >> New >> Folder indicates the menu item [Folder] under the

sub-menu [New], which is under the menu [File].

Cautions

Please be careful of the contens under Cautions, improper action may result in loss of

data or device damage.

Note Note contain detailed descriptions and helpful suggestions.

Technical Support

Email: support@inhandnetworks.com

URL: www.inhandnetworks.com

InHand ER805-NRQ3 User Manual

CONTENTS

1 Overview ............................................................................................................. 1

2 Hardware ............................................................................................................ 2

2.1 Indicator Description ............................................................................................... 2

2.2 Restoring to Default Settings via the Reset Button ...................................... 3

2.3 Antenna……………………………………………………………………………………………..4

3 Default Settings ................................................................................................. 5

4 Login and Network Access .............................................................................. 6

4.1 Network Access via Ethernet ................................................................................ 6

4.2 Network Access via SIM card ............................................................................. 10

4.3 Network Access via Wi-Fi .................................................................................... 12

5 Dashboard ........................................................................................................ 15

6 Status ................................................................................................................ 16

6.1 Events ......................................................................................................................... 16

6.2 Clients ......................................................................................................................... 16

6.3 VPN ............................................................................................................................. 16

7 Internet ............................................................................................................. 18

7.1 Internet List .............................................................................................................. 18

7.2 Work Mode .............................................................................................................. 18

7.2.1 Optimal Forwarding & Load Balancing .............................................. 19

8 Local Network .................................................................................................. 20

9 Wi-Fi .................................................................................................................. 22

10 VPN ................................................................................................................. 25

10.1 IPSec ......................................................................................................................... 25

InHand ER805-NRQ3 User Manual

11 Security ........................................................................................................... 27

11.1 Inbound/Outbound Rules ................................................................................ 27

11.2 Port Forwarding ................................................................................................... 28

12 Services ........................................................................................................... 30

12.1 Interface Management ...................................................................................... 30

12.2 DHCP server ........................................................................................................... 30

12.3 Fixed Address List ................................................................................................ 30

12.4 Static Routes.......................................................................................................... 31

13 System ............................................................................................................ 32

13.1 Cloud Management ............................................................................................ 32

13.2 Change the Password ........................................................................................ 32

13.3 Remote Access Control ..................................................................................... 33

13.4 System Clock ......................................................................................................... 33

13.5 Device Options ..................................................................................................... 34

13.6 Configuration Management ............................................................................ 34

13.7 Device Alarms ....................................................................................................... 35

13.8 Tools ......................................................................................................................... 36

13.8.1 Ping ............................................................................................................... 36

13.8.2 Traceroute .................................................................................................. 36

13.8.3 Capture ........................................................................................................ 37

13.8.4 Diagnostic Log .......................................................................................... 37

InHand ER805-NRQ3 User Manual

1 Overview

InHand ER805-NRQ3 5G Edge Router is a new generation 5G edge router

launched by InHand Networks. With 4G / 5G wireless network and a variety of

broadband services, this product can provide Internet access for all industries

of IoT. The product adopts SD-WAN technology to provide uninterrupted data

communication link experience for industry applications.

ER805-NRQ3, with its perfect security and agile wireless link services,

realizes the networking of a variety of IoT devices, can help enter enterprises to

realize informatization and digitization.

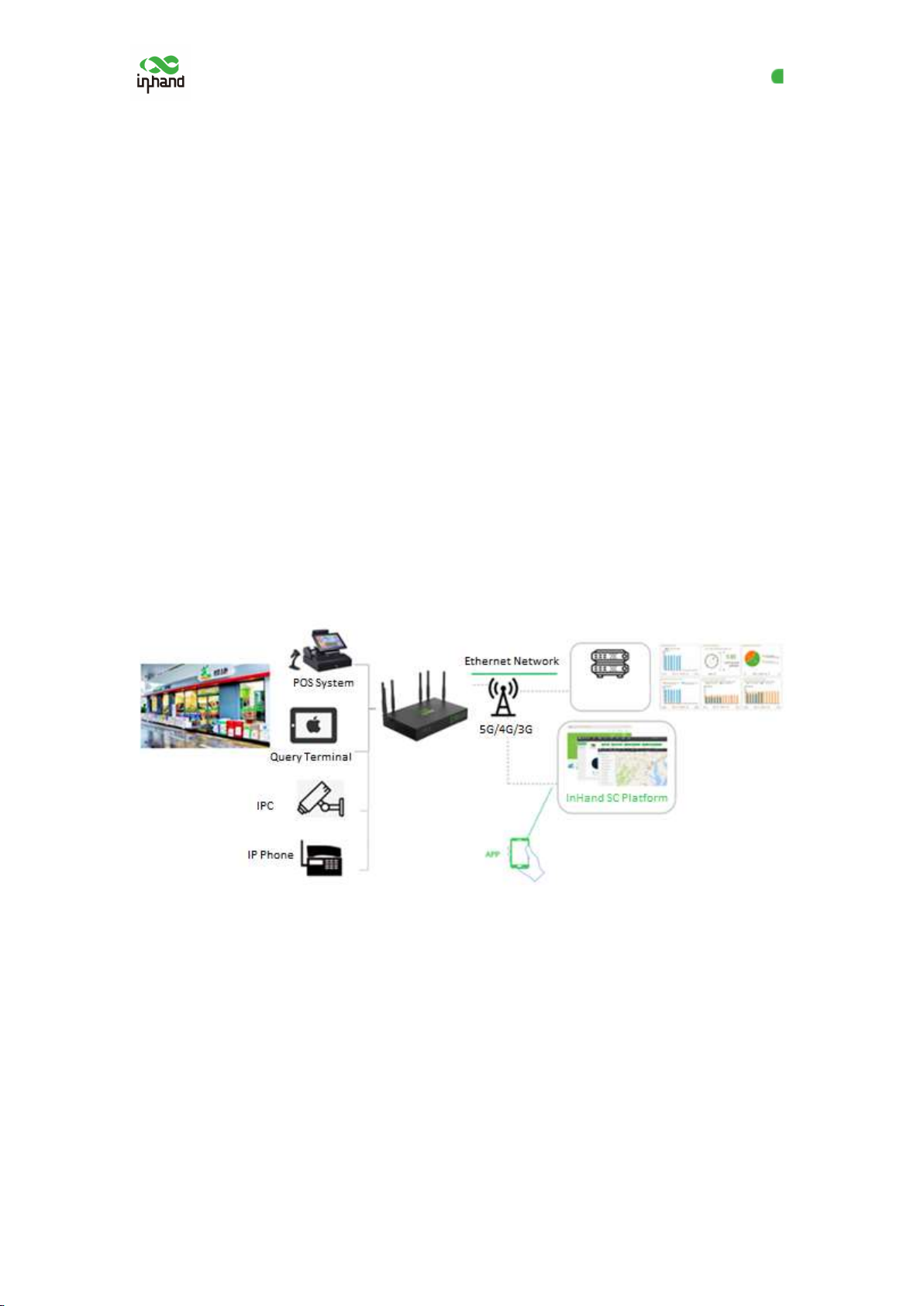

Fig. 1 Application case

InHand ER805-NRQ3 User Manual

2 Hardware

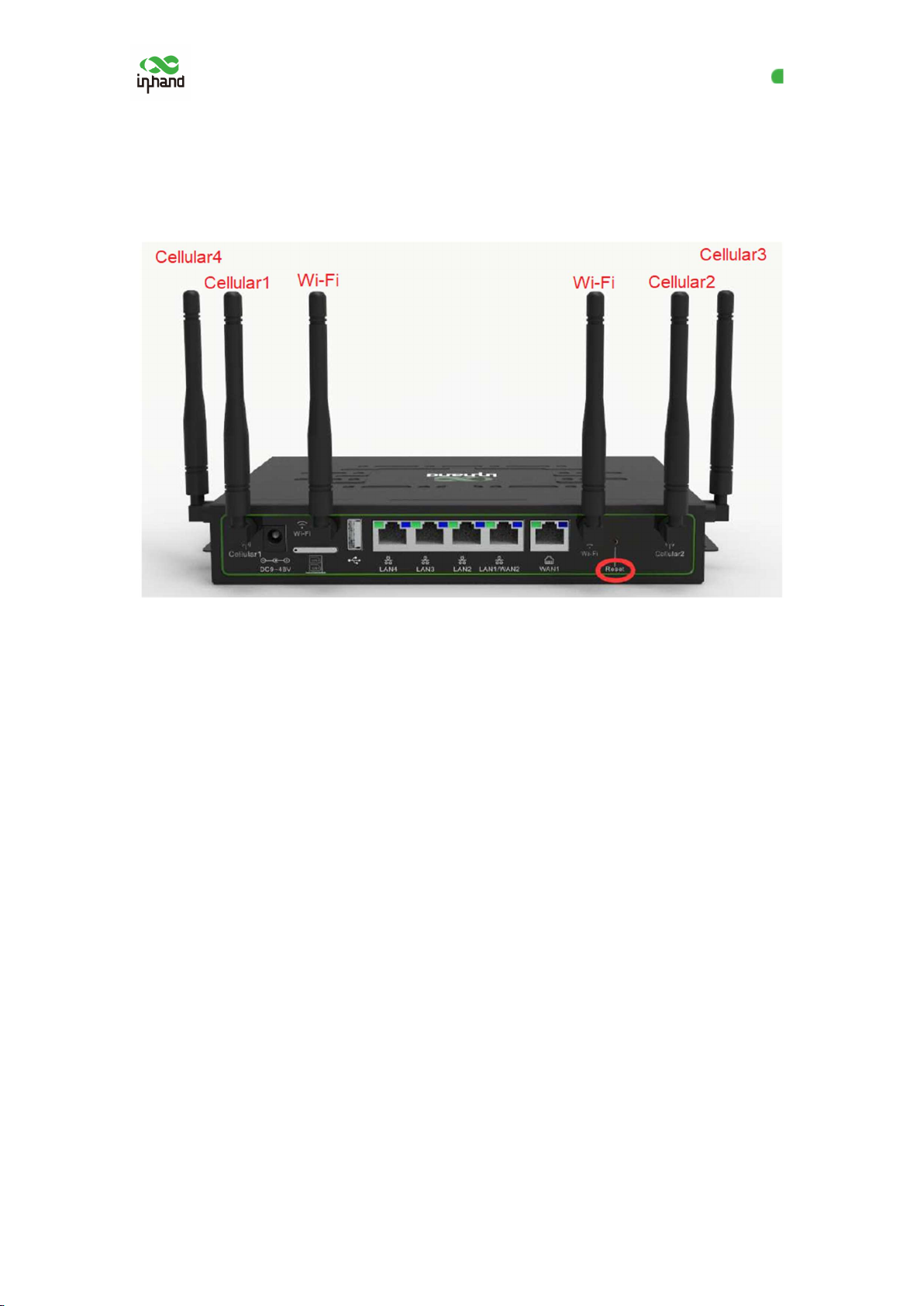

2.1 Indicator Description

ER805-NRQ3

Indicator LED Status and Definition

System

Steady off --- Power off.

Blinking in blue --- System starting.

Steady in blue --- System operates properly.

Blinking in red --- System faults.

Blinking in green --- System upgrading.

Network Status

Blinking in red --- Network connection lost.

Blinking in green --- Cellular network connecting.

Steady in green --- Cellular network connected.

Blinking in blue --- Ethernet network connecting.

Steady in blue --- Ethernet network connected.

Wi-Fi 2.4G

Steady off --- Disabled.

Steady in green --- Wi-Fi 2.4G connecting.

Blinking in green --- Wi-Fi 2.4G working properly.

Wi-Fi 5G

Steady off --- Disabled.

Steady in blue --- Wi-Fi 2.4G connecting.

Blinking in blue --- Wi-Fi 2.4G working properly.

Note: If both cellular network and ethernet network are working properly,

Network Status Indicator will be in blue. And it will show the color of the

connecting network if another network is not connected. If either two network

are not connected, this indicator will be in red.

InHand ER805-NRQ3 User Manual

2.2 Restoring to Default Settings via the

Reset Button

To restore to default settings via the reset button, please perform the following

steps:

1. Press the RESET button immediately after power on the device.

2. System indicator will blink after a few seconds, and after blinking for about

half a minute, it will be steady on.

3. Release RESET button, System indicator will blink, and press the RESET

button again.

4. When System indicator blinks slowly, release the RESET button. The device

has been restored to default settings and will start up normally later.

InHand ER805-NRQ3 User Manual

2.3 Antenna:

List of antenna：

Type of Antenna Model Number Manufacturer Max Gain

5G Sucker antenna GY-XDK-OCL2-B2JG24.1 ShenZhen GuYou Technology Co., Ltd. 5dBi

WiFi Sucker

antenna GY-XPF-BCL2.5-GJG22 ShenZhen GuYou Technology Co., Ltd. 3dBi

Note:

1. Cellular1 is the main antenna of the 3/4G, Cellular2 is the AUX antenna of

the 3/4G.

2. The following figure shows the frequency bands supported by 5G antennas:

InHand ER805-NRQ3 User Manual

3 Default Settings

No.

Function Default Settings

1 Cellular − Dual SIM card enabled, use SIM1 by default.

2 Wi-Fi

− Wi-Fi 2.4G AP mode enabled, SSID: ER805-NRQ3-

followed with the last 6 letters of the AP MAC.

− Wi-Fi 5G AP mode enabled, SSID: ER805-NRQ3-5G-

followed the last 6 letters of the AP MAC.

− Auth Method is WPA2-PSK.

− Both WPA/WPA2 PSK keys in two mode are the last

8 letters in serial number.

3 Ethernet

− 4 LAN are enabled.

− IP Address: 192.168.2.1

− Netmask: 255.255.255.0

− DHCP server enabled, IP address is 192.168.2.2 to

192.168.2.100, can provide IP address for

downstream devices automatically.

4 Management

Services

− Local HTTP(80) and HTTPS(443) are enabled.

− Disable HTTPS access from cellular network.

5 Username and

password

− adm/123456 (super administrator)

InHand ER805-NRQ3 User Manual

4 Login and Network

Access

4.1 Network Access via Ethernet

Step 1: Connect power and Ethernet cable to ER805-NRQ3, connect WAN port

to public network, and one of LAN to PC.

Step 2: Configure PC to be in the same network segment as the IP address of

the router.

(1) Enable PC to obtain an IP address from DHCP automatically

(recommended).

(2) Configure a fixed IP address in the same network segment as the router for

PC. The IP address should be one of the address in 192.168.2.2~192.168.2.254,

Subnet mask should be 255.255.255.0, and Default gateway should be

192.168.2.1. DNS server should be 8.8.8.8 or the address of ISP’s DNS server.
