InHand InRouter6x5 Series Bedienungsanleitung

InRouter6x5 Series Quick Guide

First Edition, March 2013

Republication without permission is prohibited.

Overview

This document is used to guide customer installing and operating InRouter6x5 Series industrial

router which researched and developed by InHand Networks. Please make sure the product model

and the accessories in the packaging (like power supply, antenna) before using. If you need buy

SIM card, please consult the local operators.

Panel Layout

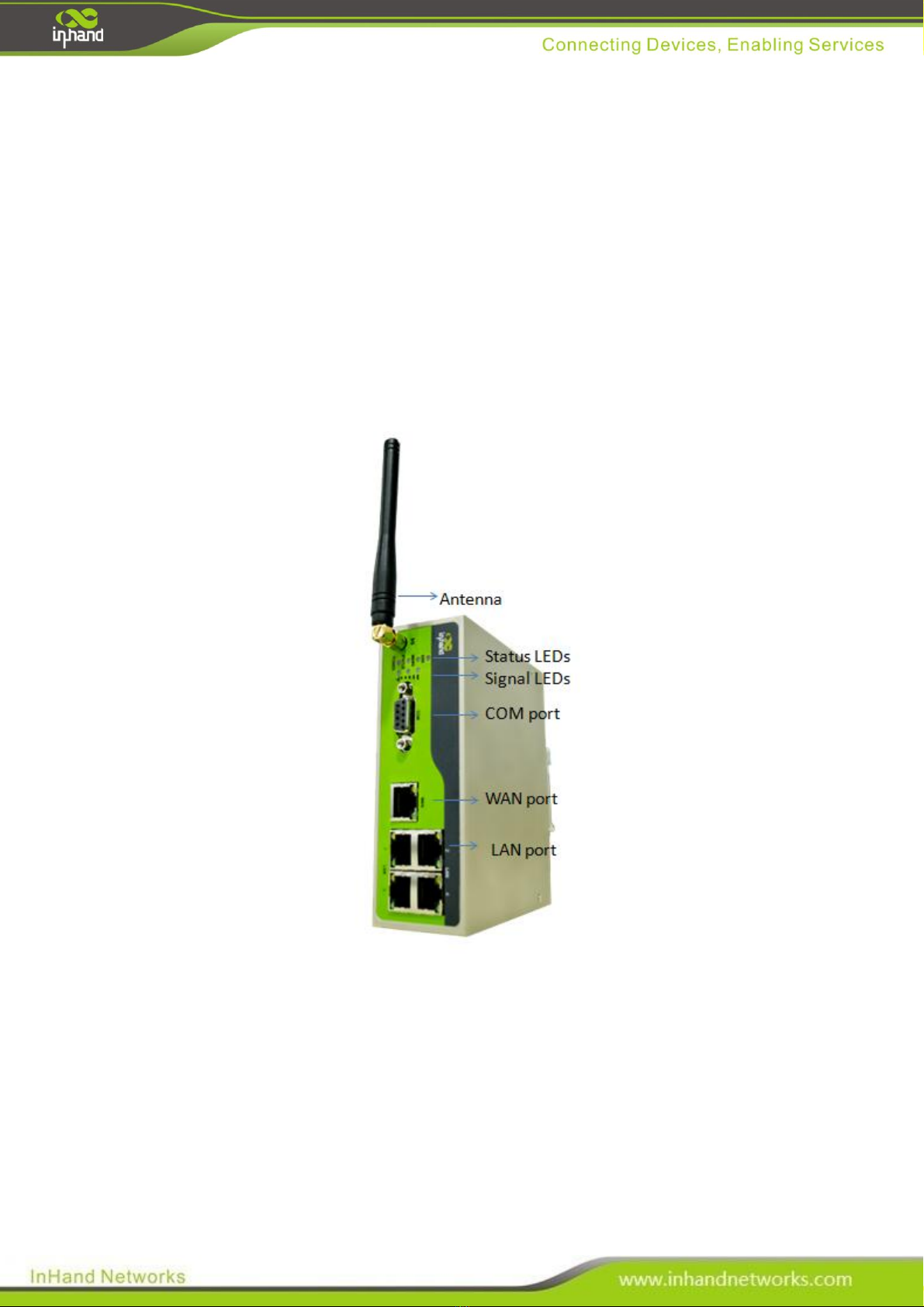

The Reset bottom, SIM card slot and power supply are on above panel.

Quick Connection to Internet

Notice: all the operation should be carried out when InRouter keep interruption of power supply.

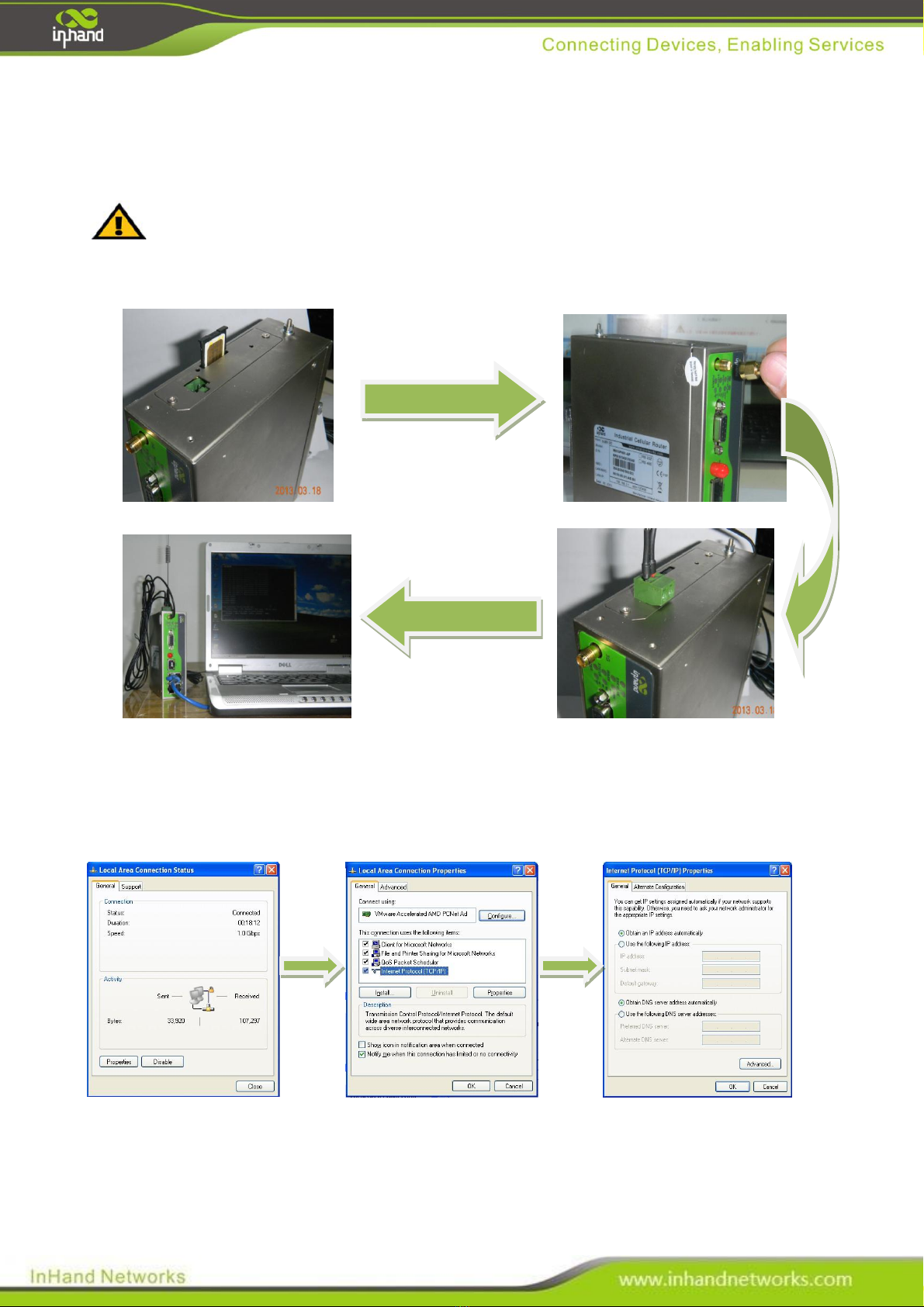

Step 1: Preparation

Insert SIM Card Antenna Installation

Connection with PC Power Supply (two type terminal)

Step 2 First Connect InRouter6x5 with Your PC

InRouter6x5 can auto-distribute IP address for PC. Please set the PC to automatically obtain IP address via DHCP.

(Based on the Windows Operation System):

Open “Control Panel”

“Network Connections”,

then enter “Local Area

Connection Status” screen.

Click “Properties”,

enter “Local Area

Connection

Properties” screen.

Choose “Internet Protocol

(TCP/IP)”, click “Properties”

button to choose “Obtain IP

address automatically.

Step 3: Start to configure your InRouter6x5 (Optional)

After you have finished the former steps, you can configure the InRouter:

Notices:

1 Please click “apply” to activate yourconfiguration after finished configuration.

2You need set yourPC in the same subnet after resetting new IPaddress.

Step 4: Connect InRouter with Internet

Following the configuration steps below to enable InRouter6x5 to connect to Internet.

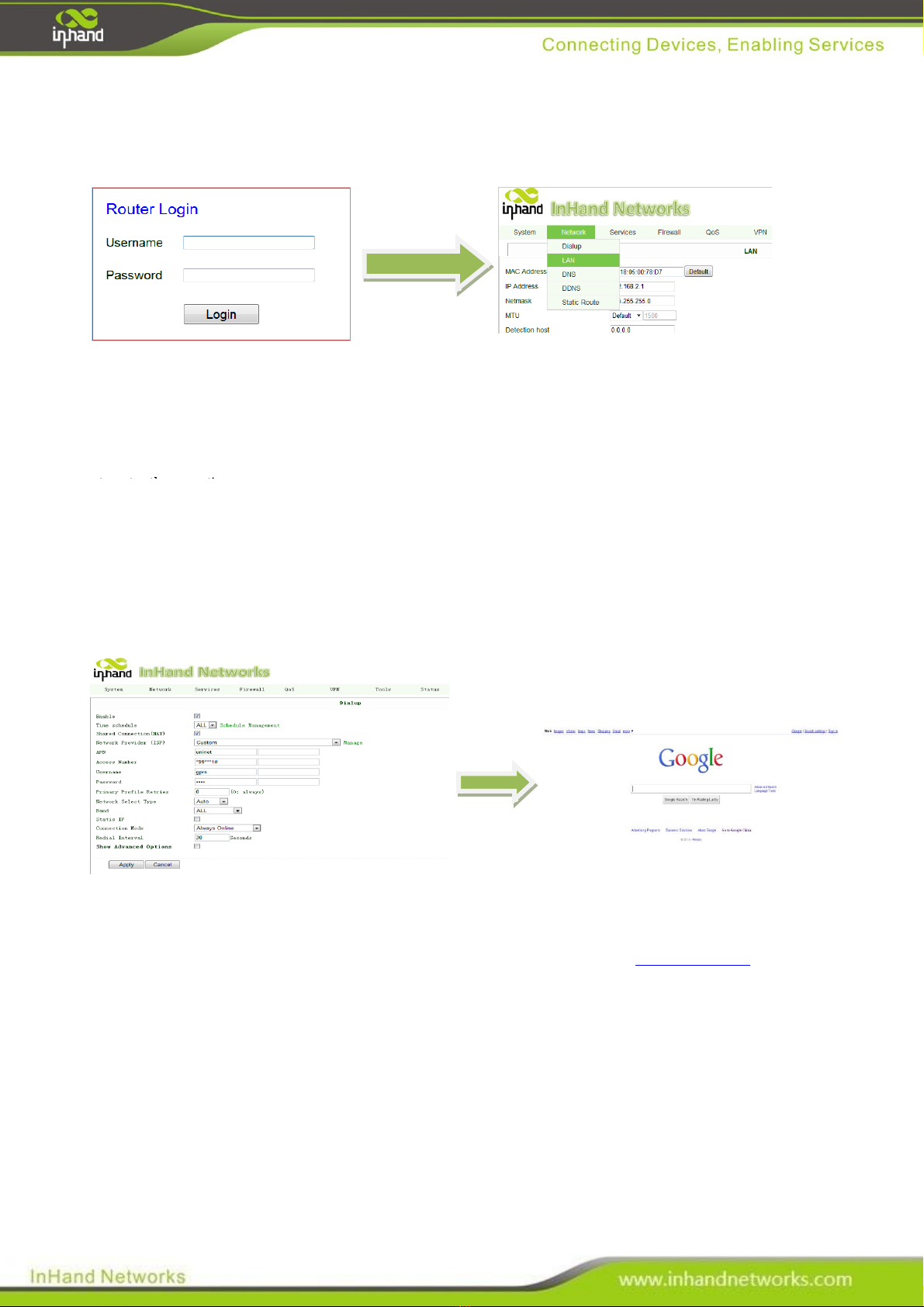

Open IE browser, input the default IP

address of the InRouter:

“http://192.168.2.1”. Input “username”

(default: adm) and the “password”

(default: 123456), and then click “login”

to enter the operation screen.

Change the IP configuration:

If you want to change the IPaddress of

InRouter6x5, click “Network”“LAN”,

change the IPaddress you need.

Click “Network”“Dialup”, enter dialup

configuration web. Please check the

APN, Dialup Number, Username and

Password.

Dialup Number, Username and Password

are provided by local mobile operator.

After correct configuration, InRouter6x5

can now connect with Internet. Open IE

Browser, input www.google.com, you can

access the Google home page.

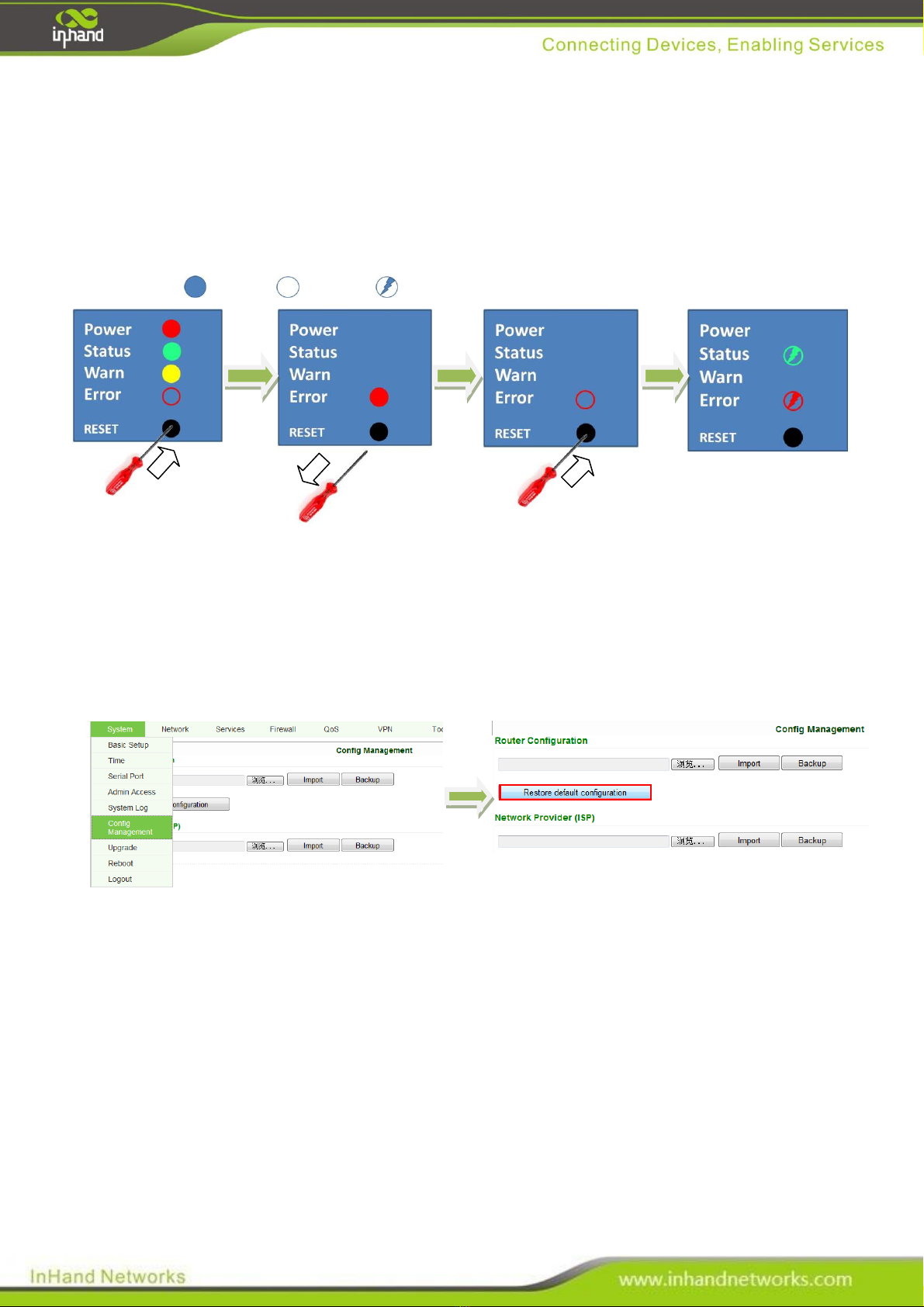

Reset to Factory Defaults

Hardware Method

Legend: On-- Off-- Blink--

Web Method

Notice:Afterrestore default configuration, please REBOOTdevice.

Press and hold RESET

button while turning

on IR6x5.

When you see ERROR LED

turns on (about 10

seconds after power on),

release the RESET button.

After a few seconds,

the ERROR LED will

turn off, now press

RESET button again.

Then you will see

ERROR and STATUS LED

blink, which means

reset to factory defaults

succeed.

“System”“Config Management”

Click “Restore default configuration”.

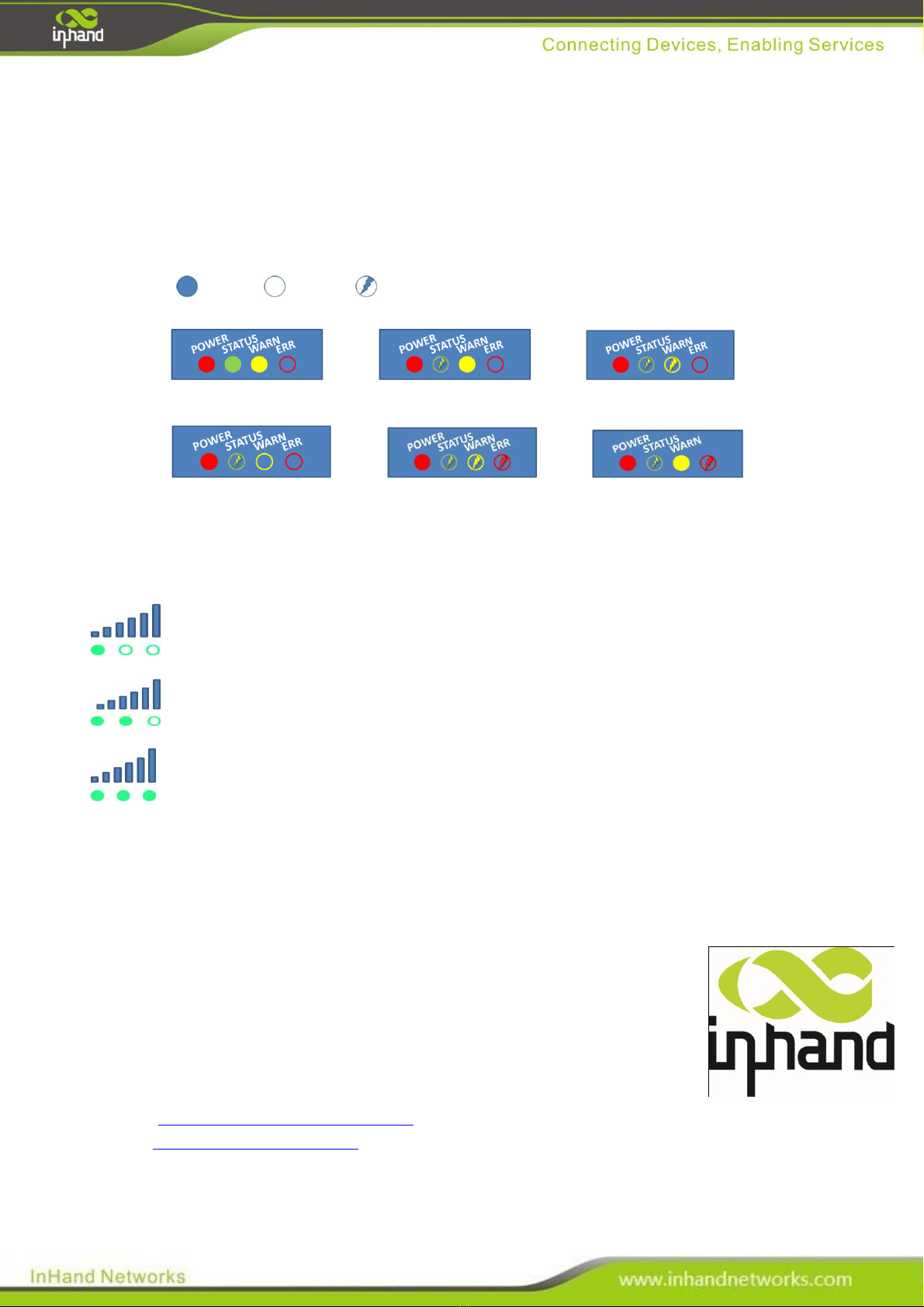

Description of LED

Description of LED panel

Legend: On-- Off-- Blink--

Power on Start to run firmware Begin dial to Internet

Connect to internet Upgrading firmware Restore factory default

Description of Signal Status LED

----- Signal: 1-9 (bad signal level, route cannot work, please check the antenna and local signal level)

------ Signal: 10-19 (Router work normally under this signal level)

------ Signal: 20-31 (Perfect signal level)

Tel: +86-010-64391099

Fax: 86-10-64399872

Address: Wangjing Science Park, Road Lizezhonger, Chaoyang District, Beijing, P.

R. C, 100102

Website: http://www.inhandnetworks.com

Email: in[email protected]

Subject to alterations without notice.
