Innovaphone IP230 Produktinformationsblatt

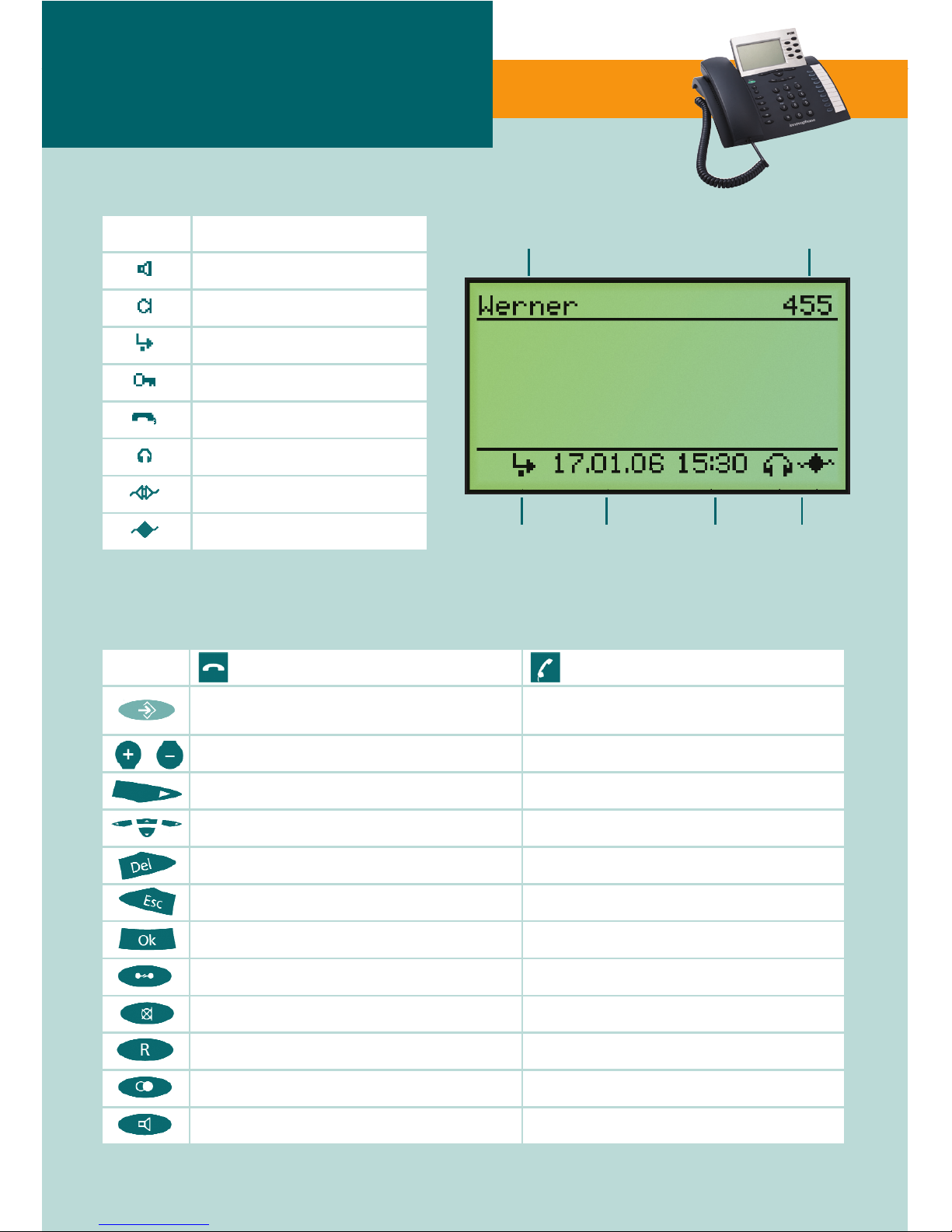

Display
Keys
Short user guide
innovaphone IP230
Symbol Description
Loudspeaker
Microphone
Call diversion
Telephone locked
Handset
Headset
Connection down
Connection up
Key ...in idle state ...during connection
Enter main menu, leave menu and save changes Setup a conference
Adjust volume of speaker
Enter menu, confirm selection, enter
Arrow keys for orientation in menu Left and right arrow to adjust volume
Delete left character
Leave menu without saving changes Terminate active call
Enter to complete entries or confirm selection
Exit menu Terminate active call
Do not disturb, ring tone off Mute, microphone off
Displays in-bound call list Consultation call
Displays out-bound call list Forward active call
Starts hands-free calling Speaker on, change to hands-free mode
Name Number
DateSymbols SymbolsTime

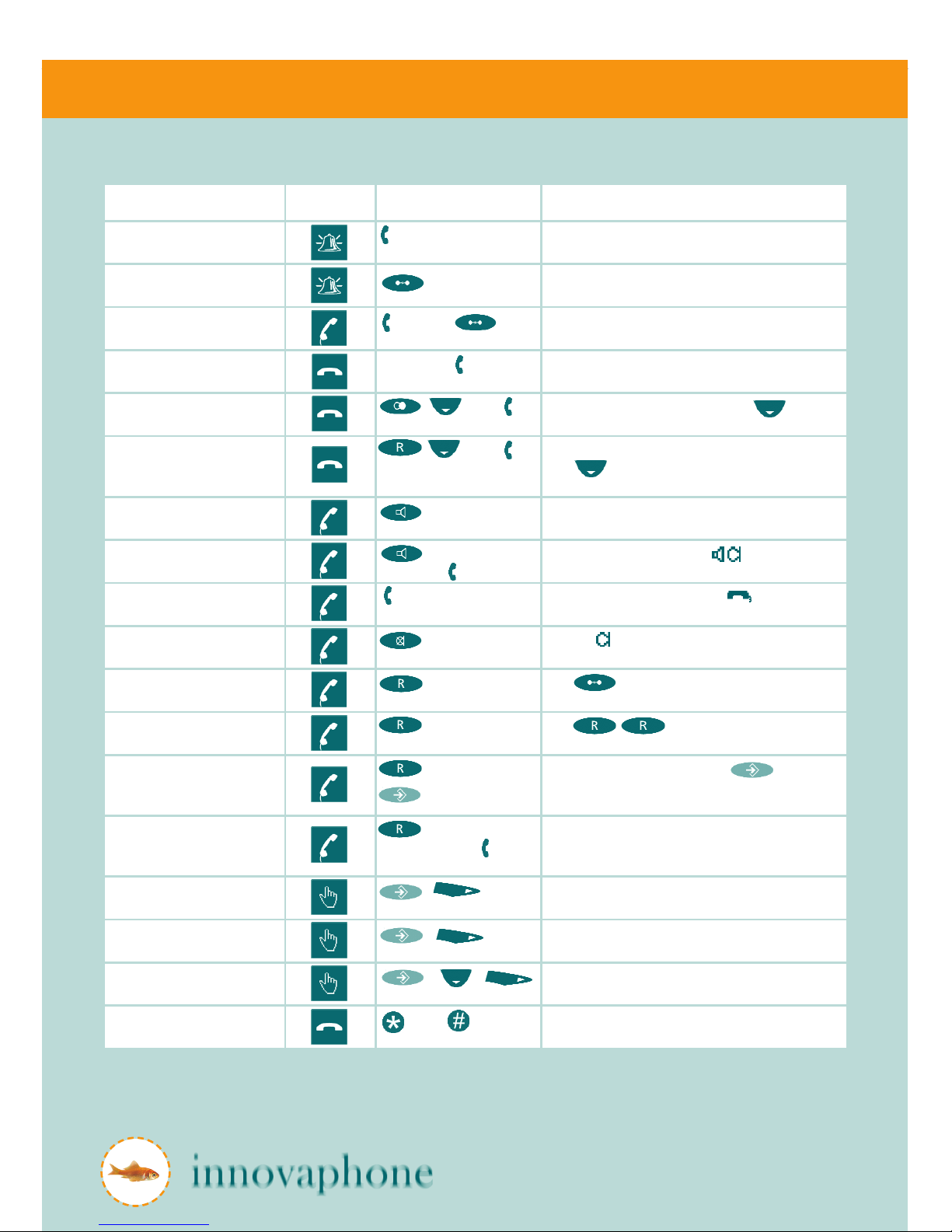

Actions
Action Status Keys Description
Accept call pick up The display shows caller and called party
Reject call Caller gets a busy tone
Terminate call hang up, The active call is terminated
Make call 0...9, then All numbers can be entered after picking up the
handset
Redial , then Displays the last in-bound calls, use
to select the final entry
Callback , then Provides the last incoming calls for callback,
use to select the final entry
Speaker on Toggles speaker on and off
Switch to hands-free mode hold and hang
up
From handset mode; symbol appears in
display
Switch to handset mode pick up From hands-free mode; symbol appears in
display
Mute Symbol appears blinking in display
Consultation call , 1...9 dial Use to terminate consultation call and
return to first connection
Switch between calls , 1...9 dial Use to switch between two calls
Conference , 1...9 dial, To cancel the conference, press again
Transfer call , 1...9 dial and
hang up
For transfer before the consultation call is
connected, hang up
Call completion on busy
subscriber
,The phone rings as soon as the callback is possible
Call completion on no answer ,The phone rings as soon as the remote phone
is active again
Automatic redial , , Redials the last call every 30 seconds for 20 minutes
Pick-Up , 1...9, Picks up the call to the phone number you have
entered

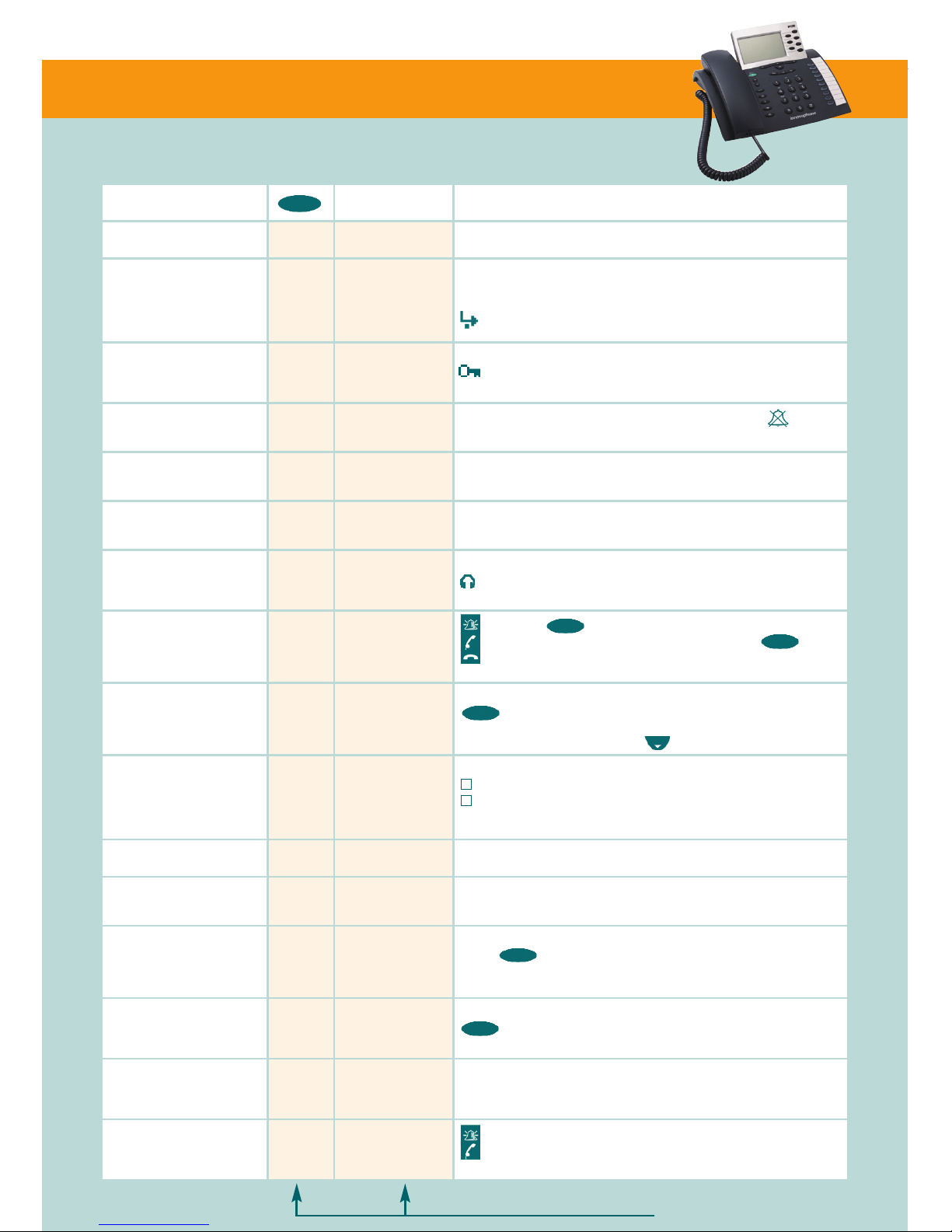

Function key configuration
Function Display Description
Dial Dials the configured number
Call Forwarding 0:
1:
2:
3: Off
Configuration of automatic call forwarding
Up to 4 different destinations can be configured
Call forwarding unconditional on busy or on no reply
shows call forwarding on busy or no reply, Call forwarding
unconditional shows the complete number in display
Lock 0:
1:
Locks the phone, only out-bound calls using dial pad are possible
shows the phone lock
Ringer off 0:
1:
Ring tone off, status will be shown in telephone display
Call waiting 0:
1:
Off: if phone is active, in-bound call get busy signal
On: if phone is active, in-bound call will be announced
Hide own number 0:
1:
Off: provide own number in out-bound calls
On: hide own number in out-bound calls
Headset 0:
1:
Enables and disables the use of headset
shows that the headset is active
Partner direct call
Pickup: Shows the call information of your partner
Busy status on partner side
Pickup Shows in-bound call to group members
pick up a single call
In case of multiple calls, the list of pending call is displayed and
permit the selection of calls; use to select the call you will take
Registration Registration of additional user fort he phone
new user becomes active user
main user still the active user
Unregistration Unregistration of the co-user
Switch Change active users, after which all settings for that user are active
Hot desking Register co-user by entering name, number and password
Press again to unregister this user
Message waiting There is a message for you
to enter the message system
Transfer Connects the two calls that you are currently handling
Redirect Blind transfer to the defined number
Redirect to defined number
Enter your own configuration in these fields
innovaphone AG | Böblinger Str. 76 | 71065 Sindelfingen | Germany
Phone: +49 (7031) 73009-0 | Fax: +49 (7031) 73009-99
Partner keys
The advanced operating manual will be available for free
as a PDF file in the download area of www.innovaphone.com.
All described functions are related to the IP200 phone connected to an innovaphone PBX.
The configuration of the phone has to be done over Web interface. Use this key to enter the menu,
select for administration and confirm with , select information and confirm again. The first line
shows the actual IP address of your phone device. Enter this IP address in the address field of your Web browser.
Note that the configuration is password protected.
Issue: Build [07-60600] (All information and technical specifications may be subject to change) 2007 © innovaphone AG
The partner keys can be found on the right hand side of the telephone IP230. There are 10 partner keys available
on the device. Using appropriate additional modules the number of partner keys can be extended by a further 30
keys. Up to 3 additional modules can be connected to the telephone, so that up to 100 partner keys are available.
In principle the partner keys can be programmed with all functions, which are also available for the function keys
next to the display. The current status is not indicated on the display instead an LED is integrated into the key.
This means the key block is optimally appropriate for the function as partner key.
PURE IP-TELEPHONY
Status Function Description
off Dial When this key is pressed, the configured partner calling number is
dialled in hands free mode. Picking up the handset means the call is
transferred to handset. The key can also be used to transfer calls.
blinking Pick-Up The partner’s telephone is ringing. The call can be transferred to own
telephone by pressing the key and can be received as usual.
on User busy The partner telephone is busy. This phone can only be reached or
transferred to if the call-waiting function is activated.
