Before using your new product, please read these instructions to prevent any damage.

3.3 Cubic Foot

Compact Refrigerator

NS-CF33SS8/NS-CF33WH8/NS-CF33BK8/

NS-CF33BK8-C

USER GUIDE

www.insigniaproducts.com

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Grounding requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Refrigerator parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Setting up your refrigerator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Before using your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Finding a suitable location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Leveling your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Providing proper ventilation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Providing a proper power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Setting the thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Reversing the door position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Maintaining your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Shutting down your refrigerator - long vacations (several months) . . . . . . .12

Moving Your Refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Tips on saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ONE-YEAR LIMITED WARRANTY - INSIGNIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Introduction

Congratulations on your purchase of a high-quality Insignia product. Your

NS-CF33SS8/NS-CF33WH8/NS-CF33BK8/NS-CF33BK8-C represents the state of the

art in compact refrigerator design and is designed for reliable and trouble-free

performance.

3.3 Cubic Foot Compact Refrigerator

www.insigniaproducts.com

Important Safety Instructions

WARNING

1Read these instructions.

2Keep these instructions.

3Heed all warnings.

4Follow all instructions.

5Do not use this appliance near water.

6Clean only with damp cloth.

7Do not block any ventilation openings. Install in accordance with the

manufacturer's instructions.

8Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including amplifiers) that produce heat.

9Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding

type plug has two blades and a third grounding prong. The wide blade or the

third prong are provided for your safety. If the provided plug does not fit into

your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the appliance.

11 Do not attempt to modify or extend the power cord of this appliance.

12 Unplug this appliance during lightning storms or when it will not be used for

long periods of time.

13 Make sure that the available AC power matches the voltage requirements of

this appliance.

14 Do not handle the plug with wet hands. This could result in an electric shock.

15 Unplug the power cord by holding the plug, never by pulling the cord.

16 Do not turn the appliance on or off by plugging or unplugging the power

cord.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that

dangerous voltage constituting a

risk of electric shock is present

within your compact refrigerator.

This symbol indicates that there

are important operating and

maintenance instructions in the

literature accompanying your

compact refrigerator.

NS-CF33SS8/NS-CF33WH8/NS-CF33BK8/ NS-CF33BK8-C

www.insigniaproducts.com

17 Turn off the appliance before unplugging it.

18 Refer all servicing to qualified service personnel. Servicing is required when

the appliance has been damaged in any way, such as the power-supply cord

or plug is damaged, liquid has been spilled or objects have fallen into the

appliance, the appliance has been exposed to rain or moisture, does not

operate normally, or has been dropped.

19 To reduce the risk of fire or electric shock, do not expose this appliance to rain,

moisture, dripping, or splashing, and no objects filled with liquids should be

placed on top of it.

WARNING

Electric Shock Hazard

Failure to follow these instructions can result in electric

shock, fire, or death.

1WARNING–Keep ventilation openings in the appliance

enclosure or in the built-in structure clear of

obstruction.

2WARNING–Do not touch the interior of the chiller

compartment with wet hands. This could result in frost

bite.

3WARNING–Do not use mechanical devices or other means to accelerate the

defrosting process, other than those recommended by the manufacturer.

4WARNING–Do not damage the refrigerant circuit when handling, moving, or

using the refrigerator.

5WARNING–Do not use electrical appliances inside the food storage

compartment of the refrigerator, unless they are of the type recommended by

the manufacturer.

6WARNING–DANGER—Never allow children to play with, operate, or crawl

inside the refrigerator.

Risk of child entrapment. Before you throw away your old refrigerator:

1) Take off the doors

2) Leave the shelves in place so that children may not easily climb inside

7Unplug the refrigerator before carrying out user maintenance on it.

8This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the

appliance.

9If a component part is damaged, it must be replaced by the manufacturer, its

service agent, or similar qualified persons in order to avoid a hazard.

10 Please dispose of the refrigerator according to local regulations as the

refrigerator contains flammable gas and refrigerant.

3.3 Cubic Foot Compact Refrigerator

www.insigniaproducts.com

11 Follow local regulations regarding disposal of the refrigerator due to

flammable refrigerant and gas. All refrigeration products contain refrigerants,

which under the guidelines of federal law must be removed before disposal. It

is the consumer's responsibility to comply with federal and local regulations

when disposing of this product.

12 This refrigerator is intended to be used in household and similar

environments.

13 Do not store or use gasoline or any flammable liquids inside or in the vicinity

of this refrigerator.

14 Do not use extension cords or ungrounded (two prong) adapters with this

refrigerator. If the power cord is too short, have a qualified electrician install an

outlet near the refrigerator. Use of an extension cord can negatively affect the

refrigerator’s performance.

15 If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified person in order to avoid a hazard.

Grounding requirement

This refrigerator must be grounded. This refrigerator is equipped with a cord

having a grounding wire with a grounding plug. The plug must be inserted into an

outlet that is properly installed and grounded.

Improper use of the grounding plug can result in a risk of electric shock. Consult a

qualified electrician or service person if the grounding instructions are not

completely understood, or if doubt exists as to whether the refrigerator is properly

grounded.

NS-CF33SS8/NS-CF33WH8/NS-CF33BK8/ NS-CF33BK8-C

www.insigniaproducts.com

Features

Package contents

• 3.3 cu. ft. compact refrigerator

• User Guide

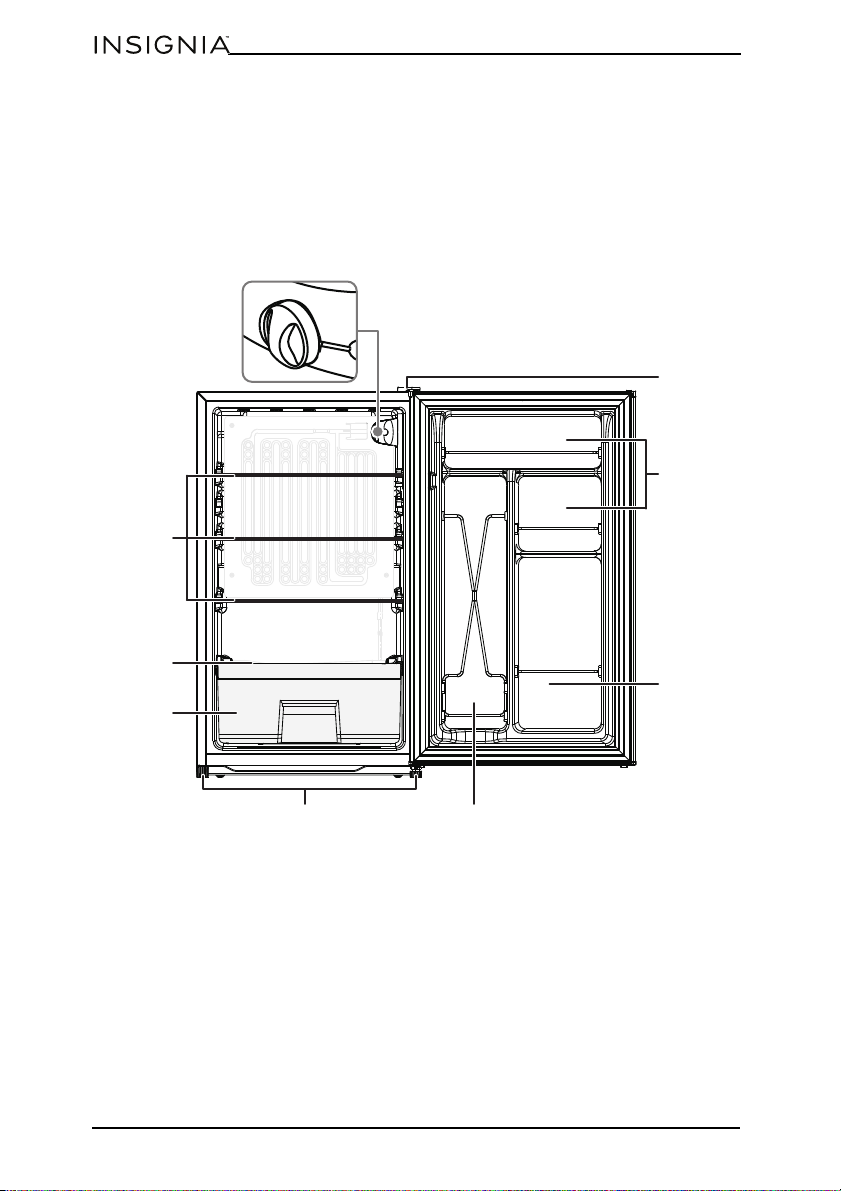

Refrigerator parts

Bottle storage

Can storage

Adjustable

shelves

Crisper

compartment

Thermostat

Leveling feet

Top hinge

Storage

space

Bottom shelf

3.3 Cubic Foot Compact Refrigerator

www.insigniaproducts.com

Setting up your refrigerator

Before using your refrigerator

• Remove the exterior and interior packing.

• Let the refrigerator stand upright for approximately four hours before

connecting it to power. This reduces the possibility of a malfunction in the

cooling system from improper handling during transportation.

• Clean the interior surface with lukewarm water using a soft cloth.

Finding a suitable location

• This refrigerator is designed to be free standing only, and should not be

recessed or built-in.

• Place your refrigerator on a floor that is strong enough to support the

refrigerator when it is fully loaded.

• Allow five inches of space between the back and sides of the refrigerator

and any surrounding walls. This allows the proper air ventilation. Adjust the

feet to keep the refrigerator level.

• Locate the refrigerator away from direct sunlight and sources of heat (stove,

heater, radiator, and so on). Direct sunlight may affect the acrylic coating

and heat sources may increase electrical consumption. Ambient

temperature below 50°F (10°C) or above 85°F (29.4°C) will hinder the

performance of this refrigerator. This refrigerator is not designed for use in a

garage or any other outside installation.

• Avoid locating the refrigerator in moist areas.

Leveling your refrigerator

• It is very important for the refrigerator to be level in order to function

properly. If the refrigerator is not leveled during installation, the doors may

not close or seal properly, causing cooling, frost, or moisture problems.

• To level your refrigerator, turn the leveling foot clockwise to raise that side to

the refrigerator or turn it counter-clockwise to lower that side.

Providing proper ventilation

Place the refrigerator at lease five inches from the wall to ensure proper airflow to

the compressor. Do not place the refrigerator near any heat sources, such as a

heater or stove, as this may put a strain on the compressor.

Note: Having someone push against the top of the refrigerator helps to take some

weight off the leveling foot and makes it easier to adjust.

NS-CF33SS8/NS-CF33WH8/NS-CF33BK8/ NS-CF33BK8-C

www.insigniaproducts.com

Providing a proper power supply

Check your local power source. This refrigerator requires a 110V-120V, 60Hz power

supply.

Use a receptacle that accepts the grounding prong. The power cord is equipped

with a 3-prong (grounding) plug which mates with a standard 3-prong

(grounding) wall outlet to minimize the possibility of electric shock hazard from

this refrigerator.

Notes:

• The refrigerator should always be plugged into its own individual electrical outlet

which has a voltage rating that matches the rating plate.

• Never unplug your refrigerator by pulling on the power cord. Always grip the plug

firmly and pull straight out from the outlet.

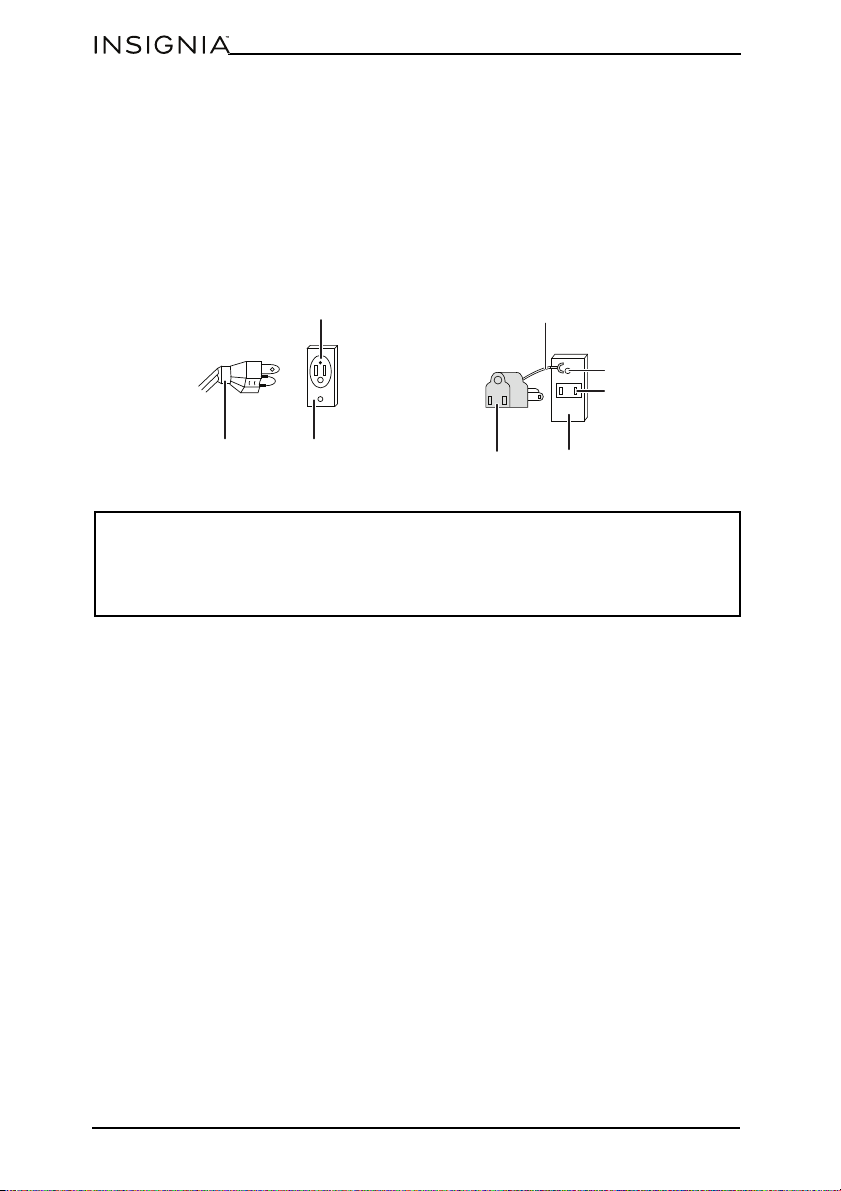

3-prong receptacle

Receptacle box cover

3-prong plug

Grounding lead

Grounding adapter Receptacle box cover

Screw

Receptacle

Using a 3-prong plug and outlet Using a grounding adapter

3.3 Cubic Foot Compact Refrigerator

www.insigniaproducts.com

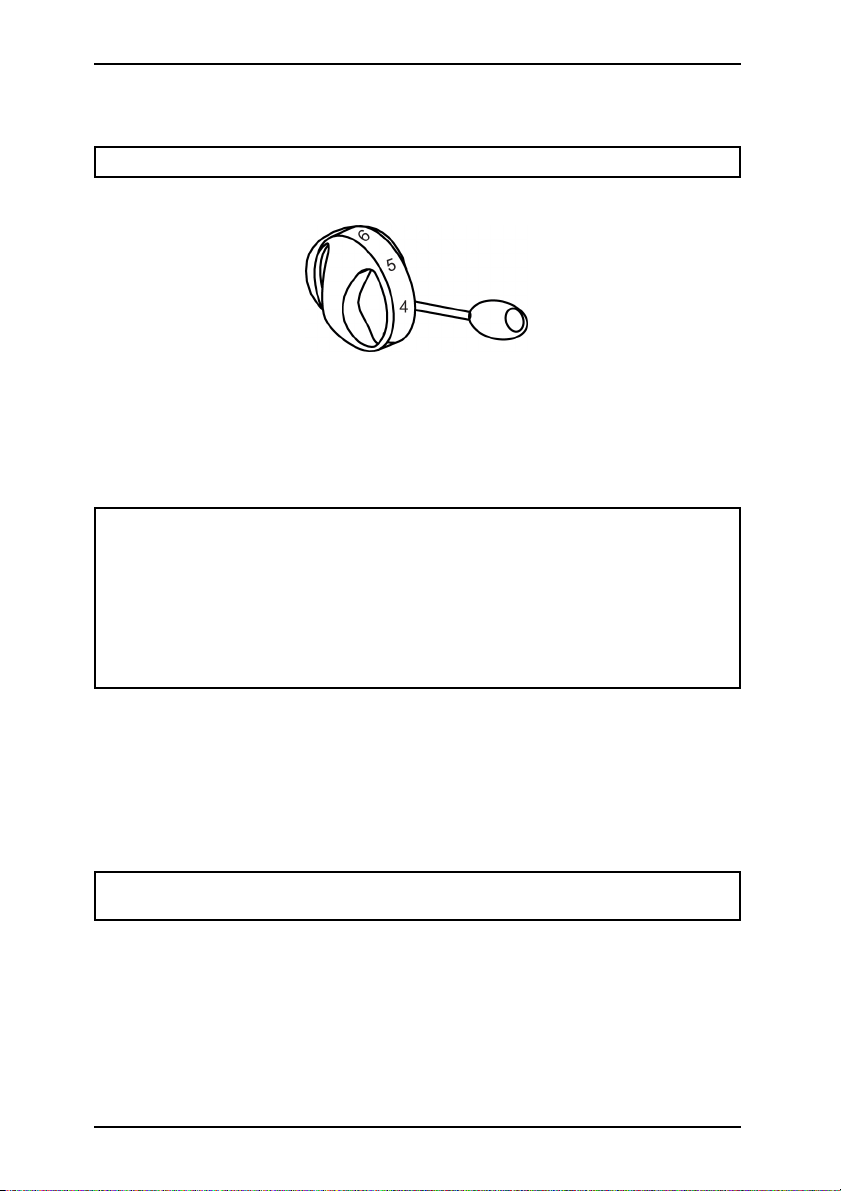

Setting the thermostat

1The first time you turn the refrigerator on, adjust the thermostat to “4” and let

your refrigerator cool completely before putting food in. A full 24 hours is

recommended.

2After it is fully cooled, test the temperature and adjust towards “1”to make it

less cool or towards “7” to make it cooler, as needed. The “4” setting should be

appropriate for home or office refrigerator use.

Reversing the door position

You will need: A 10 mm socket driver and a Phillips screw driver available.

• Make sure that your refrigerator is unplugged and empty.

• Have someone available to assist you in the process.

• Keep all of the parts you remove to reuse them later.

• Removing the door requires that the refrigerator be tilted backwards. Adjust

the two leveling feet to their highest postion.

Note: The refrigerator’s temperature ranges from 32° to 46.4°F (0° to 8°C).

Notes:

• Turning the thermostat to “0” stops the cooling cycle but does not shut off the

power to the refrigerator.

• If the refrigerator is unplugged or loses power, you must wait three to five minutes

before restarting it. If you attempt to restart before this time delay, the refrigerator

will not start.

• Large amounts of food will lower the cooling efficiency of the refrigerator.

• If you choose to change the thermostat setting, adjust it one increment at a time.

Allow several hours for temperature to stabilize between adjustments.

Note: Do not lay the refrigerator completely flat as that could damage the coolant

system.

Thermostat

NS-CF33SS8/NS-CF33WH8/NS-CF33BK8/ NS-CF33BK8-C

www.insigniaproducts.com

1Remove the screw holding the top hinge cover to the top of your refrigerator,

then remove the top hinge cover.

2Remove the screws holding the top hinge to your refrigerator, then remove

the hinge.

3Remove the screw hole covers from the top left side of your refrigerator.

4Pull the door upwards and remove it from the refrigerator.

5Unscrew the left leveling foot, then remove it.

6Remove the screws holding the bottom hinge and door stopper to the

refrigerator, then remove the hinge and the stopper.

7Install the leveling foot you removed from the left side into the right bottom

of your refrigerator.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Insignia Kühlschrank Handbücher

Insignia

Insignia NS-RFD21CISS0 Bedienungsanleitung

Insignia

Insignia NS-CF43SS7 Bedienungsanleitung

Insignia

Insignia NS-UZ17WH0 Bedienungsanleitung

Insignia

Insignia NS-CF30SS9-C Bedienungsanleitung

Insignia

Insignia NS-RBM10WH7 Bedienungsanleitung

Insignia

Insignia NS-CF17BK6 Bedienungsanleitung

Insignia

Insignia NS-RFD21SS7 Bedienungsanleitung

Insignia

Insignia NS-RFD26SS9-C Bedienungsanleitung

Insignia

Insignia NS-RTM18WHD2 Bedienungsanleitung

Insignia

Insignia NS-RTM12SS7L Bedienungsanleitung

Insignia

Insignia NS-RTM18BK8L Bedienungsanleitung

Insignia

Insignia NS-RTM10WH7 Bedienungsanleitung

Insignia

Insignia NS-RTM21SS7 Bedienungsanleitung

Insignia

Insignia NS-RTM10BK8 Bedienungsanleitung

Insignia

Insignia NS-CF12V33BK1 Bedienungsanleitung

Insignia

Insignia NS-EWF01-2 Bedienungsanleitung

Insignia

Insignia NS-RFD21CXSS0 Bedienungsanleitung

Insignia

Insignia NS-RBM92BK9 Bedienungsanleitung

Insignia

Insignia NS-BC1ZSS9 Bedienungsanleitung

Insignia

Insignia NS-CF17BK9 Bedienungsanleitung

Insignia

Insignia NS-CF43SS9 Bedienungsanleitung

Insignia

Insignia NS-RFD21SS7 Bedienungsanleitung

Insignia

Insignia NS-RBM18SS0-C Bedienungsanleitung

Insignia

Insignia NS-RBM92WH9-C Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
