USER GUIDE

2.6 Cubic Foot Compact

Refrigerator

NS-CF26PK7/NS-CF26BL7/

NS-CF26BL7-C/NS-CF26BK8

NS-CF26PK7_NS-CF26BL7_NS-CF26BL7-C_NS-CF26BK8_17-0448_MAN_V5_ENG.fm Page 1 Wednesday, June 14, 2017 11:48 AM

www.insigniaproducts.com

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Grounding requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Exterior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Setting up your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Before using your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Finding a suitable location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Leveling your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Providing proper ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Providing a proper power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Setting the thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Reversing the door position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Maintaining your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Defrosting the chiller compartment . . . . . . . . . . . . . . . . . . . . . . . .13

Shutting down your refrigerator for extended periods. . . . . . . . . . . .13

Moving Your Refrigerator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Tips on saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ONE-YEAR LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Introduction

Congratulations on your purchase of a high-quality Insignia product. Your

NS-CF26PK7, NS-CF26BL7, NS-CF26BL7-C, or NS-CF26BK8 represents the

state of the art in compact refrigerator design and is designed for reliable

and trouble-free performance. This model has a dry-erase front door

panel on which you can mark notes and other information with the

erasable markers provided.

NS-CF26PK7_NS-CF26BL7_NS-CF26BL7-C_NS-CF26BK8_17-0448_MAN_V5_ENG.fm Page 2 Wednesday, June 14, 2017 11:48 AM

2.6 Cubic Foot Compact Refrigerator

www.insigniaproducts.com

Important Safety Instructions

WARNING

1Read these instructions.

2Keep these instructions.

3Heed all warnings.

4Follow all instructions.

5Do not use this appliance near water.

6Clean only with damp cloth.

7Do not block any ventilation openings. Install in accordance with the

manufacturer's instructions.

8Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

9Do not defeat the safety purpose of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other. A

grounding type plug has two blades and a third grounding prong. The

wide blade or the third prong are provided for your safety. If the

provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly

at plugs, convenience receptacles, and the point where they exit from

the appliance.

11 Do not attempt to modify or extend the power cord of this appliance.

12 Unplug this appliance during lightning storms or when it will not be

used for long periods of time.

13 Make sure that the available AC power matches the voltage

requirements of this appliance.

14 Do not handle the plug with wet hands. This could result in an electric

shock.

15 Unplug the power cord by holding the plug, never by pulling the cord.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that dangerous voltage

constituting a risk of electric shock is present

within your compact refrigerator.

This symbol indicates that there are important

operating and maintenance instructions in the

literature accompanying your compact

refrigerator.

NS-CF26PK7_NS-CF26BL7_NS-CF26BL7-C_NS-CF26BK8_17-0448_MAN_V5_ENG.fm Page 3 Wednesday, June 14, 2017 11:48 AM

NS-CF26PK7/NS-CF26BL7/ NS-CF26BL7-C/NS-CF26BK8

www.insigniaproducts.com

16 Do not turn the appliance on or off by plugging or unplugging the

power cord.

17 Turn off the appliance before unplugging it.

18 Refer all servicing to qualified service personnel. Servicing is required

when the appliance has been damaged in any way, such as the

power-supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the appliance, the appliance has been exposed

to rain or moisture, does not operate normally, or has been dropped.

19 To reduce the risk of fire or electric shock, do not expose this appliance

to rain, moisture, dripping, or splashing, and no objects filled with

liquids should be placed on top of it.

20 Do not use the dry-erase marker on any surface other than the front

door panel.

21 Do not use oil-based or Sharpie® type pens on the dry-erase surface

(the front door panel).

22 Use only fluorescent- or neon-type dry-erase markers that are

designed to show up on black dry-erase boards.

23 Wipe the dry-erase surface clean with a soft eraser or cloth.

24 Keep the dry-erase marker away from children.

WARNING

Electric Shock Hazard

Failure to follow these instructions can result in

electric shock, fire, or death.

1WARNING–Keep ventilation openings in the

appliance enclosure or built-in structure clear of

obstruction.

2WARNING–Do not touch the interior of the chiller

compartment with wet hands. This could result in

frost bite.

3WARNING–Do not use mechanical devices or other means to

accelerate the defrosting process, other than those recommended by

the manufacturer.

4WARNING–Do not damage the refrigerant circuit when handling,

moving, or using the refrigerator.

5WARNING–Do not use electrical appliances inside the food storage

compartment of the refrigerator, unless they are of the type

recommended by the manufacturer.

NS-CF26PK7_NS-CF26BL7_NS-CF26BL7-C_NS-CF26BK8_17-0448_MAN_V5_ENG.fm Page 4 Wednesday, June 14, 2017 11:48 AM

2.6 Cubic Foot Compact Refrigerator

www.insigniaproducts.com

6WARNING–DANGER—Never allow children to play with, operate, or

crawl inside the refrigerator.

Risk of child entrapment. Before you throw away your old refrigerator

or freezer:

1) Take off the doors

2) Leave the shelves in place so that children may not easily climb

inside

7Unplug the refrigerator before carrying out user maintenance on it.

8This appliance is not intended for use by persons (including children)

with with reduced physical, sensory, or mental capabilities or lack of

experience and knowledge unless they have been given supervision

or instruction concerning the use of the appliance by a person

responsible for their safety. Children should be supervised to ensure

that they do not play with the appliance.

9If a component part is damaged, it must be replaced by the

manufacturer, its service agent, or similar qualified persons in order to

avoid a hazard.

10 Please dispose of the refrigerator according to local regulations as the

refrigerator contains flammable gas and refrigerant.

11 Follow local regulations regarding disposal of the refrigerator due to

flammable refrigerant and gas. All refrigeration products contain

refrigerants, which under the guidelines of federal law must be

removed before disposal. It is the consumer's responsibility to comply

with federal and local regulations when disposing of this product.

12 This refrigerator is intended to be used in household and similar

environments.

13 Do not store or use gasoline or any flammable liquids inside or in the

vicinity of this refrigerator.

14 Do not use extension cords or ungrounded (two-prong) adapters with

this refrigerator. If the power cord is too short, have a qualified

electrician install an outlet near the refrigerator. Use of an extension

cord can negatively affect the refrigerator’s performance.

15 If the POWER SUPPLY CORD is damaged, it must be replaced by the

manufacturer, its service agent, or similarly qualified person in order to

avoid a hazard.

Grounding requirement

This refrigerator must be grounded. This refrigerator is equipped with a

cord having a grounding wire with a grounding plug. The plug must be

inserted into an outlet that is properly installed and grounded.

Improper use of the grounding plug can result in a risk of electric shock.

Consult a qualified electrician or service person if the grounding

instructions are not completely understood, or if doubt exists as to

whether the refrigerator is properly grounded.

NS-CF26PK7_NS-CF26BL7_NS-CF26BL7-C_NS-CF26BK8_17-0448_MAN_V5_ENG.fm Page 5 Wednesday, June 14, 2017 11:48 AM

NS-CF26PK7/NS-CF26BL7/ NS-CF26BL7-C/NS-CF26BK8

www.insigniaproducts.com

Features

Product features

• Dry Erase Front-Panel Surface

• Includes 2 Dry-Erase Markers

•AdjustableThermostat

• Reversible Smooth-Finish Door

• Flat (Flush) Back

• Can Storage

Package contents

• 2.6 cubic foot compact refrigerator

•Icecubetray

•Driptray

•Dry-erasemarker

•UserGuide

Exterior

Door handle

Top hinge

Door

Leveling feet

NS-CF26PK7_NS-CF26BL7_NS-CF26BL7-C_NS-CF26BK8_17-0448_MAN_V5_ENG.fm Page 6 Wednesday, June 14, 2017 11:48 AM

2.6 Cubic Foot Compact Refrigerator

www.insigniaproducts.com

Interior

Setting up your refrigerator

Before using your refrigerator

• Remove the exterior and interior packing.

• Let the refrigerator stand upright for approximately four hours before

connecting it to power. This reduces the possibility of a malfunction in

the cooling system from improper handling during transportation.

• Clean the interior surface with lukewarm water using a soft cloth.

Finding a suitable location

• This refrigerator is designed to be free standing only, and should not

be recessed or built-in.

• Place your refrigerator on a floor that is strong enough to support the

refrigerator when it is fully loaded.

Chiller

compartment

Drip tray

Glass shelf

Ice tray

Bottle storage

Can storage

NS-CF26PK7_NS-CF26BL7_NS-CF26BL7-C_NS-CF26BK8_17-0448_MAN_V5_ENG.fm Page 7 Wednesday, June 14, 2017 11:48 AM

NS-CF26PK7/NS-CF26BL7/ NS-CF26BL7-C/NS-CF26BK8

www.insigniaproducts.com

• Allow five inches of space between the back and sides of the

refrigerator and any surrounding walls. This allows the proper air

ventilation. Adjust the feet to keep the refrigerator level.

• Locate the refrigerator away from direct sunlight and sources of heat

(stove, heater, radiator, and so on). Direct sunlight may affect the

acrylic coating and heat sources may increase electrical consumption.

Ambient temperature below 50°F (10°C) or above 85°F (29.4°C) will

hinder the performance of this refrigerator. This refrigerator is not

designed for use in a garage or any other outside installation.

• Avoid locating the refrigerator in moist areas.

Leveling your refrigerator

• It is very important for the refrigerator to be level in order to function

properly. If the refrigerator is not leveled during installation, the doors

may not close or seal properly, causing cooling, frost, or moisture

problems.

• To level your refrigerator, you may either turn the leveling foot

clockwise to raise that side to the refrigerator or turn it

counter-clockwise to lower that side.

Providing proper ventilation

Place the refrigerator at lease five inches from the wall to ensure proper

airflow to the compressor. Do not place the refrigerator near any heat

sources, such as a heater or stove, as this may put a strain on the

compressor.

Providing a proper power supply

Check your local power source. This refrigerator requires a 110V-120V,

60Hz power supply.

Note

Having someone push against the top of the refrigerator helps to

take some weight off the leveling foot, making it easier to adjust

it.

NS-CF26PK7_NS-CF26BL7_NS-CF26BL7-C_NS-CF26BK8_17-0448_MAN_V5_ENG.fm Page 8 Wednesday, June 14, 2017 11:48 AM

2.6 Cubic Foot Compact Refrigerator

www.insigniaproducts.com

Use a receptacle that accepts the grounding prong. The power cord o is

equipped with a 3-prong (grounding) plug which mates with a standard

3-prong (grounding) wall outlet to minimize the possibility of electric

shock hazard from this refrigerator.

Setting the thermostat

Notes

• The refrigerator should always be plugged into its own

individual electrical outlet which has a voltage rating that

matches the rating plate.

• Never unplug your refrigerator by pulling on the power

cord. Always grip the plug firmly and pull straight out from

the outlet.

Note

The temperature range of the chiller compartment is 30°F (-1°C)

to 48°F (8.9°C) at a room temperature of 77°F (25°C). Ice cream

or popsicles must be kept at -5°F (-20.5°C) to 0°F (-17.8°C),

therefore this chiller compartment is not suitable to store these

types of items.

3-prong receptacle

Receptacle box cover

3-prong plug

Grounding lead

Grounding adapter Receptacle box cover

Screw

Receptacle

Using a 3-prong plug and outlet Using a grounding adapter

NS-CF26PK7_NS-CF26BL7_NS-CF26BL7-C_NS-CF26BK8_17-0448_MAN_V5_ENG.fm Page 9 Wednesday, June 14, 2017 11:48 AM

NS-CF26PK7/NS-CF26BL7/ NS-CF26BL7-C/NS-CF26BK8

www.insigniaproducts.com

1The first time you turn the refrigerator on, adjust the thermostat to “7”

and run for at least two hours before putting food in.

2After it is fully cooled, test it and adjust towards “4” to make it less cool,

to best suit your needs. The “4” setting should be appropriate for

home or office refrigerator use.

Reversing the door position

You will need: A 10 mm socket driver and a Phillips screw driver available.

• Make sure that your refrigerator is unplugged and empty.

• Have someone available to assist you in the process.

• Keep all of the parts you remove to reuse them later.

• Removing the door requires that the refrigerator be tilted backwards. Rest

the refrigerator on something solid, such as a chair, just below the top

panel.

• Do not lay the refrigerator completely flat so that you do not damage the

coolant system.

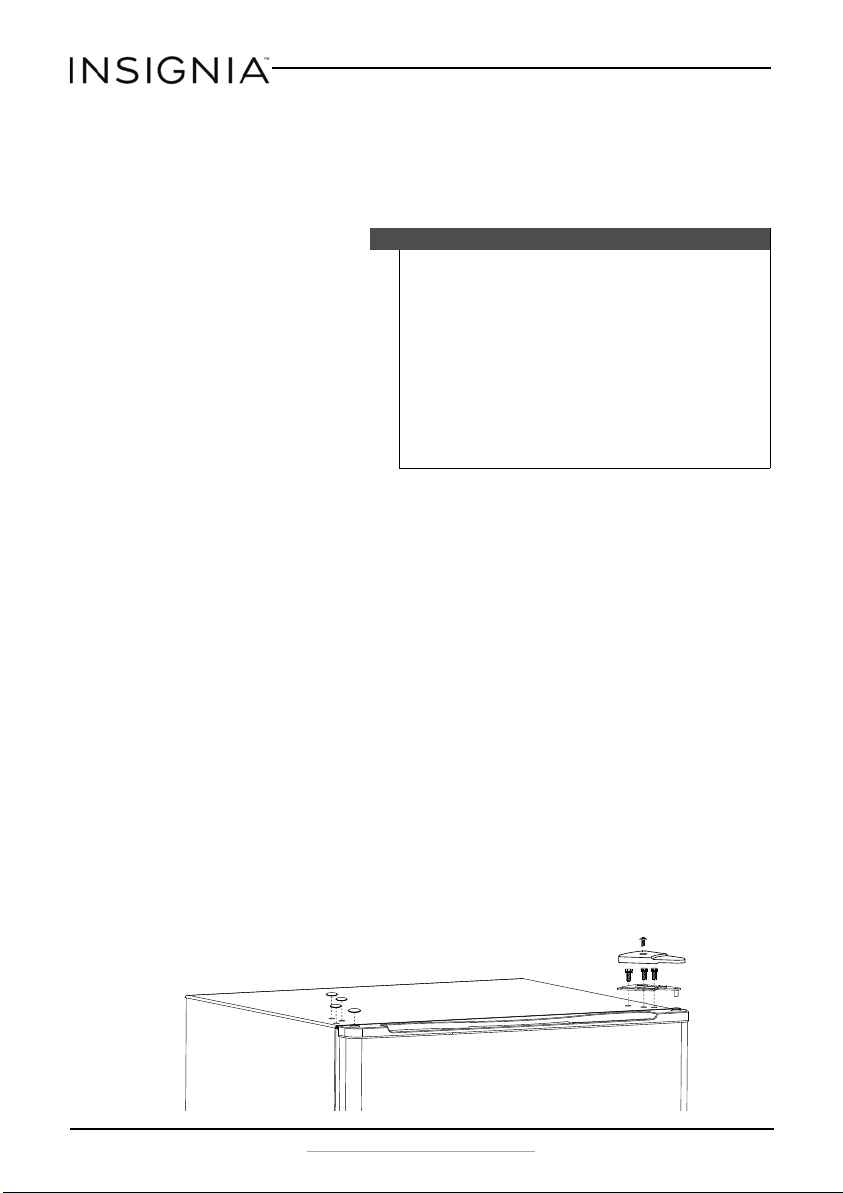

1Remove the screw holding the top hinge cover to the top of your

refrigerator, then remove the top hinge cover.

2Remove the screws holding the top hinge to your refrigerator, then

remove the hinge.

3Remove the screw hole covers from the top left side of your

refrigerator.

Notes

• Turning the thermostat “OFF” stops the cooling cycle but

does not shut off the power to the refrigerator.

• If the refrigerator. is unplugged or loses power, you must

wait three to five minutes before restarting it. If you

attempt to restart before this time delay, the refrigerator

will not start.

• Large amounts of food will lower the cooling efficiency of

the refrigerator.

• If you choose to change the thermostat setting, adjust it

one increment at a time. Allow several hours for

temperature to stabilize between adjustments.

NS-CF26PK7_NS-CF26BL7_NS-CF26BL7-C_NS-CF26BK8_17-0448_MAN_V5_ENG.fm Page 10 Wednesday, June 14, 2017 11:48 AM

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Insignia Kühlschrank Handbücher

Insignia

Insignia NS-CFR32RD1 Bedienungsanleitung

Insignia

Insignia NS-RTM10BK2 Bedienungsanleitung

Insignia

Insignia NS-CFBM41SS1 Bedienungsanleitung

Insignia

Insignia NS-RFD26SS9-C Bedienungsanleitung

Insignia

Insignia NS-CF12V17BK1 Bedienungsanleitung

Insignia

Insignia NS-CF30SS9-C Bedienungsanleitung

Insignia

Insignia NS-RTM21SS7 Bedienungsanleitung

Insignia

Insignia NS-UZ17WH0 Bedienungsanleitung

Insignia

Insignia NS-UZ17WH0 Bedienungsanleitung

Insignia

Insignia NS-RFD26SS9 Bedienungsanleitung

Insignia

Insignia NS-RBM92WH9-C Bedienungsanleitung

Insignia

Insignia NS-RTM10WH7 Bedienungsanleitung

Insignia

Insignia NS-RTM18WH8Q Bedienungsanleitung

Insignia

Insignia NS-CF44GD3 Bedienungsanleitung

Insignia

Insignia NS-RBM10WH7 Bedienungsanleitung

Insignia

Insignia NS-CF17BK9 Bedienungsanleitung

Insignia

Insignia NS-CF43SS7 Bedienungsanleitung

Insignia

Insignia NS-RTM21SS7 Bedienungsanleitung

Insignia

Insignia NS-RTM18WHD2 Bedienungsanleitung

Insignia

Insignia NS-CF33SS8 Bedienungsanleitung

Insignia

Insignia NS-RBM10BK8 Bedienungsanleitung

Insignia

Insignia NS-RBM11SS2 Bedienungsanleitung

Insignia

Insignia NS-RTM10BK8 Bedienungsanleitung

Insignia

Insignia NS-CF44GD2 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
