USER GUIDE

4.3 Cubic Foot Compact

Refrigerator

NS-CF43SS9

www.insigniaproducts.com

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Grounding requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Main components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Preparing to install your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Before using your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Finding a suitable location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Leveling your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Providing proper ventilation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Setting the thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Using the freezer compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Making ice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Defrosting your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Reversing the door position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Before you begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Removing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Reinstalling the doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Maintaining your refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Changing the interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Shutting down your refrigerator for extended periods . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Moving Your Refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Tips on saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

ONE-YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Introduction

Congratulations on your purchase of a high-quality Insignia product. Your NS-CF43SS9

represents the state of the art in compact refrigerator design and is designed for reliable

and trouble-free performance.

4.3 Cubic Foot Compact Refrigerator

www.insigniaproducts.com

Important Safety Instructions

WARNING

1Read these instructions.

2Keep these instructions.

3Heed all warnings.

4Follow all instructions.

5Do not use this appliance near water.

6Clean only with a damp cloth.

7Do not block any ventilation openings. Install in accordance with the manufacturer's

instructions.

8Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The wide blade or the third prong are

provided for your safety. If the provided plug does not fit into your outlet, consult an

electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the appliance.

11 Do not attempt to modify or extend the power cord of this appliance.

12 Unplug this appliance during lightning storms or when it will not be used for long

periods of time.

13 Make sure that the available AC power matches the voltage requirements of this

appliance.

14 Do not handle the plug with wet hands. This could result in an electric shock.

15 Unplug the power cord by holding the plug, never by pulling the cord.

16 Do not turn the appliance on or off by plugging or unplugging the power cord.

17 Turn off the appliance before unplugging it.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that

dangerous voltage constituting a

risk of electric shock is present

within your compact refrigerator.

This symbol indicates that there

are important operating and

maintenance instructions in the

literature accompanying your

compact refrigerator.

NS-CF43SS9

www.insigniaproducts.com

18 Refer all servicing to qualified service personnel. Servicing is required when the

appliance has been damaged in any way, such as the power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the appliance, the

appliance has been exposed to rain or moisture, does not operate normally, or has

been dropped.

19 To reduce the risk of fire or electric shock, do not expose this appliance to rain,

moisture, dripping, or splashing, and no objects filled with liquids should be placed

on top of it.

20 If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent, or a similarly qualified person in order to avoid a hazard.

WARNING

Electric Shock Hazard

Failure to follow these instructions can result in electric

shock, fire, or death.

1WARNING–Keep ventilation openings, in the appliance enclosure or

in the built-in structure, clear of obstruction.

2WARNING–Do not touch the interior of the freezer compartment

with wet hands. This could result in frost bite.

3WARNING–Do not use mechanical devices or other means to accelerate the

defrosting process, other than those recommended by the manufacturer.

4WARNING–Do not damage the refrigerant circuit when handling, moving, or using

the refrigerator.

5WARNING–Do not use electrical appliances inside the food storage compartment of

the refrigerator, unless they are of the type recommended by the manufacturer.

6WARNING–DANGER—Never allow children to play with, operate, or crawl inside the

refrigerator.

7Risk of child entrapment. Before you throw away your old refrigerator or freezer:

1) Take off the doors

2) Leave the shelves in place so that children may not easily climb inside

8Unplug the refrigerator before carrying out user maintenance on it.

9This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety. Children should be supervised to ensure that they

do not play with the appliance. Cleaning and maintenance should not be performed

by children without supervision.

10 If a component part is damaged, it must be replaced by the manufacturer, its service

agent, or similar qualified persons in order to avoid a hazard.

11 Follow local regulations regarding disposal of the appliance due to flammable

refrigerant and gas. All refrigeration products contain refrigerants, which under the

guidelines of federal law must be removed before disposal. It is the consumer's

responsibility to comply with federal and local regulations when disposing of this

product.

12 This appliance is intended to be used in household and similar environments.

4.3 Cubic Foot Compact Refrigerator

www.insigniaproducts.com

13 Do not store or use gasoline or any flammable liquids inside or in the vicinity of this

refrigerator.

14 Do not use extension cords or ungrounded (two prong) adapters with this appliance.

If the power cord is too short, have a qualified electrician install an outlet near the

appliance. Use of an extension cord can negatively affect the refrigerator’s

performance.

Grounding requirement

This appliance must be grounded. This appliance is equipped with a cord having a

grounding wire with a grounding plug. The plug must be inserted into an outlet that is

properly installed and grounded.

Improper use of the grounding plug can result in a risk of electric shock. Consult a

qualified electrician or service person if the grounding instructions are not completely

understood, or if doubt exists as to whether the appliance is properly grounded.

Features

Package contents

• 4.3 cubic foot compact refrigerator

• Adjustable shelves

•Icecubetray

• Defrost shovel

•User Guide

NS-CF43SS9

www.insigniaproducts.com

Main components

Ice tray (not

shown)

Interior light switch

Adjustable shelves

Crisper

Leveling foot

Freezer

door

Refrigerator

door

Freezer shelf

Thermostat/controls

4.3 Cubic Foot Compact Refrigerator

www.insigniaproducts.com

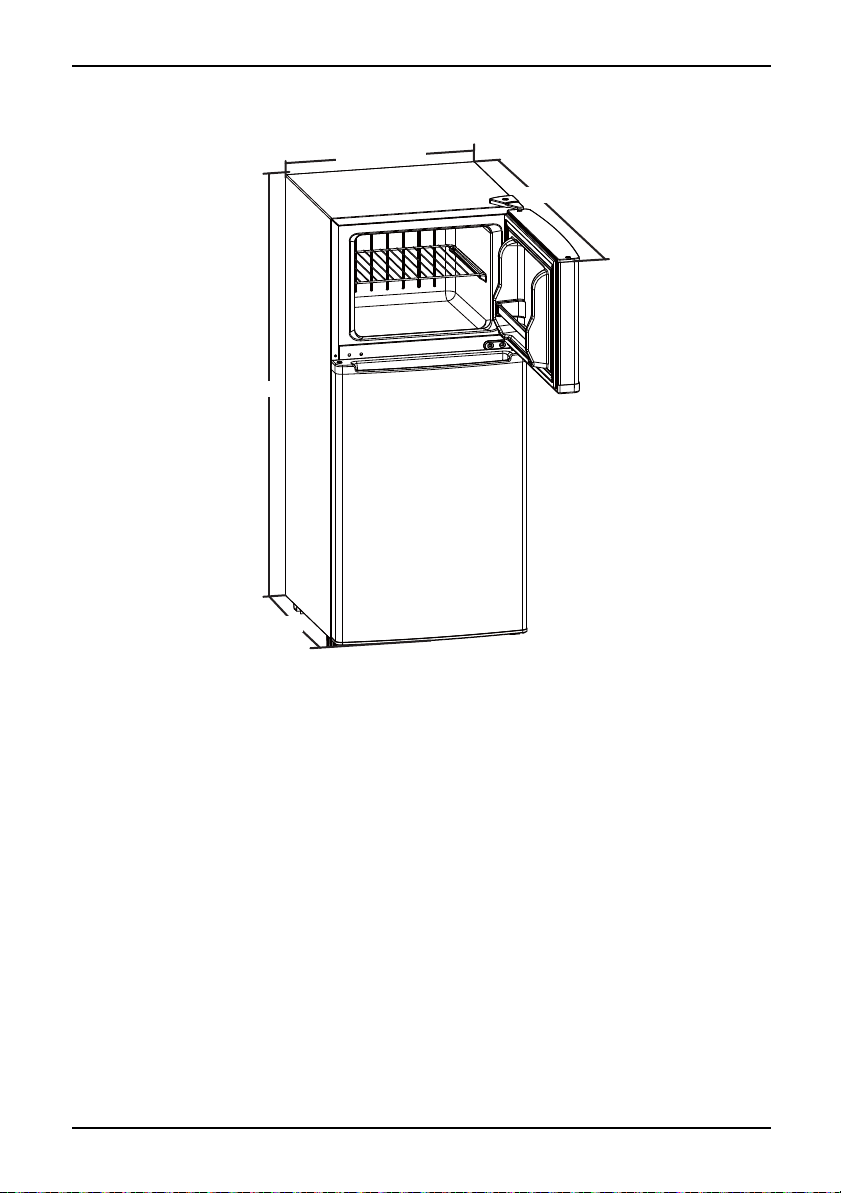

Dimensions

Preparing to install your refrigerator

Before using your refrigerator

• Remove the exterior and interior packing.

• Let the refrigerator stand upright for approximately four hours before connecting it

to power. This reduces the possibility of a malfunction in the cooling system from

improper handling during transportation.

• Clean the interior surface with lukewarm water using a soft cloth.

Finding a suitable location

• This refrigerator is designed to be free standing only, and should not be recessed or

built-in.

• Place your refrigerator on a floor that is strong enough to support the refrigerator

when it is fully loaded.

• Allow five inches of space between the back and sides of the refrigerator and any

surrounding walls. This allows the proper air ventilation. Adjust the feet to keep the

refrigerator level.

• Locate the refrigerator away from direct sunlight and sources of heat (stove, heater,

radiator, and so on). Direct sunlight may affect the acrylic coating and heat sources

may increase electrical consumption. Ambient temperature below 50°F (10°C) or

above 85°F (29.4°C) will hinder the performance of this refrigerator. This refrigerator

is not designed for use in a garage or any other outside installation.

19.1 in. (48.5 cm)

37.4 in. (94.9 cm)

43.4 in. (110.3 cm)

20.5 in. (52 cm)

NS-CF43SS9

www.insigniaproducts.com

• Avoid locating the refrigerator in moist areas.

• This refrigerator can be placed on carpet, but care should be taken not to damage

the carpet when moving the refrigerator.

• This refrigerator can be placed in a garage, as long as the ambient temperature in

the garage is not below 50°F (10°C) or above 85°F (29.4°C).

Leveling your refrigerator

• It is very important for the refrigerator to be level in order to function properly. If

the refrigerator is not leveled during installation, the doors may not close or seal

properly, causing cooling, frost, or moisture problems.

• To level your refrigerator, you may either turn the leveling foot clockwise to raise

that side of the refrigerator or turn it counter-clockwise to lower that side.

Providing proper ventilation

Place the refrigerator at lease five inches from the wall to ensure proper airflow to the

compressor. Do not place the refrigerator near any heat sources, such as a heater or stove,

as this may put a strain on the compressor.

Providing a proper power supply

Check your local power source. This refrigerator requires a 110V-120V, 60Hz power

supply.

Use a receptacle that accepts the grounding prong. The power cord is equipped with a

3-prong (grounding) plug which goes into a standard 3-prong (grounding) wall outlet to

minimize the possibility of electric shock.

Note: Having someone push against the top of the refrigerator helps to take some

weight off the leveling foot, making it easier to adjust.

Notes:

• The refrigerator should always be plugged into its own individual electrical outlet

which has a voltage rating that matches the rating plate.

• Never unplug your refrigerator by pulling on the power cord. Always grip the plug

firmly and pull straight out from the outlet.

3-prong receptacle

Receptacle box cover

3-prong plug

Grounding lead

Grounding adapter Receptacle box cover

Screw

Receptacle

Using a 3-prong plug and outlet Using a grounding adapter

4.3 Cubic Foot Compact Refrigerator

www.insigniaproducts.com

Setting the thermostat

1The first time you turn the refrigerator on, adjust the thermostat to “7” and run for at

least two hours before putting food in.

2After it is fully cooled, test it and adjust towards “4”to make less cool, to best suit your

needs. The “4”setting should be appropriate for home or office refrigerator use.

Using the freezer compartment

The freezer compartment is designed for the long-term storage of frozen foods.

The storage life of frozen foods varies and the recommended storage time should not be

exceeded.

Place frozen food into the freezer as quickly as possible after purchase. If there are

instructions on the packet, carefully follow these instructions regarding storage times.

Making ice

1Set the thermostat to “7”.

2Fill the ice cube tray (2/3 capacity) with cold water and place the tray on the bottom

of the freezer compartment to freeze properly.

3When the water in the ice cube tray has hardened, remove the ice tray from the

freezer, then twist slightly to eject the ice cubes from the tray.

4Re-set the thermostat to “4” when you are done making ice.

Notes:

• Turning the thermostat to the “0” position stops the cooling cycle but does not

shut off the power to the refrigerator.

• If the refrigerator is unplugged or loses power, you must wait three to five minutes

before restarting it. If you attempt to restart before this time delay, the refrigerator

will not start.

• Large amounts of food will lower the cooling efficiency of the refrigerator.

• If you choose to change the thermostat setting, adjust it by one increment at a

time. Allow several hours for the temperature to stabilize between adjustments.

NS-CF43SS9

www.insigniaproducts.com

Defrosting your refrigerator

This refrigerator is not designed to defrost automatically. In order to prevent damage to

the interior liner of the refrigerator from excessive frost build-up, defrost the refrigerator

every three months or when ice or frost is approximately ¼”thick inside the freezer

compartment.

1Set the thermostat to “0”, then remove all contents from the freezer compartment.

2Leave the freezer door open to allow accumulated ice and frost to melt. Remove large

pieces of ice as needed.

3After defrosting, remove accumulated ice and water, then wipe the freezer

compartment dry with a soft cloth.

4Even though ice is not visibly present in the freezer compartment, allow the

evaporator, located behind the freezer wall, to completely defrost for approximately

two hours (total) before restarting the refrigerator.

5Restart following the instructions in “Setting the thermostat” on page 9.

Reversing the door position

Your refrigerator is built with a reversible door. Based on the location where you plan to

use your compact refrigerator, you may find it more convenient to reverse the position of

the door, to have it open from right to left instead of left to right.

Before you begin

You will need: A 10 mm socket driver and a Phillips screw driver.

• Make sure that your refrigerator is unplugged and empty.

• Have someone available to assist you in the process.

• Keep all of the parts you remove to reuse them later.

• Removing the door requires that the refrigerator be tilted backwards. Rest the

refrigerator on something solid, such as a chair, just below the top panel.

• Do not lay the refrigerator completely flat so that you do not damage the coolant

system.

Removing the door

1Remove the screw holding the top hinge cover to the top of your refrigerator, then

remove the top hinge cover.

2Remove the screws holding the top hinge to your refrigerator, then remove the

hinge. Pull the freezer door upwards and remove it from the refrigerator.

CAUTION:

• Do not use hot water or electric heating devices to melt the accumulated ice.

• The refrigerator door must remain closed while defrosting the freezer.

CAUTION: To avoid injury to yourself or your property, we recommend that someone

assist you during the door reversal process.

Inhaltsverzeichnis

Andere Insignia Kühlschrank Handbücher

Insignia

Insignia NS-CF43SS6 Bedienungsanleitung

Insignia

Insignia NS-CF33BK3 Bedienungsanleitung

Insignia

Insignia NS-RTM18BK8L Bedienungsanleitung

Insignia

Insignia NS-RTM18WHD2 Bedienungsanleitung

Insignia

Insignia NS-RTM12SS7L Bedienungsanleitung

Insignia

Insignia NS-CF33SS8 Bedienungsanleitung

Insignia

Insignia NS-RFD21SS7 Bedienungsanleitung

Insignia

Insignia NS-UZ17WH0 Bedienungsanleitung

Insignia

Insignia NS-CF12V17BK1 Bedienungsanleitung

Insignia

Insignia NS-CF30SS9 Bedienungsanleitung

Insignia

Insignia NS-RTM20SS3 Bedienungsanleitung

Insignia

Insignia NS-RBM10WH7 Bedienungsanleitung

Insignia

Insignia NS-CFL45GP1 Bedienungsanleitung

Insignia

Insignia NS-RTM18WH8Q Bedienungsanleitung

Insignia

Insignia NS-CF26PK7 Bedienungsanleitung

Insignia

Insignia NS-RFD21CXSS0 Bedienungsanleitung

Insignia

Insignia NS-CF17BK6 Bedienungsanleitung

Insignia

Insignia NS-EWF01-2 Bedienungsanleitung

Insignia

Insignia NS-OCF55SS2 Bedienungsanleitung

Insignia

Insignia NS-RFD26SS9 Bedienungsanleitung

Insignia

Insignia NS-RTM10WH7 Bedienungsanleitung

Insignia

Insignia NS-RTM10BK2 Bedienungsanleitung

Insignia

Insignia NS-CFR23BB1 Bedienungsanleitung

Insignia

Insignia NS-CF44GD3 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
