Insportline 7563 Bedienungsanleitung

USER MANUAL –EN

IN 7563 Motorized Treadmill inSPORTline Elbrom (QS8480TV)

CONTENTS

TIPS FOR SAFETY................................................................................................................................................ 3

SPECIAL TIPS FOR SAFETY........................................................................................................................... 4

PACKING DETAILS ............................................................................................................................................. 4

EXPLODED VIEW ................................................................................................................................................ 6

PARTS LIST........................................................................................................................................................... 7

TREADMILL STRUCTURE ................................................................................................................................. 9

INSTALLATION SKETCH................................................................................................................................. 10

USE....................................................................................................................................................................... 12

SAFETY KEY .................................................................................................................................................. 12

FOLDING / UNFOLDING............................................................................................................................... 13

INSTRUCTION FOR CONSOLE........................................................................................................................ 13

TOUCH SCREEN AND PANEL KEYS FUNCTION..................................................................................... 14

DISPLAY WINDOW ....................................................................................................................................... 15

DETAILED INSTRUCTION ........................................................................................................................... 16

MULTIMEDIA CENTRE ................................................................................................................................ 19

MAINTENANCE ................................................................................................................................................. 21

CLEANING ...................................................................................................................................................... 23

CAUTIONS, DEPOSITING............................................................................................................................. 23

GUIDES FOR MALFUNCTION ......................................................................................................................... 23

TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ....................................................... 24

Special tips:

Before installation and operation, please read this operation manual carefully and save this manual for future

reference.

WARRANTY

We make sure that this item is made of high quality materials.

In normal use, if any problem, we will take charge of maintenance.

If the product you purchased has problems as follows, the manufacturer’s warranty is not effective:

Improper operating, negligence, accident

Improper treatment when problems.

Use the spare parts which are not from us.

Damage from other reasons.

For easy-wear parts, we don’t provide maintenance and replace for normal use, such as belt.

This warranty is only valid for home use, and is not suitable for gym or other professional exercise.

If you want to buy spare parts, please contact with our service and provide this manual.

TIPS FOR SAFETY

We have considered more for safety when we design and produce this item. However, in case of any

unhappiness, please pay attention to these tips. We don’t assume responsibility if any accident caused by follow

tips.

According to your health condition, please exercise properly. Overload or improper exercise will

damage your health.

While running, you should dress properly. Don’t dress too loosely in case your clothes are entangled by

the machine .And please wear sport shoes. Don’t let your children or pet play near it to avoid

unnecessary injury.

This machine is not suitable for children. For patients or the disabled to use, they have to follow the

guides by their guardians or doctors.

Don’t use this machine when in outdoor, high humidity condition or sun.

Please pull the plug off from socket and keep the safe key, when the treadmill is unused.

This machine is for home use, not suitable for professional exercise or testing, and also not suitable for

medical purpose.

The heart rate on this machine is not suitable for medical.

If any damage for power wire, please ask manufacturer or professional service to replace it in case of

any danger.

Please check all the parts before using. Make sure that all the nuts or screws are fastened.

Place your treadmill on the clean, flat and solid floor. Make sure that there is not anything pointy, water

or hot near to the machine.

Please stop exercising immediately and consult your doctor if you’re feel giddy, surfeit, thorax ache or

other symptoms.

Make sure that hands are not near to running parts. Don’t put your hands or foots under the running belt.

When running this machine, it is only for one person to use it!

Please use the spare parts from us, it is not acceptable if you use spare parts from others.

Please consult your doctor at first before running, if you have one of the following diseases.

1. Cardiopathy, hypertension, sugar diabetes, respiratory disease, smoking, and other chronic

diseases, complication disease.

2. If you are over 35 years old and heavier than common weight.

3. Women in pregnant or in breasting period.

SPECIAL TIPS FOR SAFETY

Please use qualified socket. If the plug and the socket is not compatible, please ask electrician to handle

it and don’t do anything for the plug.

The voltage for this machine is 220V-240V AC.

Don’t let power wire touch roller, and also don’t put power wire on the running belt. Don’t use

damaged plug.

Before cleaning, moving and maintaining the machine, please pull off the plug for the socket.

Warning: If don’t pull off, it will cause injury or damage for the machine.

PACKING DETAILS

Warning: Carefully install the product, avoid making any damage.

Notice:

1) Carefully read the instructions before installation. Operate in accordance with procedures.

2) Check components in the package

3) Remove all paper boxes and foams used as fasteners.

Check all the following components. If there is missing or problematic parts, please contact the dealer

Frame

Meter set

Meter board set

Decorating cover at base

Meter stator

Hardware tool bag

HARDWARE TOOL BAG

Multi-wrench, 1 pc

Homemade wrench, 1 pc

Nut , 2pcs

Umbrella-type allen screw M8*20,

8pc

Umbrella-type allen screw M8*60,

2pc

Umbrella-type cross tapping screw

M4.2*15, 12pcs

Washer, 10pcs

Lubricant

Safety key

MP3 connector, 1pc

EXPLODED VIEW

These are all the components used in installation. All components are listed in the following form.

PARTS LIST

No.

Component

Quantity

Base frame

frame

Left pillar accessory

Right pillar accessory

Dashboard frame

Incline frame

Meter stator

Motor stator

Safety brace for base frame

pressure rod

Front roller

Back roller

Incline motor

Motor

PCB

Power switch

Overload protector

Running board

Running belt

Multislot belt

Long bumper

Bumper

Locating pad for side rail

Motor cover

Side rail

Left back cover

Right back cover

Rubber transport wheel

Lower cover of motor

Adjusting pad

Transporting wheel set at base

Left decorative cover at base

Right decorative cover at base

Upper cover of meter

Lower cover of meter

Upper cover of heart rate sensor

Lower cover of heart rate sensor

Upper cover of meter board

Lower cover of meter board

Right handlebar cover

Left handlebar cover

Safety key

Console board

Amplifier board

Touch key board

Button key board

MP3 module

Speaker

Reed pipe for safety key

Speed reed pipe sensor wire

Upper communication line

Middle communication line

Lower communication line

Green connecting line

Red connecting line

Power wire

Red connecting line

USB/SD port

AV middle communication line

AV lower communication line

AV interface board

The base cover for AV interface board

The upper cover for AV interface board

TREADMILL STRUCTURE

INSTALLATION SKETCH

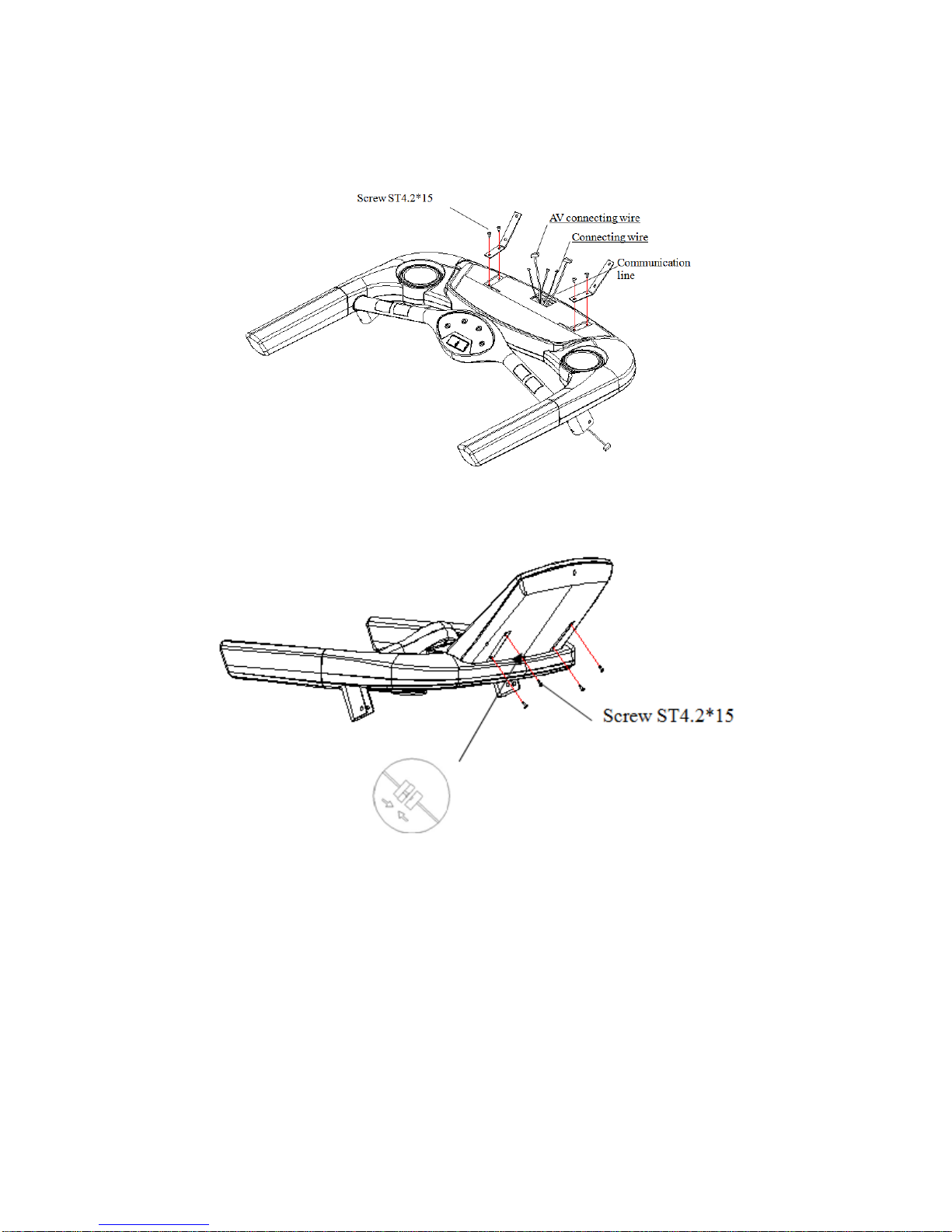

STEP 1: Set meter stator on upper cover of meter

Set meter stator on upper cover of meter. Use 4 pcs of Screw ST4.2*15 to solid meter stator. (Fasten screws )

STEP 2: Put meter board on meter stator

Make sure that communication lines and connecting lines are connected correctly, in case they are connected in

reverse.

Put meter board on meter stator, use 4 pcs of Screw ST4.2*15 to solid meter board. (Fasten screws)

STEP 3: Set meter tube at base frame
