Intel MFSYS25 - AXXPSU 1000W Power Supply Module Bedienungsanleitung

Rail Kit Install Guide: Intel® Modular

Server System MFSYS25

A Guide for Technically Qualified Assemblers of Intel®Identified Subassemblies/

Products

Intel Order Number: E12567-002

ii Rail Kit Install Guide: Intel® Modular Server System MFSYS25

Disclaimer

Information in this document is provided in connection with Intel® products. No license, express or implied, by

estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Intel's

Terms and Conditions of Sale for such products, Intel assumes no liability whatsoever, and Intel disclaims any

express or implied warranty, relating to sale and/or use of Intel® products including liability or warranties relating to

fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property

right. Intel products are not designed, intended or authorized for use in any medical, life saving, or life sustaining

applications or for any other application in which the failure of the Intel product could create a situation where

personal injury or death may occur. Intel may make changes to specifications and product descriptions at any time,

without notice.

Intel® server boards contain a number of high-density VLSI and power delivery components that need adequate

airflow for cooling. Intel's own chassis are designed and tested to meet the intended thermal requirements of these

components when the fully integrated system is used together. It is the responsibility of the system integrator that

chooses not to use Intel developed server building blocks to consult vendor datasheets and operating parameters to

determine the amount of airflow required for their specific application and environmental conditions. Intel

Corporation can not be held responsible if components fail or the server board does not operate correctly when used

outside any of their published operating or non-operating limits.

Intel, Intel Pentium, and Intel Xeon are trademarks or registered trademarks of Intel Corporation or its subsidiaries in

the United States and other countries.

* Other names and brands may be claimed as the property of others.

Rail Kit Install Guide: Intel® Modular Server System MFSYS25 iii

Safety Information

Important Safety Instructions

Read all caution and safety statements in this document before performing any of the

instructions. See also Intel Server Boards and Server Chassis Safety Information on the

Intel®Server Deployment Toolkit CD and/or at http://support.intel.com/support/

motherboards/server/sb/cs-010770.htm.

Wichtige Sicherheitshinweise

Lesen Sie zunächst sämtliche Warnund Sicherheitshinweise in diesem Dokument, bevor

Sie eine der Anweisungen ausführen. Beachten Sie hierzu auch die Sicherheitshinweise zu

Intel-Serverplatinen und Servergehäusen auf der Intel®Server Deployment Toolkit CD

oder unter http://support.intel.com/support/motherboards/server/sb/cs-010770.htm.

Consignes de sécurité

Lisez attention toutes les consignes de sécurité et les mises en garde indiquées dans ce

document avant de suivre toute instruction. Consultez Intel Server Boards and Server

Chassis Safety Information sur le Intel®Server Deployment Toolkit CD ou bien rendez-

vous sur le site http://support.intel.com/support/motherboards/server/sb/cs-010770.htm.

Instrucciones de seguridad importantes

Lea todas las declaraciones de seguridad y precaución de este documento antes de realizar

cualquiera de las instrucciones. Vea Intel Server Boards and Server Chassis Safety

Information en el Intel®Server Deployment Toolkit CD y/o en http://support.intel.com/

support/motherboards/server/sb/cs-010770.htm.

重要安全指导

iv Rail Kit Install Guide: Intel® Modular Server System MFSYS25

Warnings

Heed safety instructions: Before working with your server product, whether you are

using this guide or any other resource as a reference, pay close attention to the safety

instructions. You must adhere to the assembly instructions in this guide to ensure and

maintain compliance with existing product certifications and approvals. Use only the

described, regulated components specified in this guide. Use of other products /

components will void the UL listing and other regulatory approvals of the product and

will most likely result in noncompliance with product regulations in the region(s) in which

the product is sold.

System power on/off: The power button DOES NOT turn off the system AC power. To

remove power from system, you must unplug the AC power cord from the wall outlet.

Make sure the AC power cord is unplugged before you open the chassis, add, or remove

any components.

Hazardous conditions, devices and cables: Hazardous electrical conditions may be

present on power, telephone, and communication cables. Turn off the server and

disconnect the power cord, telecommunications systems, networks, and modems attached

to the server before opening it. Otherwise, personal injury or equipment damage can

result.

Electrostatic discharge (ESD) and ESD protection: ESD can damage disk drives,

boards, and other parts. We recommend that you perform all procedures in this chapter

only at an ESD workstation. If one is not available, provide some ESD protection by

wearing an antistatic wrist strap attached to chassis ground any unpainted metal surface on

your server when handling parts.

ESD and handling boards: Always handle boards carefully. They can be extremely

sensitive to ESD. Hold boards only by their edges. After removing a board from its

protective wrapper or from the server, place the board component side up on a grounded,

static free surface. Use a conductive foam pad if available but not the board wrapper. Do

not slide board over any surface.

Installing or removing jumpers: A jumper is a small plastic encased conductor that slips

over two jumper pins. Some jumpers have a small tab on top that you can grip with your

fingertips or with a pair of fine needle nosed pliers. If your jumpers do not have such a

tab, take care when using needle nosed pliers to remove or install a jumper; grip the

narrow sides of the jumper with the pliers, never the wide sides. Gripping the wide sides

can damage the contacts inside the jumper, causing intermittent problems with the

function controlled by that jumper. Take care to grip with, but not squeeze, the pliers or

other tool you use to remove a jumper, or you may bend or break the pins on the board.

Rail Kit Install Guide: Intel® Modular Server System MFSYS25 v

Contents

Safety Information ..................................................................................................... iii

Important Safety Instructions ................................................................................................ iii

Wichtige Sicherheitshinweise ............................................................................................... iii

Consignes de sécurité .......................................................................................................... iii

Instrucciones de seguridad importantes ............................................................................... iii

Warnings............................................................................................................................... iv

Rail Kit Install Guide ................................................................................................... 1

Kit Contents ...........................................................................................................................1

Rail Kit Installation Instructions ................................................................................................... 1

Prepare System .......................................................................................................................... 1

Prepare Rack .............................................................................................................................. 2

Install System in Rack ................................................................................................................ 7

Complete Setup .......................................................................................................................... 7

vi Rail Kit Install Guide: Intel® Modular Server System MFSYS25

Rail Kit Install Guide: Intel® Modular Server System MFSYS25 1

Rail Kit Install Guide

The Intel® Modular Server System MFSYS25 is designed to support cabinets that are 19

inches (483 mm) wide by up to 36 inches (914 mm) deep. A set of rack mounting rails is

provided in this kit and will accommodate either square or round hole rack-mounting

methods.

Kit Contents

Rail Kit Installation Instructions

Prepare System

Warning: Lifting the system and attaching it to the rack is a three-person operation. Remove all

modules from the system prior to lifting system into rack. This includes all compute server

modules, all power supply modules, all Ethernet switch modules, all storage controllers

and the management module. Use of a mechanical assist is required if modules are not

removed.

1. Read all caution and safety statements listed in this document before performing any

of the steps. See the Intel® Server Boards and Server Chassis Safety Information

document at http://support.intel.com/support/motherboards/server/sb/cs-010770.htm

for a complete listing of all caution and safety statements.

Caution: Before performing any maintenance on the system, back up the data.

2. Turn off all peripheral devices connected to the system. Turn off the system.

3. Disconnect the power cord(s).

Rail Kit (AXXMFRAIL)

Item Quantity

Rail 2

Install Guide 1

2Rail Kit Install Guide: Intel® Modular Server System MFSYS25

Prepare Rack

Setting the Multi-pin Adapters for Rack Type

The multi-pin adapters allow the rack rails to be used in racks that have either square or

round mounting holes.

Note: The rack rails ship with the multi-pin adapters set for square holes. If your rack has

square mounting holes, skip this section.

4. On each rack rail, reverse the multi-pin adapter position so that it matches the

appropriate rack mounting hole type for your rack.

Figure 1. Pictorial View of Multi-pin Adapter

This side for

rack with

Round Mounting

Holes

This side for

rack with

Square Mounting

Holes

Round

Square

AF002462

Rail Kit Install Guide: Intel® Modular Server System MFSYS25 3

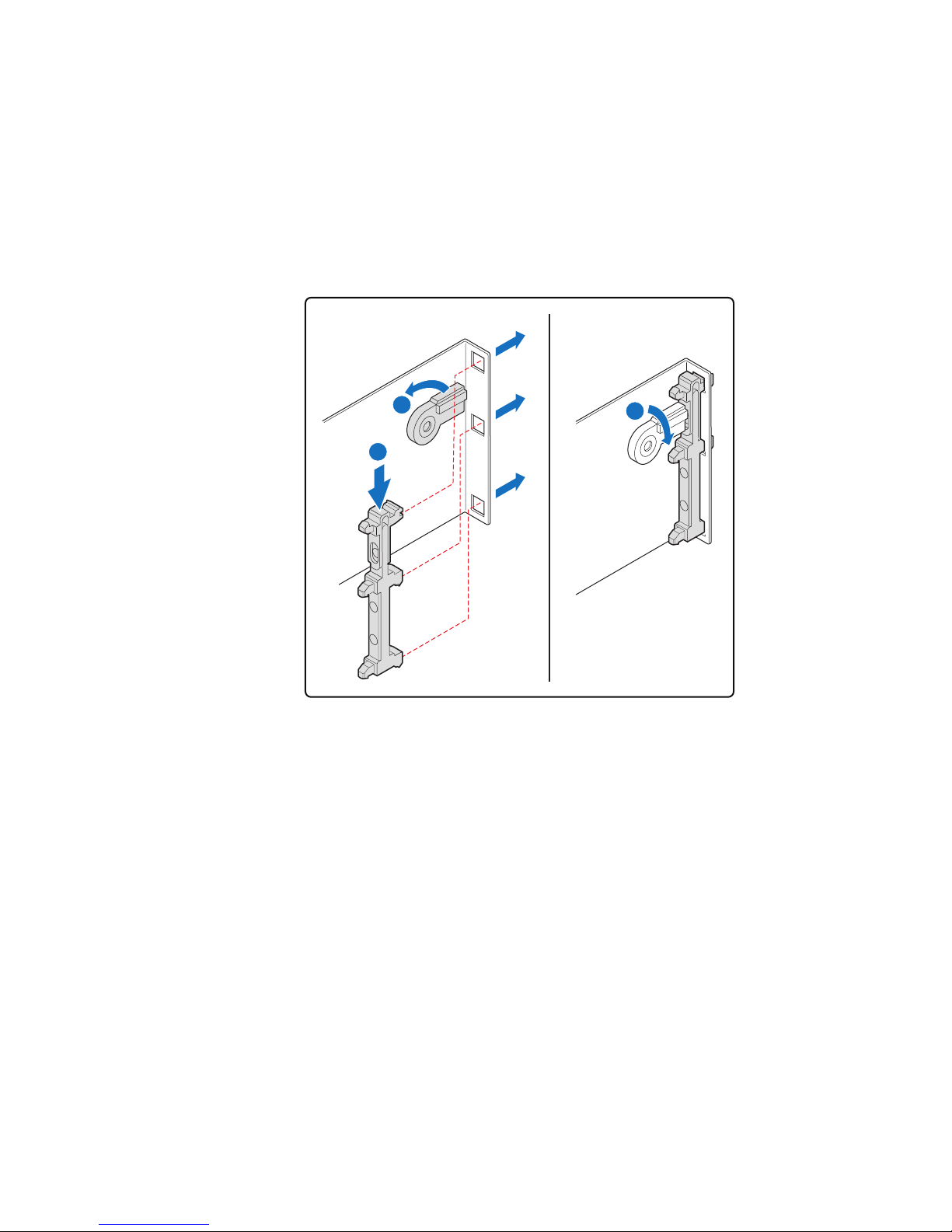

5. To set for round mounting holes, remove the multi-pin adapter by rotating the swivel

lock up (see letter “A” in the following figure). Press and hold the top (floating)

mounting pin downward (see letter “B”) while extracting the middle and bottom pins

from the multi-pin bracket.

Figure 2. Removing Multi-pin Adapter from Multi-pin Bracket

6. Set the multi-pin adapter for round mounting holes (see Figure 1).

AF002463

4Rail Kit Install Guide: Intel® Modular Server System MFSYS25

7. Ensure the swivel lock is up (see letter “A” in the following figure). Re-install the

multi-pin adapter into the multi-pin bracket by placing the bottom mounting pin fully

in the bracket. Press and hold the top (floating) pin (see letter “B”) while pushing the

adapter into the bracket. Ensure that all three mounting pins on the multi-pin adapter

are fully engaged in the multi-pin bracket. The multi-pin adapter must be fully locked

into the bracket. Use the swivel lock to lock the multi-pin adapter in place (see letter

“C”).

Figure 3. Setting Multi-pin Adapter in Multi-pin Bracket

8. Repeat the previous three steps for both ends of each rack rail.

AF002464
