Intel S5500BC Leitfaden

Intel®Server Board S5500BC,

Intel®Server Chassis SC5650,

Intel®Server System SR1630BC,

Spares / Parts List & Configuration Guide

A reference guide to assist customers in ordering the necessary components to configure the

Intel® Server board S5500BC, Intel® Server chassis SC5650 and Intel® server system

SR1630BC

Revision 1.0

January, 2009

Enterprise Platforms and Services Marketing

~ Subject to Change ~

Change History:

12/18/08: Production unit order information added. Deleted pre-production information

Disclaimer

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO

LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY

RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S TERMS AND

CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND

INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF

INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A

PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR

OTHER INTELLECTUAL PROPERTY RIGHT.

Intel products are not intended for use in medical, life saving, life sustaining applications. Intel may make

changes to specifications and product descriptions at any time, without notice.

Intel server boards, server chassis, and processors may contain design defects or errors known as errata,

which may cause the product to deviate from published specifications. Current characterized errata are

available on request.

Intel, Intel Xeon, Pentium, and the Intel logo are trademarks or registered trademarks of Intel Corporation or its

subsidiaries in the United States and other countries.

*Other names and brands may be claimed as the property of others.

Contents

Contents............................................................................................................3

Production Configurations................................................................................4

Production Board.........................................................................................4

Production chassis.......................................................................................4

Production Integrated 1U System...............................................................5

A. Production Order Codes..............................................................................7

Production Board.........................................................................................7

Production Board Accessories....................................................................7

Production Chassis......................................................................................8

Production Chassis Spares and Accessories............................................9

Production System SR1630BC ................................................................13

Production System SR1630BC Accessory..............................................14

Production System SR1630BC Spares ...................................................14

Production RAID Accessories (not including BBU) .................................16

Production RAID Controller.......................................................................16

Intel® System Management Software – (Upgrade SKUs)......................17

Intel® System Management Software – Upgrade Order Codes:..........18

Production Intel Xeon Processor 5500 Series.........................................20

Production Intel Thermal Solution STS100 Series..................................21

Production Configurations

Production Board

This section contains information needed to order Production Intel®Server Board S5500BC, Intel Server Chassis SC5650

and Intel Server System SR1630BC

1. The production Intel®boxed Server Board S5500BC contain the following:

One baseboard with Common Enabling Kit (CEK) spring clips

ATX I/O shield and label

Quick Start User’s Guide

Cables: Serial B (COM2) and 4 SATA cables

Resource CD-ROM with utilities, drivers, documentation and technical information

ISMS 3.x DVD

Compatible with Intel® Xeon® processor 5500 series

2. The production OEM 10-packs of Intel® Server Boards contain the following:

Each baseboard with Common Enabling Kit (CEK) spring clips

Compatible with Intel® Xeon® processor 5500 series

Production chassis

1. The production Intel® Server Chassis SC5650DP SKU includes:

Non-redundant 600W PFC power supply

Three non-redundant cooling fan

Support for up to six tool-free non hot-swap 3.5” SATA hard drives. Upgradeable to hot swap

SAS/SATA 6-drive bay.

Note: Check the Power budget spreadsheet for supportable hard drive, memory and PCI configurations.

Quick Start User’s Guide

Cables (one each):

oFront Panel Cable (baseboard header to front panel)

oUSB Cable (USB header to chassis front panel)

oAC power cord is included in SC5650DPNA

Chassis intrusion switch assembly

Five Bumpers for installing Intel® Server Board SC5500BC

The chassis is designed to work with boxed Intel® Xeon® processor 5500 series using Intel® Thermal

Solution STS100C (Combo) or STS100A (Active).

2. The production Intel® Server Chassis SC5650BRP SKU includes:

Redundant (1+0) 600W high efficiency PFC power supply with dual line cord support (full redundancy

requires additional 600W module purchased separately)

Three non-redundant cooling fan

Support for up to six tool-free non hot-swap 3.5” SATA hard drives. Upgradeable to hot swap

SAS/SATA 6-drive bay.

Note: Check the Power budget spreadsheet for supportable hard drive, memory and PCI configurations.

Quick Start User’s Guide

Cables (one each):

oFront Panel Cable (baseboard header to front panel)

oUSB Cable (USB header to chassis front panel)

oAC power cord is included in SC5650BRPNA

Chassis intrusion switch assembly

Five Bumpers for installing Intel® Server Board SC5500BC

The chassis is designed to work with boxed Intel® Xeon® processor 5500 series using Intel® Thermal

Solution BXSTS100C (Combo) or BXSTS100A (Active).

3. Common accessories include:

Hot Swap Drive Bays:

oAXX6DRV3GEXP: Expander-based 6-drive bay that supports SAS/SATA drives. Requires two free

SAS ports from the SAS personality module or SAS RAID card.

oAXX6DRV3GR: 6-drive bay that supports SAS/SATA drives. Requires six free SAS or SATA ports.

SAS hard drive support requires SAS connectors from a SAS personality module or SAS RAID

Card.

APPT600WHPSU: Additional 600W power supply module- required for full redundancy for SC5650BRP

only.

APPTHSDBKIT: Cooling and mounting kit required for 6-drive hot-swap backplanes installed in the

SC5650 chassis family. This Kit should be used with AXX6DRV3GR.

APP3HSDBKIT: Cooling and mounting kit required for 6-drive hot-swap backplanes installed in the

SC5650 chassis family. This Kit should be used with AXX6DRV3GEXP.

AXXRAKSW5: Intel® RAID Activation Key AXXRAKSW5 to enable Intel Embedded RAID technology

for SAS and/or SATA Software RAID 5 on S5500BC board and SR1630BC system.

Production Integrated 1U System

1. The production Intel® integrated Server System SR1630BC SKU includes

One pre-installed production Intel® Server Board S5500BC

Non redundant high efficiency 400W PFC power supply

Two non-redundant cooling fan

Support for up to two non hot-swap 3.5” SATA hard drives.

One riser card

Slim-line CD-ROM bay

Basic rail kit

Cables :

oFront Panel Cable (baseboard header to front panel)

oUSB Cable (USB header to chassis front panel)

oTwo SATA cables

oAC power cord is included in SR1630BCNA

The system is designed to work with boxed Intel® Xeon® processor 5500 series using Intel® Thermal

Solution STS100P (passive)

A. Production Order Codes

Production Board

Picture Product Code MM # UPC MOQ Description

S5500BC 900774

00735858208109

5 Boxed Intel Server Board S5500BC. (Includes I/O

shield, cables, resource CD and ISMS DVD)

BB5500BC 900775

00735858208116

10 Bulk pack of the Intel Server Board S5500BC

Production Board Accessories

Picture Product Code MM # UPC MOQ Description

AXXTIO 901685

00735858207683

50 50 Pack: I/O Shield

Production Chassis

Picture Product Code MM # UPC MOQ Description

SC5650DP 900338 00735858207393 1 Intel Server Chassis SC5650DP with 600W fixed

PSU, 3 fixed chassis fans with ducting, rackable with

optional rack kit, supports up to 6 fixed drives,

upgradeable to 6 Hot-Swap drives (SAS or SATA).

Check the Power budget spreadsheet for

supportable hard drive, memory and PCI

configurations. Supports S5520HC, S5500HCV,

S5500BC. Supports up to 95W processor. No power

cord or heat sinks included.

SC5650DPNA 900453 00735858207614 1 Same as Intel Server Chassis SC5650DP with North

American power cord. No heat sinks included.

SC5650BRP 900340 00735858207409 1 Intel Server Chassis SC5650BRP Base Redundant

Power with (1+0) 600W power supply, 3 fixed

chassis fans with ducting, Rackable with optional

rack kit. Supports up to 6 fixed drives, upgradeable to

6 Hot-Swap drives (SAS or SATA). Supports Intel

Server Board S5520HC, S5500HCV, S5500BC.

Supports up to 95W processor. No power cord or

heat sinks included.

SC5650BRPNA 900452 00735858207621 1 Same as Intel Server Chassis SC5650BRP with

North American power cord. No heat sinks included.

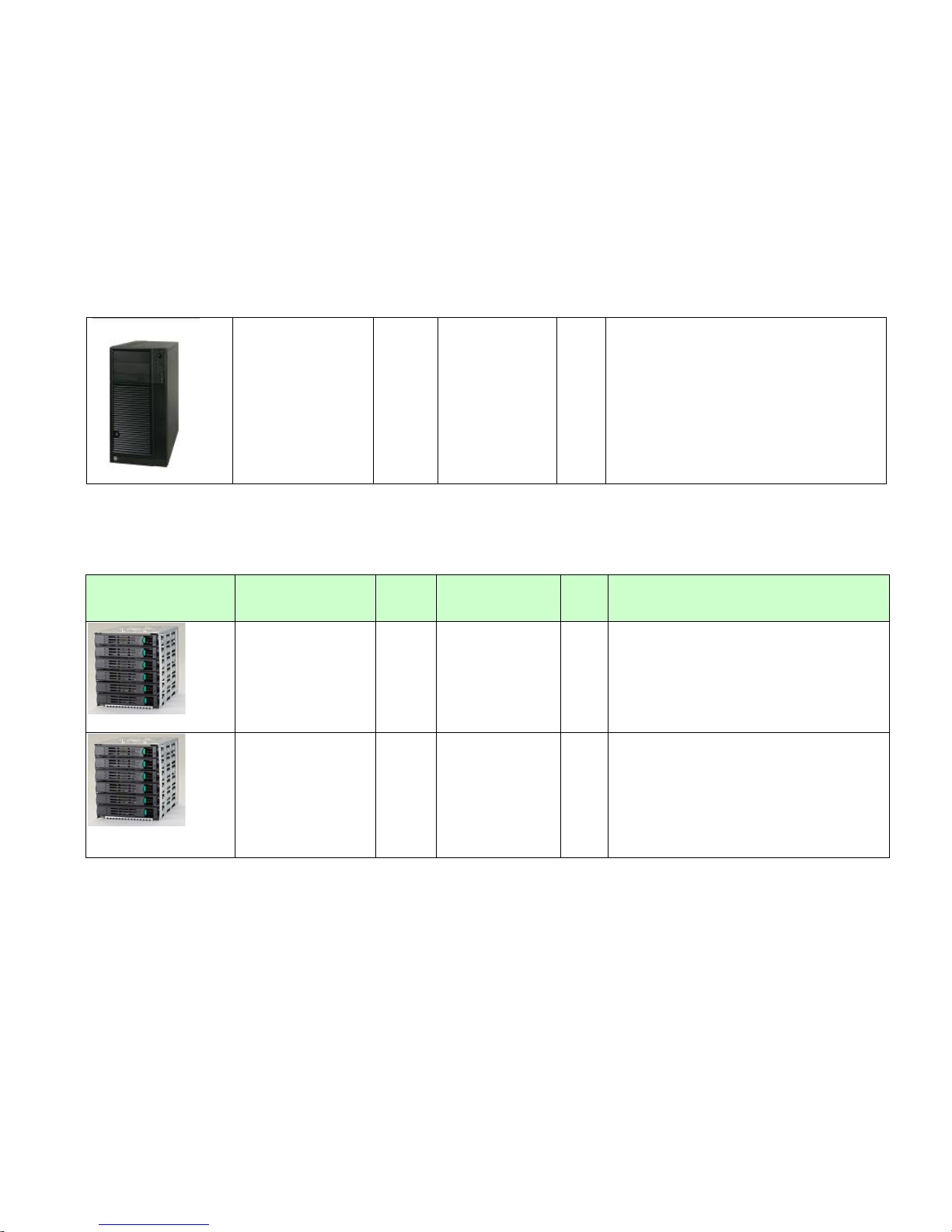

Production Chassis Spares and Accessories

Picture Product Code MM # UPC MOQ Description

AXX6DRV3GEXP 877235

00735858180283 1

6-drive hot-swap, expander SATA/SAS backplane

assembly cage kit for Intel Server Chassis

SC5600/SC5650. Requires 2 SAS ports from SAS

personality module or RAID card and is compatible

with SAS or SATA 3.5” hard drives. Includes:

backplane board, 6 drive carriers, 2 Data cables, 6-

drive bay, IPMB cable, common installation guide,

SATA/SAS configuration label.

AXX6DRV3GR 900405 00735858207638 1

6-drive hot-swap non-expanded SATA/SAS backplane

assembly cage kit for Intel Server Chassis SC5600 /

SC5650 family. Requires 6 SAS ports from RAID card

for SAS (or SATA) 3.5” hard drive support or 6 SATA

ports from baseboard or RAID card for SATA 3.5” hard

drive support. Includes: Backplane board, 6 drive

carriers, 6 data cables, 6-drive bay, IPMB cable, SES

cable and SGPIO cable, common installation guide,

SATA/SAS configuration label.

AXXRMM3 900961 00735858206570 1 Intel Remote Management Module 3 for Intel Server

Board S5520HC, S5500HCV, S5500BC, and Intel

workstation board S5520SC.

Coming Soon AXXCMA3U7U 862119 00735858168533 1 Universal 3U though 7U Rack Mode Cable

Management Arm (CMA). Requires ARIGRACK.

Coming Soon ARIGRACK 885459 00735858164603 1 Pedestal to rack conversion kit for Intel® Server

Chassis SC5600. Includes: hinge cover; rack handles,

intrusion switch jumper, new rail kit assembly, rack

hardware kit, icon label, installation guide

Coming Soon APPTHSDBKIT 901181 00735858207676 1 Hot-swap drive cooling and mounting Kit for Intel

Server Chassis SC5650, Includes 1 fan holder and 2

Hot-swap cage brackets. This mounting kit is

required when using 6-bay Hot-swap Hard Disk

Cage AXX6DRV3GR in SC5650 Chassis

Coming Soon APP3HSDBKIT 882456 00735858177450 1 Hot-swap adapter bracket for use with all Intel Server

Chassis SC5299-E, SC5295 (except SC5295UP) and

SC5650 chassis. This mounting kit is required when

using 6-bay Hot-swap Hard Disk Cage

AXX6DRV3GEXP in SC5650 Chassis

Coming Soon APP3RACKIT 882457 00735858177375 1 Rack conversion kit for Intel Server Chassis SC5650

family. Includes rack rails and hardware for rack

installation

APP3STDBEZEL 871862 00735858177474 1 Spare bezel with door for Intel Server Chassis SC5650

family.

Coming Soon APPT600WHPSU 900984 00735858207324 1 2nd Redundant 600W PSU for Intel Server Chassis

SC5650BRP. Optional, second module is required to

enable full, hot-swap power redundancy.

Andere Handbücher für S5500BC

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Intel Server Handbücher

Intel

Intel SR1530CLR - Server System - 0 MB RAM Bedienungsanleitung

Intel

Intel SC5650BCDP Konfigurationshandbuch

Intel

Intel S7000FC4UR - Server System - 0 MB RAM Bedienungsanleitung

Intel

Intel SR870BH2 - Server Platform - 0 MB RAM Bedienungsanleitung

Intel

Intel SR1670HV - Server System - 0 MB RAM Bedienungsanleitung

Intel

Intel R2000WF series Konfigurationshandbuch

Intel

Intel R2000LH2 Bedienungsanleitung

Intel

Intel MFSYS25V2 Bedienungsanleitung

Intel

Intel R1304BTLSFAN Einrichtungshandbuch

Intel

Intel R1000BB Family Bedienungsanleitung

Intel

Intel SR1630BC - Server System - 0 MB RAM Bedienungsanleitung

Intel

Intel SR1630BC - Server System - 0 MB RAM Konfigurationshandbuch

Intel

Intel SC5650HCBRP Einrichtungshandbuch

Intel

Intel SR1500 - AXXMINIDIMM DDR-2 RAID Controller Cache... Bedienungsanleitung

Intel

Intel S7000FC4UR - Server System - 0 MB RAM Konfigurationshandbuch

Intel

Intel SR2100 Bedienungsanleitung

Intel

Intel SRMK2 - Server Platform - 0 MB RAM Bedienungsanleitung

Intel

Intel R2000BB series Bedienungsanleitung

Intel

Intel TIGH2U - Carrier Grade Server Bedienungs- und Sicherheitshinweise

Intel

Intel ISP1100 - Server Platform - 0 MB RAM Bedienungsanleitung

Intel

Intel SR1600UR - Server System - 0 MB RAM Bedienungsanleitung

Intel

Intel ISP4400 - Server Platform - 0 MB RAM Bedienungsanleitung

Intel

Intel ISP1100 - Server Platform - 0 MB RAM Bedienungsanleitung

Intel

Intel SR1560SF - Server System - 0 MB RAM Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

NEC

NEC Express5800/T110j Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Compaq

Compaq ProLiant 3000 Handbuch

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung
