TruVision 6MP and 12MP

360° Camera

Configuration Manual

P/N 1073657-EN • REV A • ISS 11OCT19

2019 United Technologies Corporation.

Interlogix is part of UTC

Climate, Controls & Security

, a unit of United

Technologies Corporation.

Trademarks and

patents

Trade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective products.

Disclaimer

Information in this document is subject to change without notice. No

part of this document may be reproduced or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without

the express written permission of UTC Fire & Securit

y Americas

Corporation, Inc.

Certification

Product warnings and

disclaimers

THESE PRODUCTS ARE INTENDED FOR SALE TO AND

INSTALLATION BY QUALIFIED PROFESSIONALS. UTC FIRE &

SECURITY CANNOT PROVIDE ANY ASSURANCE THAT ANY

PERSON OR ENTITY BUYING

ITS PRODUCTS, INCLUDING ANY

“AUTHORIZED DEALER” OR “AUTHORIZED RESELLER”, IS

PROPERLY TRAINED OR EXPERIENCED TO CORRECTLY

INSTALL FIRE AND SECURITY RELATED PRODUCTS.

For more information on warranty disclaimers and product safety

information, please check

www.firesecurityproducts.com/policy/product

-warning or scan the

following code:

Contact information

For contact information and to download the latest manuals, tools,

and firmware, go to the web site of your region.

Americas: www.interlogix.com

EMEA:

www.firesecurityproducts.com

Manuals are available in several languages.

Australia/New Zealand: www.utcfs.com.au

TruVision 6MP and 12MP 360° Camera Configuration Manual i

Content

Introduction 3

Network access 4

Checking your web browser security level 4

Activating the camera 5

Overview of the camera web browser 7

Camera configuration 12

Local configuration 12

Configuration 13

Defining the system time 15

Defining RS-485 settings 16

Maintenance 16

Configuring the network settings 18

Recording parameters 25

Video image 28

OSD (On Screen Display) 32

Privacy masks 33

Picture overlay 34

Motion detection alarms 35

Video tampering 40

Alarm inputs and outputs 41

Exception alarms 42

Audio exception detection 43

Intrusion detection 45

Cross line detection 47

Region entrance detection 49

Region exiting detection 51

Unattended baggage detection 52

Object removal detection 53

Recording schedule 55

Snapshot parameters 57

Formatting the storage devices 59

Configuring NAS settings 60

People counting 61

Heat map 64

Intersection analysis 66

Application 68

People counting statistics 68

Heat map statistics 70

Intersection analysis statistics 72

Camera management 74

User management 74

ii TruVision 6MP and 12MP 360° Camera Configuration Manual

RTSP authentication 77

IP address filter 77

Defining the security service 78

Restore default settings 79

Import/export a configuration file 79

Upgrade firmware 79

Reboot camera 81

Camera operation 82

Log on and off 82

Live view mode 82

Play back recorded video 82

Snapshots 85

Search event logs 85

Operating PTZ control 87

Index 90

TruVision 6MP and 12MP 360° Camera Configuration Manual 3

Introduction

This is the configuration manual for the following TruVision IP camera models:

TVF-5201 (TruVision 6MPx 360° IP Dome, indoor, 1.29 mm)

TVF-5202 (TruVision 12MPx 360° IP Dome, indoor, 1.29 mm)

TVF-5203 (TruVision 6MPx 360° IP Dome, outdoor, 1.29 mm)

TVF-5204 (TruVision 12MPx 360° IP Dome, outdoor 1.29 mm)

4 TruVision 6MP and 12MP 360° Camera Configuration Manual

Network access

This manual explains how to configure the camera over the network with a web

browser.

TruVision IP cameras can be configured and controlled using Microsoft Internet

Explorer (IE) and other browsers. The procedures described use Microsoft Internet

Explorer (IE) web browser.

Checking your web browser security level

When using the web browser interface, you can install ActiveX controls to connect and

view video using Internet Explorer (the camera is not compatible with Microsoft Edge).

However, you cannot download data, such as video and images due to the increased

security measure. Consequently you should check the security level of your PC so that

you are able to interact with the cameras over the web and, if necessary, modify the

Active X settings.

Configuring IE ActiveX controls

You should confirm the ActiveX settings of your web browser.

To change the web browser’s security level:

1. In Internet Explorer click Internet Options on the Tools menu.

2. On the Security tab, click the zone to which you want to assign a web site under

“Select a web content zone to specify its security settings”.

3. Click Custom Level.

4. Change the ActiveX controls and plug-ins options that are signed or marked as

safe to enable. Change the ActiveX controls and plug-ins options that are

unsigned to Prompt or Disable. Click OK.

- Or -

Under Reset Custom Settings, click the security level for the whole zone in the

Reset To box, and select Medium. Click Reset.

Then click OK to the Internet Options Security tab window.

5. Click Apply in the Internet Options Security tab window.

Windows users

Internet Explorer operating systems have increased security measures to protect your

PC from any malicious software being installed.

To have complete functionality of the web browser interface with Windows 7, 8 and 10,

do the following:

• Run the Browser interface as an administrator in your workstation

• Add the camera’s IP address to your browser’s list of trusted sites

TruVision 6MP and 12MP 360° Camera Configuration Manual 5

To add the camera’s IP address to Internet Explorer’s list of trusted sites:

1. Open Internet Explorer.

2. Click Tools, and then Internet Options.

3. Click the Security tab and then select the trusted sites icon.

4. Click the Sites button.

5. Clear the “Require server verification (https :) for all sites in this zone” check box.

6. Enter the IP address in the “Add this website to the zone” field.

7. Click Add, and then click Close.

8. Click OK in the Internet Options dialog window.

9. Connect to the camera for full browser functionality.

Activating the camera

When you first start up the camera, the Activation window appears. You must define a

high-security admin password before you can access the camera. There is no default

password provided.

You can activate a password via a web browser and via TruVision Device Manager.

Warning: When the 360° camera is operating, the surface of the housing will be hot to

the touch. The heat buildup is due to the processing power that is required to operate

the camera

Activation via the web browser:

1. Power on the camera and connect the camera to the network.

2. Input the IP address into the address bar of the web browser, and click Enter to

enter the activation interface.

Note:

The default IP address of the camera is 192.168.1.70.

6 TruVision 6MP and 12MP 360° Camera Configuration Manual

For the camera to enable DHCP by default, you must activate the camera via

TruVision Device Manager. Please refer to the following section, “Activation via

TruVision Device Manager”.

3. Enter the password in the password field.

Note: A valid password range must be between 8 and 16 characters. You can use a

combination of numbers, lower and upper case letters, and special characters: _ - , *

& @ / $? Space. The password must contain characters from at least two of these

groups. We also recommend that you reset your password regularly. For high

security systems, it is particularly recommended to reset the password monthly or

weekly for better protection.

4. Confirm the password.

5. Click OK to save the password and enter the live view interface.

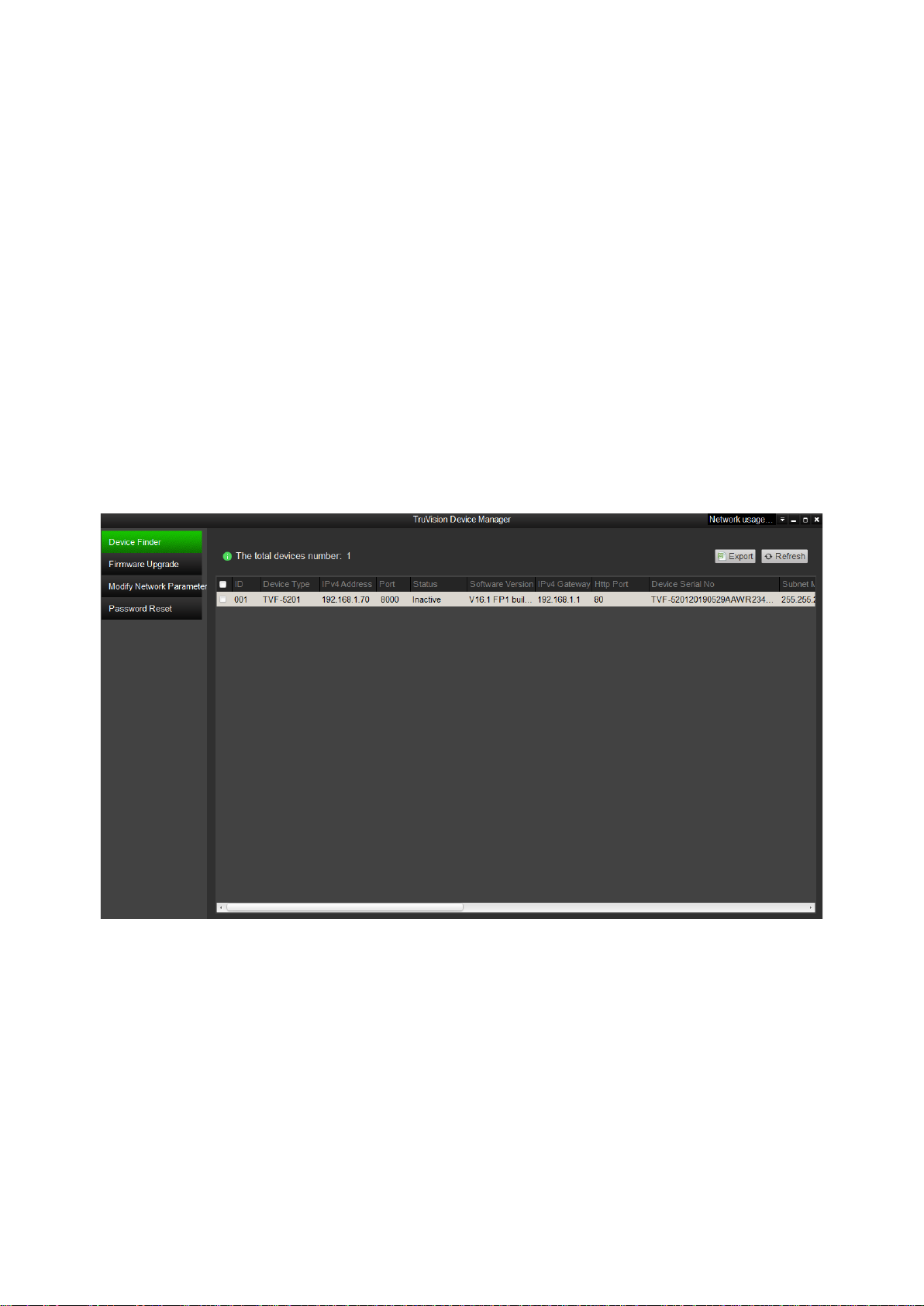

Activation via TruVision Device Manager:

1. Run the TruVision Device Manager to search for online devices.

2. Check the device status from the device list, and select the inactive device.

3. Enter the password in the password field, and confirm it.

Note: A valid password range must be between 8 and 16 characters. You can use a

combination of numbers, lower and upper case letters, and special characters: _ - , *

& @ / $? Space. The password must contain characters from at least two of these

groups. We also recommend that you reset your password regularly. For high

security systems, it is particularly recommended to reset the password monthly or

weekly for better protection.

4. Click OK to save the password.

A pop-up window appears to confirm activation. If activation fails, confirm that the

password meets the requirements and try again.

TruVision 6MP and 12MP 360° Camera Configuration Manual 7

5. Change the device IP address to the same subnet with your computer by either

modifying the IP address manually or checking the check box of Enable DHCP.

6. Input the password and click the Save button to activate your IP address

modification.

Overview of the camera web browser

Use the camera web browser to view, record, and play back recorded videos as well as

manage the camera from any PC with access to the same network as the camera. The

browser’s easy-to-use controls provide quick access to all camera functions.

If there is more than one camera connected over the network, open a separate web

browser window for each individual camera.

Note: For accurate analysis Ceiling Mount should be selected when setting up the

camera. See “Display control” on page 9. If Ceiling Mount is not selected, the

Application tab will not be visible during setup.

8 TruVision 6MP and 12MP 360° Camera Configuration Manual

Figure 1: Browser interface (Live view shown)

Name

Description

1. Live view Click to view live video.

2. Playback Click to play back video.

3. Picture Click to search snapshots.

4. Application Click to enter the heat map statistics interface and search, view, download

the counting data stored in the local storage or network storage.

5. Log Click to search for event logs. There are three main types: Alarm,

Exception and Operation.

6. Configuration Click to display the configuration window for setting up the camera.

7. Admin Displays current user logged on.

8. Help Click to find function.

9. Logout Click to log out from the system. This can be done at any time.

10. Live view toolbar

Click to manually capture the snapshot.

Click to manually start/stop recording.

Click to start/stop digital zoom function.

Note: Appears when using the hardware display mode only.

Click to select live view with main stream or substream.

Audio on and adjust Volume/Mute.

Manual alarm.

The window size is 4:3.

The window size is 16:9.

The original window size.

Self-adaptive window size.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Interlogix IP-Kamera Handbücher

Interlogix

Interlogix TVC-5125BE-3 Bedienungsanleitung

Interlogix

Interlogix TruVision Open Standards Anleitung zur Verwendung

Interlogix

Interlogix TVD-TIR6-MR Bedienungsanleitung

Interlogix

Interlogix TruVision TVA-1101 Merkblatt

Interlogix

Interlogix VD-IP-XP4DNP Bedienungsanleitung

Interlogix

Interlogix TruVision Series TVQ-8101 Bedienungsanleitung

Interlogix

Interlogix TVB-1101 Bedienungsanleitung

Interlogix

Interlogix TruVision Line Bedienungsanleitung

Interlogix

Interlogix TruVision 11 Series Bedienungsanleitung

Interlogix

Interlogix TruVision Bullet IR TVC-BIR6-SR Bedienungsanleitung

Interlogix

Interlogix TruVision TVP-1101 Merkblatt

Interlogix

Interlogix TruVision Line Bedienungsanleitung

Interlogix

Interlogix TVB-1101 Bedienungsanleitung

Interlogix

Interlogix VC-IP-XP4DN-HR Bedienungsanleitung

Interlogix

Interlogix TruVision Line Bedienungsanleitung

Interlogix

Interlogix TruVision Line Bedienungsanleitung

Interlogix

Interlogix TVB-2203 Bedienungsanleitung

Interlogix

Interlogix UltraSync RS-3230 Merkblatt

Interlogix

Interlogix TruVision Line Merkblatt

Interlogix

Interlogix TruVision 12 Series Bedienungsanleitung

Interlogix

Interlogix TVD-2202 Bedienungsanleitung

Interlogix

Interlogix UltraSync RS-3230 Bedienungsanleitung

Interlogix

Interlogix FW5.1 Bedienungsanleitung

Interlogix

Interlogix TruVision TVB-4409 Handbuch

Beliebte IP-Kamera Handbücher anderer Marken

FLIR

FLIR Exx series Bedienungsanleitung

Avigilon

Avigilon H4A-BO1-IR Bedienungsanleitung

Digital Watchdog

Digital Watchdog DWCA-C128-64 Bedienungsanleitung

ShareTech

ShareTech AV1 Bedienungsanleitung

Ezviz

Ezviz C6C Bedienungsanleitung

Melchioni

Melchioni UCAM 2015 Bedienungsanleitung

Geutebruck

Geutebruck G-Cam/ESD-4630 Bedienungsanleitung

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Bedienungsanleitung

Mitel

Mitel 6800i Series Service-Handbuch

Vitek

Vitek VTC-IR403-212NP Bedienungsanleitung

THOMSON

THOMSON DSC - 323W Bedienungsanleitung

AVer

AVer FB2027 Bedienungsanleitung

ENFORCER

ENFORCER EV-T5105-N2SQ Bedienungsanleitung

Wansview

Wansview NC543 Bedienungsanleitung

Eneo

Eneo MCB-64A0003M0A Bedienungsanleitung

deView electronics

deView electronics CBDNI36F Bedienungsanleitung

Swann

Swann SwannEye Bedienungsanleitung

LevelOne

LevelOne IP CamSecure Bedienungsanleitung
