TruVision Covert IP Camera Configuration Manual 1

Content

Introduction 3

Network access 3

Checking your web browser security level 3

Accessing the camera over the internet 4

Overview of the camera web browser 5

Camera configuration 7

Configuration menu overview 7

Local configuration 8

System time 9

Network settings 10

Recording parameters 16

Video image 18

OSD (On Screen Display) 21

Overlay text 22

Privacy masks 23

Picture overlay 24

Motion detection alarms 24

Tamper-proof alarms 30

Exception alarms 31

Alarm inputs and outputs 32

Face detection 33

Audio exception detection 35

Cross line detection 37

Intrusion detection 39

Defocus detection 41

Scene change detection 42

Snapshot parameters 44

NAS settings 46

Storage devices 47

Recording schedule 48

RS-232 settings 49

RS-485 settings 50

Camera management 51

User management 51

RTSP authentication 53

IP address filter 54

Defining the security service 55

Restore default settings 55

Import/export a configuration file 56

Upgrade firmware 56

Reboot camera 58

2 TruVision Covert IP Camera Configuration Manual

Camera operation 59

Logging on and off 59

Live view mode 59

Playing back recorded video 59

Searching event logs 62

Operating PTZ control 64

TruVision Covert IP Camera Configuration Manual 3

Introduction

This is the user manual for the following TruVision covert IP camera models:

TVA-1101 （1.3MPX IP ATM/covert camera, WDR, PAL）

TVA-3101 （1.3MPX IP ATM/covert camera, WDR, NTSC）

Network access

This manual explains how to configure the camera over the network with a web

browser.

TruVision IP cameras can be configured and controlled using Microsoft Internet

Explorer (IE) and other browsers. The procedures described use Microsoft Internet

Explorer (IE) web browser.

Checking your web browser security level

When using the web browser interface, you can install ActiveX controls to connect and

view video using Internet Explorer. However, you cannot download data, such as video

and images due to the increased security measure. Consequently you should check the

security level of your PC so that you are able to interact with the cameras over the web

and, if necessary, modify the Active X settings.

Configuring IE ActiveX controls

You should confirm the ActiveX settings of your web browser.

To change the web browser’s security level:

1. In Internet Explorer click Internet Options on the Tools menu.

2. On the Security tab, click the zone to which you want to assign a web site under

“Select a web content zone to specify its security settings”.

3. Click Custom Level.

4. Change the ActiveX controls and plug-ins options that are signed or marked as

safe to Enable. Change the ActiveX controls and plug-ins options that are

unsigned to Prompt or Disable. Click OK.

- or -

Under Reset Custom Settings, click the security level for the whole zone in the

Reset To box, and select Medium. Click Reset.

Then click OK to the Internet Options Security tab window.

5. Click Apply in the Internet Options Security tab window.

4 TruVision Covert IP Camera Configuration Manual

Windows 7 and Windows 8 users

Internet Explorer for Windows 7 and Windows 8 operating systems have increased

security measures to protect your PC from any malicious software being installed.

To have complete functionality of the web browser interface with Windows 7 and

Windows 8, do the following:

• Run the Browser interface as an administrator in your workstation

• Add the camera’s IP address to your browser’s list of trusted sites

To add the camera’s IP address to Internet Explorer’s list of trusted sites:

1. Open Internet Explorer.

2. Click Tools, and then Internet Options.

3. Click the Security tab, and then select the Trusted Sites icon.

4. Click the Sites button.

5. Clear the “Require server verification (https:) for all sites in this zone box.

6. Enter the IP address in the “Add this website to the zone” field.

7. Click Add, and then click Close.

8. Click OK in the Internet Options dialog window.

9. Connect to the camera for full browser functionality.

Accessing the camera over the internet

Use the web browser to access and configure the camera over the internet.

It is recommended that you change the administrator password once the setup is

complete. Only authorized users should be able to modify camera settings. See “User

management” on page 51 for further information.

To access the camera online:

1. In the web browser enter the camera’s IP address (default is 192.168.1.70). Use the

tool, TruVision Device Finder, a feature of the TruVision Device Manager included

on the CD to find the IP address of the camera.

The Login dialog box appears.

Note: Ensure that the Active X controls are enabled.

2. Enter your user name and password.

User name: admin

Password: 1234

3. Click Login. The web browser window appears in live view mode.

TruVision Covert IP Camera Configuration Manual 5

Overview of the camera web browser

The camera web browser lets you view, record, and play back recorded videos as well

as manage the camera from any PC with Internet access. The browser’s easy-to-use

controls give you quick access to all camera functions. See Figure 1 below.

If there is more than one camera connected over the network, open a separate web

browser window for each individual camera.

Figure 1: Web browser interface

Table 1: Overview of the web browser interface

Name

Description

1. Live view Click to view live video.

2. Playback Click to play back video.

3. Log Click to search for event logs. There are three main types: Alarm,

Exception and Operation.

4. Configuration Click to display the configuration window for setting up the camera.

5. Viewer View live video. Time, date and camera name are displayed here.

6. Current user Displays current user logged on.

7. Logout Click to log out from the system. This can be done at any time.

6 TruVision Covert IP Camera Configuration Manual

Name

Description

8. Display Control Click each tab to adjust the layout and the stream type of the live

view. You can also click the drop-down menu to select the plug-in.

For IE (internet explorer) users, web components and quick time are

selectable. For non-IE users, web components, quick time, VLC or

MJPEG are selectable if they are supported by the web browser.

9. Start/stop live view Click to start/stop live view.

10. Audio Adjust the volume.

11. Bidirectional audio Turn on/off the microphone.

12. Capture Click to take a snapshot of the video. The snapshot will be saved to

the default folder in JPEG or BMP format.

13. Start/stop

recording Click to record live video.

14. Digital zoom Click to enable digital zoom.

15. PTZ controls Direction actions, zoom, focus, iris, light and wiper control.

Note: Direction actions, light, and wiper control can be used if the

camera supports RS-485 and external pan/tilt unit, light or wiper is

installed.

TruVision Covert IP Camera Configuration Manual 7

Camera configuration

This chapter explains how to configure the cameras through a web browser.

Once the camera hardware has been installed, configure the camera’s settings through

the web browser. You must have administrator rights in order to configure the cameras

over the internet.

The camera web browser lets you configure the camera remotely using your PC. Web

browser options may vary depending on camera model.

There are two main menus in the configuration panel:

Local configuration

Configuration

Configuration menu overview

Use the Configuration panel to configure the server, network, camera, alarms, users,

transactions and other parameters such as upgrading the firmware. See Figure 2 and

Table 2 below for descriptions of the configuration menus available.

Figure 2: Configuration panel (Device Information tab selected)

Table 2: Overview of the Configuration panel

Configuration

menus Description

System

Defines device basic information including SN and the current firmware

version, time settings, maintenance, and serial port parameters. See

“System time” on page 9 for further information.

8 TruVision Covert IP Camera Configuration Manual

Configuration

menus Description

Network

Defines the network parameters required to access the camera over the

internet. See “Network settings” on page 10 for further information on the

setup.

Video/Audio

Defines recording parameters.


Defines the image parameters, OSD settings, overlay text, and privacy

mask. See “Video image” on page 18 for further information on the setup.

Security

Defines who can use the camera, their passwords and access privileges,

RTSP authentication, IP address filter, and telnet access.

Events

Defines motion detection, tamper-proof, alarm input/output, exception, and

snapshot configuration.

Storage

Defines recording schedule, storage management, and NAS

configuration.

Local configuration

Use the Local menu to manage the protocol type, live view performance and local

storage paths. In the Configuration panel, click Local Configuration to display the local

configuration window. See Figure 3 and Table 3 below for descriptions of the different

menu parameters.

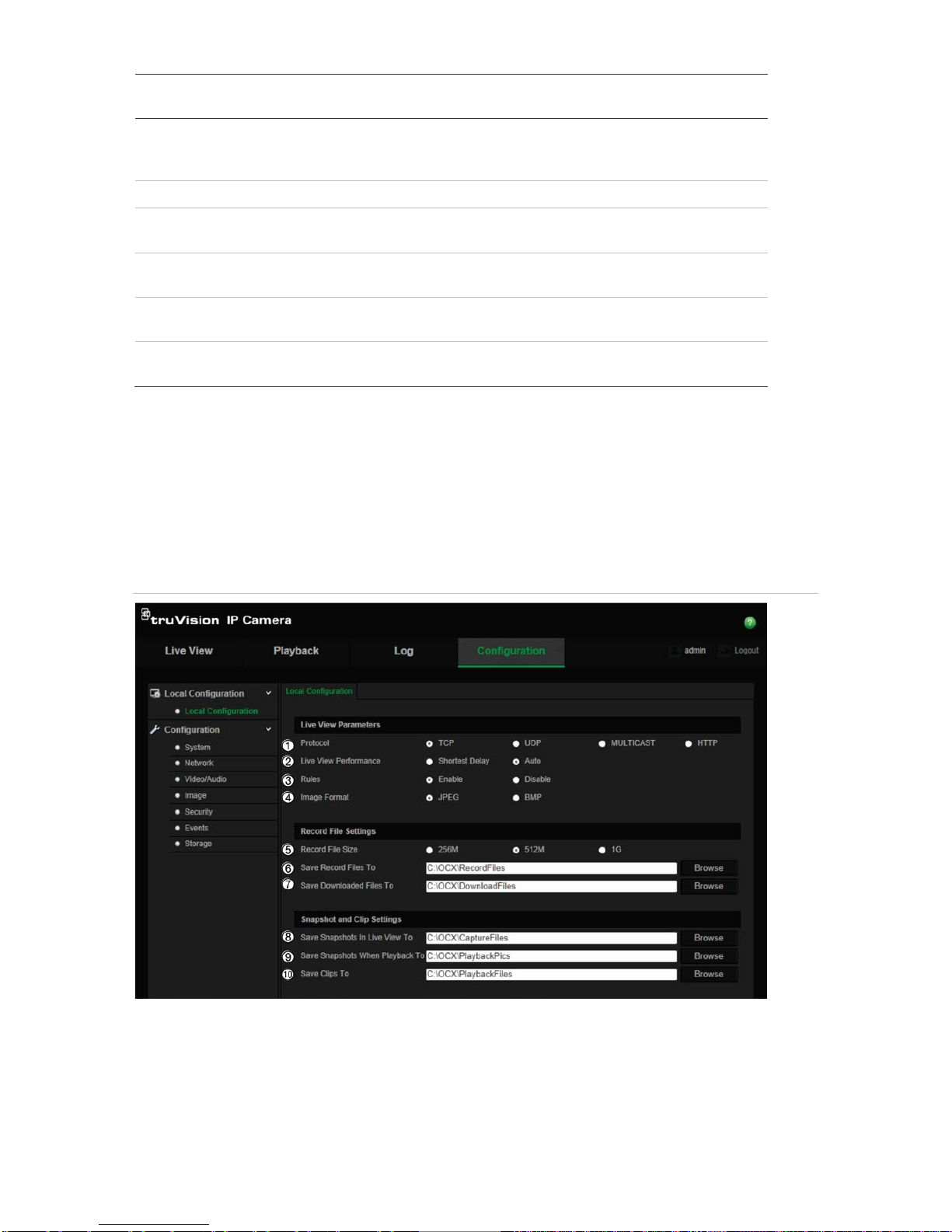

Figure 3: Example of the Local configuration window

Andere Handbücher für TruVision TVA-1101

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Interlogix IP-Kamera Handbücher

Interlogix

Interlogix TruVision Bullet IR TVC-BIR6-SR Bedienungsanleitung

Interlogix

Interlogix TruVision TVB2406 Bedienungsanleitung

Interlogix

Interlogix UltraSync RS3130 Bedienungsanleitung

Interlogix

Interlogix TruVision Line Bedienungsanleitung

Interlogix

Interlogix TVB-2203 Bedienungsanleitung

Interlogix

Interlogix TruVisioin 12 Series Bedienungsanleitung

Interlogix

Interlogix TVD-TIR6-MR Bedienungsanleitung

Interlogix

Interlogix TruVision TVC-1201 Merkblatt

Interlogix

Interlogix TruVision TVT-2202 Bedienungsanleitung

Interlogix

Interlogix TVB-1101 Merkblatt

Interlogix

Interlogix TVB-1101 Bedienungsanleitung

Interlogix

Interlogix TruVision Line Merkblatt

Interlogix

Interlogix UltraView IP XP4 Box Day/Night Range Camera Bedienungsanleitung

Interlogix

Interlogix TruVision Line Bedienungsanleitung

Interlogix

Interlogix TruVision TVP-1101 Merkblatt

Interlogix

Interlogix FW5.1 Bedienungsanleitung

Interlogix

Interlogix TruVision Line Bedienungsanleitung

Interlogix

Interlogix VD-IP-XP4DNP Bedienungsanleitung

Interlogix

Interlogix TruVision 6 Series Bedienungsanleitung

Interlogix

Interlogix TruVision Open Standards Anleitung zur Verwendung

Interlogix

Interlogix VC-IP-XP4DN-HR Bedienungsanleitung

Interlogix

Interlogix TruVision Line Bedienungsanleitung

Interlogix

Interlogix 1073033-EN Bedienungsanleitung

Interlogix

Interlogix TruVision Series TVQ-8101 Bedienungsanleitung

Beliebte IP-Kamera Handbücher anderer Marken

FLIR

FLIR Exx series Bedienungsanleitung

Avigilon

Avigilon H4A-BO1-IR Bedienungsanleitung

Digital Watchdog

Digital Watchdog DWCA-C128-64 Bedienungsanleitung

ShareTech

ShareTech AV1 Bedienungsanleitung

Ezviz

Ezviz C6C Bedienungsanleitung

Melchioni

Melchioni UCAM 2015 Bedienungsanleitung

Geutebruck

Geutebruck G-Cam/ESD-4630 Bedienungsanleitung

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Bedienungsanleitung

Mitel

Mitel 6800i Series Service-Handbuch

Vitek

Vitek VTC-IR403-212NP Bedienungsanleitung

THOMSON

THOMSON DSC - 323W Bedienungsanleitung

AVer

AVer FB2027 Bedienungsanleitung

ENFORCER

ENFORCER EV-T5105-N2SQ Bedienungsanleitung

Wansview

Wansview NC543 Bedienungsanleitung

Eneo

Eneo MCB-64A0003M0A Bedienungsanleitung

deView electronics

deView electronics CBDNI36F Bedienungsanleitung

Swann

Swann SwannEye Bedienungsanleitung

LevelOne

LevelOne IP CamSecure Bedienungsanleitung
