Service Manual

EasyCoder PC41

Bar Code Label

Printer

Intermec Technologies Corporation

Corporate Headquarters

6001 36th Ave. W.

Everett, WA 98203

U.S.A.

www.intermec.com

e information contained herein is proprietary and is provided solely for the purpose of allowing

customers to operate and/or service Intermec manufactured equipment and is not to be released,

reproduced, or used for any other purpose without written permission of Intermec.

Information and speciﬁcations in this manual are subject to change without notice.

EasyCoder, EasyLAN, Fingerprint, and LabelShop are registered trademarks of Intermec Tech-

nologies Corp. e word Intermec, the Intermec logo, InterDriver, and PrintSet are trademarks of

Intermec Technologies Corp.

e name Centronics is wholly owned by GENICOM Corporation.

roughout this manual, trademarked names may be used. Rather than put a trademark (™) symbol

in every occurrence of a trademarked name, we state that we are using the names only in an editorial

fashion, and to the beneﬁt of the trademark owner, with no intention of infringement.

Intermec EasyCoder PC41—Service Manual iii

Preface

Contents

About is Manual ...............................................................................................................v

Notices and Approvals ..........................................................................................................vi

1 Models and Options 1

1.1 Models............................................................................................................................ 2

1.2 Options ...........................................................................................................................3

1.3 EasyCoder PC41 Speciﬁcations ......................................................................................4

1.4 EasyCoder PC41 Measures .............................................................................................6

2 Main Parts 9

2.1 Taking the Printer Apart ................................................................................................10

2.2 Reassembling the Printer ...............................................................................................10

2.3 Exploded View ..............................................................................................................11

3 Top Cover 13

3.1 Description.................................................................................................................... 14

3.2 Tear-Oﬀ Plate ................................................................................................................15

4 Print Frame 17

4.1 Description................................................................................................................... 18

4.2 LED and Feed Switch ...................................................................................................19

4.3 Top Cover Locks ...........................................................................................................21

4.4 Base Lock Spring Hooks ...............................................................................................21

4.5 Printhead ......................................................................................................................22

4.6 Ribbon End Sensor .......................................................................................................25

4.7 Label Gap Sensor (Emitter) ...........................................................................................27

4.8 Ribbon Feed Mechanism ..............................................................................................28

5 Base Frame 33

5.1 Main Parts..................................................................................................................... 34

5.2 Main Board ...................................................................................................................35

5.3 Platen Roller .................................................................................................................36

5.4 Peel-Oﬀ Mechanism ......................................................................................................37

5.5 Motor assy ....................................................................................................................39

5.6 Media Guides ................................................................................................................40

5.7 Base Locks ....................................................................................................................41

5.8 Label Gap/Black Mark Sensors ......................................................................................43

5.9 Media Spindle ...............................................................................................................45

6 Bottom Cover 47

6.1 Bottom Cover ...............................................................................................................48

iv Intermec EasyCoder PC41—Service Manual

Preface

7 Main Board 49

7.1 Description 50

7.2 Accessing the Main Board .............................................................................................51

7.3 Connections ..................................................................................................................51

7.4 Test Points .....................................................................................................................52

7.5 Block Diagram ..............................................................................................................54

7.6 Internal Memory ...........................................................................................................55

7.7 Schematics ....................................................................................................................56

8 Power Supply 61

8.1 Description.............................. .....................................................................................62

9 Memory Cartridge (option) 63

9.1 Description.................................................................................................................... 64

9.2 Memory Sizes ................................................................................................................65

9.3 Schematics ....................................................................................................................66

Starting Up 67

10.1 Overview 68

10.2 Normal Mode .............................................................................................................70

10.3 Factory Default Mode .................................................................................................70

10.4 Test Mode ...................................................................................................................70

10.5 Dump Mode ...............................................................................................................71

Firmware Upgrading 73

11.1 Requirements ..............................................................................................................74

Troubleshooting 75

12.1 Checklist..................................................................................................................... 76

Intermec EasyCoder PC41—Service Manual v

Preface

About This Manual

is Service Manual is intended to facilitate installation, troubleshooting

and repair of the Intermec EasyCoder PC41 in the version delivered at the

date of publishing. e on-going product improvement can be followed in

the Technical Bulletins published at the Intermec Knowledge Center.

is Service Manual is supplemented by the following publications, which

the service technician also should keep easily available in their latest ver-

sions:

• Intermec EasyCoder PC41, Quick Start Guide (multilingual)

• Intermec EasyCoder PC41, User’s Guide

• Intermec EasyCoder PC4/PC41, Spare Parts Catalog

• e IPL Programmer’s Reference Manual, Jan 2005 revision

Please note that the operations described in this manual only should be car-

ried out by skilled and authorized personnel with proper training and full

understanding of written English. Moving parts may cause harm, if incor-

rectly manipulated.

It is assumed that the reader possesses adequate skills in mechanics and

electronics and is familiar with the ESim protocol and its related standard

application programs. It is also assumed that the reader has access to the

standard tools of an electronics workshop.

vi Intermec EasyCoder PC41—Service Manual

Preface

FCC Notice (United States of America)

WARNING

is equipment generates, uses, and can radiate radio frequency energy

and if not installed and used in accordance with the instructions manual,

may interfere with radio communications. It has been tested and found to

comply with the limits for a Class A computing device pursuant to Sub-

part J of Part 15 of FCC Rules, which are designed to provide reasonable

protection against such interference when operated in a commercial envi-

ronment. Operation of this equipment in a residential area is likely to cause

interference in which case the user, at his own expense, will be required to

take the appropriate measures needed to correct the problem.

DOC Notice (Canada)

Canadian Dept. of Communication

REGULATIONS COMPLIANCE

(DOC-A)

is digital apparatus does not exceed the class A limits for radio noise

emissions from a digital apparatus as set out in the radio interference regu-

lations of the Canadian Department of Communication.

Ministère des Communications du Canada

CONFORMITE DE REGLEMENTS

(DOC-A)

Le présent appareil numérique n’émet pas de bruits radio-électriques dépas-

sant les limites applicables aux appareils numériques de classe A prescrites

dans le règlement sur brouillage radioélectrique édicté par le Ministère des

Communications du Canada.

EU Standard EN 55022 (The European Union)

WARNING

is is a Class A ITE product. In a domestic environment this product

may cause radio interference in which case the user may be required to take

adequate measures.

Notices and Approvals

Intermec EasyCoder PC41—Service Manual 1

1 Models and Options

is chapter provides information on the various models of the EasyCoder

PC41 and contains speciﬁcations and physical measures.

2 Intermec EasyCoder PC41—Service Manual

Chapter 1—Models and Options

1.1 Models

e EasyCoder PC41 uses both Direct ermal (DT) and ermal Trans-

fer (TTR) printing technology. It employs a printhead with a printing den-

sity of 203.2 dots per inch (8 dots per mm) and a maximum print width of

4.1 inches (104 mm).

e machine label, which provides information on model, part number,

serial number, etc. is attached to the bottom of the base frame.

e EasyCoder PC41 has a separate power supply unit that delivers 24

VDC to the printer's main board, where it is transformed to the various

voltages required by the printhead, motor, and logics (see Chapter 8.1).

e power supply unit (PSU) accepts 100 to 240 VAC/50 to 60 Hz. e

power supply has a standard 2-pin input voltage socket, so various types of

power cords can be used according to local voltages and standards.

e power supply has a ﬁxed 1.5 m (4.9 ft) long cable that is connected to

the printer’s rear plate.

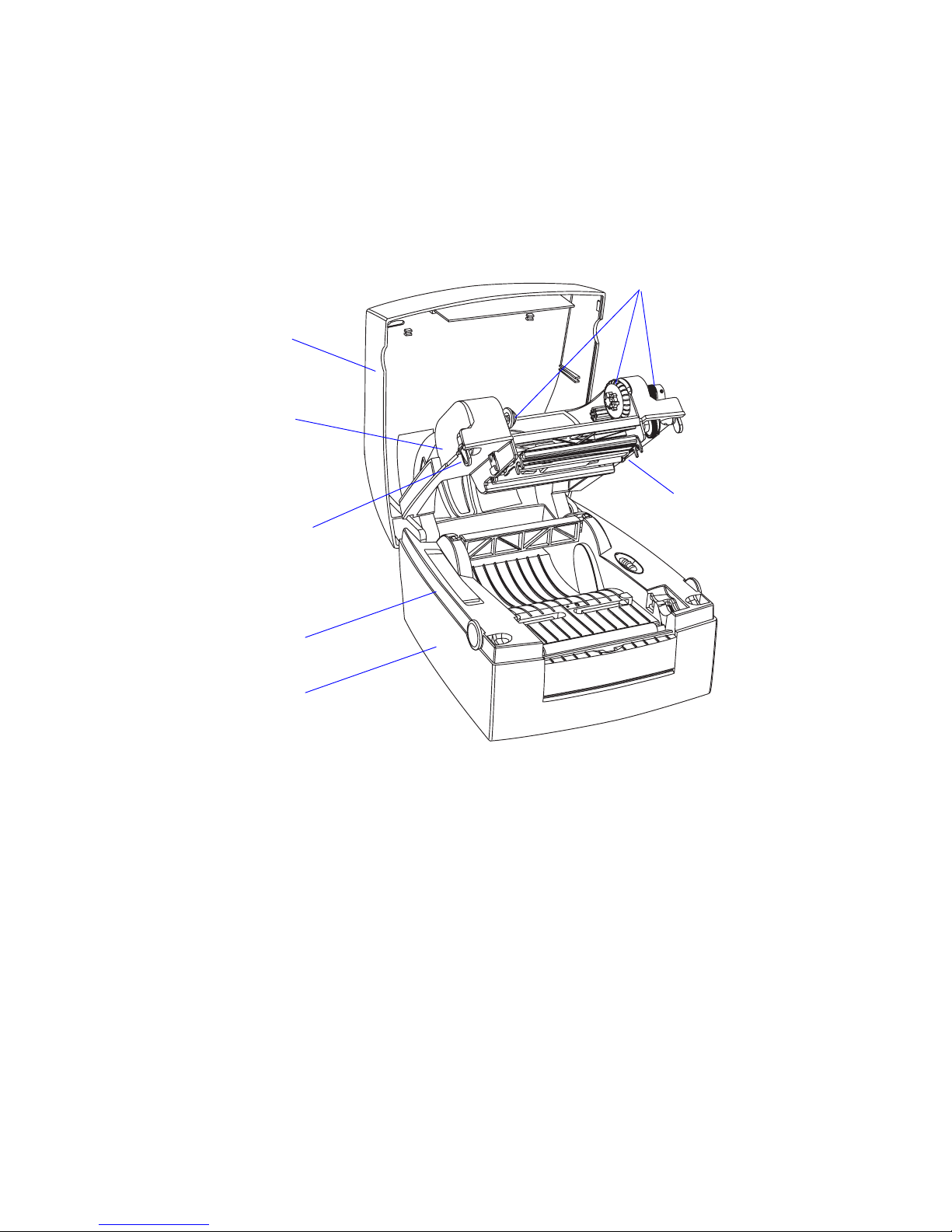

Thermal transfer

mechanism

(omitted in DT model)

Printhead

Top cover locks

(differ in DT and

TTR models)

Print frame

Top cover

Base Frame

Bottom Cover

Intermec EasyCoder PC41—Service Manual 3

Chapter 1—Models and Options

1.2 Options

e available options for the EasyCoder PC41 are serial and parallel inter-

face cables, a memory cartridge, a paper cutter, a battery unit and an assort-

ment of power cords. Refer to the EasyCoder PC41 Spare Parts Catalog or

Spare Parts List for updated information.

4 Intermec EasyCoder PC41—Service Manual

Chapter 1—Models and Options

1.3 EasyCoder PC41 Speciﬁcations

Printing

Print Technique ermal Transfer or Direct ermal

Printhead Resolution 203.2 dpi (8 dots/mm)

Print Speed (selectable) 50, 75 or 100 mm/sec.

(2, 3 or 4 in/sec.)

Print Width (max) at 203.2 dpi 104 mm (4.1 inches) = 864 dots

Print Length (min/max) at 203.2 dpi 6.35/472.5 mm (0.25/18.6 inches) Standard (no cartridge)

Media Width (min/max) 25.4 to 116 mm (1.00 to 4.57 inches)

Media ickness (min) 0.06 mm (0.003 inches)

Media ickness, rolls (max) 0.15 mm (0.006 inches)

Media ickness, fan-folds (max) 0.17 mm (0.006 inches)

Media Roll Diameter (max) 125 mm (5.0 inches)

Media Roll Core Diameter 25.4 or 38.1 mm (1.0 or 1.5 inches)

Ribbon Width (min/max) 33 to 110 mm (1.33 to 4.33 inches)

Ribbon Roll Diameter, Outer (max) 41 mm (1.6 inches)

Ribbor Roll Core Diameter, Inner 13 mm (0.5 inches)

Print Directions 4

Modes of Operation

Tear Oﬀ (Straight-through) Yes

Peel Oﬀ (Self-strip) Yes

Cut-oﬀ Yes Requires optional cutter

Firmware

Operating System Intermec Programming Language (IPL)

Fonts 21 (bitmap) + 3 (outline) resident fonts

Font Magniﬁcation Horizontal max 999 times, vertical max 999

times up to a maximum size of 4 inches.

Built-in Bar Code Symbologies 33

Physical Measures

Dimensions (W × L × H) 230 × 257 × 167 mm

(9.06 × 10.11 × 6.58 inches)

Weight (excluding PSU and media) Approx. 2.3 kg (5 pounds)

Ambient Operating Temperature +5°C to +40°C (+41°F to +104°F)

Ambient Storage Temperature -20°C to +50°C (-4°F to +122°F)

Humidity 10 to 90% non-condensing

Electronics

Microprocessor 32-bit 20 MHz

On-board EPROM memory 2048K

On-board DRAM memory 512K

Power Supply Unit Separate unit

Input Voltage 100 to 240 VAC, 50 to 60Hz, 1.9A

Output Voltage 24 VDC, 3.0A

Input Voltage (mobile applications) 23.5 VDC ± 0.5V, 6A peak No PSU connected

Andere Handbücher für EasyCoder PC41

Inhaltsverzeichnis

Andere Intermec Etikettendrucker Handbücher

Intermec

Intermec PB22 Bedienungsanleitung

Intermec

Intermec PM43 Bedienungsanleitung

Intermec

Intermec ColorCoder V4 Bedienungsanleitung

Intermec

Intermec EasyCoder PX4i Bedienungsanleitung

Intermec

Intermec PB22 Bedienungsanleitung

Intermec

Intermec EasyCoder 3400e Bedienungsanleitung

Intermec

Intermec PC23 Bedienungsanleitung

Intermec

Intermec PM43c Bedienungsanleitung

Intermec

Intermec EasyCoder PX4i Bedienungsanleitung

Intermec

Intermec PF8D Bedienungsanleitung

Intermec

Intermec EasyCoder F2 Bedienungsanleitung

Intermec

Intermec 3600 Bedienungsanleitung

Intermec

Intermec EasyCoder PX6i Bedienungsanleitung

Intermec

Intermec EasyCoder PX4i Bedienungsanleitung

Intermec

Intermec PB50 Bedienungsanleitung

Intermec

Intermec EasyCoder E4 Bedienungsanleitung

Intermec

Intermec PM4I Bedienungsanleitung

Intermec

Intermec PB50 Bedienungsanleitung

Intermec

Intermec EasyCoder 201II Bedienungsanleitung

Intermec

Intermec EasyCoder 501 E Leitfaden

Intermec

Intermec EasyCoder PC4 Bedienungsanleitung

Intermec

Intermec EasyCoder 501XP Bedienungsanleitung

Intermec

Intermec EasyCoder PD41 Bedienungsanleitung

Intermec

Intermec EasyCoder 401 Bedienungsanleitung

Beliebte Etikettendrucker Handbücher anderer Marken

Brother

Brother P-Touch 2420PC Bedienungsanleitung

newell

newell Dymo LabelManager 210D Bedienungsanleitung

Brother

Brother TD-4000 Bedienungsanleitung

U-Line

U-Line BROTHER H-8754 Bedienungsanleitung

Tharo Systems

Tharo Systems H-435+ Bedienungsanleitung

Brother

Brother E300 Bedienungsanleitung

Godex

Godex RT700 SERIES Bedienungsanleitung

ID Technology

ID Technology 252 Bedienungsanleitung

Labelmate

Labelmate MC-11 Bedienungsanleitung

CAB

CAB XD4M/300 Bedienungsanleitung

Avery Dennison

Avery Dennison Pathfinder 6057 Service-Handbuch

Brother

Brother P-touch PT-9700PC Bedienungsanleitung

TSC

TSC PEX1000 Series Bedienungsanleitung

Adkins

Adkins Label Master Bedienungsanleitung

Epson

Epson LabelWorks LW-400 Bedienungsanleitung

Primera

Primera 510212 Bedienungsanleitung

Brady

Brady BradyPrinter S3100 Bedienungsanleitung

DuraLabel

DuraLabel LabPRO Bedienungsanleitung
