Invacare InTouch 1143199 Bedienungsanleitung

Owner’s Operator and Maintenance Manual

DEALER: This manual MUST be given to

the user of this product.

USER: BEFORE using this product, read this

manual and save for future reference.

For more information regarding

Invacare products, parts, and services,

please visit www.invacare.com

InTouch™Propel™Back

InTouch™Propel™Back 2Part No 1143199

 WARNING

DO NOT OPERATE THIS EQUIPMENT WITHOUT FIRST READING

AND UNDERSTANDING THIS MANUAL. IF YOU ARE UNABLE TO

UNDERSTAND THE WARNINGS, CAUTIONS AND

INSTRUCTIONS CONTACT A QUALIFIED DEALER OR INVACARE

TECHNICAL SUPPORT BEFORE ATTEMPTING TO USE THIS

EQUIPMENT - OTHERWISE INJURY OR DAMAGE MAY RESULT.

NOTE:Updatedversionsofthismanualareavailableonwww.invacare.com.

SPECIAL NOTES

Part No 1143199 3InTouch™Propel™Back

SPECIAL NOTES

Signalwordsareusedinthismanualandapplytohazardsorunsafepracticeswhich

couldresultinpersonalinjuryorpropertydamage.Refertothetablebelowfor

definitionsofthesignalwords.

NOTICE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO

CHANGE WITHOUT NOTICE.

MAINTENANCE

Maintenance MUST be performed ONLY by qualified personnel.

Invacare products are specifically designed and manufactured for use in conjunction

with Invacare accessories. Accessories designed by other manufacturers have not

been tested by Invacare and are not recommended for use with Invacare products.

SIGNAL WORD MEANING

DANGER Danger indicates an imminently hazardous situation which,

if not avoided, will result in death or serious injury.

WARNING Warning indicates a potentially hazardous situation which, if

not avoided, could result in death or serious injury.

CAUTION Caution indicates a potentially hazardous situation which, if

not avoided, may result in property damage.

TABLE OF CONTENTS

InTouch™Propel™Back 4Part No 1143199

TABLE OF CONTENTS

SPECIAL NOTES ................................................................................3

SECTION 1—GENERAL GUIDELINES ...................................................7

Important Information...............................................................................................................................7

Seating Pressure Warning.........................................................................................................................7

Installation Warnings..................................................................................................................................7

Maximum Weight Rating...........................................................................................................................8

SECTION 2—INSTALLING ..................................................................9

Installation Overview.................................................................................................................................9

Installing Mounting Hardware..................................................................................................................9

Installing/Removing the Propel Back ................................................................................................... 11

Adjusting the Propel Back Width......................................................................................................... 12

Installing/Removing the Propel Back Cushion................................................................................... 13

Installing the Cushion ......................................................................................................................... 13

SECTION 3—OPERATION ................................................................ 14

Adjusting the Propel Back Depth and Angle ..................................................................................... 14

SECTION 4—MAINTENANCE ........................................................... 15

Replacing Upholstery .............................................................................................................................. 15

Replacing Cushion ................................................................................................................................... 15

Cleaning Instructions .............................................................................................................................. 16

Back Assembly ..................................................................................................................................... 16

Cover ..................................................................................................................................................... 16

Foam....................................................................................................................................................... 16

LIMITED WARRANTY ..................................................................... 17

The benefits of registering:

1. Safeguard your investment.

2. Ensure long term maintenance and servicing of your purchase.

3. Receive updates with product information, maintenance tips, and industry news.

4. Invacare can contact you or your provider, if servicing is needed on your product.

5. It will enable Invacare to improve product designs based on your input and needs.

- or -

Complete and mail the form on the next page

Part No 1143199 5InTouch™Propel™Back

Name _______________________________________________________________

Address _____________________________________________________________

City ___________________ State/Province __________

Zip/Postal Code ________

Email ___________________________________ Phone No. _________________

Invacare Model No. ______________________ Serial No. __________________

Purchased From _________________________Date of Purchase:___________

1. Method of purchase: (check all that apply)

❏ Medicare ❏ Insurance ❏Medicaid ❏ Other __________________________

2. This product was purchased for use by: (check one)

❏ Self ❏ Parent ❏ Spouse ❏ Other

3. Product was purchased for use at:

❏ Home ❏ Facility ❏ Other

4. I purchased an Invacare product because:

❏ Price ❏ Features (list features) _________________________________________

5. Who referred you to Invacare products? (check all that apply)

❏Doctor ❏ Therapist ❏ Friend ❏Relative ❏Dealer/Provider ❏Other_________

❏ Advertisement (circle one): TV, Radio, Magazine, Newspaper ❏ No Referral_____

6. What additional features, if any, would you like to see on this product?

__________________________________________________________________________

7. Would you like information sent to you about Invacare products that may be available for a

particular medical condition? ❏Yes ❏No

If yes, please list any condition(s) here and we will send you information by email and/or mail about

any available Invacare products that may help treat, care for or manage such condition(s):

__________________________________________________________________________

8. Would you like to receive updated information via email or regular mail about the Invacare

home medical products sold by Invacare's dealers? ❏Yes ❏No

9. What would you like to see on the Invacare website?

__________________________________________________________________________

10. Would you like to be part of future online surveys for Invacare products? ❏ Yes ❏ No

11. User's Year of birth: ______________________________________________________

If at any time you wish not to receive future mailings from us, please contact us at Invacare Corporation,

CRM Department, 39400 Taylor Parkway, Elyria, OH 44035, or fax to 877-619-7996 and we will remove

you from our mailing list.

To find more information about our products, visit www.invacare.com.

PRODUCT REGISTRATION FORM

Complete and mail this form

Cut Along Line

Fold

here

Fold

here

InTouch™Propel™Back 6Part No 1143199

Fold

here

Fold

here

Cut Along Line

Invacare Product Registration Form

Please Seal with

Tape Before Mailing

SECTION 1—GENERAL GUIDELINES

Part No 1143199 7InTouch™Propel™Back

SECTION 1—GENERAL GUIDELINES

 WARNING

SECTION 1 - GENERAL GUIDELINES contains important information for the safe

operation and use of this product. DO NOT use this product or any available

optional equipment without first completely reading and understanding these

instructions and any additional instructional material such as Owner’s Manuals, Ser-

vice Manuals or Instruction Sheets supplied with this product or optional equip-

ment. If you are unable to understand the Warnings, Cautions or Instructions,

contact a healthcare professional, dealer or technical personnel before attempting

to use this equipment - otherwise, injury or damage may occur.

Important Information

Thebestwaytoavoidproblemsrelatedtopressuresoresistounderstandtheircauses

andyourroleinaskinmanagementprogram.

Yourtherapistandphysicianshouldbeconsultedifyouhaveanyquestionsregarding

weightrelief,self‐examinationofskin,orindividuallimitationsandneeds.

Allseatingsystemsshouldbeselectedcarefully.Workingwithyourtherapist,physician

andequipmentsupplieristhebestwaytoassurethataseatingsystemchoicematches

yourindividualneeds.

Astheneedsoftheindividualbecomemorecomplex,thePropelBackevaluation

becomesmoreimportant.

ThePropelBackisnotdesignedforusewithtilt‐in‐spaceand/orreclinemodel

wheelchairs.

Seating Pressure Warning

Skinconditionshouldbecheckedfrequentlyaftertheinstallationanduseofanynew

seatingsystem.

Installation Warnings

Afteranyadjustments,repairorserviceandbeforeuse,makesurethatallattaching

hardwareistightenedsecurely.

DONOTinstallthePropelBackassemblyontobackcaneswithanoutsidediameter

greaterthan1‐inchorlessthan.86‐inch‐otherwiseinjuryordamagemayoccur.

EnsurethePropelBackisproperlysecuredtothewheelchairbeforeusing.

ThePropelBackMUSTberestingflushagainstthetabsonthecanemountingbrackets.

BothrightandleftbacklatchesMUSTbefullyengaged.

SECTION 1—GENERAL GUIDELINES

InTouch™Propel™Back 8Part No 1143199

 WARNING

The position of the Propel Back is directly related to the wheelchair’s stability. It

may be necessary to reposition the front casters, rear wheels, back angle, and/or

seat depth before use. Use EXTREME caution when using a new seating position.

Maximum Weight Rating

16 - 21-INCH WIDTH

MAXIMUM WEIGHT RATING 300 lbs

SECTION 2—INSTALLING

Part No 1143199 9InTouch™Propel™Back

SECTION 2—INSTALLING

WARNING

Check ALL fasteners periodically to ensure that mechanical connections and

attaching hardware are tightened securely - otherwise injury or damage may occur.

DO NOT continue to use this product if problems are discovered. Corrective

maintenance can be performed at or arranged through your equipment supplier.

The Propel Back is not designed for use with tilt-in-space and/or recline model

wheelchairs.

Installation Overview

NOTE:Forthisprocedure,refertoFIGURE2.1.

1. Removeanyexistingbackupholsteryorbacksystemfromthechairbefore

installation.RefertoOwner’sManualshippedwithwheelchair.

2. Installmountinghardware.RefertoInstallingMountingHardwareonpage 9.

3. InstallPropelBackontothewheelchair.RefertoInstalling/RemovingthePropelBack

onpage 11.

4. Makeanynecessarydepthand/orangleadjustments.RefertoAdjustingthePropel

BackDepthandAngleonpage 14andAdjustingthePropelBackWidthonpage 12.

FIGURE 2.1 Installation Overview

Installing Mounting Hardware

NOTE:Forthisprocedure,refertoFIGURE2.2onpage10.

NOTE:Canebracketsadjusttofit7/8”to1”backcanes.Noadditionalhardwareisrequired.

1. Positionthecanemountingbracketontothebackcaneatthedesiredheight.

STEP 2

STEP 3

STEP 4

SECTION 2—INSTALLING

InTouch™Propel™Back 10 Part No 1143199

NOTE:Ensurethatthebacktabispositionedtowardstheinsideofthewheelchairandtheround

endispointingupward.

2. Securethecanemountingbracketandwedgeblockstothebackcanewiththetwo

mountingboltsandhexnuts.Handtightensecurely.

NOTE:Somewheelchairshaveadjustablebackcanesthatareboth7/8”and1”.Ensurethewedge

blocksarecompletelyoneitherthe7/8”or1”sectionandnotstraddlingthetwo.RefertoDetail

“A”inFIGURE2.2.

NOTE:Itmaybenecessarytoraiseorlowerthebackcanestoachievethedesiredbracket

placement.RefertoOwner’sManualshippedwithwheelchair.

3. RepeatSTEPS1and2fortheothercanemountingbracket.

NOTE:CanemountingbracketsMUSTbeparalleltoeachother.

4. Usingthewrenchsuppliedor7/16socketwrench,securelytightenthemounting

bolts.

NOTE:DONOTtightenthemountingboltsuntilthebackheighthasbeenadjustedcorrectly.

NOTE:Checkthealignmentofthemountingbracketsbeforetightening.

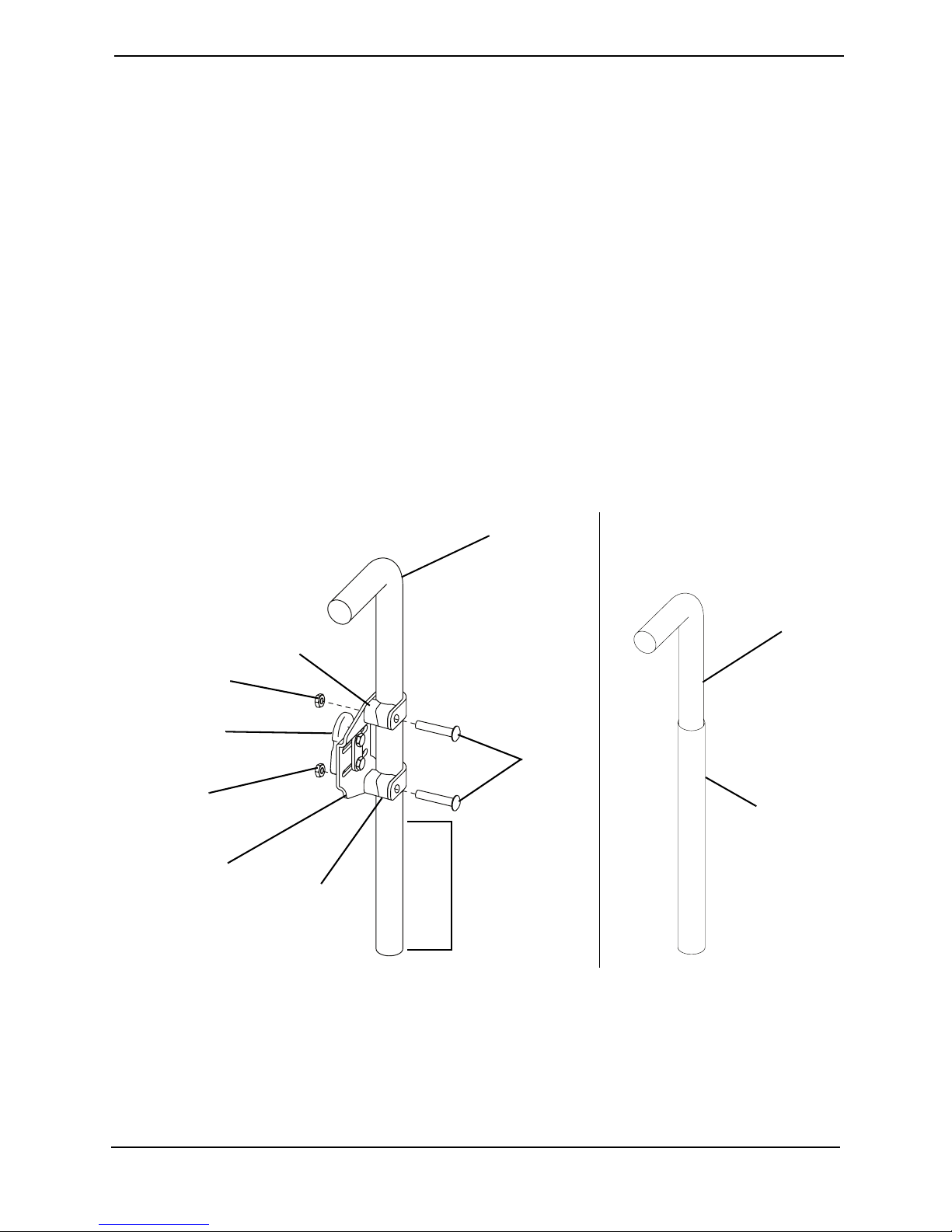

FIGURE 2.2 Installing Mounting Hardware

Hex Nut

Mounting

Bolts

Back Cane

Cane

Mounting

Bracket

Back Tab

Wedge

Block

Wedge

Block

Hex Nut

Inside of

Wheelchair

Outside of

Wheelchair

DETAIL “A” -

ADJUSTABLE BACK

CANES

7/8” section

1” Section

NOTE:Measure

samedistanceon

bothsides.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Invacare Mobilitätshilfe Handbücher

Invacare

Invacare 2218 Montageanleitung

Invacare

Invacare Rollator Bedienungsanleitung

Invacare

Invacare IVC Heavy Duty Shower Chair 9780 Handbuch

Invacare

Invacare HMV Highly 300 Bedienungsanleitung

Invacare

Invacare Fixed Released Rail/Cane Clamps Bedienungsanleitung

Invacare

Invacare 6098 Bedienungsanleitung

Invacare

Invacare DOLOMITE JAZZ Fehlerbehebungshandbuch

Invacare

Invacare 9800A Bedienungsanleitung

Invacare

Invacare Dolomite Step Up Bedienungsanleitung

Invacare

Invacare Orbit 1073955 Bedienungsanleitung

Invacare

Invacare Aquatec ORCA Bedienungsanleitung

Invacare

Invacare MyOn Active Bedienungsanleitung

Invacare

Invacare CTMT-F Bedienungsanleitung

Invacare

Invacare Escort Bedienungsanleitung

Invacare

Invacare O2 Holder Accessory Kit 1488 Bedienungsanleitung

Invacare

Invacare 6265E Montageanleitung

Invacare

Invacare Articulating/Elevating Legrest Bedienungsanleitung

Invacare

Invacare Personal Seat and Cushion Rigidizer Bedienungsanleitung

Invacare

Invacare Delta Bedienungsanleitung

Invacare

Invacare OCMK01 Montageanleitung

Invacare

Invacare P402 Aventia Bedienungsanleitung

Invacare

Invacare Infinity Back Support Handbuch

Invacare

Invacare Recline Bedienungsanleitung

Invacare

Invacare 65410 Bedienungsanleitung

Beliebte Mobilitätshilfe Handbücher anderer Marken

Alber

Alber Scalamobil iQ Bedienungsanleitung

Ferno

Ferno CCT-PX Bedienungsanleitung

HEPRO

HEPRO Gripo Bedienungsanleitung

Otto Bock

Otto Bock Pheon 3R62 Bedienungsanleitung

NRS Healthcare

NRS Healthcare M11090 Bedienungsanleitung

Medline

Medline MDS86835DSHEC Installationsanleitung

Guldmann

Guldmann Twin Turner II Bedienungsanleitung

Drive

Drive ROOMBA Bedienungsanleitung

Gate

Gate Balder Bedienungsanleitung

Decon wheel

Decon wheel TNS Notos Bedienungsanleitung

ExoAtlet

ExoAtlet ExoAtlet-II Bedienungsanleitung

Rhythm Healthcare

Rhythm Healthcare B3800F Bedienungsanleitung

AMF-BRUNS

AMF-BRUNS PROTEKTOR Bedienungsanleitung

Drive DeVilbiss Healthcare

Drive DeVilbiss Healthcare OTTER Bedienungsanleitung

Rhythm Healthcare

Rhythm Healthcare C500U Bedienungsanleitung

Lumex

Lumex RJ4200A Bedienungsanleitung

Rebotec

Rebotec Jumbo Bedienungsanleitung

Rehaforum MEDICAL

Rehaforum MEDICAL PR50548 Bedienungsanleitung
