SAFETY SUMMARY

The following recommendations are made for the safe

use of the Quick-Release Caster:

WARNING

Checkthequick-releasecasterforshippingdam-

agebeforeusing.Incaseofdamage,DONOTuse.

Contact the dealer/carrier for further instructions.

Makecertainallscrewsandnutsaretightatalltimes.

Pullonquickreleasecasters eachtimeBEFOREus-

ing the wheelchair to make sure they are securely

locked onto the chair frame.

Makesurethedetentpinofthequickreleasecaster

head tube cap is fully released BEFORE operating

the wheelchair.

Thereareseveralconfigurationsofthequickrelease

caster. If caster fork stem DOES NOT look like the

drawing in FIGURE 2 when installed, DO NOT USE.

Contact Customer Service, 1-(800)-333-6900.

TOOLS REQUIRED:

Two (2) Open Head Wrenches

One (1) Socket Head Wrench

A NOTE ABOUT QUICK-RELEASE

CASTERS

Quick-release casters are an option that allow for quick

and easy removal of the casters from the wheelchair so

the wheelchair can be stored and transported conve-

niently. When using the quick-release caster option, a

spring loaded caster head tube cap will be used instead

of a stem nut to secure the front caster to the chair frame.

Unlike the stem nut, the caster head tube cap is not ad-

justable and thus caster flutter will be more evident with

the quick-release caster option than it would be with the

standard caster attaching hardware.

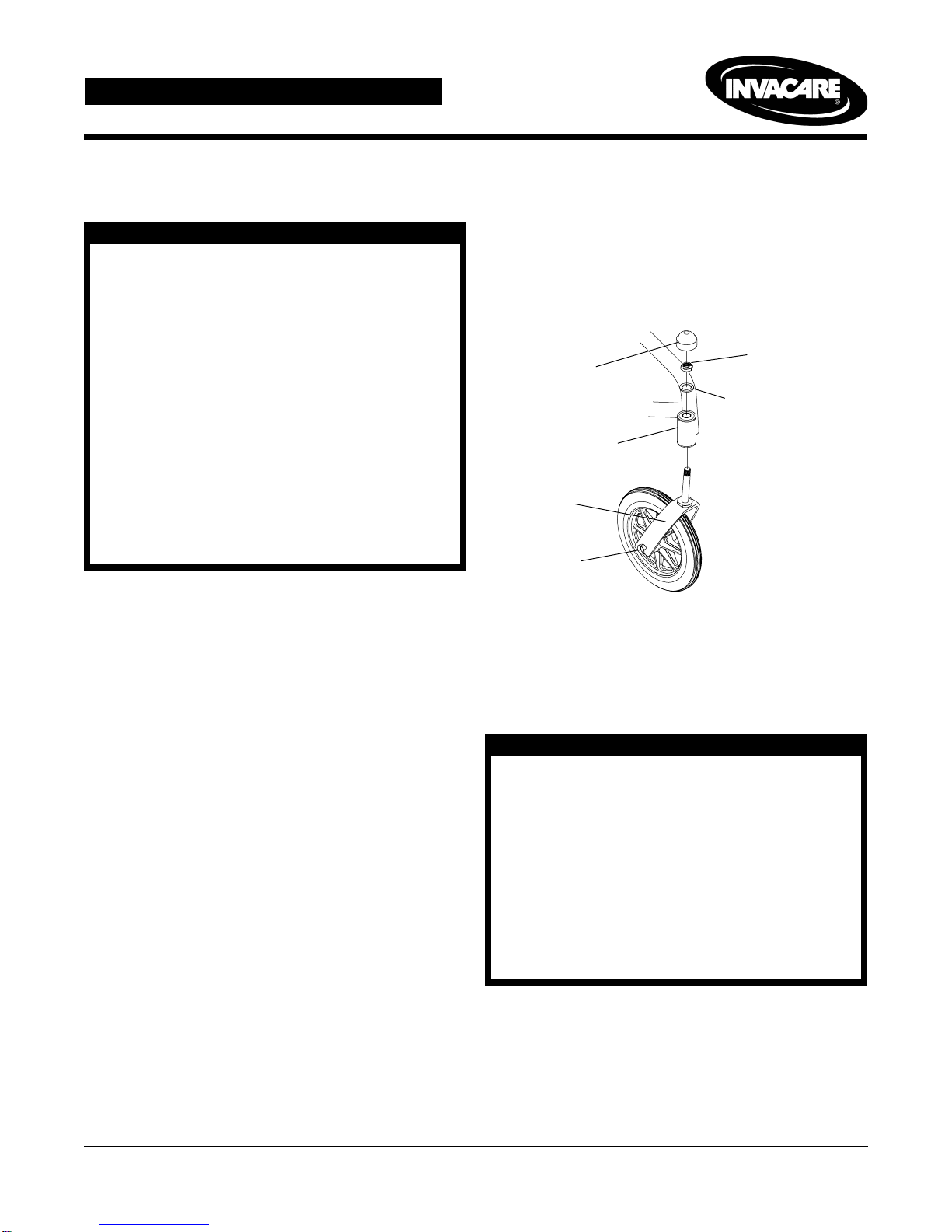

REMOVING THE EXISTING

CASTER FORK (FIGURE 1)

1. Remove the bolt and locknut that secure the front

caster and the two (2) spacers to the fork.

2. Remove the dust cover on the top of the head

tube.

3. While holding the fork and using a socket head

wrench, remove the locknut that secures the

fork, and washer in the head tube of the chair.

NOTE: The dust cover and locknut are not used with

the quick release casters. Keep them for future use.

4. Remove the existing fork from the head tube of

the chair.

Caster Head

Tube

Locknut

Plastic Washer

Black Dust

Cover

Caster Fork

Bolt

NOTE: Frame Shown

For Reference Only

INSTALLING THE QUICK

RELEASE CASTER (FIGURE 2)

WARNING

Pull on quick release casters each time BEFORE

using the wheelchair to make sure they are se-

curely locked onto the chair frame.

Make sure the detent pin of the quick release

caster head tube cap is fully released BEFORE

operating the wheelchair.

Thereareseveralconfigurationsofthequickrelease

caster. If caster fork stem DOES NOT look like the

drawing in FIGURE 2 when installed, DO NOT USE.

Contact Customer Service, 1-(800)-333-6900.

1. Install the quick release caster fork through the head

tube of the chair making sure the caster fork stem is

apporoximately 1/4-inch above the caster head tube.

FIGURE 1 - REMOFIGURE 1 - REMO

FIGURE 1 - REMOVINGVING

VINGVING

VING THE EXISTINGTHE EXISTING

THE EXISTINGTHE EXISTING

THE EXISTING

CASTER FORKASTER FORK

ASTER FORKASTER FORK

ASTER FORK

QUICK RELEASE CASTER

Assembly, Installation, and Operating Instructions

2. Depress the detent pin of the quick release caster

head tube cap and install over the top of the quick

release caster fork stem.

3. Release the detent pin of the quick release caster

head tube cap and pull on the caster fork to make

sure the fork is securely attached to the chair.

4. Reinstall and securely tighten the bolt and locknut

that secure the two (2) spacers and caster onto the

quick release caster fork.

5. Repeat this procedure for the opposite side.

WARNING

There are several configurations of the quick

release caster. If caster fork stem DOES NOT

look like the drawing in FIGURE 2 when in-

stalled, DO NOT USE. Contact Customer Ser-

vice, 1-(800)-333-6900.

NOTE: When removing the quick release casters for

any reason, reinstall the quick release caster head

tube cap onto the fork stem so it can be located eas-

ily for future use.

Caster Fork

Stem

Approximately

1/4-inch

Caster

Head

Tube

Caster Head

Tube Cap

Detent Pin

Caster Head

Tube

Bolt

NOTE: Frame Shown

For Reference Only

FIGURE 2 - INSTFIGURE 2 - INST

FIGURE 2 - INST ALLINGALLING

ALLINGALLING

ALLING THE QUICK-RELEASETHE QUICK-RELEASE

THE QUICK-RELEASETHE QUICK-RELEASE

THE QUICK-RELEASE

CASTERASTER

ASTERASTER

ASTER

Invacare Corporation www.invacare.com

One Invacare Way

Elyria, Ohio USA

4403 -2125

800-333- 900

Technical Support

800-832-4707

Invacare is a registered trademark of Invacare Corporation

Form No. 94-150 P/N 1050205 Rev. A (1) - 11/99
