Invacare TDX SP Bedienungsanleitung

INVACARE®

TDX®

Power Wheelchair Series

Invacare® TDX® SP Wheelchair

Invacare® TDX® SR Wheelchair

Invacare® TDX® SC Wheelchair

Invacare® TDX® SPREE Wheelchair

Powered Seating

Enhancements

Tradition. Innovation. Vision.

For the last two and a half decades, Invacare has been

the industry leader in power chair electronics and

bases. Every year, Invacare's engineers design chairs,

electronics, components and features that consistently

raise the bar for power wheelchair performance.

Invacare’s rich power chair history started with

the original Power Rolls IV Wheelchair in 1981, and

continued with innovations such as the original MKI

electronics in 1989, and the Invacare® Storm Series®

power chairs in 1995.

Invacare revolutionized the power chair industry once

again in 2003 with the introduction of the Invacare®

TDX®(Total Driving eXperience) power chair. With

innovative features such as True Center-Wheel Drive,

Invacare®SureStep®Suspension, Stability Lock,

Invacare®Traction Control Design TCD™Relative

Movement and the latest MK series electronics, this

chair set the standard for high end rehab power chairs.

INVACARE®

TDX®Family

02 History

03 Invacare®TDX®Family

04 Invacare®TDX®SP Wheelchair Led The Way

05 Traction Control Design/Invacare®SureStep®

Suspension

06 Invacare®MK6i™Electronics

07 Invacare® Stability Lock/True Center-Wheel Drive

08 Invacare® TDX®SP Wheelchair

09 Invacare® TDX®SP Elegant Design

10 Invacare® TDX®SP Seating Options

11 Invacare® TDX®SP Speciﬁcations

12 Invacare® TDX®SR Wheelchair

13 Invacare® Gearless Brushless GB™/TrueTrack Motors

14 Invacare® TDX®SR Seating Options

15 Invacare® TDX®SR Speciﬁcations

16 Invacare® TDX®SC Wheelchair

17 Invacare® TDX®SC Speciﬁcations

18 Invacare® TDX®SPREE Wheelchair

19 Invacare® TDX®SPREE Features/Options

20 Invacare® TDX®SPREE Seating Options

21 Invacare® TDX®SPREE Speciﬁcations

22 Powered Seating Enhancements

26 Transport Ready Option

27 Invacare® TDX®Family

28 ANSI/RESNA Information

INVACARE®

TDX®SP

Wheelchair

INVACARE®

TDX®SPREE

Wheelchair

INVACARE®

TDX®SC

Wheelchair

INVACARE®

TDX®SR

Wheelchair

Things Just Keep Getting Better…

The Invacare®TDX®SP wheelchair led the way.

Now Invacare has done it again. Invacare built upon a legacy of power chair knowledge

and design to develop the Invacare® TDX®SP wheelchair. The TDX SP wheelchair

improves upon all the features of the TDX Series with enhanced performance, superior

ride quality, overall quieter chassis and an elegantly simple design that is sure to turn

heads. Invacare is the only choice for a complete package of Custom Rehab Solutions.

Traction Control Design.

Enhanced Invacare®

SureStep® Suspension.

The Invacare®TDX®Family uses an

enhanced version of Invacare’s patented

Invacare®SureStep®technology that was

made famous on the ﬁrst generation TDX

line and the Invacare ® Pronto®series of

wheelchairs.

With Enhanced Invacare® SureStep®

Suspension, the TDX SP and TDX SR

wheelchairs climb up to a 3" obstacle

going forward; the TDX SC and the TDX

SPREE wheelchairs climb up to a 2.5"

obstacle. As a new design feature, the

front casters also will drop a full 3", which

makes transitioning down an obstacle very

gentle and nearly silent. The integrated

Invacare® Traction Control Design TCD™

Relative Movement also makes climbing

over obstacles up to 1" high in reverse

nearly effortless.

SureStep

Suspension

transition up

an obstacle.

SureStep

Suspension

transition

down an

obstacle.

Traction

Control Design

TCD reverse

transition.

Electronics. Designed

with Beneﬁts for All.

MK Series electronics are the

benchmark in power wheelchair

drive systems. This is the result of

years of experience in the design

and manufacture of electronics

speciﬁcally for the needs of

wheelchair consumers.

Invacare®MK6i™electronics take

the MK Series to the next level by

offering features that are easier to

use than any other MK Series system.

Advantages of MK6i electronics

include:

• Invacare®MK5™programming

logic, so operators do not need to

learn a new system

• Reduced set-up and programming

time with the memory card feature

• Improved simplicity with

universal connectors

• Better information for

programmers and technicians

INVACARE®SPJ™+ BASIC

JOYSTICK

INVACARE® MPJ™+ REHAB

JOYSTICK

True Center-Wheel Drive.

The tightest possible turning radius

comes from the True Center-Wheel Drive

chassis. The Invacare®TDX®Family

uses this type of wheelbase to provide

excellent maneuverability and an

intuitive driving experience. This

technology combined with Enhanced

Invacare®SureStep®Suspension,

Traction Control Design and Quiet

Stability Lock makes the TDX wheelchair

a great indoor and outdoor chair.

Quiet Stability Lock.

The Difference Maker in Rehab.

The original Invacare®TDX®

wheechair introduced quiet Stability

Lock, a feature that kept the power

chair stable whenever it felt that the

driver's weight was rocking forward.

The TDX Family takes that same

feature to the next level. The Stability

Lock feature is designed to operate

and keep the power chair stable

while it is in motion. It is not intended

to operate while the power chair is

at rest. This second generation

Stability Lock replaces the metal

gear set used on the ﬁrst generation

TDX wheelchair with a gas locking

cylinder, making the feature whisper

quiet. It also provides a shock-

absorbing effect.

The Invacare®TDX®SP wheelchair is

the ﬁrst model in the next generation

of TDX (Total Driving eXperience)

power wheelchairs. The TDX SP

wheelchair takes all the best features

of the TDX series and improves upon

them with enhanced performance,

superior ride quality, quieter chassis

and an elegantly simple design.

TDXSP (Group 3 Rehab Seat) K0848

TDXSP (Group 3 Captain’s Seat) K0849

TDXSP HD (Group 3 Rehab Seat Heavy-Duty) K0850

TDXSP HD (Group 3 Captain’s Seat Heavy-Duty) K0851

TDXSP-CG (Group 3 Single Power) K0856

TDXSP-CG HD (Group 3 Single Power Heavy-Duty) K0858

TDXSP-MCG (Group 3 Multiple Power) K0861

TDXSP-MCG HD (Group 3 Multiple Power Heavy-Duty) K0862

INVACARE®

TDX®SP

Wheelchair

Elegant Simplicity. Inspiring Design.

Invacare's designers started with sketches and drove the design so that aesthetics were never sacriﬁced for functionality.

The end result is an elegant design with a focus on simplicity and detail.

Invacare®TDX®SP Seating Options.

Versatility.

Invacare®Formula™CG Tilt

The Invacare®TDX®SP wheelchair offers a wide variety of

seating options that make it an extremely versatile power chair. The

standard TDX SP wheelchair offers a choice of an adjustable Rehab

(ASBA) seat that is growable in width and depth.

The ASBA seat starts in widths as low

as 12" wide for smaller applications, and

can grow as wide as 24" and as deep as

22". Another seating option on the TDX SP

wheelchair is a semi-recline captain’s seat.

Available in 16", 18", 20" and 22" widths, the

seat offers plush padding, generous contours

and a reclining back providing maximum comfort.

The TDX SP wheelchair also offers the Invacare®Formula™CG

Powered Seating System which features up to 7" of weight shift tilt.

The Invacare®Formula™CG System:

• Starting seat-to-ﬂoor height is as

low as 17.5"

• Up to 55˚ of tilt

• Up to 170˚ of recline

• Up to 7" of elevation

• All powered seating functions can be

operated either through or separate

from the driver control.

Pediatric Seat

By optimizing the Torque speed curve, the

motor/electronics combination provides a

5.8 mph top speed with ample torque. The

chair gets consumers where they need to

go quickly, while also providing the power

required to handle those tough obstacles.

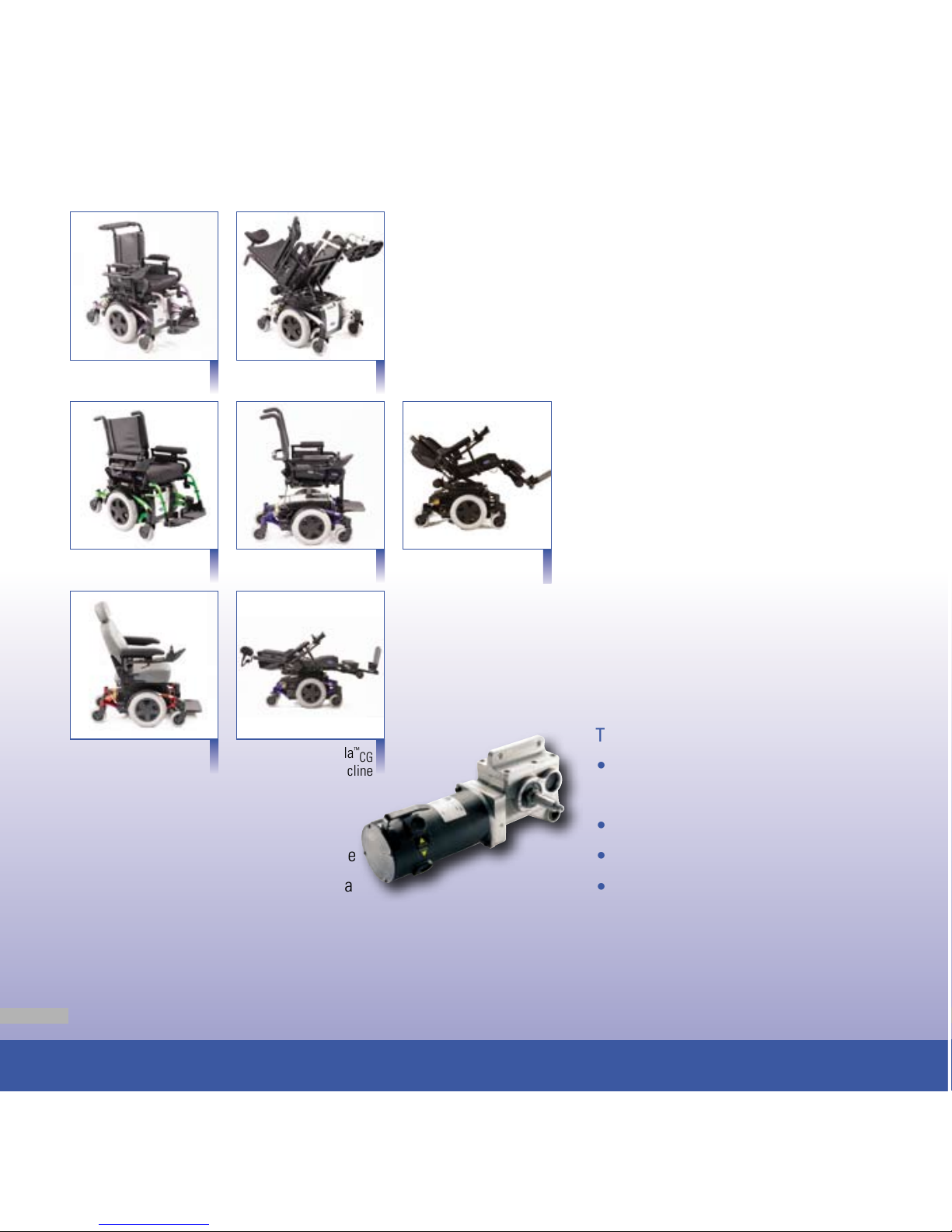

Elevating Rehab SeatAdjustable Rehab Seat

Van Seat Invacare® Formula™CG

Recline

Invacare®Formula™CG

Tilt/Recline

Faster. More Powerful.
