Invacare 1110266 Gebrauchsanweisung

Part No. 1114831 1Bolt-In-Place/SpringButton

Front Rigging Kit

Bolt-In-Place/Spring Button Front Rigging Kit

AssemblyandInstallationInstructions

Kits No. 1110266 and 1121271

SAVE THESE INSTRUCTIONS

NOTE: Check ALL parts for shipping damage. In case of shipping damage, DO NOT use. Contact

Carrier/Dealer for further instruction.

SAFETY SUMMARY

ToensurethesafeinstallationoftheBolt-In-Place/SpringButtonFrontRigging

Kit,these instructionsMUST be followed:

WARNING

DONOTinstall orusethisequipmentwithout firstreadingandunderstanding

theseinstructionsandtheOwner’sManualsupplied withthewheelchair. Ifyou

areunableto understandtheWarnings, CautionsorInstructions,contacta

healthcareprofessional,dealer ortechnical personnelbeforeattempting to

installthisequipment-otherwise,injuryordamagemayoccur.

INSTALLATION WARNING

AfterANYadjustments,repairorserviceandbeforeuse,makesureallattaching

hardwareistightenedsecurely-otherwiseinjuryordamagemayoccur.

Bolt-In-Place Front Rigging Kit 1110266 contains the following items:

DESCRIPTION QUANTITY

Riv Nut 2

ButtonHeadScrew 2

1/8-inch Hex key 1

Spring Buton Front Rigging kit 1112127 contains the following items:

DESCRIPTION QUANTITY

Spring buttons 4

INSTALLING THE BOLT-IN-PLACE FOOTPLATE KIT

(FIGURE 1)

NOTE:Thiskit mounts thefootplateassembly to thefrontrigging support sothattools are required

to remove or adjust the footrest assembly.

1. Remove the front rigging from the wheelchair. Refer to the wheelchair owner’s

manual shipped with wheelchair.

2. Pull up on the cam lock lever to unlock the cam.

NOTE:The elevating legrest has two (2) setsof release buttons, one (1) set abovethe other. Each

set will be visible one at a time allowing finer footplate height adjustment.

3. Push IN and hold the release button as shown in DETAIL “A” of FIGURE 1.

4. Rotate the lower footplate assembly 1/4 turn.

Bolt-In-Place/SpringButton 2Part No. 1114831

Front Rigging Kit

5. Remove the lower footplate assembly from the front rigging support.

6. Squeeze and push the release button down to remove from the footplate tube.

7. Ensure the cam lock lever is UP and unlocked.

8. Insert the footplate tube into the front rigging support.

9. Position the lower footplate assembly to the desired height.

10. Align the adjustment holes in the front rigging support and footplate assembly.

11. From the outside of the swingaway front rigging, insert the riv nut through both the

front rigging support and the footplate assembly.

12. From the inside of the swingaway front rigging, insert the button head screw through

the appropriate adjustment hole and thread into the riv nut.

13. Using a screwdriver to hold the riv nut in position, securely tighten the button head

screw. Torque to 32 in-lbs.

14. Push the cam lock lever DOWN to the locked position.

15. Reinstall the swingaway front rigging assembly. Refer to the owner’s manual that shipped

with wheelchair.

16. Repeat this procedure for the other footplate, if necessary.

FIGURE 1 - INSTALLING THE BOLT-IN-PLACE FRONT RIGGING KIT

OUTSIDE OF

SWINGAWAY

FRONT

RIGGING

INSIDE OF

SWINGAWAY

FRONT

RIGGING NOTE:Swingaway

footrests shown.

Footplate Assembly

Front Rigging

Support

Cam Lock Lever

Riv Nut

Button Head Screw

Footplate Assembly

Front Rigging Support

Adjustment Hole

NOTE: Swingaway footrest shown.

Front Rigging

Support

Footplate

Assembly

Cam Lock Lever

Release

Button

Adjustment

Holes

DETAIL "A"

Part No. 1114831 3Bolt-In-Place/SpringButton

Front Rigging Kit

BOLT-IN-PLACE HEIGHT ADJUSTMENT (FIGURE 1)

NOTE: This procedure applies to the swingaway footrests and swingaway elevating legrest.

1. Remove the swingaway front rigging. Refer to INSTALLING/REMOVING THE

FRONT RIGGINGS in the owner’s manual shipped with wheelchair.

NOTE: Lay the front rigging assembly on a flat surface to simplify this procedure.

2. Pull the cam lock lever UP to UNLOCKED position.

3. Using a screw driver to hold the riv nut in position, remove the button head screw

from the riv nut.

4. Remove the riv nut and button head screw securing the footplate assembly to the

front rigging support.

5. Adjust the footplate assembly height by aligning the desired adjustment holes in the

upper front rigging support and footplate assembly.

6. From the outside of the swingaway front rigging, insert the riv nut through both the

front rigging support and the footplate assembly.

7. From the inside of the swingaway front rigging, insert the button head screw through

the appropriate adjustment hole and thread into the riv nut.

8. Using a screwdriver to hold the riv nut in position, securely tighten the button head

screw. Torque to 32 in-lbs.

9. Rotate cam lock lever DOWN to LOCKED position.

10. Repeat STEPS 1-9 to adjust the remaining footrest.

11. Reinstall the swingaway front rigging. Refer to INSTALLING/REMOVING THE

FRONT RIGGINGS in the owner’s manual shat shipped with wheelchair.

Bolt-In-Place/SpringButton 4Part No. 1114831

Front Rigging Kit

INSTALLING THE SPRING BUTTON FRONT RIGGING

KIT (FIGURE 2)

NOTE: This kit allows tool-less removal or adjustment of the footplate assembly.

1. Remove the front rigging from the wheelchair. Refer to the wheelchair owner’s

manual shipped with wheelchair.

2. Pull the cam lock lever UP to UNLOCKED position.

3. Using a screw driver to hold the riv nut in position, remove the button head screw

from the riv nut as shown in DETAIL “A” of FIGURE 2.

4. Remove the riv nut and button head screw securing the footplate assembly to the

front rigging support.

5. Remove the footplate assembly from the upper front rigging support.

6. Perform one of the following as shown in DETAIL “B” OF FIGURE 2:

A. FOOTRESTS:

• With the spring pointing UP, insert the spring button into the footplate tube

so that the release buttons FULLY protrude through the top set of mounting

holes.

B. ELEVATING LEGRESTS AND FOOTRESTS WITH ADJUSTABLE ANGLE

FOOTPLATES:

• With the spring pointing DOWN, insert the bottom spring button into the

footplate tube so that the release buttons FULLY protrude through the

bottom set of mounting holes.

• With the spring pointing UP, insert the top spring button into the footplate

tube so that the release buttons FULLY protrude through the top set of

mounting holes.

NOTE: The elevating legrest has two (2) sets of release buttons, one (1) set above the other. Each

set will be visible one at a time allowing finer footplate height adjustment.

7. Insert the footplate tube into the front rigging support.

8. Push IN the release buttons and reposition the footplate assembly to the desired

height.

9. Ensure that the release buttons fully protrude from holes on both sides of the front

rigging support.

10. Rotate cam lock lever DOWN to LOCKED position.

11. Reinstall the swingaway front rigging assembly. Refer to the owner’s manual shipped

with wheelchair.

12. Ensure Release buttons are properly seated and FULLY protrude through the

adjustment holes before use.

13. Repeat this procedure for the other footplate, if necessary.

Part No. 1114831 5Bolt-In-Place/SpringButton

Front Rigging Kit

NOTE:Swingaway

footrests shown.

Footplate

Assembly

Front Rigging Support

Cam

Lock

Lever

Riv Nut

Button

Head

Screw

NOTE: Swingaway

footrest shown.

Front Rigging Support

Footplate

Assembly

Cam Lock

Lever

Release

Button

Adjustment

Holes

Release Buttons

Top Spring Button

Release Buttons

Spring Button

Bottom Spring Button

Spring

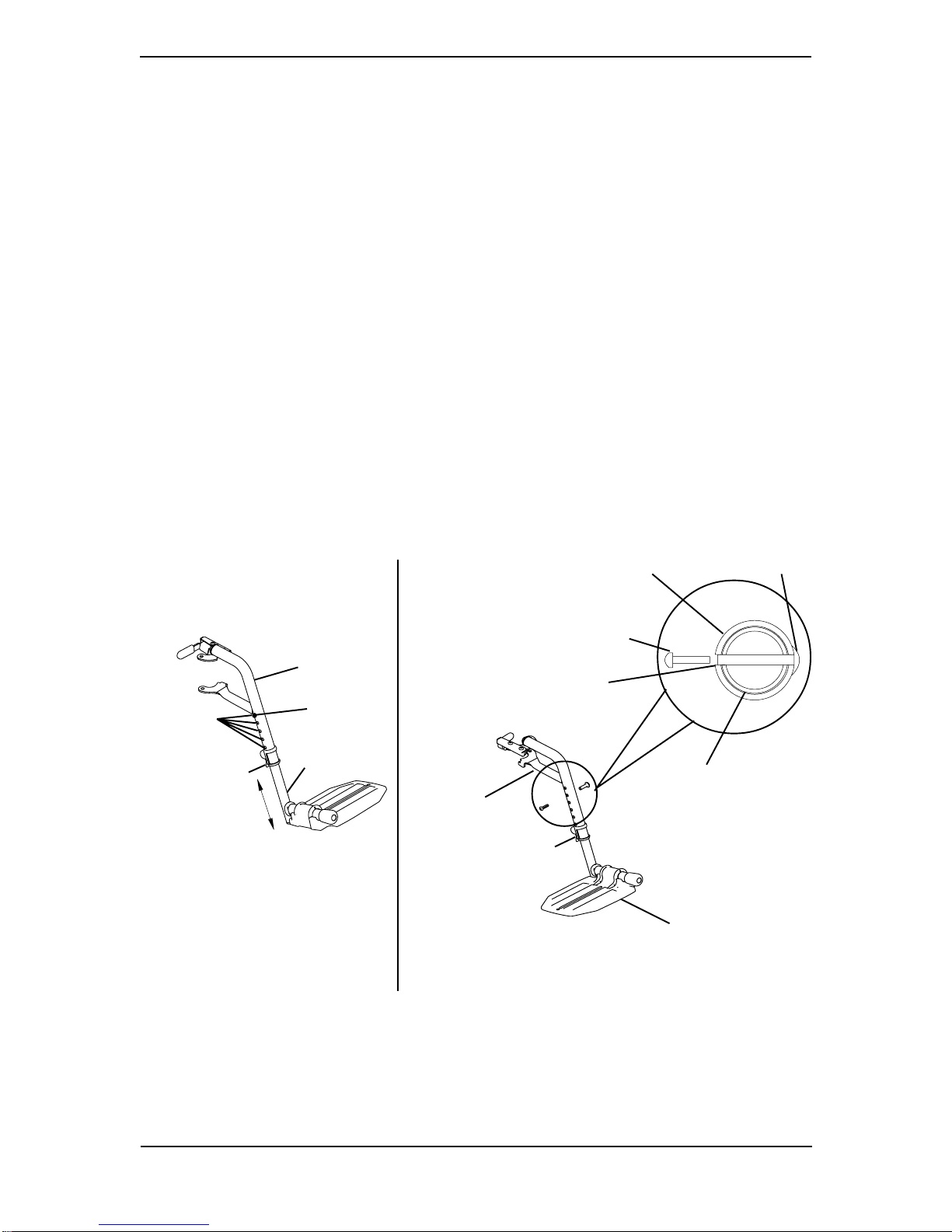

FIGURE 2 - INSTALLING THE SPRING BUTTON FOOTPLATE KIT

DETAIL “A” DETAIL “B”

ELEVATING LEGRESTS/

FOOTRESTS WITH

ADJUSTABLE ANGLE

FOOTPLATES

FOOTRESTS

SPRING BUTTON HEIGHT ADJUSTMENT (FIGURE 2)

NOTE: This procedure applies to the swingaway footrests and swingaway elevating legrest.

1. Remove the swingaway front rigging. Refer to INSTALLING/REMOVING THE

FRONT RIGGINGS in the owner’s manual shipped with wheelchair.

NOTE: Lay the front rigging assembly on a flat surface to simplify this procedure.

2. Pull the cam lock lever UP to UNLOCKED position.

NOTE: The elevating legrest has two (2) sets of release buttons, one (1) set above the other. Each

set will be visible one at a time allowing finer footplate height adjustment.

3. Push IN the release buttons and reposition the footplate assembly to the desired

height.

4. Ensure that the release buttons fully protrude from holes on both sides of the front

rigging support.

5. Rotate cam lock lever DOWN to LOCKED position.

6. Repeat this procedure for the other footplate, if necessary.

7. Reinstall the swingaway front rigging assembly. Refer to INSTALLING/REMOVING THE

FRONT RIGGING in the owner’s manual that shipped with wheelchair.

8. Ensure Release buttons are properly seated and FULLY protrude through the

adjustment holes before use.

Bolt-In-Place/SpringButton 6Part No. 1114831

Front Rigging Kit

NOTESNOTES

NOTES

Part No. 1114831 7Bolt-In-Place/SpringButton

Front Rigging Kit

NOTESNOTES

NOTES

Invacare Corporation www.invacare.com

USA

One Invacare Way Invacare is a registered trademark of

Elyria, Ohio USA Invacare Corporation.

44036-2125 Yes, you can. is a trademark of

800-333-6900 Invacare Corporation.

Part No. 1114831 Rev B - 07/03

MADE IN MEXICO
