Ivoclar Vivadent Programat CS Bedienungsanleitung

Operating Instructions

Programat®CS

Valid as of

Software Version 3.0

Views of the Furnace, List of Parts 4

1. Introduction / Signs and Symbols 8

1.1 Preface

1.2 Introduction

1.3 Notes regarding the Operating Instructions

1.4 Notes on the different voltage versions

2. Safety First 9

2.1 Indications

2.2 Health and safety instructions

3. Product Description 12

3.1 Components

3.2 Hazardous areas and safety equipment

3.3 Functional description

3.4 Accessories

3.5 Indication/Contraindication

4. Installation and Initial Start-Up 13

4.1 Unpacking and checking the contents

4.2 Selecting the location

4.3 Assembly

4.4 Dismounting the furnace head

4.5 Initial start-up

5. Operation and Configuration 18

5.1 Introduction to the operation

5.2 Explanation of the key functions

5.3 Basic meaning of the display information

5.4 Program structure

5.5 Adjustable parameters and possible value ranges

5.6 Settings / test programs and information

5.7 Explanation of the symbols on the display

5.8 Explanation of the beeper signals

6. Practical Use 23

6.1 Switching on/off

6.2 Firing using a standard program

6.3 Firing using an individual program

6.4 Other options and special features of the furnace

6.5 Programming

7. Maintenance, Cleaning and Diagnosis 25

7.1 Monitoring and maintenance

7.2 Cleaning

7.3 Diagnosis program

8. What if ... 27

8.1 Error messages

8.2 Additional error messages

8.3 Technical malfunctions

8.4 Repair

9. Product Specifications 30

9.1 Delivery form

9.2 Technical data

9.3 Acceptable operating conditions

9.4 Acceptable transportation and storage conditions

10. Appendix 31

10.1 Program table

10.2 Program structure

Table of Contents

List of Parts

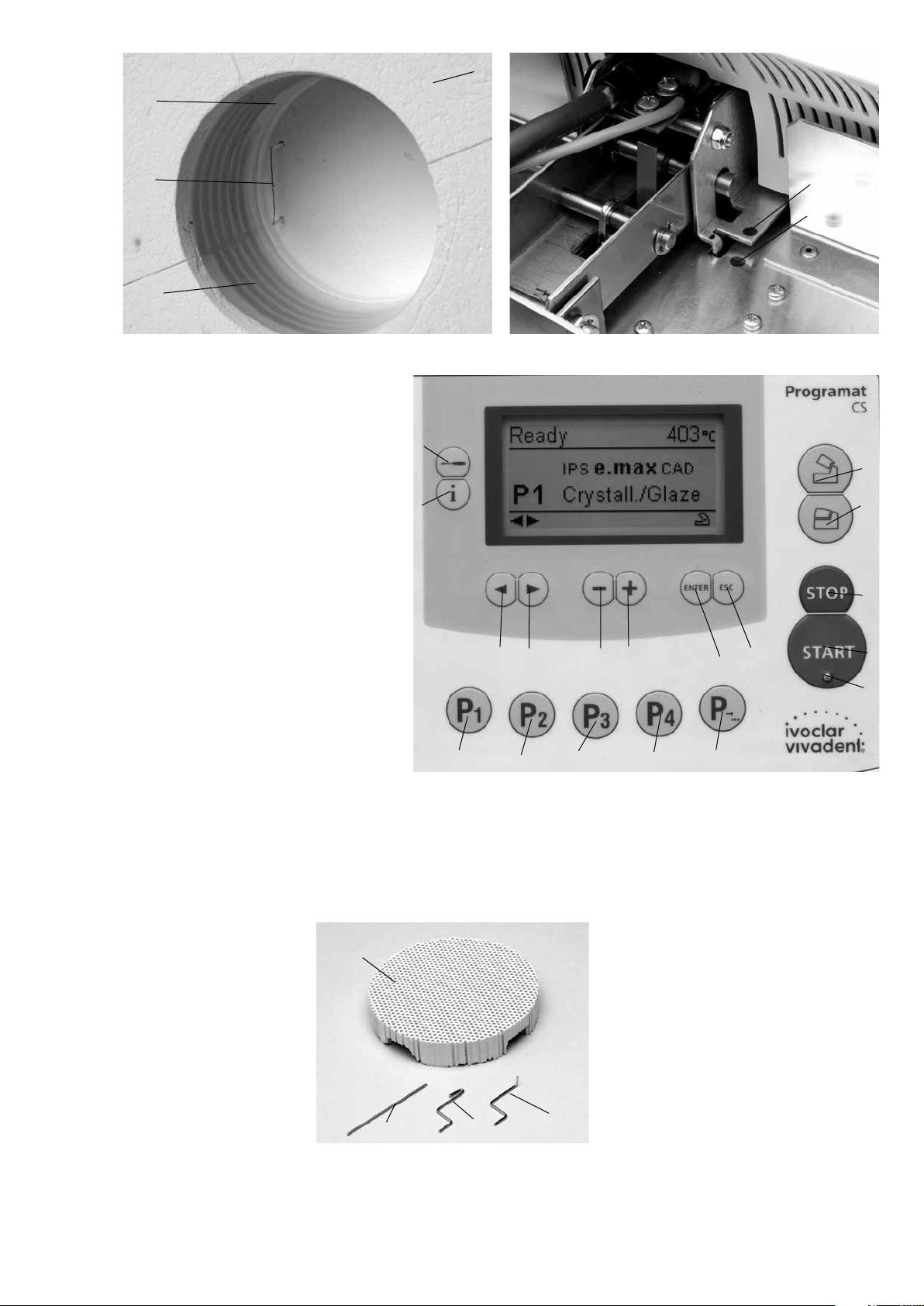

Front view:

1 Sealing surface

2 Furnace head sealing ring

3 Insulation

4 Thermocouple

5 Firing plate

6 Display

7 Frame plate

8 QTK heating muffle

9 Furnace housing

10 Keypad

11 On/Off switch

12 Heating element fuse

13 Vacuum pump fuse

14 USB-Device interface

15 Fuse holder

16 Power cord

17 Power socket

18 Vacuum pump socket

19 Rating plate

20 Thermocouple cable

21 Vacuum hose connection

23 Rubber feet

24 Firing plate holder

25 Furnace head housing

26 Thermocouple plug

27 Plug fuse

28 Heater plug

29 Heater plug socket

30 Thermocouple plug socket

32 Leaf spring

33 Air vents (base)

34 Cooling tray

35 Screw for cooling tray

36 Hood

37 Knurled screw for hood

38 Air vents furnace head

39 Air vents rear panel

40 Warnings

41 Furnace head mounting mark

42 Furnace base mounting mark

43 Furnace head mounting

44 Quartz-glass tube

46 Vacuum hose

47 Silicone rest

48 Connecting rod

49 Plug-in console

List of Parts

20 26 30 29

27 2811

32 43

12 13

Control unit:

71 ESC key

72 ENTER key

73 START key

74 Start LED

75 STOP key

76 + key

77 – key

78 Settings key

79 Cursor key right

80 Cursor key left

81 Information key

82 Program 1

83 Program 2

84 Program 3

85 Program 4

86 Next program

87 Open furnace head

88 Close furnace head

100 Programat firing tray

101 Metal pin A

102 Metal pin B

103 Metal pin C

100

101

103

102

7980 77

82 83 84 85 86

72 71

1. Introduction / Signs and Symbols

1.1 Preface

Dear Customer

Thank you for having purchased

the Programat CS. It is a

state-of-the-art furnace for the

dental practice, which requires a

furnace for the CAD/CAM

technique. The Programat CS

enables glaze and crystallization

firings for the CAD/CAM

technology. This furnace has

been specially developed for

this purpose.

The furnace has been designed

according to the latest industry

standards. Inappropriate use

may damage the equipment and

be harmful to personnel. Please

observe the relevant safety

instructions and read these

Operating Instructions carefully.

Enjoy working with the CS.

1.2 Introduction

The signs and symbols in these

Operating Instructions facilitate

the finding of important points

and have the following

meanings:

Risks and dangers

Important

information

Contraindication

Burn hazard

Risk of crushing

The Operating

Instructions must

be read

1.3 Notes regarding the

Operating Instructions

Furnace concerned:

Programat CS

Target group:

Dentists and dental

technologists

These Operating Instructions

facilitate the correct, safe, and

economic use of the Programat

CS furnace.

Should you lose the Operating

Instructions, extra copies can be

ordered at a nominal fee from

your local Ivoclar Vivadent

Service Center or downladed

from www.ivoclarvivadent.com/

downloadcenter.

1.4 Notes on the different

voltage versions

The furnace is available with

different voltage versions.

– 100 V / 50–60 Hz

– 110–120 V / 50–60 Hz

– 200–240 V / 50–60 Hz

In the Operating Instructions,

the furnace is described in the

200-240 V voltage version.

Please note that the voltage

range shown on the images

(e.g. rating plate) may differ

depending on the voltage

version of your furnace

2. Safety First

This chapter is especially important for personnel who work with the

Programat CS or who have to carry out maintenance or repair work.

This chapter must be read and the corresponding instructions fol-

lowed.

2.1 Indications

The Programat CS must only be used to fire dental ceramic materials

and it should be used for this purpose only. Other uses than the

ones stipulated, e.g. cooking of food, firing of other materials, etc.

are contraindicated. The manufacturer does not assume any liability

for damage resulting from misuse. The user is solely responsible for

any risk resulting from failure to observe these Instructions.

Further instructions to assure proper use of the furnace:

– The instructions, regulations, and notes in these Operating

Instructions must be observed.

– The instructions, regulations, and notes in the material’s

Instructions for Use must be observed.

– The furnace must be operated under the indicated environmental

and operating conditions (Chapter 9).

– The Programat CS must be properly maintained.

2.1.1

Contraindication

Do not carry the furnace head by

the cooling tray.

2.1.2

Contraindication

Do not carry the furnace head by

the cables, since the cables and

connections may be damaged.

2.1.3

Contraindication

The furnace head should not be

removed from the furnace base as

long as the furnace head is

connected by means of the

heater cable.

2.1.4

Contraindication

The furnace has an electric drive

and must be operated by means

of the electronic controls. Never

open the furnace head by hand,

since the mechanism will be

damaged.

2.1.5

Contraindication

Do not touch the thermocouple

and the quartz tube in the firing

chamber. Avoid contact with the

skin (grease contamination), as

the parts will be prematurely

damaged.

2.1.6

Contraindication

Never use the furnace without a

firing table.

2.1.7

Contraindication

Firing trays must not be placed in

the area surrounding the firing

table, since this will obstruct the

closing of the furnace head.

2.1.8

Contraindication

Foreign objects must not be

placed on the furnace head or the

air vents. Make sure that no liq-

uids or other foreign objects enter

the air vents, since this may result

in an electrical shock.

2.1.9

Contraindication

Make sure that no liquids or other

foreign objects enter the furnace.

2.1.10

Contraindication

Do not insert any foreign objects

into the air vents. There is a risk of

electrical shock.

2.1.11

Risks of burn hazard

Never place objects in the firing

chamber by hand, since there is a

burn hazard. Always use the tongs

(accessories) supplied for this pur-

pose. Never touch the hot surface

of the furnace head, as there is a

burn hazard. Please also refer to

the warnings on the furnace.

2.1.12

Risk of crushing and burn hazard

Never reach under the furnace

head with the hand or other parts

of the body during operation,

since there is a risk of crushing

and a burn hazard.

2.1.13

Risks and dangers

This product contains ceramic

fibres and may release fibre dust.

Do not use compressed air, or

blow, on the furnace thus

distributing the dust in the

environment and observe the

additional notes on page 11.

2.1.14

Risks and dangers

The furnace must not be operated if the quartz tube in the firing

chamber is damaged. There is a risk of electric shock upon contact

with the heating wire.

Inhaltsverzeichnis

Andere Ivoclar Vivadent Dentalgeräte Handbücher

Ivoclar Vivadent

Ivoclar Vivadent bluephase Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent Tetric Color Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent Programat EP 5010 Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent Programat CS6 Handbuch

Ivoclar Vivadent

Ivoclar Vivadent Bluephase Meter II Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent Programat EP 5010 G2 Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent Bluephase G4 Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent Programat EP 3010 G2 Handbuch

Ivoclar Vivadent

Ivoclar Vivadent Bluephase G4 Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent OptraDam Plus Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent Programat CS6 Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent SR Ivocap Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent Bluephase Style Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent Stratos 300 Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent bluephase Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent Programat P510 Handbuch

Ivoclar Vivadent

Ivoclar Vivadent Bluephase PowerCure Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent LEDition Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent Odyssey 3Watt Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent Programat P510 G2 Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent Ivomat IP3 Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent OptraGate Bedienungsanleitung

Ivoclar Vivadent

Ivoclar Vivadent Programat P710 G2 Handbuch

Ivoclar Vivadent

Ivoclar Vivadent 747825BE Bedienungsanleitung

Beliebte Dentalgeräte Handbücher anderer Marken

Vatech

Vatech EzRay Air VEX-P300 Bedienungsanleitung

KaVo

KaVo GENTLEpower LUX Contra-angle 25 LP Bedienungsanleitung

DENTSPLY

DENTSPLY SmartLite Focus Bedienungsanleitung

LM ProPower CombiLED Bedienungsanleitung

Owandy Radiology

Owandy Radiology RX-AC Bedienungsanleitung

mectron

mectron Piezosurgery Bedienungsanleitung

Belmont

Belmont CREDIA G1 Bedienungsanleitung

Planmeca

Planmeca Sovereign Classic Bedienungsanleitung

Bego

Bego Fornax T Bedienungsanleitung

Renfert

Renfert SYMPRO Kurzanleitung

Ateco

Ateco AT-301 Bedienungsanleitung

Nevadent

Nevadent NZPS 3 A1 Bedienungsanleitung

Muss Dental

Muss Dental MA 50 Technisches Handbuch

Diplomat

Diplomat Comfort Series Bedienungsanleitung

Dentatus

Dentatus Nyström Bedienungsanleitung

OMS

OMS DUKE EASY Handbuch

OMS

OMS LINEA PATAVIUM Handbuch

BRYANT DENTAL

BRYANT DENTAL Ignis Gesture A-494322 Bedienungsanleitung
