Programat®P310
Operating Instructions
Valid from
software V5.0
2
3
List of parts 4
1. Introduction / Signs and Symbols 7
1.1 Introduction
1.2 Signs and symbols contained in these Operating Instructions
1.3 Notes regarding the Operating Instructions
1.4 Notes on the different voltage versions
1.5 Notes on the images in the Operating Instructions
2. Safety First 9
2.1 Indications
2.2 Health and safety instructions
3. Product Description 14
3.1 General aspects
3.2 Hazardous areas and safety equipment
4. Installation and Initial Start-Up 15
4.1 Unpacking and checking the contents
4.2 Selecting the location
4.3 Assembly
4.4 Removing the furnace head
4.5 Initial start-up
5. Operation and Configuration 22
5.1 Introduction to the operation
5.2 Firing programs and programming options
5.3 Advanced functions of the furnace
6. Practical Use 50
6.1 Firing with an Ivoclar Vivadent program
6.2 Firing with an individual program
7. Maintenance, Cleaning, Diagnosis 53
7.1 Monitoring and maintenance
7.2 Cleaning
7.3 Service note
7.4 Stand-by
7.5 Power-saving mode
8. What If ... 55
8.1 Error messages
8.2 Additional error messages
8.3 Technical malfunctions
8.4 Repair
8.5 Resetting to factory settings
9. Product Specifications 61
9.1 Delivery form
9.2 Technical data
9.3 Acceptable operating conditions
9.4 Acceptable transportation and storage conditions
10. Appendix 63
10.1 Program table
Table of Contents
4
List of parts
1 Air vents furnace head
2 Furnace head housing
3 Warnings
4 Touch screen
5 Keypad
6 Optical Status Display (OSD)
7 Cooling Tray
11 Cover for head opening
mechanism
12 Air vents (base)
13 USB connection
14 USB interface
15 Ethernet connection
8 Screw for cooling tray
9 Housing base
10 Furnace feet
5
27 Rating plate
28 Vacuum pump fuse
29 Vacuum pump socket
30 Vacuum pump power cord
16 Insulation
17 Firing plate
18 Firing plate holder
19 Frame plate
31 Cover for head
opening mechanism
32 Connection cover
21 QTK2 heating muffle
22 Furnace head sealing ring
23 Sealing surface
33 Screw for
connection cover
34 Air vents rear panel
35 Heating element fuse
36 Vacuum hose connection
37 Vacuum hose
20 Speaker
24 On/Off switch
25 Power socket
26 Power cord
List of parts
6
40 Heater cable
41 Thermocouple cable
42 Furnace head vacuum hose
43 Plug fuse
46 Thermocouple plug
47 Thermocouple plug socket
48 Furnace head vacuum
connection
38 Furnace head
mounting
39 Furnace head
release
50 USB download cable 51 Programat Firing Tray Kit 2 52 Programat USB stick
44 Heater plug
45 Heater plug socket
List of parts
7
1. Introduction / Signs and Symbols
1.1 Introduction
Dear Customer
Thank you for having purchased the Programat P310. It is a state-of-the art furnace for dental applications. The furnace
has been designed according to the latest industry standards. Inappropriate use may damage the equipment and be harm-
ful to personnel. Please observe the relevant safety instructions and read the Operating Instructions carefully.
Enjoy working with the P310.
1.2 Signs and symbols contained in these Operating Instructions
The signs and symbols in these Operating Instructions facilitate the finding of important points and have the following
meanings:
Symbol Note
Risks and dangers
Important information
Contraindication
Burn hazard
Risk of crushing
The Operating Instructions must be read.
1.3 Notes regarding the Operating Instructions
Furnace concerned: Programat P310
Target group: Dental technologists, dental professionals
These Operating Instructions facilitate the correct, safe and economical use of the furnace. Should you lose the Operating
Instructions, extra copies can be ordered at a nominal fee from your local Ivoclar Vivadent Service Centre or downloaded
from www.ivoclarvivadent.com.
8
1.4 Notes on the different voltage versions
The furnace is available with different voltage versions.
– 110 – 120 V / 50 – 60 Hz
– 200 – 240 V / 50 – 60 Hz
In the Operating Instructions, the furnace is described in the 200–240 V voltage version. Please note that the voltage range
shown on the images (e.g. rating plate) may differ depending on the voltage version of your furnace.
1.5 Notes on the images in the Operating Instructions
All images and illustrations in these Operating Instructions are used for exemplification and the details are not authoritative for
the construction of the furnace. They are symbols which may slightly differ from the original, e.g. due to simplification.
1. Introduction / Signs and Symbols
9
2. Safety First
This chapter is especially important for individuals who work with the Programat P310 or who have to carry out
maintenance or repair work. This chapter must be read and the corresponding instructions followed!
2.1 Indications
The Programat P310 must only be used to fire dental ceramic materials and it should be used for this purpose only. Other
uses than the ones stipulated, e.g. cooking of food, firing of other materials, etc., are contraindicated. The manufacturer
does not assume any liability for damage resulting from misuse. The user is solely responsible for any risk resulting from
failure to observe these Instructions.
Further instructions to assure proper use of the furnace:
– The instructions, regulations, and notes in these Operating Instructions must be observed.
– The instructions, regulations, and notes in the material‘s Instructions for Use must be observed.
– The furnace must be operated under the indicated environmental and operating conditions (see Chapter 9.3).
– The Programat P310 must be properly maintained.

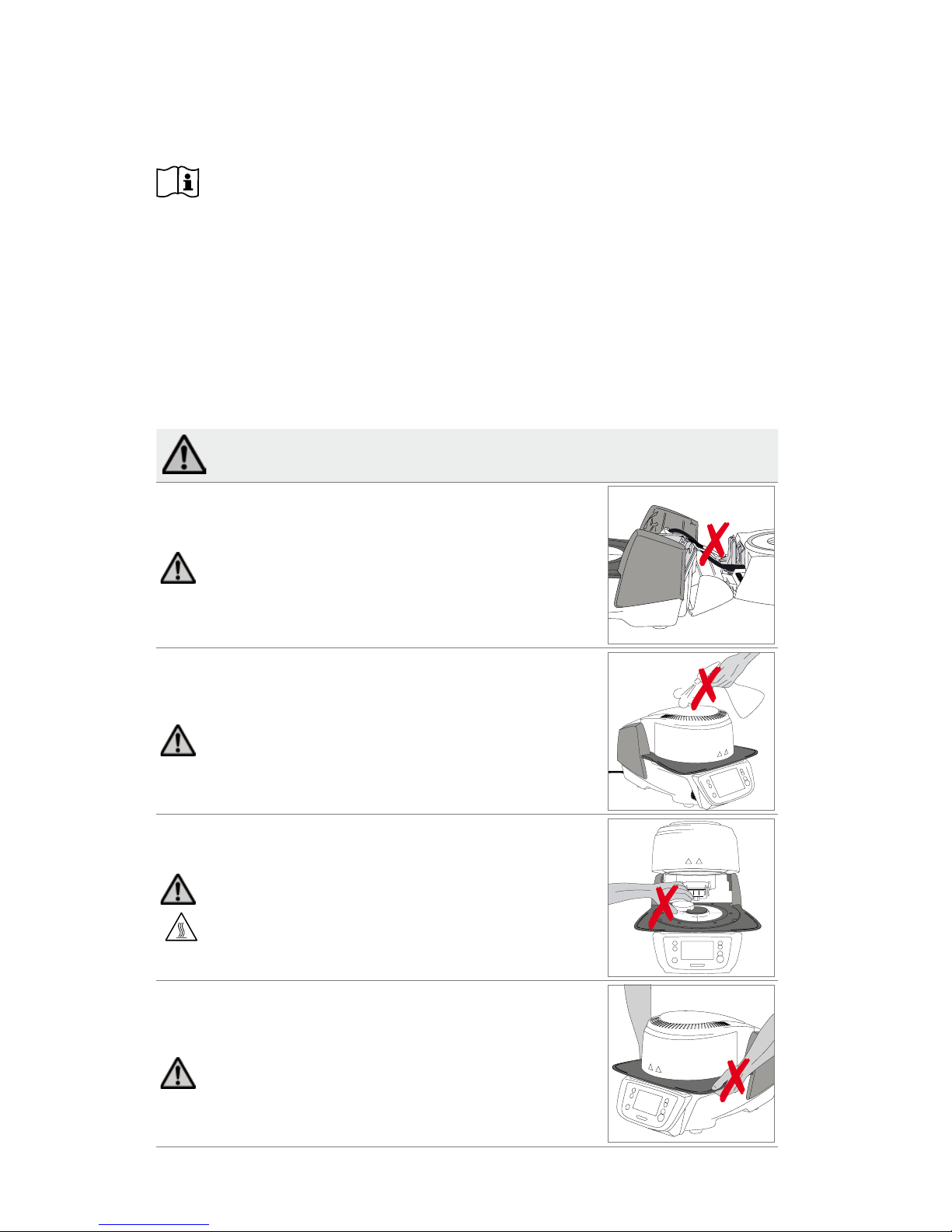

Risks and dangers
The furnace head must not be removed from the furnace base as long as the
furnace head is connected by means of the cables.
Make sure that no liquids or other foreign substances enter the furnace.
Burn hazard: Never place objects in the firing chamber by hand, since there is
a burn hazard. Always use the tongs (accessories) supplied for this purpose.
Never touch the hot surface of the furnace head, as there is a burn hazard.
Do not carry the furnace by the cooling tray.
10

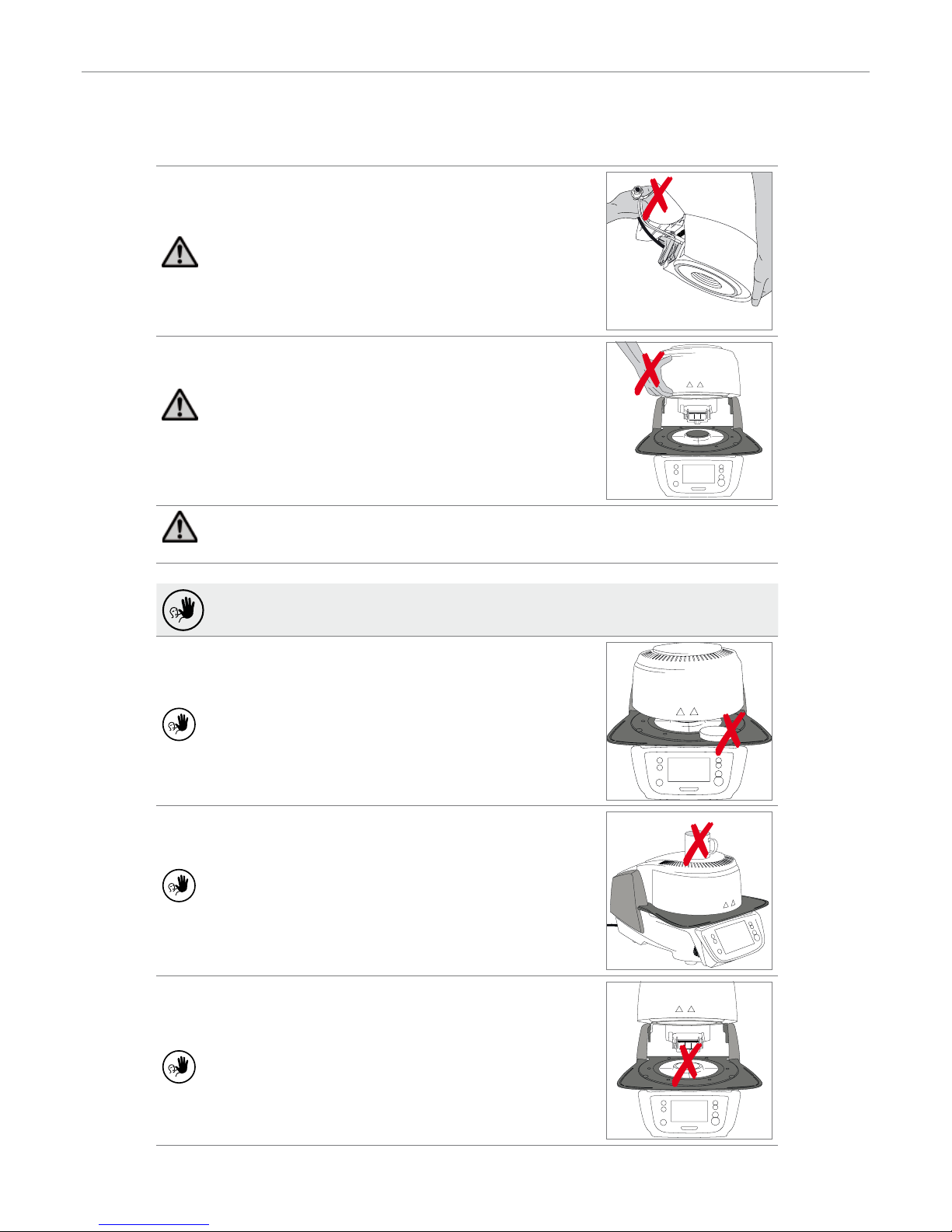

Do not carry the furnace head by the cables, since the cables and
connections may be damaged.
The furnace head has an electric drive and must be operated by means of
the electronic controls. Never open the furnace head by hand, since the
mechanism will be damaged.
The furnace must not be operated if the quartz tube in the firing chamber or the insulation of the firing
chamber is damaged. There is a risk of electric shock upon contact with the heating wire. Avoid damage of
the insulation by contact with the investment tongs or firing tongs.
Contraindication
Firing trays must not be placed in the area surrounding the firing plate, since
this will obstruct the closing of the furnace head.
Foreign objects must not be placed on the furnace head or the air vents.
Make sure that no liquids or other foreign objects enter the air vents, since
this may result in an electrical shock.
Never use the furnace without a firing table.
2. Safety First
