iWave FDM-6600 Bedienungsanleitung
1/16
www.iwavecomms.com
User Manual of FDM-6600
2*2 MIMO Wireless Point to Multi-Point Ethernet & Full Duplex
TTL Serial Data Board
2/16
www.iwavecomms.com
Catalogue
1.Hardware......................................................................................................................................................... 3
1.1. Interface............................................................................................................................................... 3
1.1.1.COMUART...................................................................................................................................3
1.1.2. RJ45 Port....................................................................................................................................6
2. Software ..........................................................................................................................................................7
2.1. WebUI Login .........................................................................................................................................7
2.2.Home Page Debugging Switch .............................................................................................................. 8
2.3.Key Setting .............................................................................................................................................9
2.4.Master-slave Setting ............................................................................................................................. 9
2.5. Wireless Setting ....................................................................................................................................9
2.6.Network Parameter Setting ................................................................................................................ 10
2.7.Uplink and Downlink Setting ...............................................................................................................11
2.8.VCOM .................................................................................................................................................. 12
2.9.Debug Interface...................................................................................................................................12
2.10.Device Information ........................................................................................................................... 13
3. AT Commands Supported by WebUI ............................................................................................................ 14
3.1.Command Set Supported by AT Debug Interface ............................................................................... 14
3.2.Explanation of AT Command in WebUI ...............................................................................................14
3/16
www.iwavecomms.com
1.Hardware
1.1. Interface
Note:
Using a 5V/2A adapter for power supply.
Before powering on, set the two DIP switches to the left side.
Please install the antennas firstly before powering on. Or the device will be burn out.
For short-distance test, distance between two units should be more than 10meters before
powering on. Otherwise, the equipment may be damaged.
We suggest to use IE browser (version 11) for Web login.
1.1.1.COMUART
COMUART is 2.85V voltage domain and compatible with 3V/3.3V level.
Control Data Transmission: TTL mode.
Baud rate: 115200bps, full-duplex communication
Transmission Mode: Pass-through mode
The data transmitting and receiving is broadcast in the network. After successful networking, each
FDM-6600 node can receive serial data.
Note: If you want to distinguish between sending, receiving and control, you need to define the
format yourself
4/16
www.iwavecomms.com
Baud Rate: The max baud rate is 115200bps(The total rate of unidirectional receiving or
unidirectional sending)
Baud rate 115200 = 115200 (bits/second)
If there is no check digit, it should be divided by 10 to get the bytes per second:
Baud rate 115200 = 115200 (bits/second) = 11520 (bytes/second)
Then divided by 1024, it is KB per second:
Baud rate 115200 = 115200 (bits/sec) = 11.25 (KB/sec)
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
If there is a parity bit, it should be divided by 11 to get the number of bytes per second.
Baud rate 115200 = 115200 (bits/sec) = 10.27 (KB/sec)
How to test if the COMUART works normally?
Item
Qty
Computer
(with software sscom42 or other serial software such as putty, Serial Port Tester,
CommMonitor3.0, Serial Interface, etc.)
1
FDM-6600
2
Antenna
4
TTL-USB Cable
2
Power Adapter(5V/2A)
2
TTL-USB Module
5/16
www.iwavecomms.com
Connect TTL-USB cable with FDM-6600
Connect FDM-6600 with Computer
Conenct the antennas with FDM-6600
Power the board using the adapter we supplied(DC5V/2A)
Connect the board with your computure by TTL-USB Cable.
After the driver is installed correctly, the computer will display the following COM port
information
FDM-6600
USB Module
RXD
TXD
TXD
RXD
GND
GND
6/16
www.iwavecomms.com
Sending and Receiving Serial data through the COMUART
Computer Settings:
Then you can send and receive serial data via both FDM-6600 COMUART
1.1.2. RJ45 Port
Item
Qty
Computer
1
IP Camera
1
FDM-6600
2
Antenna
4
RJ45 Cable
2
Power Adapter(5V/2A)
2
Connect FDM-6600 with Computer and Camera
1. Set computer IP: 192.168.1.99/255.255.255.0
2. Set the IP Camera IP: 192.168.1.21
3. Conenct the antennas with FDM-6600
4. Power FDM-6600 via the adapter we supplied(DC5V/2A)
5. Connect one FDM-6600 with IP Camera
6. Connect the other FDM-6600 with computer
FDM-6600 Access Node Connect with Camera FDM-6600 Central Node Connect with Computer
7/16
www.iwavecomms.com
7. Using the computre visit http://192.168.1.21
8. Enter into IP Camera's user name and password, then you will get the IP Camera's video on the
computer.

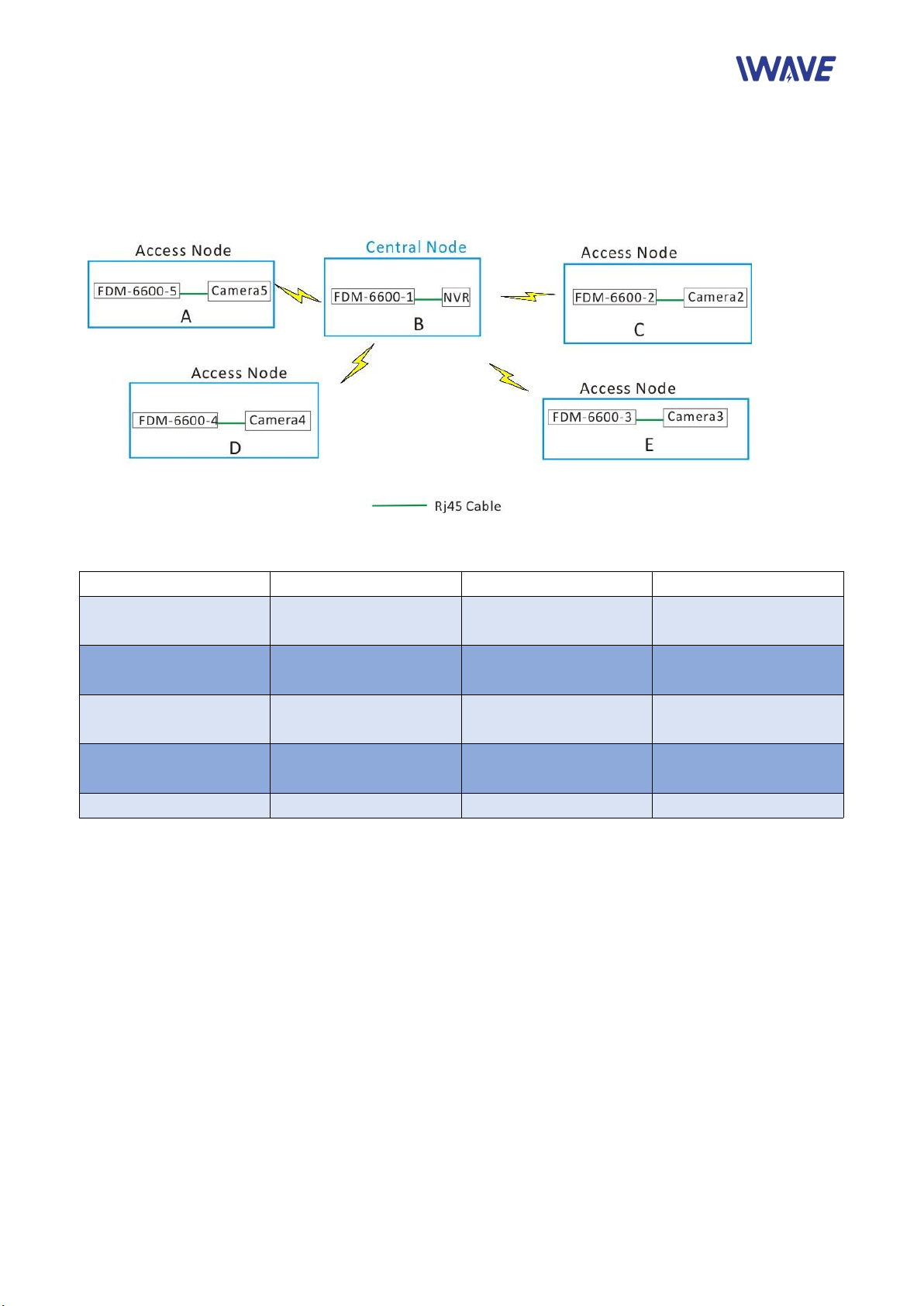

How to use NVR to get the camera's video
Connect IP Camera with FDM-6600 as to below settings:
IP
Subnet Mask
Gateway
Camera 2
170.218.2.21
255.0.0.0
170.18.15.6
(IP address of NVR)
Camera 3
170.218.2.22
255.0.0.0
170.18.15.6
(IP address of NVR)
Camera 4
170.218.2.23
255.0.0.0
170.18.15.6
(IP address of NVR)
Camera 5
170.218.2.24
255.0.0.0
170.18.15.6
(IP address of NVR)
NVR
170.18.15.6
255.0.0.0
170.18.15.1
Note: Since NVR can automatically send ARP packets, so it can be set with different subnet
network with FDM-6600
2. Software
2.1. WebUI Login
WebUI interface operation is mainly to manually select the corresponding parameters or input
relevant parameters, configure the nodes, and return the configuration status displayed on the
UI interface.
The initial IP address is: http://192.168.1.12
The initial user name and password are
8/16
www.iwavecomms.com
User name: admin123
Password: admin123
Administrator login user name and password(password and user name changing is not
supported)
Administrator username: admin123
Administrator password: admin123
After registering and changing the password, it will automatically log in and jump to the index
page.
Registration function: directly enter the user name and password, the original account will be
overwritten.
After the factory settings are restored, the account and password are restored to their initial
values.
"Login", "Registration", "Modify Password" need to configure the IE browser,
tools-options-Internet options-security settings-enable ActiveX controls and plug-ins.
Note: Administrator login does not require the above steps.
Add the local and remote IP addresses of WebUI as trusted sites.
The user name is 6-20 characters composed of letters and numbers, and the first character
must be a letter.
The password is also 6-20characters
2.2.Home Page Debugging Switch
Modem switch setting: open/close
Modem Restart Setting
9/16
www.iwavecomms.com
2.3.Key Setting
Before networking, each node need to enter into the key
2.4.Master-slave Setting
In the same network, only one central node is allowed, and the others are all access nodes.
2.5. Wireless Setting
Set the frequency band
Frequency Hopping Management
