IWave I.MX 8M Mini Bedienungsanleitung

iW-RainboW-G34S

Quick Start Guide

i.MX 8M Mini or i.MX 8M Nano

Pico ITX SBC

Disclaimer

iWave Systems reserves the right to change details in this

publication including but not limited to any product specification

without notice.

No warranty of accuracy is given concerning the contents of the

information contained in this publication. To the extent permitted

by law no liability (including liability to any person by reason of

negligence) will be accepted by iWave Systems, its subsidiaries or

employees for any direct or indirect loss or damage caused by

omissions from or inaccuracies in this document.

Trademarks

Certification

iWave Systems Technologies Pvt. Ltd. is an

ISO 9001:2015 Certified Company.

All registered trademarks, product names mentioned in this

publication are the property of their respective owners and used

for identification purposes only.

Quick Start Guide

Introduction

Quick Start Guide (QSG)

This document is designed for the users to understand iWave’s iW-

RainboW-G34S-i.MX 8M Mini or i.MX 8M Nano Pico ITX SBC and start

evaluation quickly & easily. Quick Start Guide (QSG) provides the detailed

instructions for setting-up the SBC from a packed box.

i.MX 8M Mini or i.MX 8M Nano Pico ITX SBC Overview

gi.MX 8M Mini Q/QL/D/DL/S/SL SoC or i.MX 8M Nano Q/QL/D/DL/S/SL

SoC

The iW-RainboW-G34S-i.MX 8M Mini or i.MX 8M Nano Pico ITX SBC is a

demonstration, development and experimentation platform based on the

NXP’s i.MX 8M Mini or i.MX 8M Nano SoC.

This SBC is highly packed with all necessary on-board connectors to get

started developing a complete embedded application.

g1GB LPDDR4 memory (Expandable up to 8GB)for i.MX 8M Mini SoC

Some Key Features of the Board Include:

g8GB eMMC Flash (Expandable up to 128GB)

gDual Gigabit Ethernet

g802.11 a/b/g/n/ac Dual Band WiFi with BT 5.0

gPico ITX Form Factor(100 x 72 mm)

g1GB LPDDR4 memory (Expandable up to 2GB)for i.MX 8M Nano SoC

gGNSS Receiver Support (Optional)

Quick Start Guide

gM.2 Key B Connector

iW-RainboW-G34S

Quick Start Guide

Safety

The iW-RainboW-G34S-i.MX Mini or i.MX 8M

Nano Pico ITX SBC is ESD sensitive. Handle this

product only in accordance with the installation

instructions given in the manual. Therefore ESD

precautions should be taken care during

transport and handling. User must use a ESD

ground strap or other grounded source before

unpacking or handling the hardware. This SBC is

not water proof. Water damage is not covered

under the warranty.

ESD Protection

The iW-RainboW-G34S-i.MX 8M Mini or i.MX 8M

Nano Pico ITX SBC is designed by using RoHS3 and

REACH compliant components and manufactured

on lead free production process.

Environmental Compliance

Check the local regulations for disposal of

electronic products before disposing.

Product Disposal

Do not assemble or use this SBC before reading the installation procedure.

Quick Start Steps

Remove the SBC from box and place above the ESD free area.

Use anti-static pad/mat with proper grounding to place the SBC.

Also make sure that, below deliverables are received without

any physical damage.

Step 1 - Unpacking

QSG

i.MX 8M Mini or i.MX 8M Nano Pico ITX SBC

12V, 2A Power Supply

iW-RainboW-G34S

USB OTG cable

*Optional

Wi-Fi BT Antennas*

Quick Start Guide

Step 2 - Read FTP Contents

Contact For FTP Link : [email protected]/[email protected]

Before moving to next step, one must go through all the documents

including Hardware User Guides and get familiar about iW-RainboW-

G34S i.MX 8M Mini or i.MX 8M Nano Pico ITX SBC.

Source code can be customized according to user’s wish and

corresponding binaries can be generated. Once the binaries are

generated, user can download the binaries in to the SBC using

programming tool.

iW-RainboW-G34S

Software

Hardware

Datasheet-UserGuides

PCB-CAD Files(opt.)

QuickStartGuide

SBC-HardwareUserGuide

Mechanical Files

SBC

DevKit

Documents

Source Code(opt.)

Tool

Patch

Heatsink-Datasheet

RoHs-Certificate

SoftwareUserGuide

Binaries

Release Notes

Enclosure-Datasheet

Quick Start Guide

Quick View

Top View

1.Power IN Jack

2.FAN Header

3.HDMI TX Connector

4. LPDDR4

5.Dual Ethernet Jack

6.i.MX 8M Mini or i.MX 8M

Nano SoC

7.Dual USB 2.0 Connector

8.USB OTG Connector

9.RTC Header

10.Audio IN/OUT Jack

11.Speaker Header

12.Boot Media Switch

13.MIPI CSI Camera Conn.

14.eMMC

15.Expansion Conn.

16.Wi-Fi Antenna Conn.

17.W-Fi & BT Module

18.GNSS Antenna Conn.*

19.GNSS Module.*

20.LVDS Touch Conn.

21.LVDS Conn.

22.Power Switch

1234567

19 17

* Optional.

iW-RainboW-G34S

Quick View

Bottom View

23.JTAG Header

24.Reset Switch

25.RS485 Header

26.RS232 Header.*

27.CAN Header

28.M.2 Standoff

29.MIPI DSI Conn.*

30.M.2 Key B Conn.

31.Micro SD Conn.

32.Nano SIM Card Conn.

33.CPU ON/OFF Switch

30 29 28

* Optional.

Quick Start Guide

Step 4 - Setting-Up

Check The On Board Switch Setting

Before setting up the test environment, one must go through

"Hardware User Guide" and get familiar about hardware section

of iW-RainboW-G27D-i.MX8 QM/QP SMARC Development

Board.

Make sure On-Board Switch (SW5) is set properly as shown

below image.

Note : Refer the Hardware User Guide for detailed information of

each switch.

SW5 - Boot Selection Switch

SW5

(1000)

Note:

0- OFF

1- ON

iW-RainboW-G27D

Step 3 - Setting-Up

Check the On Board Switch Setting

Before setting up the test environment, one must go through

"Hardware User Guide" and get familiar with hardware section of iW-

RainboW-34S-i.MX 8M Mini or i.MX 8M Nano Pico ITX SBC.

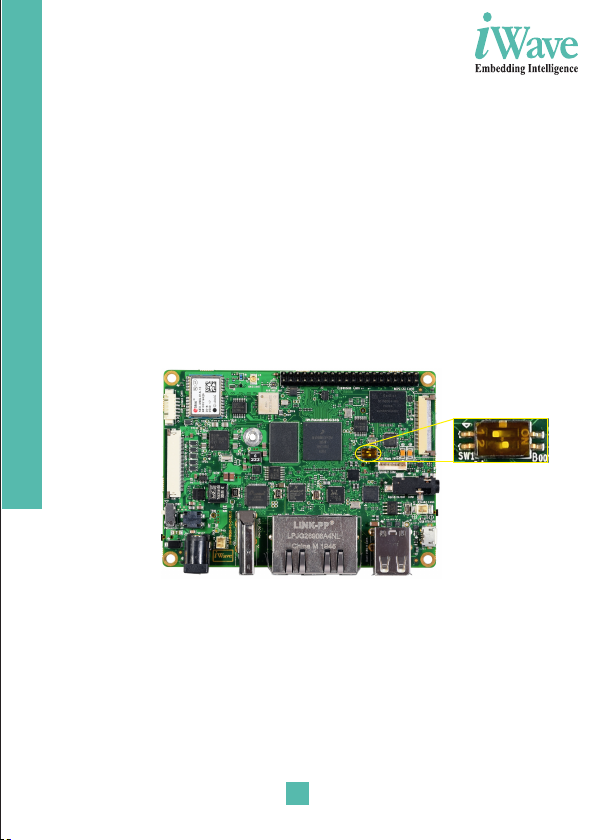

Make sure On-Board Switch (SW1) is set properly as shown

below image.

Note : Refer the Hardware User Guide for detailed information

of each switches.

SW1-Boot Selection Switch

Note: 0- OFF

1- ON

iW-RainboW-G34SiW-RainboW-G34S

Install the driver for Debug USB Port in Host PC/Laptop using the below

link.

http://ftdichip.com/drivers/vcp-drivers/

Setup the Debug Terminal parameters.

Baud Rate : 115200

Data bits : 8

Parity : None

Stop Bits : 1

Flow Control : None

Connect Type A end of TTL-232R-RPI cable to PC and 3pin (100mil)

Berg house end of TTL-232R-RPI cable to Expansion Connector (J2) as

shown below.

Debug Port Setting

Quick Start Guide
