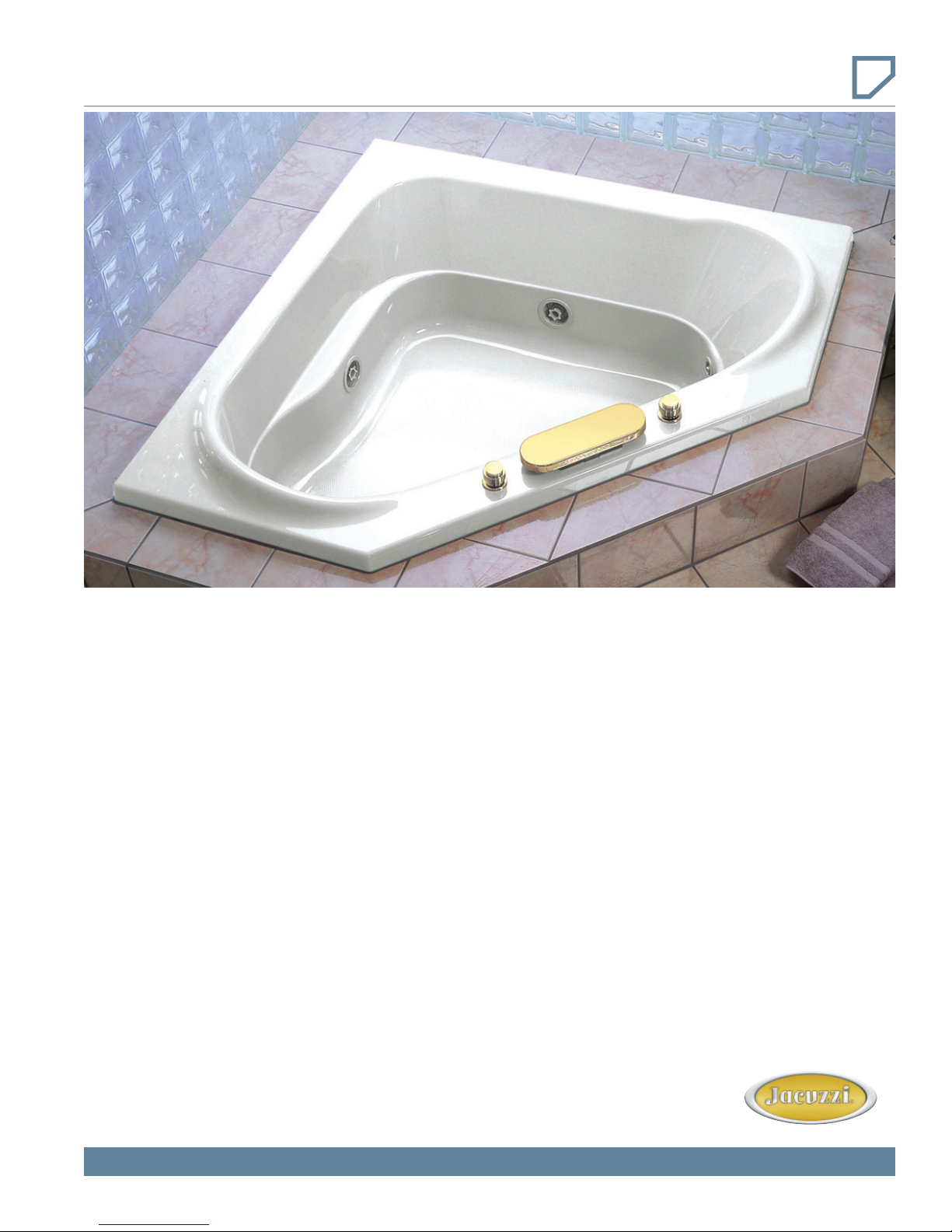

capella® 60 corner whirlpool bath and soaking bath

to the Italians, “la capella”—the chapel—is a sacred place. step into our capella®whirlpool, and you’ll understand.

capella®60 corner

whirlpool bath

model number: F934 – RH, G775 – LH

exterior dimensions:

60" long x 60" wide x 20½" high

interior dimensions:

50" long x 34" wide(mid) x 18" wide(end)

# of Jets/type of Jets:

4 TheraPro™ Jets,

3 AccuPro™ Foot Jets,

operating gallons:

60 gallons

capella®60 corner

soaking bath

model number: F933

exterior dimensions:

60" long x 60" wide x 20 ½" high

interior dimensions:

50" long x 34" wide (mid)

The Capella’s®unique corner conﬁguration

allows for roomy relaxation.

whirlpool bath features:

• 4 fully adjustable TheraPro™ jets

• 3 directionally adjustable AccuPro™ jets

• Electronic on/off controls

• Patented Fixed Air Flow System

• Sculpted armrest and contoured backrest

• Exclusive Tru-Level™ self-leveling base system

• Drain included on whirlpool baths

Capella® 60 Whirlpool Bath

Model: F934, G775

Capella® 60 Bath

Model: F933

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Electrical Components and Electrical Speciﬁcations do not apply to non-jetted baths.

Ordering Information

Product Code:

F933 Capella®60 Bath

F934 Capella® 60 Whirlpool Bath

Right Hand

G775 Capella®60 Whirlpool Bath

Left Hand

• Center Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit: #X559

Rotary Drain Kit, 26” Cable: #8730

TheraPro™ Jet Rings Kit #D095

AccuPro™ Jet Rings Kit #P556

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

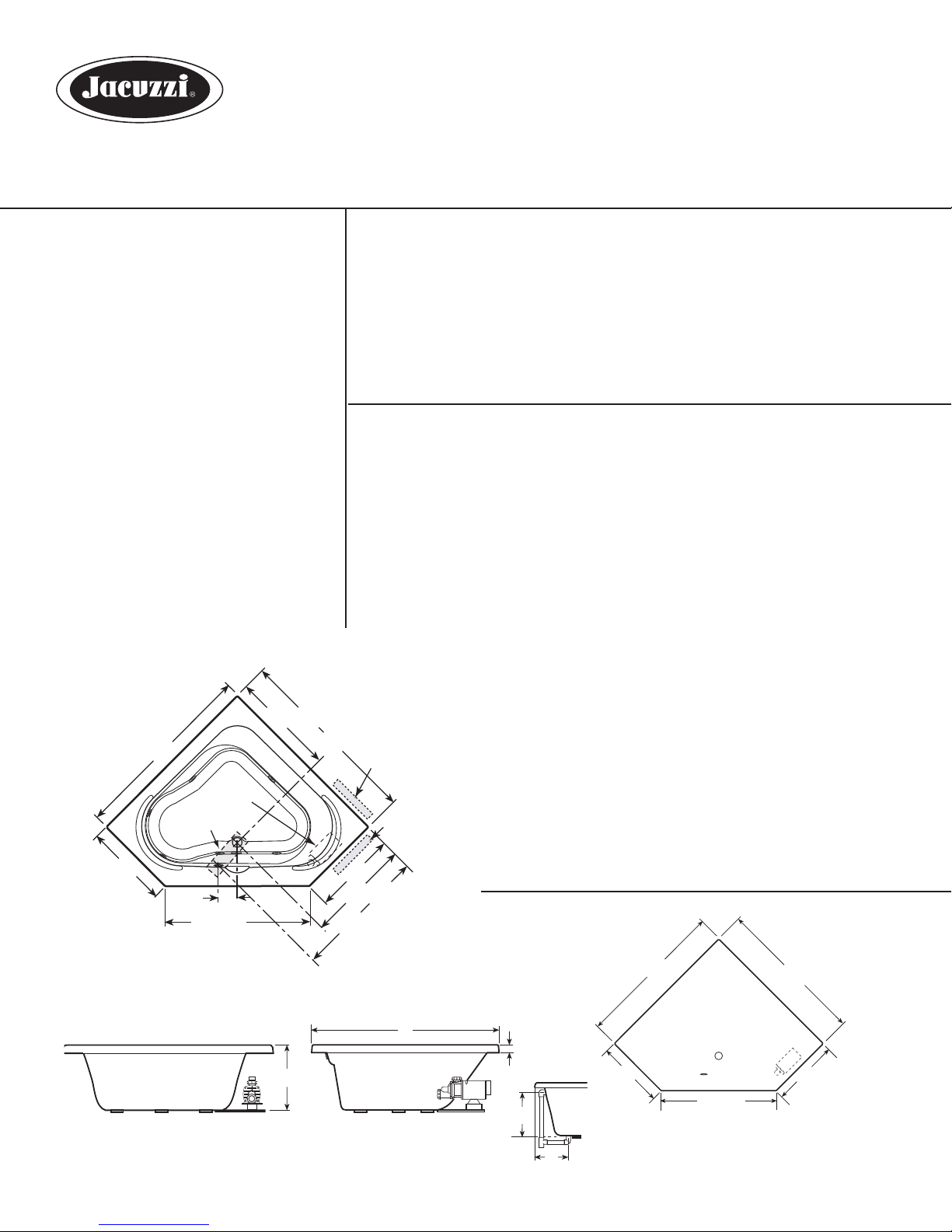

Technical Speciﬁcations

Dimensions

60” L x 60” L x 20-1/2” H

(1524 mm) L x (1524 mm) L x (521 mm) H

Drain/Overﬂow

A: 18” (457 mm) B: 12-1/8” (308 mm)

Cutout

See below

Total Weight

G775, F934: 870 lb (395 kg) / 35 lb/sq. ft. (170 kg/m2)

F933: 845 lb (383 kg) / 34 lb/sq. ft. (165 kg/m2)

Operating Gallonage

60 U.S. Gal. (227 Liters),

Max. 90 U.S. Gal. (341 Liters)

Product Weight

G775, F934: 120 lb (54 kg)

F933: 95 lb (43 kg)

Skirt Mounting

Not Available

Electrical Speciﬁcations Models F934 & G775 only

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

Heater

Not Available

27"

60"

43-1/8"

60"

34-15/16"

14" X 4"*

33-1/2"

46-5/8"

Motor

Service

Access

Opt.

Service

Access

90˚

SIDE VIEW END VIEW

#FQ87 06/07

Product Shown: Capella® 60 Corner Whirlpool Bath Model: F934

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.

DRAIN/OVERFLOW

25-1/2"

58"

25-1/2"

45-9/16"

Drain

Overflow

Motor

Capella Cutout
