Janitza UMG 96RM-P Bedienungsanleitung

Doc no. 1.040.043.2h

Power Analyser

Expansion UMG 96RM-P

Expansion UMG 96RM-CBM

Supplementary description for the basic device for

expansions -P and -CBM

Item no. 33.03.142

Janitza electronics GmbH

Vor dem Polstück 1

D-35633 Lahnau

Support tel. 0049 6441 9642-22

Fax 0049 6441 9642-30

E-mail: [email protected]

Internet: http://www.janitza.com

www.janitza.com

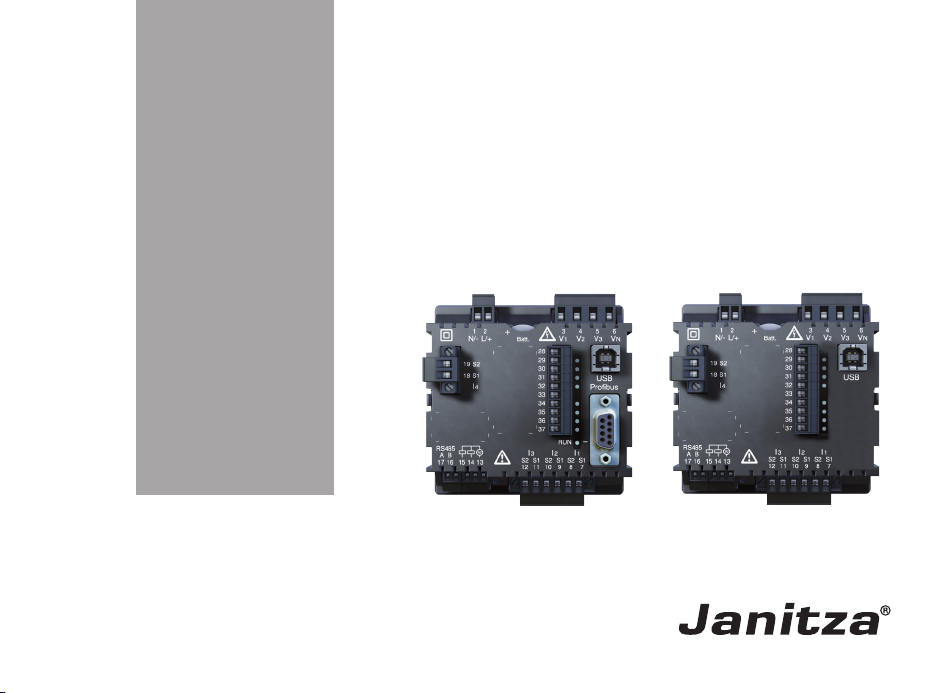

UMG 96RM-P UMG 96RM-CBM

From ﬁrmware 1.0

UMG 96RM-P/-CBM

Table of contents

General 3

Incoming inspection 6

Expanded scope of delivery UMG 96RM-P

or -CBM 7

Available accessories 7

Product description 8

Proper use 8

Expanded features of the UMG 96RM

variants P and CBM 9

Measuring process 10

GridVis network analysis software 12

Connection variants 12

Use of the device 13

LED status bar 14

Current transformer input I4 16

USB interface 18

Installation of USB driver 20

Digital outputs 22

DC connection example 23

Digital inputs 24

Proﬁbus interface (only UMG 96RM-P) 26

Service and maintenance 34

Battery 34

Battery monitoring function 35

Replacing the battery 36

Firmware update 37

Device calibration 37

Calibration intervals 37

Procedure in the event of faults 38

Technical data for the expansions 40

Declaration of conformity 46

Connection example 48

UMG 96RM-P/-CBM

General

This operating manual is subject to the legal requirements

for copyright protection and may not be, either in whole

or in part, photocopied, reprinted, or reproduced by

mechanical or electronic means, or in any other manner

be duplicated or redistributed without the legally binding,

written agreement of

Janitza electronics GmbH, Vor dem Polstück 1,

D 35633 Lahnau, Germany.

Trademarks

All trademarks and their resulting rights belong to the

respective holders of these rights.

Disclaimer

Janitza electronics GmbH takes no responsibility for

errors or defects within this operating manual and

takes no responsibility for keeping the contents of this

operating manual up to date.

Comments on the operating manual

We welcome your comments. In the event that anything

in this operating manual seems unclear, please let us

know and send us an EMAIL at: [email protected]

Meaning of the symbols

The following pictograms are used in the operating

manual at hand:

cDangerous voltage!

Danger to life or risk of serious injury.

Disconnect system and device from power

supply before beginning work.

mImportant!

Please follow the documentation. This

symbol warns of possible dangers that can

arise during installation, commissioning

and use.

CNote!

UMG 96RM-P/-CBM

Instructions for use

Please read the operating manual included in the delivery

as well as all other publications that must be drawn

from for working with this product (in particular for

the installation, operation or maintenance). In doing so

note that fundamental explanations for commissioning,

operation and conﬁguration are described in

the operating instructions for the basic device UMG

96RM. These instructions describe only the extended

functions of the speciﬁc equipment variant.

Follow all safety regulations and warning information. If

you do not follow the information, it can result in bodily

injury and/or damage to the product.

Any unauthorized changes or use of this device, which

transcend the mechanical, electrical or otherwise stated

operating limitations, can result in bodily injury and/or

damage to the product.

Any of such unauthorized changes constitute "misuse"

and/or "negligence" in terms of the warranty for

the product and therefore eliminates the warranty for

covering any potential damage resulting from this.

cIf the device is not operated according

to the operating manual, protection is no

longer ensured and danger can come from

the device.

mSingle core wires must be provided with

sleeves.

Only pluggable screw terminals with the same

number of poles and the same type of construction

are permitted to be connected together.

This device is to be operated and maintained exclusively

by specialized personnel.

Specialized personnel are persons, that based on their

respective training and experience, are qualiﬁed to

recognize risks and prevent potential dangers that can be

caused by the operation or maintenance of the device.

Additional legal and safety regulations required for

the respective application are to be following during

the use of the device.

UMG 96RM-P/-CBM

Note concerning these operating

instructions

In doing so note that fundamental ex-

planations for commissioning, operation

and configuration are described in the

operating instructions for the basic device

UMG 96RM. These instructions describe

only the extended functions of the speciﬁc

equipment variant.

CAll screw terminals belonging to the scope

of deliverables are attached to the device.

Concerning these operating instructions

This description of the device expansion is only valid in

conjunction with the operating instructions for the basic

device. Please note the following points:

• Before using the device read the operating instructions

and this description.

• Keep the operating instructions and this description

throughout the complete service life of the product

and have them readily available for reference.

• Pass the operating instructions and this description

on to each subsequent owner or user of the product.

UMG 96RM-P/-CBM

Incoming inspection

The prerequisites of faultless, safe operation of this

device are proper transport and proper storage,

setup and assembly, as well as careful operation and

maintenance. If it can be assumed that risk-free operation

is no longer possible, the unit must be immediately put

out of operation and secured against being put back into

operation again.

The packing and unpacking must be carried out with

the customary care without the use of force and only

using suitable tools. The devices should be visually

checked for ﬂawless mechanical condition.

It can be assumed that risk-free operation is no longer

possible if the device, for example,

• has visible damage

• no longer works despite the mains power supply

being intact

• has been exposed to long-term adverse conditions (e.g.

storage outside the permissible climate limits without

being adapted to the room climate, condensation etc.)

or rough handling during transportation (e.g. fall from a

height, even if there is no visible external damage etc.)

• Please check the scope of deliverables for

completeness before you start with the installation of

the device.

UMG 96RM-P/-CBM

Expanded scope of delivery UMG 96RM-P or -CBM

Number

Item no. P-

Expansion

CBM-

Expansion

Designation

1 52.22.xxx* x x UMG 96RM-P or UMG 96RM-CBM*

2 29.01.036 x x Fixing clamps

1 33.03.142 x x Operating instructions "Expansion UMG 96RM“.

1 10.01.835 x x Screw terminal, pluggable, 2-pole (current measurement I4)

1 10.01.833 x x Screw terminal, pluggable, 10-pole (digital inputs/outputs)

1 08.02.434 x x USB connection cable A/B, 1.8m long

Available accessories

Item no. Designation

21.01.058 Battery 3V, TYP CR2032 (according to UL1642)

29.01.907 Seal, 96 x 96

18.08.094 RS485, external terminating resistor, 120 Ohm

15.06.015 Interface converter RS485 <-> RS232

15.06.025 Interface converter RS485 <-> USB

13.10.539 D-sub Proﬁbus connector

* See delivery note for item number and design variant x = included in scope of delivery - = not included in scope of delivery

UMG 96RM-P/-CBM

Product description

Proper use

The UMG 96RM is intended for the measurement and

calculation of electrical parameters such as voltage,

current, power, energy, harmonics etc. in building

installations, on distribution units, circuit breakers and

busbar trunking systems.

The UMG 96RM is suitable for integration into ﬁxed and

weatherproof switch panels. Conductive switch panels

must be earthed. Can be installed in any attitude.

Measured voltage and measured current must derive

from the same network.

The measurement results can be displayed and can be

read out and further processed via the interfaces.

The voltage measurement inputs are designed for

measurements in low voltage networks, in which rated

voltages of up to 300V relative to earth and surges in

overvoltage category III can occur.

The current measurement inputs of the UMG 96RM are

connected via external ../1A or ../5A current transformers.

The measurement in medium and high voltage networks

is implemented in principle via current and voltage

transformers. The UMG 96RM can be employed both

domestically and in industry.

Device characteristics

• Supply voltage: 230V (95V-240V AC)

• Frequency range: 45-65Hz

Device functions

UMG 96RM

-P -CBM

3 voltage measurements,

300V  

4 current measurements

(via current transformer)  

RS 485 interface

(Modbus RTU)  

Proﬁbus -

USB  

2 + 4 digital outputs  

4 digital inputs  

Clock, memory  

UMG 96RM-P/-CBM

Expanded features of the UMG 96RM variants P and CBM

• Front panel integration device with dimensions 96x96 mm

• Connection via pluggable screw terminals

• LCD display with backlighting

• Operation via 2 buttons

• 3 voltage measurement inputs (300V CATIII)

• Additional 4th current measurement input for current transformer

• RS485 interface (Modbus RTU, slave, up to 115 kbps)

• USB interface

• Only UMG 96RM-P variant: Proﬁbus interface (Proﬁbus DP V0)

• Additional 4 digital outputs

• 4 digital inputs

• Working temperature range -10°C .. +55°C

• Saving of min. and max. values (with timestamp)

• 5 MB ﬂash memory

• Conﬁgurable records, can be read out via RS485 and USB

• Clock

• Battery (with battery monitoring function)

UMG 96RM-P/-CBM

Measuring process

The UMG 96RM measures continuously and calculates all

effective values over a 9 period interval. The UMG 96RM

measures the real effective value (TRMS) of the voltage

and current connected to the measurement inputs.

Parameterising

You can parameterise the UMG via buttons 1 and 2 or

via the RS485 or USB interface.

You can only parameterise a small portion of the functions

directly on the device via the buttons. The list of functions

can be found in table 1 of the installation instructions for

the basic device.

All functions can be parameterised via the serial

interfaces and with the GridVis programming software.

Only the RS485 interface is available on

the basic device.

Additional components that are not

included in the scope of deliverables will

be required for parameterisation via the

RS485 interface.

Andere Handbücher für UMG 96RM-P

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere janitza Messgerät Handbücher

janitza

janitza UMG 96-PA Gebrauchsanweisung

janitza

janitza UMG 96 RM-E Bedienungsanleitung

janitza

janitza UMG510 Bedienungsanleitung

janitza

janitza Profibus DP/V0 UMG604 Stücklistenhandbuch

janitza

janitza UMG 806 Gebrauchsanweisung

janitza

janitza UMG 512 PRO Bedienungsanleitung

janitza

janitza 800-CT8-A Bedienungsanleitung

janitza

janitza UMG 605-PRO Bedienungsanleitung

janitza

janitza RCM 202-AB Bedienungsanleitung

janitza

janitza UMG 804 Gebrauchsanweisung

janitza

janitza UMG 96-PA Bedienungsanleitung

janitza

janitza UMG 503 Bedienungsanleitung

janitza

janitza UMG 804 Bedienungsanleitung

janitza

janitza UMG 96S Bedienungsanleitung

janitza

janitza UMG 801 Bedienungsanleitung

janitza

janitza UMG 103-CBM Bedienungsanleitung

janitza

janitza MRG 512-PRO PQ Flex Bedienungsanleitung

janitza

janitza UMG 96-PA Bedienungsanleitung

janitza

janitza UMG 96 RM-E Bedienungsanleitung

janitza

janitza UMG 605US Bedienungsanleitung

janitza

janitza UMG 96-PA Gebrauchsanweisung

janitza

janitza UMG505 Bedienungsanleitung

janitza

janitza UMG 509-PRO Bedienungsanleitung

janitza

janitza UMG 801 Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung

janitza UMG 96RM-P Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken
