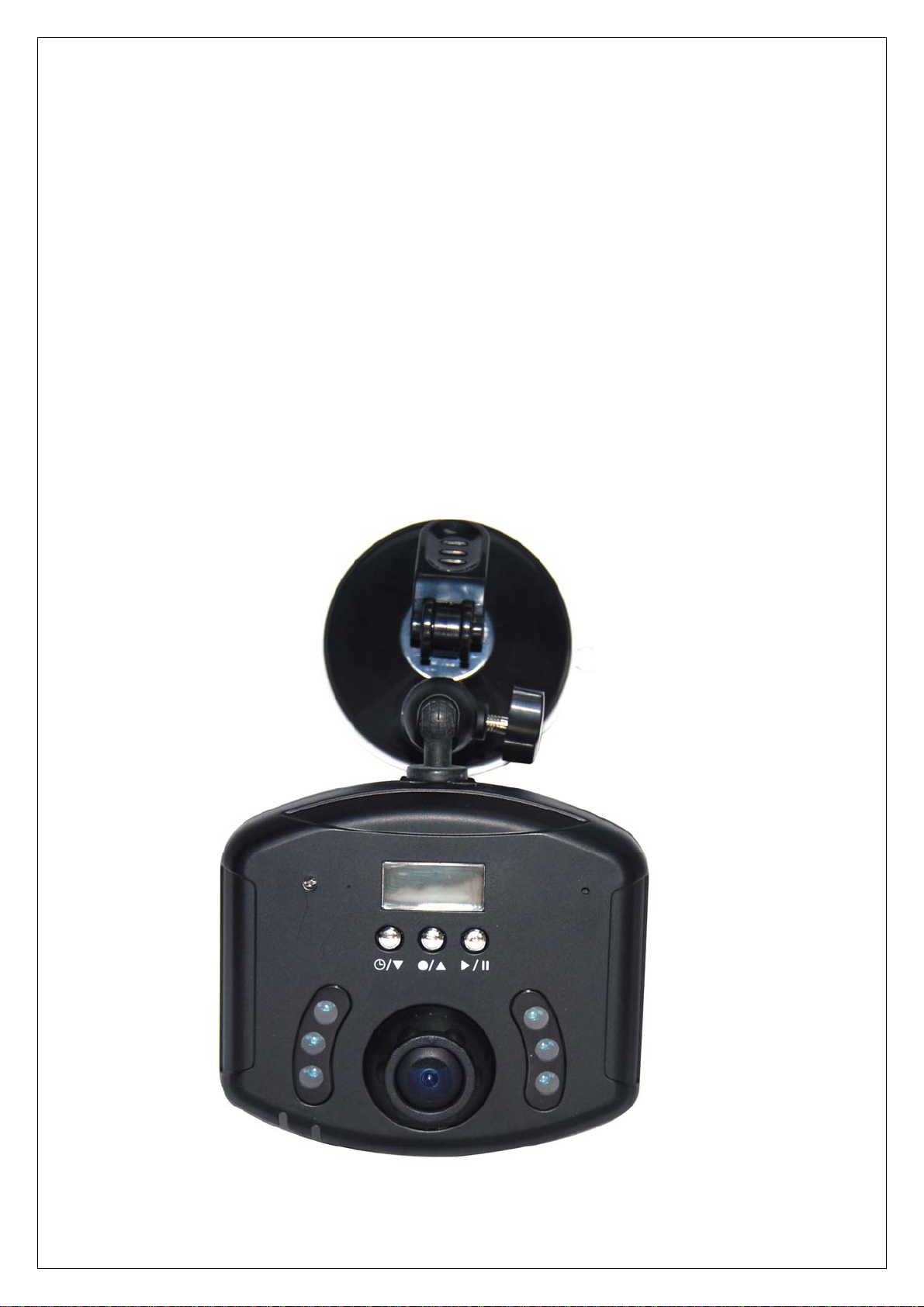

Jaycar QV-3798 Bedienungsanleitung

Car Event Recorder

QV-3798

INSTRUCTION MANUAL

IMPORTANT:

Please read this instruction manual before installing and using this recorder.

1. Introduction

Thank you for purchasing this Car Event Recorder. This recorder is a device to be installed

in your car and record exterior or interior view.

2. Features

1. Video Compression Standard

- MPEG4 video compression

2. Video Processing

- 10s Pre-trigger recording

- Post-trigger recording adjustable

- Record resolution at 640X480 VGA @ 30fps

- Video record in micro SD card

- 3-axis G-sensor for triggering recording on sharp acceleration/deceleration

- G sensor and Manual trigger for Video recording

- Built-in GPS global positioning system.

3. Electrical Parameters

- Wide voltage input 10-30Vdc

- Backup Ni-MH battery for Emergency

- Built in 300K image sensor

- 6 IR LEDs for night vision

- USB 1.1 for Mass Storage driver

- Micro SD card (not included), support SDHC up to 16GB

- Time / G-sensor data stamp on recorded video

- A/V output to connect display for video monitor/playback

- LCD display for time/date

- PC utility software for record playback, data analysis

- Remote control for recording and playback

- Automatically position in GPS the whole worldwide.

-Standard time of GPS position automatic Greenwich.

3. ACCESSORIES INCLUDED

1 x Car Event Recorder

1 x Cigarette DC plug

1x USB cable

1 x Installation software CD

1 x Remote Control

CAUTION:

Please make sure micro SD card has been inserted into the micro SD card slot properly

before operation. Refer to below instruction to install micro SD card.

4. INSTALLATION OF THE RECORDER

When choosing a location to mount the recorder, make sure the recorder is in an area that

will not obstruct your vision while driving.

Choose a Location and Install Power Cable

1. Choose a location on windshield or dashboard of your car, where does not obstruct your

vision.

2. Connect the Cigarette DC plug cable (provided) with the cigarette lighter socket/12V

power outlet of vehicle.

Remark: The cable must not interfere the safe operation of the vehicle.

Mounting the recorder

Before mounting the recorder, clean the mounting surface well.

1. Position the suction cup to smooth surface.

2. Press the suction cap against the smooth surface.

3. Push the locker down to fix the suction mount on the surface.

4. Snap in the recorder to the suction mount.

5. Adjust the mounting arms to suit your viewing angle. Tighten the screw on the mount to

fix the position.

Remark: To maximize the effectiveness of the suction mount, it is recommended the

application is performed under the following conditions:

Surface temperature should be between 21℃to 38℃(70℉and 100℉).

Application below 10℃(50℉) should be avoided.

Application should be avoided in direct sunlight.

Mounting should be protected from exposure to direct sunlight for a period of 24 hours.

5. LOCATION OF CONTROLS

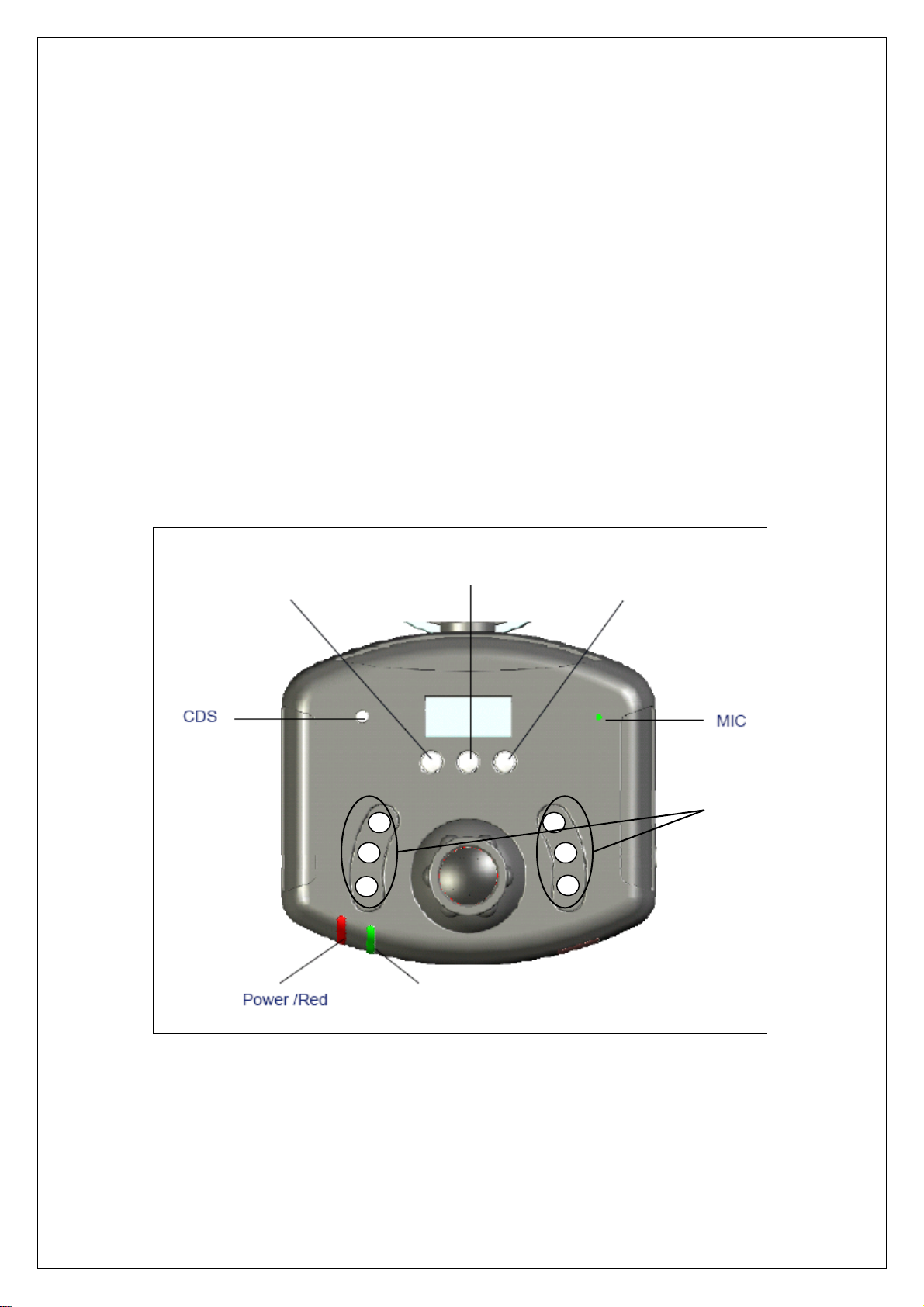

Front View

TIME/DOWN RECORD/UP PLAY/PAUSE

GPS/ GREEN

IR LED

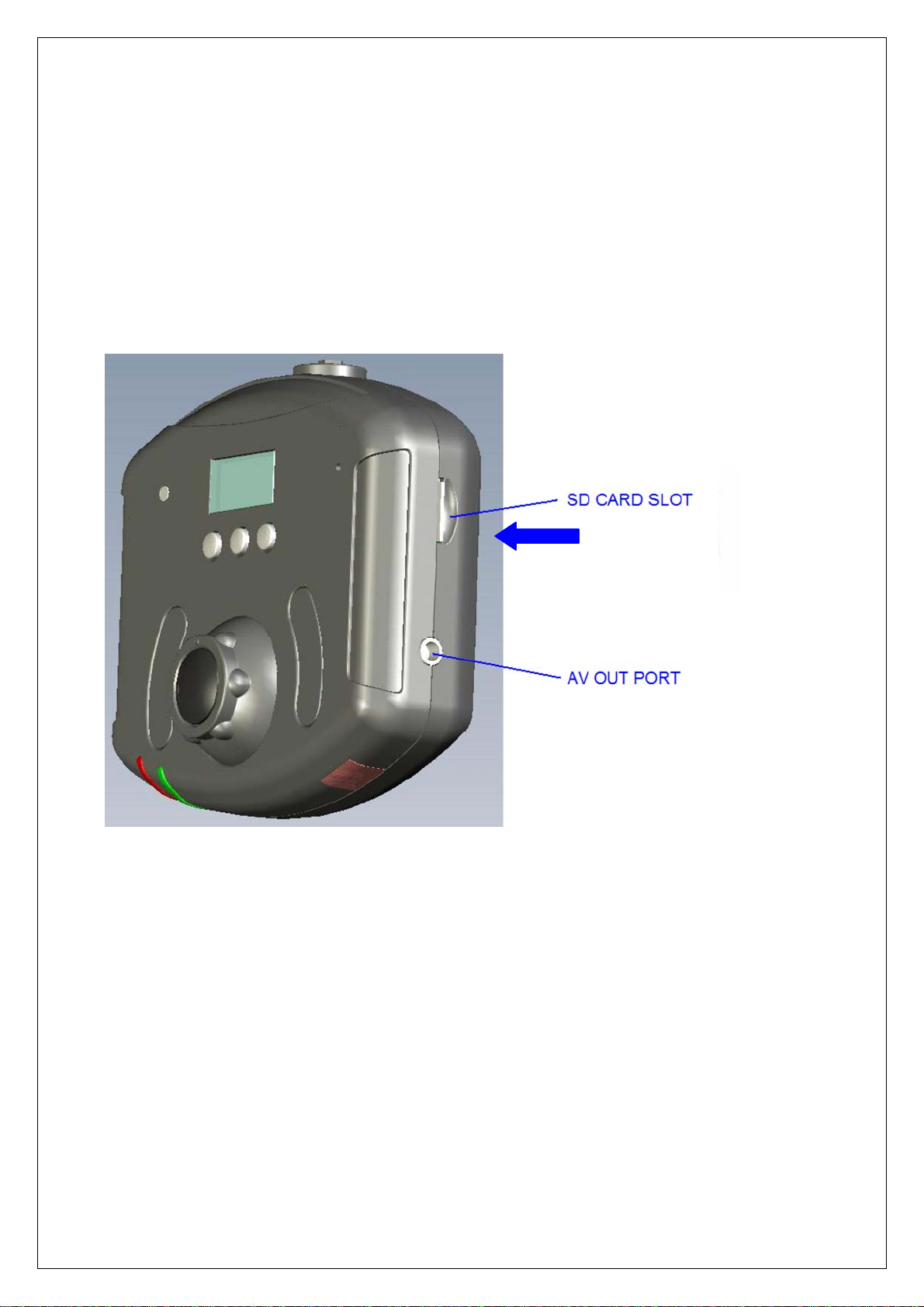

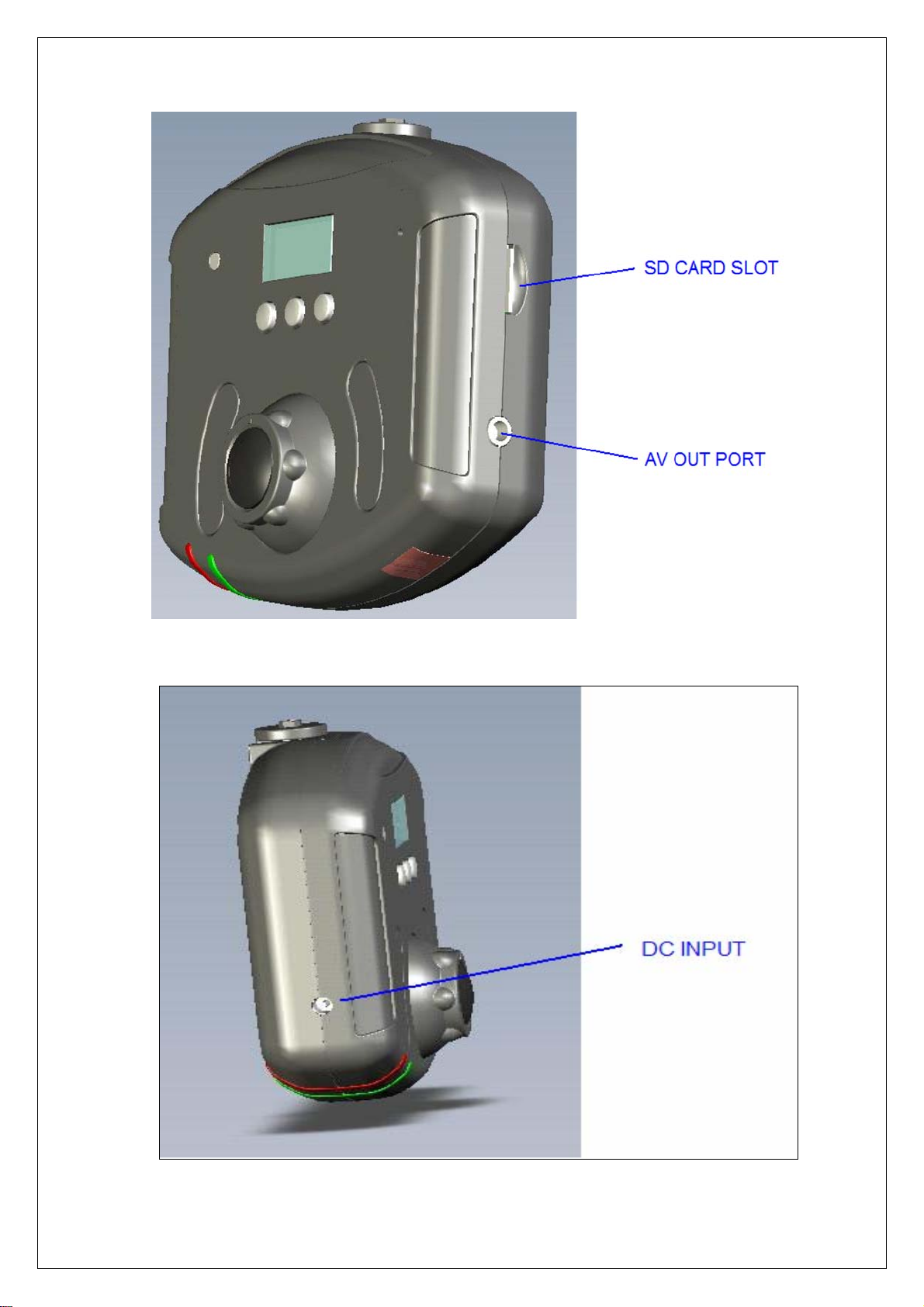

Side View A

Side View B

6. SETTING AND FUNCTION DESCRIPTION

According to specified button + specified operation, the mode of function is shown as

below:

NOTE: Once the unit gets communication with satellites, the time will

automatically synchronize with Greenwich Time of the actual time zone.

LED Indicator

Power/ Recording LED Red Light for Power good and Fast flash for recording

GPS LED Green Flash for Satellite search

Steady Light for satellites fixed

OFF for no satellite or SD card is not inserted。

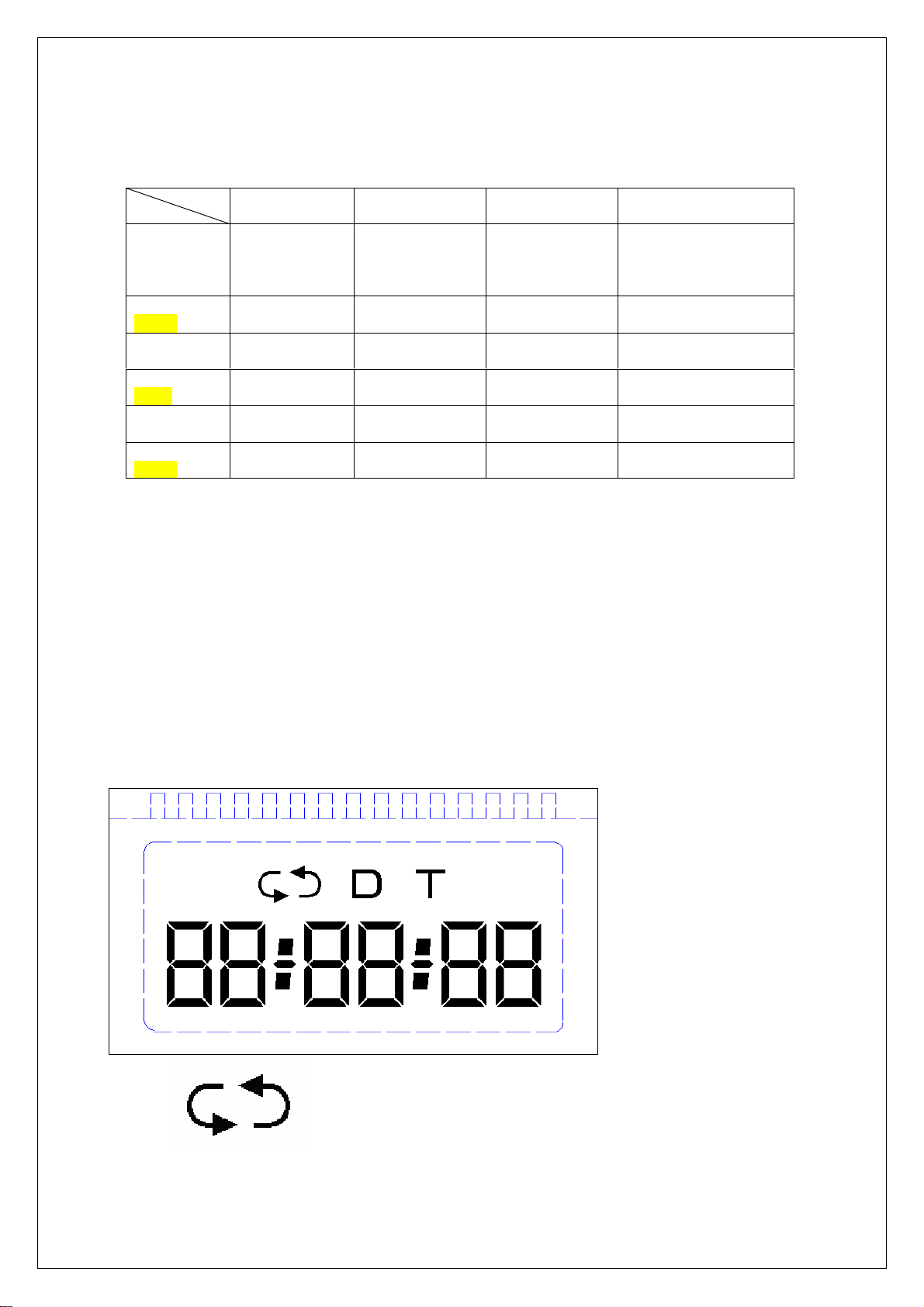

7. LCD DISPLAY

The modes of display are shown as below.

If revolving function is set, this icon lights up.

MODE

Button Time display Play back

(File List) Playback Time setting

TIME Display time/

date Review next file N/A Confirm until date/

time setting finish and

then back to normal

display mode

TIME( press

3sec ) Enter time/date

setting N/A N/A N/A

REC Recording

startup/stop Review last file N/A Date/time increase

REC (press

3sec) Recording

recycle setting N/A N/A N/A

PLAY Enter playback

file list Back to

playback Play/ pause Date/time decrease

PLAY( press

3sec ) N/A Back to

playback Back to

playback file list N/A

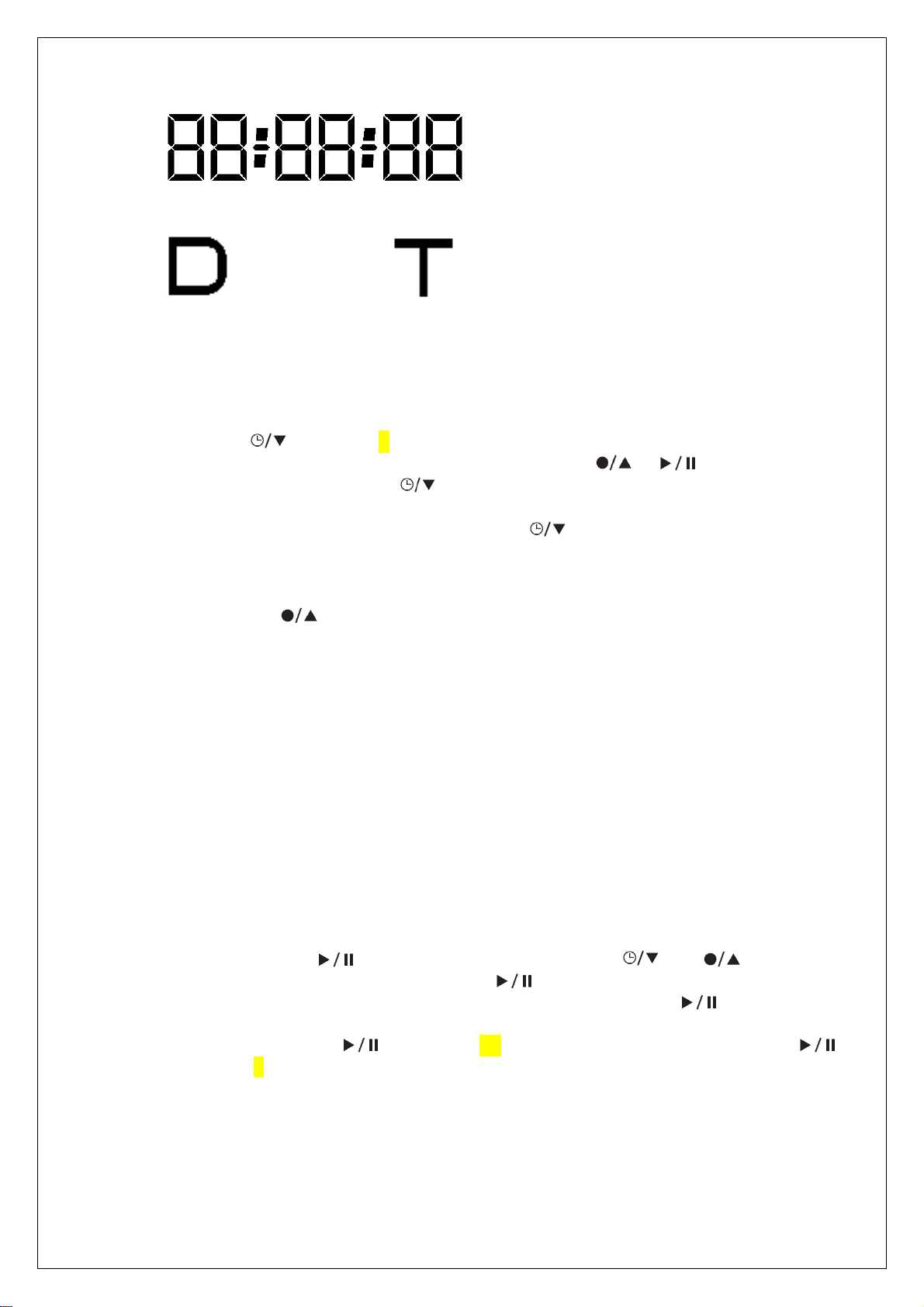

Time Display (for RTC time display, recording time display)

Date icon Time icon

Caution: the sequence of the DATE display is YEAR: MONTH: DAY,

Time display sequence: HOUR: MINUTE: SECOND.

8. USING THE RECORDER

1. Date/Time Setting

Press and hold Button for 3 seconds, enter into Date/Time Setting Mode. The

number indicated Year will flash and can be edited using or buttons.

Once the Year is adjusted, press Button again to confirm and save the setting.

Then, enter into the Month, Day, Hour, Minute, Second setting in sequence. The setting

method is the same as Year setting, finally press to finish all the adjustment.

2. Event Recording

For event recording, it can be triggered by:

a. Manual: Press to start recording. Press again to stop recording;

b. Automatic: Recording is triggered by the built-in G-sensor.

When there is a sharp acceleration/ deceleration, event recording function is

triggered. The event at 10 seconds before the trigger point and 20~60(adjustable)

seconds after the trigger point will be saved.

When recording is in process, the Red LED blinks. Once the recoding is stopped, Red

LED will stop flash and resume to standby mode.

NOTE:

G-Sensor data watermark, Time watermark are stamped on all recorded files.

Resolution of recorded file is 640 x 480 and 30 films per second.

3. File Playback

File Playback can be achieved by:

a. Reviewing on TV set via AV out Setting

Connecting the device to TV set via AV cable (provided), the device enters into live

display mode. Press to get into playback mode, use and to choose

the event file you want to playback; press to confirm. Press once again to play

the file. During playing, you can pause the playback by pressing once; press

once again to resume.

In playing mode, press and hold for 3 seconds to return to play list; press

and hold for 3 seconds again return to live display mode.

b. Review on PC

Press the SD card softly; SD card is to be ejected from SD Card Slot.

Insert the SD card into your card reader (not included); connect your card reader with

your PC; copy the recorded event files you intend to review into your PC hard disk

drive.

▲▼

Use the CER player (player installation software is in the disc provided) or other

popular software media players to play the download files.

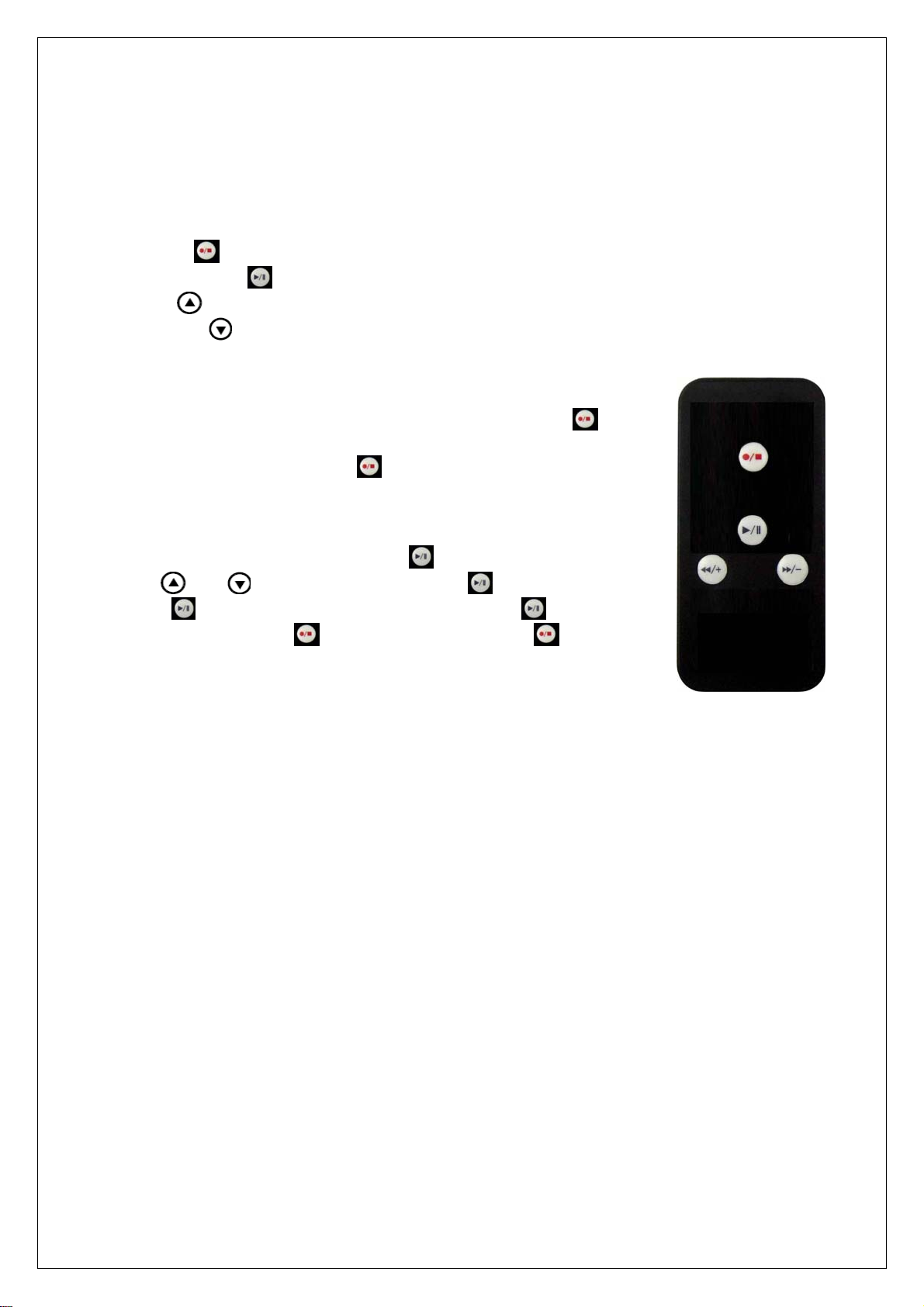

4. Remote control

The unit comes with remote control. The remote control works as the primary input

method for operation.

There are 4 buttons on the remote control:

a. REC

b. PLAYBACK

c. UP

d. DOWN

Event Recording

When the device is connected with power, the device starts to

record and in standby mode for event recording, press to start

event recording, green LED blinks and this indicates event

recording in progress; press again to stop recording, and the

green LED will back to flash.

File Playback via AV out

At AV out live display mode, press to enter playback mode.

Use and to select event file. Press to confirm and

press again to start play, when playing press for pause.

When playing, press return to play list. Press again

return to live display mode and prepare to record.

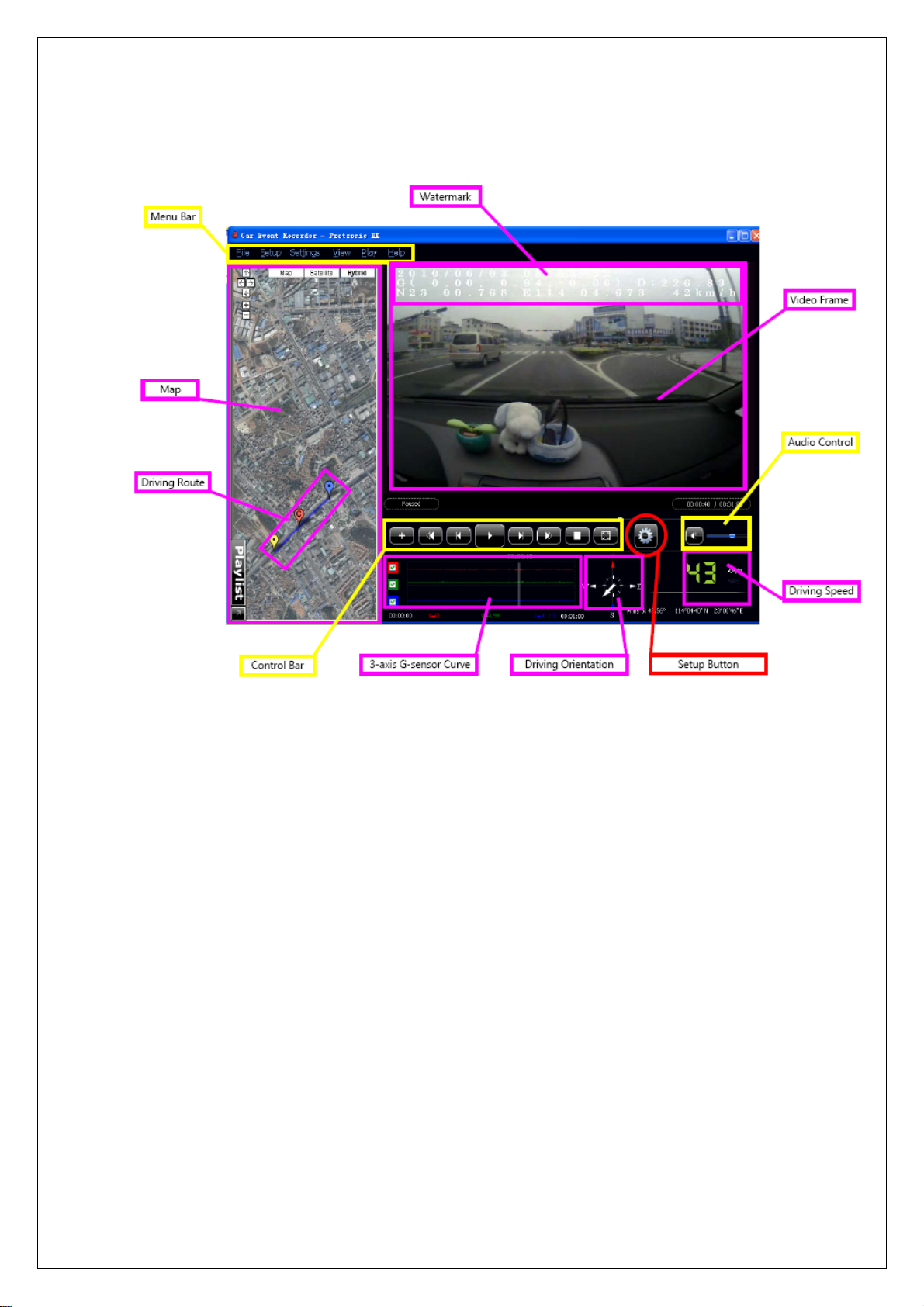

9. CER PLAYER

As this unit is designed with built-in GPS module, the provided CER player is embedded

GPS function as well.

1. Player operation

There are three main zones for operation in this player: Menu Bar, Control Bar and

Audio Control.

a. Menu Bar

Contains six menus: File, Setup, Settings, View, Play and Help.

Use File menu to select file you want to review, or exit the player.

Use Setup menu you can change the speed unit between MPH and KM/H.

Select sub menu in Settings menu--play list--to show or hide the play list.

*play list also can be switched by using the left-bottom corner button.

Select sub menu Full screen of the View menu to set the Video frame full screen.

Via Play menu you can play, pause or stop the video playing.

b. Control Bar

Open and control the video playing by using the buttons contained in Control Bar.

c. Audio Control

Use for adjusting the volume.

2. On screen display

a. Map and Driving Route

At left of the window is the map zone, Driving Route is showed in map as blue line,

light-blue tag at the end means the start point, yellow tag at the other end means

the finish point and red tag with “C” in it means the current point where the car is.

*there are a small arrow icon at the left-bottom corner of the window, left click it to

full window the map for wide view.
