Technical Manual

D315 Decade Series

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

•Nominal Impedance 8 ohms

•Max Amp Power 250 watts

•Frequency Response 40 Hz - 20 kHz (-6dB)

•Sensitivity 96 dB (1 watt @ 1 meter)

•Crossover Frequency 3 kHz/12 kHz

SYSTEM COMPONENTS:

•EnclosureD315 (Not for Sale)

•Grille 334793-004

•Low Frequency 15” (381mm) Paper Cone

Transducer 334656-001

DC Resistance 6.5 ohms ±10%

•Mid Frequency 4” (101mm) Paper Cone

Transducer 334658-001

DC Resistance 3.3 ohms ±10%

•High Frequency 2” (51mm) Paper Cone

Transducer 334659-001

DC Resistance 3.3 ohms ±10%

•Crossover Network 334790-001

AURAL SWEEP TEST SPECIFICATIONS:

•System Aural Sweep Test 6.0V Input 40 Hz to 20 kHz

•L.F. Aural Sweep Test 5.0V Input 40 Hz to 4 kHz

•M.F. Aural Sweep Test 2.0V Input 2 kHz to 12 kHz

•H.F. Aural Sweep Test 2.0V Input 11 kHz to 20 kHz

PHYSICAL SPECIFICATIONS:

•Enclosure dimensions: 30⁷⁄₈” x 16¹⁄₄x 11¹⁄₂”(H x W x D)

784 x 412 x 292 mm

•Weight 35 lbs. (15.8kg) Each

WARRANTY:

• Refer to Warranty Statement packed with each product.

Owner’s Manual

334794-001

Warranty Card

331994-001

Survey Card

331384-001

OWNER’S

MANUAL

Outer Carton

334802-004

Foam Corners (8)

59658

Plastic Bag

PACKAGING WIRING DIAGRAM

9-99JBL Consumer Products, Inc. 250 Crossways Park Dr., Woodbury, New York 11797

D315 — Decade Series

Crossover Network

334790-001

High Frequency

Transducer

334659-001

Mid frequency

Transducer

334658-001

Low Frequency

Transducer

334656-001

20" GREEN

20" GREEN/BLK

16" WHITE

16" WHITE/BLK

19" YELLOW

19" YELLOW/BLK

L.F.

+IN

–IN

1.5mfd 50V

4.7mfd 50V

INPUT

–

M.F.

–

H.F.

–

250

205

250

110

187

110

D315SCHEMATIC

Grille

Retainer (6)

62130

Tweeter

334659-001

Mid Range

334658-001

Screw (4)

#6 x ³⁄₄ PPH

63563

Screw (4)

#6 x ³⁄₄ PPH

63563

Grille

334793-004

Logo Plate

334884-004

Screw (8)

#8 x ³⁄₄ PPH

61868

Woofer

334656-001

Woofer Trim

Ring

334786-001

Crossover

Network

334790-001

Enclosure

D315

(Not for sale)

D315 Decade Series

D315 — Decade Series

9-99JBL Consumer Products, Inc. 250 Crossways Park Dr., Woodbury, New York 11797

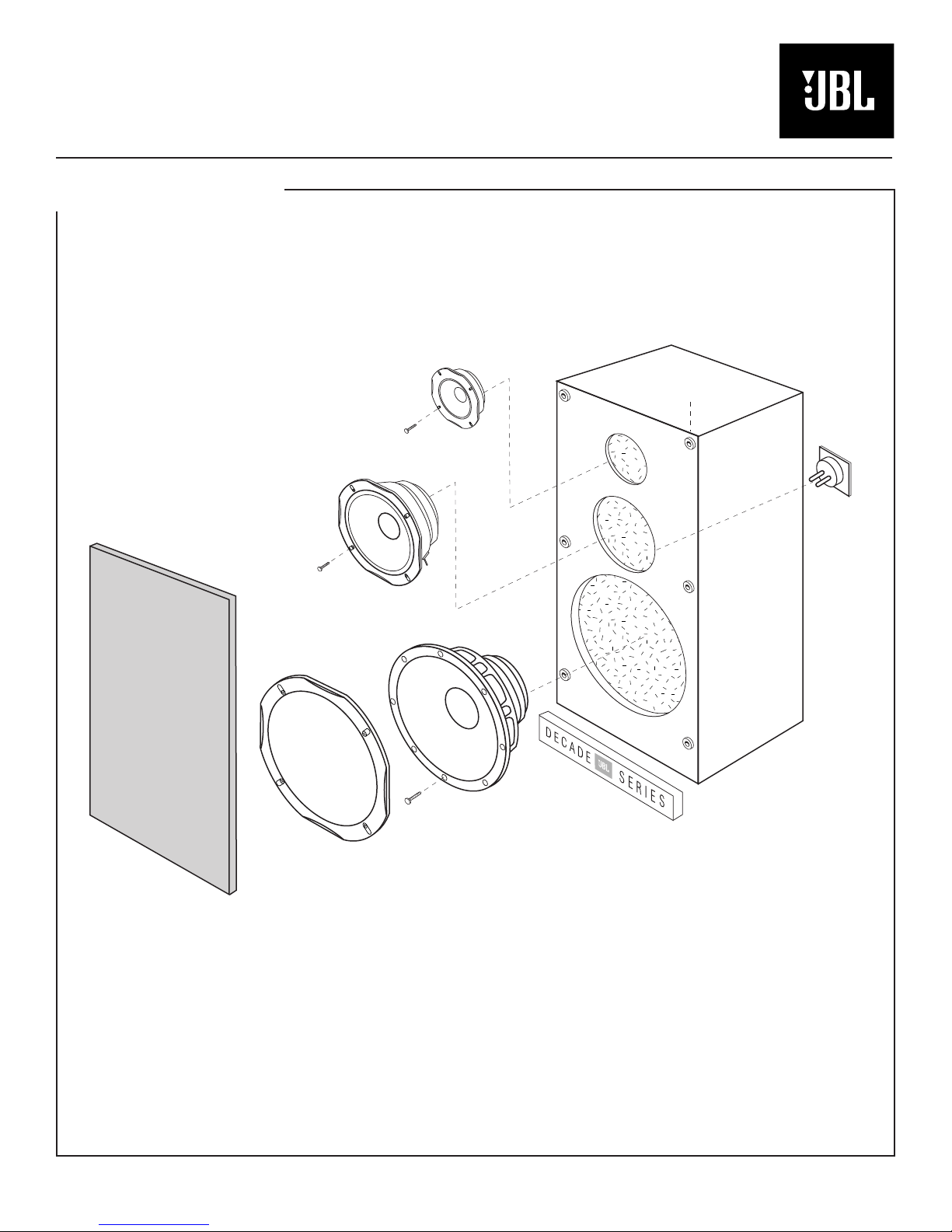

EXPLODED VIEW
