JBL Studio 5 Series Bedienungsanleitung

Owner’s Manual

JBl® studiO 5 series

loudspeakers

thank YOu FOr ChOOsing this JBl® PrOduCt

For more than 60 years, JBL® engineers have been involved in every aspect of music and film recording and

reproduction, from live performances to the recordings you play on the go and in your home, car or office.

We’re confident that the JBL system you have chosen will provide every note of enjoyment you expect – and that when

you think about purchasing additional audio equipment for your home, car or office, you will once again choose JBL

products.

Please take a moment to register your new product on our Web site, www.jbl.com. Registering enables us to keep

you posted on our latest advancements and helps us to understand our customers and build products that meet their

needs.

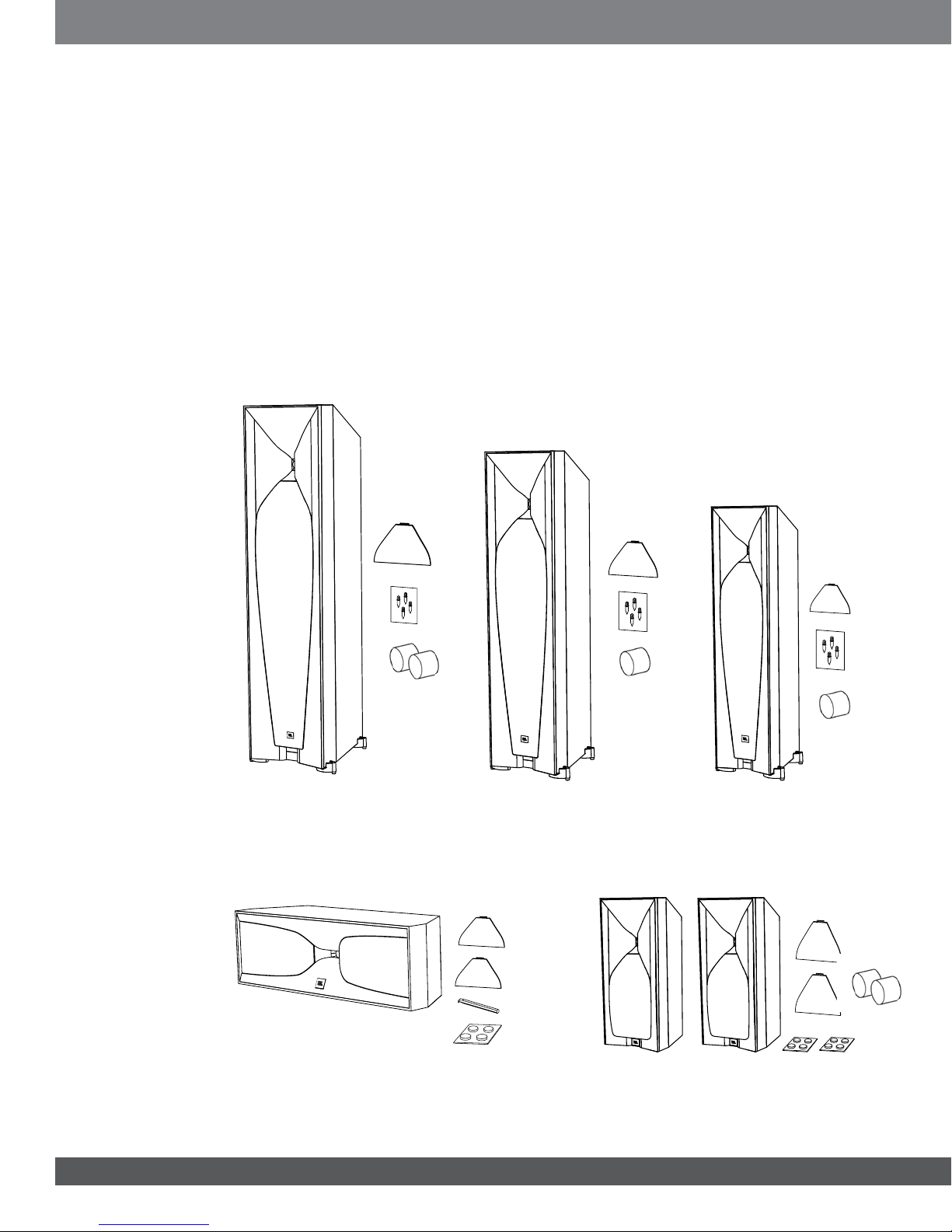

inCluded iteMs

Studio 590

One Studio 590 speaker; one

horn cover; two port tube

inserts; four metal spikes Studio 580

One Studio 580 speaker; one

horn cover; one port tube

insert; four metal spikes

Studio 570

One Studio 570 speaker; one

horn cover; one port tube

insert; four metal spikes

Studio 530

Two Studio 530 speakers;

two horn covers; two port

tube inserts; two cards with

adhesive rubber feet

Studio 520C

One Studio 520C speaker;

two horn covers; one grille

removal tool; one card with

adhesive rubber feet

www.jbl.com

English

PlaCeMent

STUDIO 590/STUDIO 580/STUDIO 570/STUDIO 530 – LEFT AND RIGHT CHANNELS

For the best results, place the speakers 6 – 10 feet (1.8m – 3m) apart. Angling the speakers toward the listening

position can improve the stereo imaging. The speakers will produce the most accurate stereo soundstage when the

angle between the listener and the speakers is between 40 and 60 degrees.

6 – 10 ft

(1.8m – 3m)

40° – 60°

>20 in

(>51cm)

Generally, bass output will increase as the speaker is moved closer to a wall or corner.

For the best performance, we recommend that you place the speakers at least 20 inches (51cm) away from the side walls.

• Position Studio 530 bookshelf speakers so that the centers of their horns are approximately at ear level. Peel the

adhesive rubber feet from the card and apply them to the bottoms of the speakers.

Rubber

Feet

USING THE SUPPLIED SPIKES (STUDIO 590/STUDIO 580/STUDIO 570)

Four metal spikes are supplied for use when you place the speaker on a carpeted surface. Using the spikes decouples

the speaker from the floor and prevents unwanted acoustic damping.

To insert the spikes:

1. Gently lay the speaker on its side (not its front or back) on a soft, nonabrasive surface.

2. Unscrew and remove the rubber bumpers from the speaker’s feet.

3. Screw each spike into the threaded insert in each foot. Make sure all four spikes are screwed in completely for stability.

Note: NEVER drag the speaker to move it, as this will damage the spikes, the feet and/or the speaker cabinet itself.

Always lift the speaker and carry it to its new location.

STUDIO 520C

You should place the 520C center speaker directly above or below the center of your TV screen. The center of the

speaker’s horn should be no more than 2 feet (61cm) above or below the centers of the front left and front right

speakers’ horns. If your TV set is deep enough, you can set the center speaker on top of the TV, with the speaker’s

front edge even with the TV’s front edge.

Studio 520C

Center Speaker

Studio

590/580/570/530

Front Left Speaker

Studio

590/580/570/530

Front Right Speaker

< 2ft (61cm)

• Peel the adhesive rubber feet from the card and apply them to the bottom of the speaker.

Rubber

Feet

www.jbl.com

English

STUDIO 530 – SURROUND CHANNELS (5.1-CHANNEL SYSTEM)

When you use Studio 530 speakers as surround-channel speakers in a 5.1-channel system, place them slightly behind

the listening position, facing each other. Ideally, they should be 3 – 4 feet (0.9m – 1.2m) above the floor. An alternate

location would be on a wall behind the listening position, facing forward. The surround speakers should not call

attention to themselves while they’re playing. Experiment with their placement until you hear a diffuse, ambient sound

accompanying the sounds that you hear from the front left, front right and center speakers.

Studio

590/580/

570/530

Front Left

Speaker

TV Studio 520C

Center Speaker

Studio

590/580/

570/530

Front Right

Speaker

Studio 530

Surround Left

Speaker

Studio 530

Surround Right

Speaker

Surround Right

Speaker

Surround Left

Speaker

3 – 4 ft

(0.9m – 1.2m)

STUDIO 530 – SURROUND CHANNELS (7.1-CHANNEL SYSTEM)

When you use Studio 530 speakers as surround-channel speakers in a 7.1-channel system, place the surround side

speakers directly to the sides of the listening position, at least 3 – 4 feet (0.9m – 1.2m) above the floor. Place the

surround back speakers on the wall behind the listening position, also at least 3 – 4 feet (0.9m – 1.2m) above the floor

and 3 – 6 feet (0.9m – 1.8m) apart.

Studio

590/580/

570/530

Front Left

Speaker

Studio 530 Left

Surround Back Speaker

Studio 530 Right

Surround Back Speaker

Studio 520C

Center Speaker

3 – 6 ft apart

(0.9m – 1.8m)

Studio

590/580/

570/530

Front Right

Speaker

Studio 530

Surround Left

Speaker

Studio 530

Surround Right

Speaker

reMOVing the grilles

You can remove the Studio 5 speaker grilles by pulling them away from the enclosure, starting at the bottom.

Remove Grille

Starting at

the Bottom

www.jbl.com

English

REMOVING STUDIO 520C GRILLES

To remove the Studio 520C grilles, use the provided grille removal tool to pull the grilles away from the enclosure as

shown, then remove them the rest of the way by hand.

Use Tool to Pull Grilles

Away from Cabinet

ATTACHING THE HORN COVERS

If you remove the speakers’ grilles, attach the provided horn covers as shown. Make sure that both rubber bumpers on

the horn cover fit into the holes in the speaker.

Fit Tab

into Slot

Fit

Bumpers

into Holes

COnneCtiOns

CAUTION: Make sure that all of the system’s electrical components are turned OFF (and preferably

unplugged from their AC outlets) before making any connections.

Speakers and amplifiers have corresponding positive and negative (“+” and “–”) connectors. All Studio 5 series

speakers have connectors that are marked “+” and “–” on the terminal-cup assembly. Additionally, the “+” connectors

have red markings, while the “–” connectors have black markings.

To ensure proper polarity, connect each “+” connector on the back of the amplifier or receiver to the respective “+”

(red) connector on each speaker. Connect the “–” connectors in a similar way. Do not reverse polarities (i.e., “+” to “–”

or “–” to “+”) when making connections. Doing so will cause poor stereo imaging and diminished bass performance.

IMPORTANT: Make sure the “+” and “–” wires or connectors do not touch each other or the other terminal.

Touching wires can cause a short circuit that can damage your receiver or amplifier.

The Studio 5 series speakers’ gold-plated speaker connectors can accept a variety of wire connector types: bare wire,

pin connectors, spade connectors and banana connectors.

USING BARE WIRE OR PIN CONNECTORS:

1. 2. 3.

USING SPADE CONNECTORS:

1. 2. 3.

USING BANANA CONNECTORS:

1. 2. 3. 4.

www.jbl.com

English

BASIC SINGLE-WIRE CONNECTION

To connect the speakers using a single wire, connect the amplifier to each speaker as shown in the illustration below.

You can use either set of connectors on the connector panel.

IMPORTANT: Do not remove the metal jumper bars from between the two sets of connectors when

connecting the speaker wires.

+ –

Use Either Set

of Connectors

Do Not Remove

Jumper Bars

Receiver or Ampliﬁer

(One Channel Shown)

Speaker

Connector Panel

BI-WIRE CONNECTION

All Studio 5 series speaker connector panels have two sets of input connectors that are joined by metal jumper

bars. The upper set of connectors is for the compression-driver/horn assembly, and the lower set of connectors is

for the woofer(s). This arrangement allows you to bi-wire the speakers using a single stereo amplifier or using two

stereo amplifiers. Bi-wiring can offer performance advantages and more flexibility in power-amplifier selection over a

conventional single-wire connection.

Before bi-wiring the speakers, remove the jumper bars.

Remove Jumper Bars

Compression Driver/

Horn Connectors

Woofer

Connectors

SINGLE-AMPLIFIER BI-WIRING

Ampliﬁer

Left

Ch.

Right

Ch.

Left

Speaker

Right

Speaker

Compression Driver/

Horn Connector

Woofer

Connector

Compression Driver/

Horn Connector

Woofer

Connector

DUAL-AMPLIFIER BI-WIRING

Ampliﬁer 1

Ampliﬁer 2

Left

Ch.

Left

Ch.

Right

Ch.

Right

Ch.

Left

Speaker

Right

Speaker

Compression

Driver/Horn

Connector

Compression

Driver/Horn

Connector

Woofer

Connector Woofer

Connector

For more information about various speaker-wire and connection options, contact your local JBL dealer.
