PACKAGE WIRING DIAGRAM

08-12

Technical Manual

JBLVT4882DP-AN/CN/DA

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance: 8 Ohms, each transducer

• DP3 Internal Amplification Output

(at normal load): 3400W Peak, 1700W Continuous

• DP3 LF Output 2-Channel Class-I Output at norminal

Section: load: 118V peak

• Frequency Response: 32 Hz – 110 Hz (±3 dB)

• Frequency Range: 28 Hz – 120 kHz (-10 dB)

• Max. Peak Output: 133 dB SPL, 1m

• Signal Processing: DSP based, resident in Input Module

• AC Power Operating Auto Select 90-132VAC/216-264VAC,

Range: 50/60 Hz

• AC Line Voltage: 50/60 Hz, Auto-Detect: 120V / 240V

(-15%, +10%)

• AC Input Connector: Neutrik PowerCon

• AC Power Loop: Neutrik PowerCon

• AC Current 6A per system at 120V, 3A per

Requirement: System at 240V

SYSTEM COMPONENTS:

• Cabinet: Enclosure Assembly C4882

• Grille: 353238-001

• Low Frequency (2) x 2266H (15 in) dia., 381 mm (3 in)

Transducer: Dual Coil, Differential Drive, Direct

Cooled

• DC Resistance: 4.8 ohms x 2

AURAL SWEEP TEST SPECIFICATIONS:

System Aural Sweep Test: 70

.mV Input, 20 Hz to 200 Hz

B. L.F. Aural Sweep Test: 10.0V Input, 10 Hz to 300 Hz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 1013 mm x 457 mm x 1011 mm D

(39.9 in. x 18 in. x 39.8 in. D)

• Net Weight: 154 lbs. (69.9 kg.)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Warranty 59660

Carton

354739-001

Filller (2)

354740-001

Microfoam Pkg (8)

49790P

Sheets

Protective Jackets

(2) Drive Pack

360849-001

Power Cord

Assembly

355040-002

Pack, Edison /

Shurcko

CD,Network DrivePack

361908-003

Driver (2)

Low Freq

2266H

(353418-001X)

Cone Repl

C8R2266 Input Cup

Assembly

352817-001

Operators Guide

dbx Module

360850-002

Wire Harness

Schematic

355079-001

VT4882DP-ACC

Dolly Assembly

353245-001

Soft Cover

360778-001

Tube (2)

360883-001

Insert (2)

360823-001

Carton

360824-001

JBL VT4888-SF

Carton

350706-001

Filler (2)

350713-001

Owner’s Manual

350485-001

JBL VT4888-AF

Carton

350484-001

Filler (2)

350486-001

Owner’s Manual

350485-001

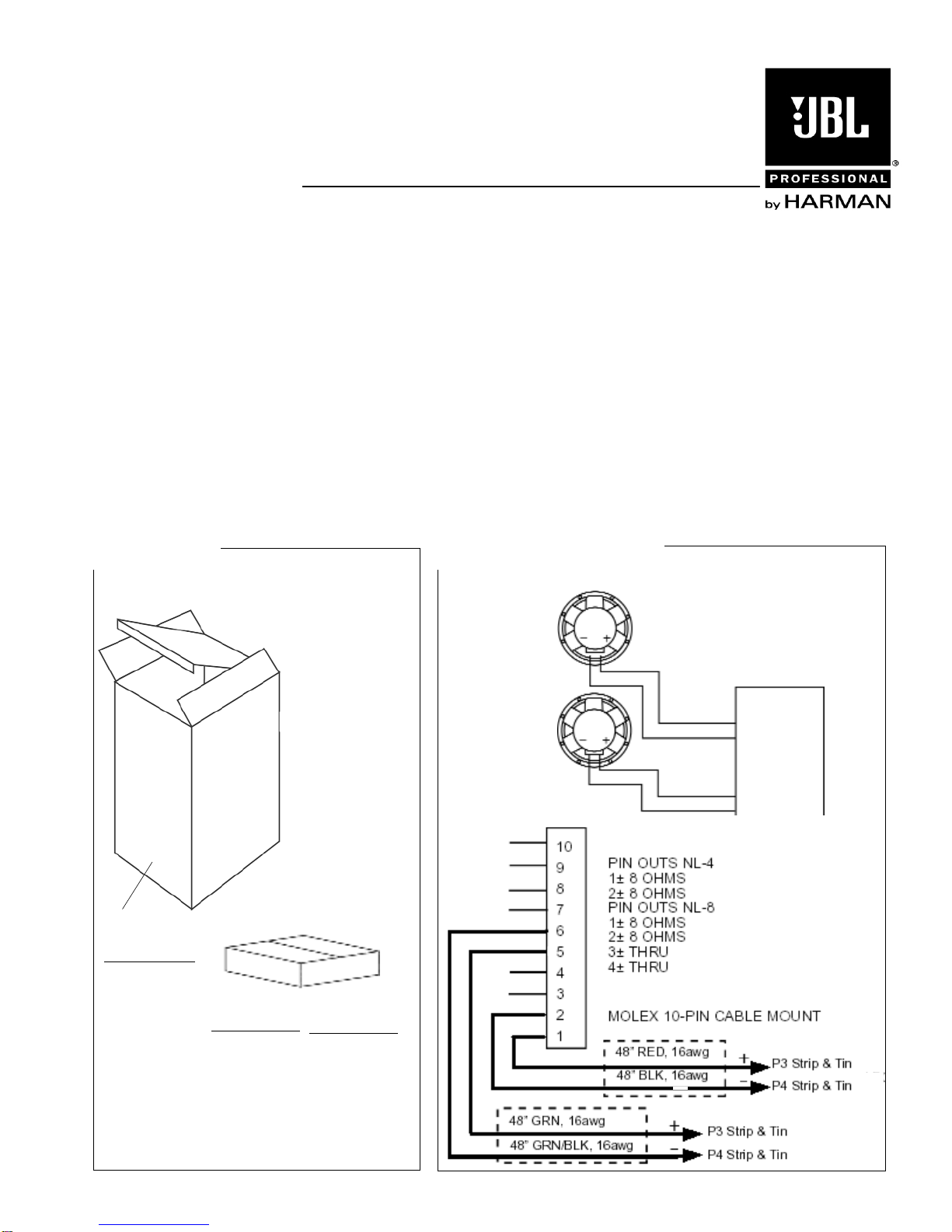

352270-001 Connector Assembly Diagram 352087-001 Wire Harness Diagram

JBLVT4882DP-AN/CN/DA

JBL VT4882DP-AN/CN/DA

SCHEMATIC DIAGRAMS

(Ribbon Cable)

JBLVT4882DP-AN/CN/DA

COMPONENT EXPLODEDVIEW

JBL VT4882DP-AN/CN/DA

Lock Bar Cushion (2)

354332-001

Hinge Lock Bar (2)

353360-001

Screw (16)

864-11000-12

10-32 x 3/4

FLT,PH,CLR,ZINC,

LCS

Washer (4)

339235-001

Flat

Wave Washer (4)

339236-001

Front End Pad (2)

353240-001

Screw (4)

806-42010-32

1/4-20 X 2

PAN,TORX,

BLK, ZINC,

LCS

Washer (4)

337183-001

.25 x.5

Flat,ZINC

Quick Release Pin (8)

361343-001

1.75” Long

Screw (8)

804-41110-12

10-32 x 3/4

PAN,PH,BLK,ZINC,

LCS

Washer,(2)

354305-001

Screw (8)

881-41100-10

4 x 5/8

PAN,PH,PB,CLR,

ZINC,LCS

Dolly Retainer

Pin (2)

351696-001

Front Rigging

Tube, (2)

353243-002

Screw (4)

338885-001

1/4 x 1”

FLT,HD,SOCKET

GRD8, PATCH

Rigging Pad (8)

351001-001

Rigging Bracket (16)

351922-001

Screw (16)

802-11010-16

6-32 x 1

FLT,PH,BLK,ZINC,

LCS

Dolly Locking Pin (2)

351798-002

Nut (2)

836-36110-00

3/8-24

Nylon,BLK, ZINC,

LCS, RIGHT

Grille

353238-001

Screw (10)

804-42110-12

1-32 x 3/4

PAN,TORX,BLK,ZINC,LCS

Grille Bracket (2)

354060-001

Grille Bracket Gasket (2)

354061-001

Screw (4)

881-11110-08

4 x 1/2

FLT,PH,PB,BLK, ZINC,LCS

Grille Trim

353239-001

Driver, Low Freq (2)

2266H

(353418-001X)

Cone Repl

C8R2266

Gasket, Rear (2)

360-70002-01

15”

Screw (16)

804-72110-24

10-32 x 1 1/2

SKT,TORX,BLK,

ZINC,LCS

Dust Dome (2)

71646-04

Handle (4)

923-00022-07

Gasket, Handle (4)

382-00337-00

Screw (16)

804-41110-16

10-32 x 3/4

PAN,PB,PH,

BLK,ZINC,LCS

Screw (24)

884-41110-12

10 x 3/4

PAN,PH,PB,ZINC,

LCS

Front Hinge Assembly, (2)

364136-001

Slider Knob (2)

350839-001

10-32 x 5/8

PATCH

R.A.P

354965-001

Rear Rigging Tube (2)

353244-002

Screw (4)

338885-001

1/4” x 1”

FLTHD,SKT,

GRD8, PATCH

Rear Hinge Assembly, (2)

364137-001

R.A.P.

354965-001

Rear End Pad (2)

353241-001

Screw (4)

806-42010-32

1/4-20 x 2

PAN,TORX,BLK

ZINC,LCS

Washer (4)

337183-001

.25 x .5 Flat,

ZINC

Feet (8)

338948-001

Screw (8)

806-42010-32

1/4-20 x 2

PAN, TORX,BLK

ZINC,LCS

Hinge Cushion

(2)

339201-001

Input Cup Assemly

352817-001

Wire Harness

355079-001

Screw (8)

804-31110-20

10-32 x 1 1/4

TRUSS,PH,BLK,

ZINC,LCS

Connector Assembly

352270-001

Input Cup

352271-001

Amplifer Assembly

354344-003X (DP)

354344-004X (AN)

354344-005X (CN)

354344-006X (DA)

Wire Harness

352087-001

(Ribbon Cable)

Gasket

352818-001

*PLEASE see the

next page for the

individual JBL parts

numbers for the

PWA’s.

AMPLIFIER ASSEMBLY

354344-001

Amplifier Assemblies

Note: If ordering an input module you must order 1 of the tuning files below depending

on the system model number.

DP-dbx DP-AN DP-CN DP-DA

361541-001X 361092-001X 361093--001X 444668-001X

Model Numbers Tuning File Part Numbers

VT4888DP 355059-001 361885-001 361886-001 444729-001

VT4882DP 361282-001 361887-001 361888-001 444728-001

VT4889ADP 365137-001 365113-001 365136-001 444731-001

VT4880ADP 365139-001 365114-001 365138-001 444730-001

DP3

Note: Amplifier asembly includes the input module.

Part No. Description

354344-001 Amplifier Assembly,Base Model, VT-Series

354344-002X Amplifier Assembly,VT4888DP

354344-003X Amplifier Assembly,VT4882DP

354344-004X Amplifier Assembly,VT4882DP-AN

354344-005X Amplifier Assembly,VT4882DP-CN

354344-007X Amplifier Assembly,VT4888DP-AN

354344-008X Amplifier Assembly,VT4888DP-CN

354344-010X Amplifier Assemby, VT4880ADP

354344-011X Amplifier Assembly, VT880ADP-AN

354344-012X Amplifier Assembly, VT4880ADP-CN

354344-014X Amplifier Assembly, VT4889ADP

354344-015X Amplifier Assembly,VT4889ADP-AN

354344-016X Amplifier Assembly, VT4889ADP-CN

354344-017X Amplifier Assembly, VT4889ADP-DA

354344-006X Amplifier Assembly, VT4882DP-DA

354344-009X Amplifier Assembly, VT4888DP-DA

354344-013X Amplifier Assembly, VT4880ADP-DA

Input Modules

Gasket, Cabinet (2)

354341-001

Screen (2)

354290-001

End cap,

353901-001

End cap,

353901-001

Screw (4)

354379-001

1/4-20 x 1 1/2,5/16

SHLDR,BLKLUBE

Screw (4)

354379-002

1/4-20 x 3/4, 5/16

SHLDR, BLKLUBE

Screw (4)

873-33014-10

8-32 x 5/8

SCKT,CAP,DBX

BLK,ZINC

Riser, DP

353829-001

Gasket, Riser

353830-001 Badge,Center

354382-001

AC Module

Screw (4)

873-33014-10

8-32 x 5/8

SCKT,CAP,DBX

BLK,ZINC

Riser, DP

353829-001

Gasket, Riser

353830-001

Label, Overlay,

354380-002

Module,

354446-003

Knob, Volume,Vert.

355039-002 (dbx Only)

Foam Pad

382-00325-00

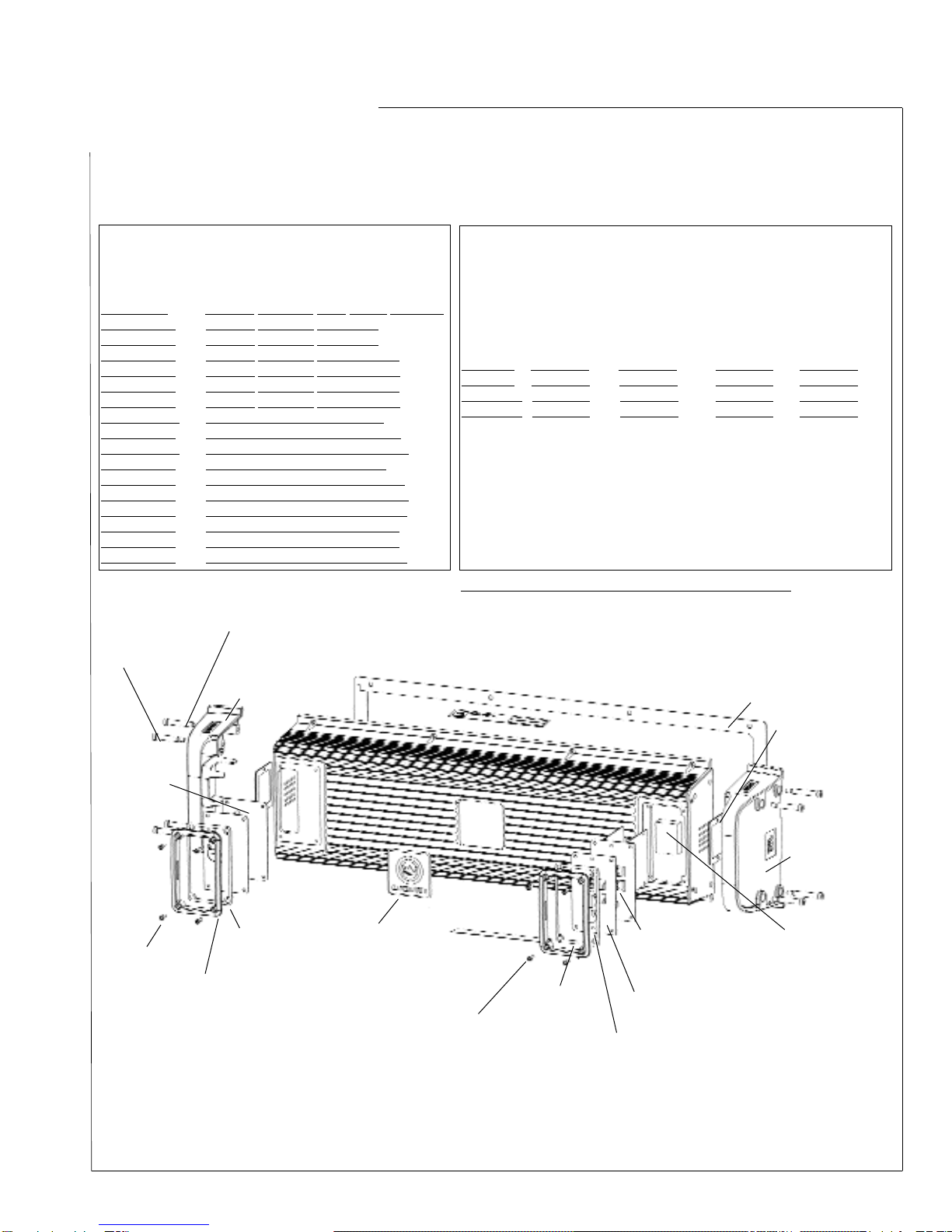

DP3 AMPLIFIER ASSEMBLY REFERENCE

PWA, DP3 Panel

137338-5JBL

(Main)

PWA, DP3 Output

140193-1JBL

Note: These (7) individual PWA’s are out of the main panel:

PWA, DP3 Main

137338-4BJBL

PWA,DP3 SMPS

137338-4CJBL

PWA, DP3 LVPS

137338-4DJBL

PWA, DP3 LF MOD

137338-4EJBL

PWA,DP3 MF MOD

137338-4FJBL

PWA,DP3 HF MOD

137338-4GJBL

PWA,DP3 SPKR INTER

FACE

137338-4HJBL

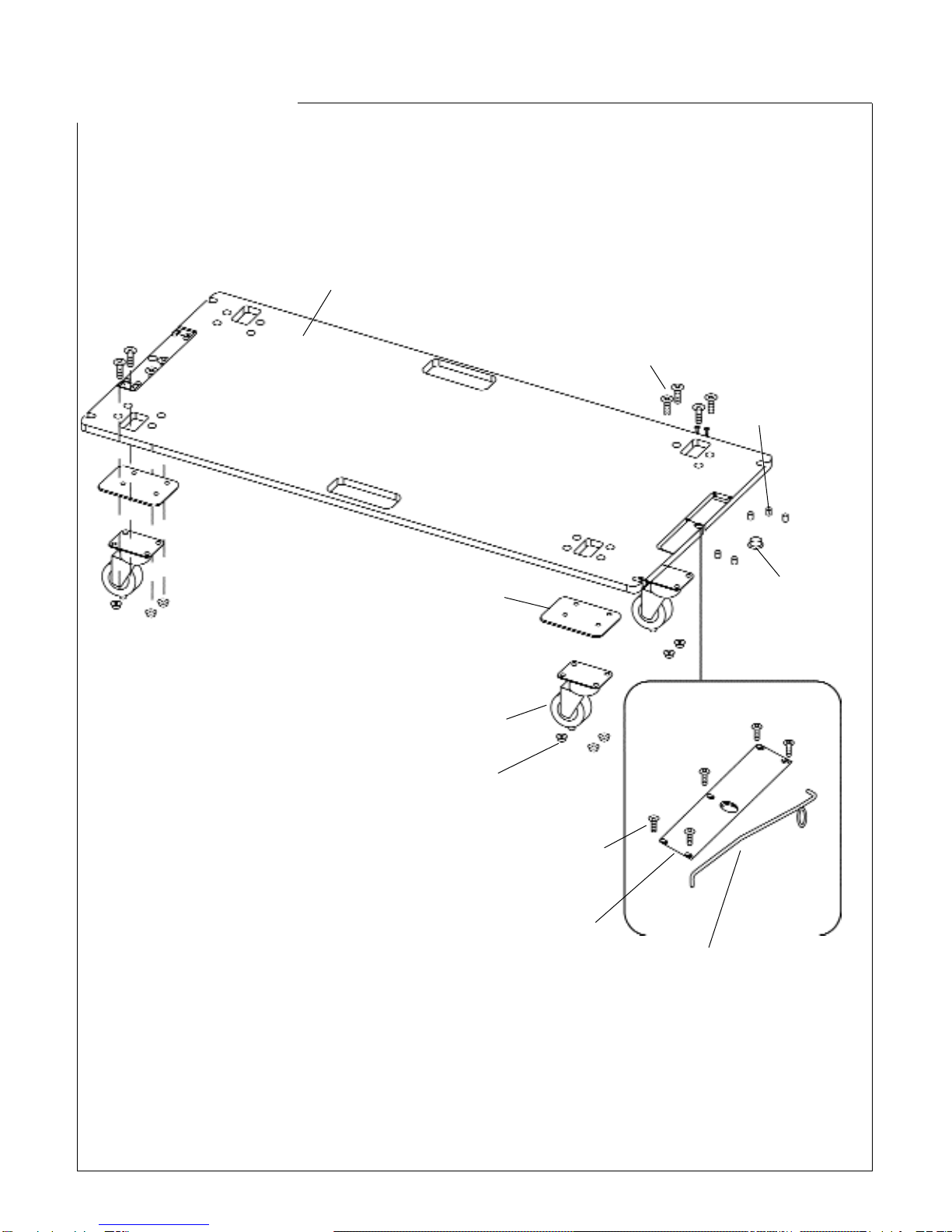

JBL VT4882DP-ACC

DOLLY ASSEMBLY

353245-001

Dolly Platform

353247-001

Screw (16)

807-13000-20

5/16 -18 x 1 1/4

FLT,HEX,CLR

ZINC,LC Insert (8)

8161207-001

8-32 x 4mm

HXS,

KNIFE32608C10ZC

T-Nut (2)

21749

8-32 x 1/4

Spring Assembly (2)

351899-001

Cover (2)

Dolly Housing

351893-001

Screw (12)

803-11000-08

8-32 x 1/2

FLT,PH,CLR

ZINC,UNC

Caster Wheels (4)

339514-001

Caster Plate (4)

339513-001

Nut (16)

352018-001

Nylock Special

JBLVT4882DP-ACC

JBL VT4888-SF

ARRAY FRAME ASSEMBLY

JBLVT4888-SF

Pin, Ball Locking Assembly (4)

361345-001

4 in.

Frame Assembly

350648-001

Front Hinge Block

339896-004

Bolt (16)

856-00013-00

3/8-16 x 2 1/2

HEX,CAP, BLK

ZINC, MCA

JBL Label

955-00154-00

Screw (4)

804-31110-08

10-32 x 1/2

TRUSS,PH,BLK

ZINC,LCS

Front Hinge Block (4)

339896-003

Bolt (16)

856-00013-40

3/8-16 x 2 1/2

HEX,CAP,

BLK ZINC,MCA

Nut (16)

836-36113-00

3/8-16

Nylon Lock, BLK

ZINC,MCAS,RT

Washer (32)

846-00410-08

3/8 x .08

FLTPL,EX DT

BLK ZINC, CS

ARRAY FRAME ASSEMBLY JBL VT4888-AF

JBLVT4888-AF

Pin, Ball Locking Assembly (4)

361345-001

4 in.

Bolt (16)

856-00013-48

3/8-16 x 2-1/2

HEX,CAP BLK

ZINC,MCAS

Hinge Block (4)

339896-004

Array Frame

339897-001

JBL Label

955-00154-00

Nut (16)

836-36101-00

3/8-16

Nylon Lock, BLK

ZINC,MCAS,RT

Screw (4)

804-31110-08

10-32 x 1/2

TRUSS, PH, BLK,

ZINC,LCS

Washer (32)

846-00410-08

3/8 x .08

FLTPL,EX DT,BLK

ZINC,CS

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere JBL Sprecher Handbücher

JBL

JBL L96 Bedienungsanleitung

JBL

JBL On Air Control 2.4G Bedienungsanleitung

JBL

JBL L100 Classic Bedienungsanleitung

JBL

JBL Studio S-CENTERII Bedienungsanleitung

JBL

JBL Lancer L77 Bedienungsanleitung

JBL

JBL L60T Bedienungsanleitung

JBL

JBL L40 Bedienungsanleitung

JBL

JBL Harman Pulse 5 Bedienungsanleitung

JBL

JBL Northridge E Series E20 Betriebsanleitung

JBL

JBL NORTHRIDGE E80 Bedienungsanleitung

JBL

JBL LXE330 Bedienungsanleitung

JBL

JBL 4350 Bedienungsanleitung

JBL

JBL Studio S36 Bedienungsanleitung

JBL

JBL Control Control 1X Bedienungsanleitung

JBL

JBL BOOST TV Bedienungsanleitung

JBL

JBL SYNTHESIS FOUR S4Ai Bedienungsanleitung

JBL

JBL EON 610 Bedienungsanleitung

JBL

JBL 305P MkII Bedienungsanleitung

JBL

JBL Harman FLIP 5 Bedienungsanleitung

JBL

JBL OnBeat aWake Bedienungsanleitung

JBL

JBL SR4735X/F Bedienungsanleitung

JBL

JBL Studio S36AWII Bedienungsanleitung

JBL

JBL Studio 5 Series Bedienungsanleitung

JBL

JBL TR225 Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
