Free
hands free system
for vehicles and people
Applications manual for Free system
be a step ahead with technology and imagination
jcmtechnologies
be a step ahead with technology and imagination
jcmtechnologies
Free
hands free system for vehicles and people
1. Introduction. 04
1.1 Description of the system. 04
1.2 Requirements of the normative. 07
2. Functioning. 08
3. Installation. 10
3.1 Installation and conections Trigger Free 15R, Free 30R and Free 50R/RS. 11
3.2 Installation Tag Free T. 12
4. Programming. 13
4.1 Tag Programming in the Receiver. 13
4.2 Trigger Programming. 14
5. Applications. 15
5.1 Applications in shops and catering. 15
5.2 Applications in offices. 15
5.3 Industrial applications. 15
5.4 Town plannig applications. 16
5.5 Residential and Community Applications. 16
6. Recommendations. 17
7. Synoptic of receivers compatible with Free system that works with groups. 18
8. Synoptic of receivers compatible with Free system that works only with one group. 19
be a step ahead with technology and imagination
jcmtechnologies
4
1Introduction
Free
applications manual for Free system
The HANDS-FREE system will open all the doors without you having to press any control button.
The FreeT group of products is designed for use with domestic, commercial and even industrial ve-
hicles and for individual use by pedestrians in private and professional areas, allowing for the access
control of people and goods.
FreeTH is a multi-use product, especially designed for controlling the movements of the people, lo-
cating people in buildings, presence control, emergency and evacuation plans, etc., in companies,
offices, banks, sports centres, hospitals and geriatric centres, among others.

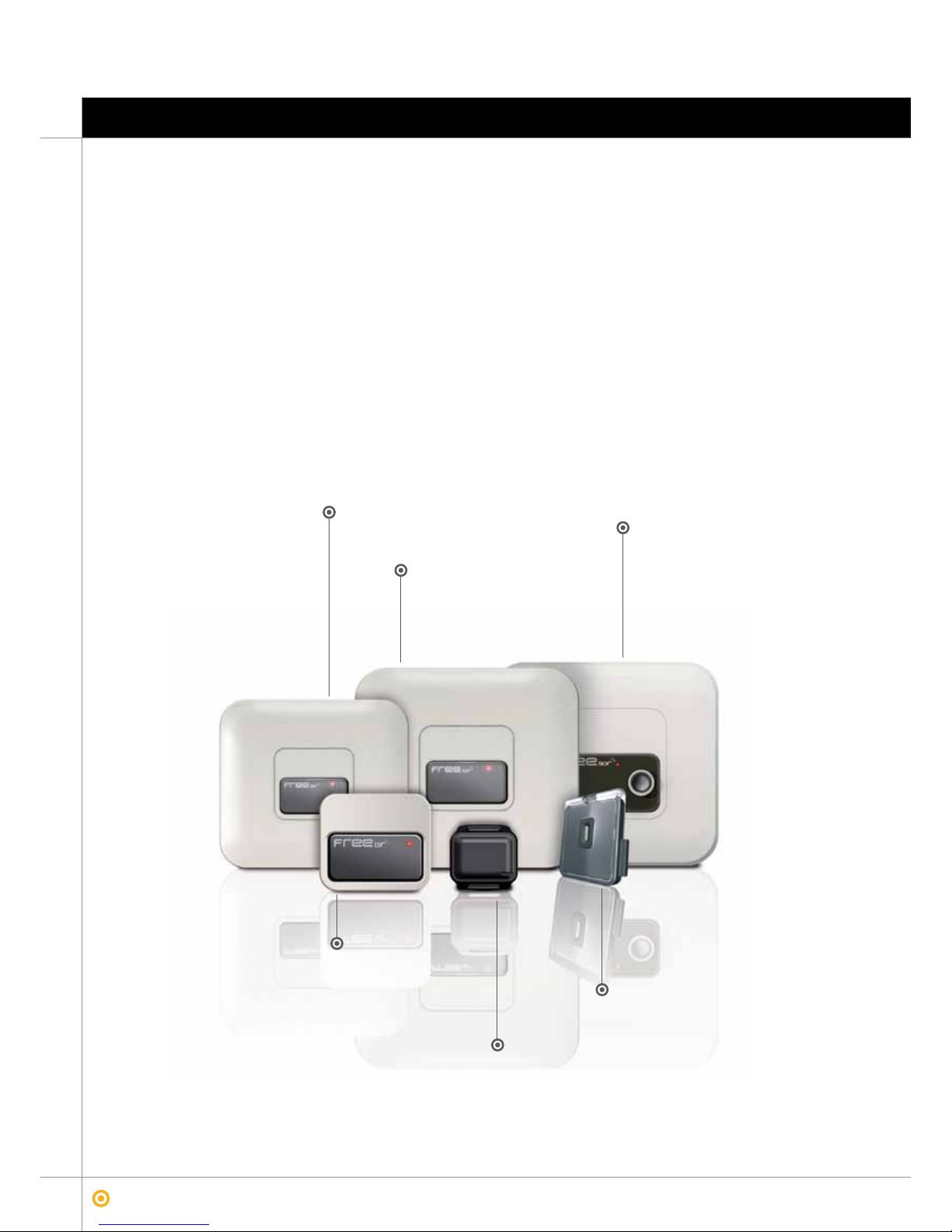

1.1 System description
FreeTH
FreeT
Free50r
Free30r
Free15r
Free50rs
be a step ahead with technology and imagination
jcmtechnologies 5
Introduction 1
Free
applications manual for Free system
Nominal range: 100 meters.
Transmission frequency: 868 MHz.
Power: 1 x 3Vdc batteries type CR2032.
Batteries last for approximately 2 years.
Acoustic operating indicator for low battery, signal transmission and programming.
Push-button inlet for voluntary activations.
Operating temperature –20ºC a + 55ºC.
ABS plastic case.
Size: 65 x 55 x 10 mm.
Nominal range 100 meters.
Transmission frequency 868 KHz.
Power: CR2032-type 3Vdc battery.
Batteries last for approximately 2 years.
LED operating indicator for low battery, signal transmission and programming.
Operating temperature -20°C a + 55°C.
PC IP66 plastic case.
Size: 48 x 48 x 12 mm.

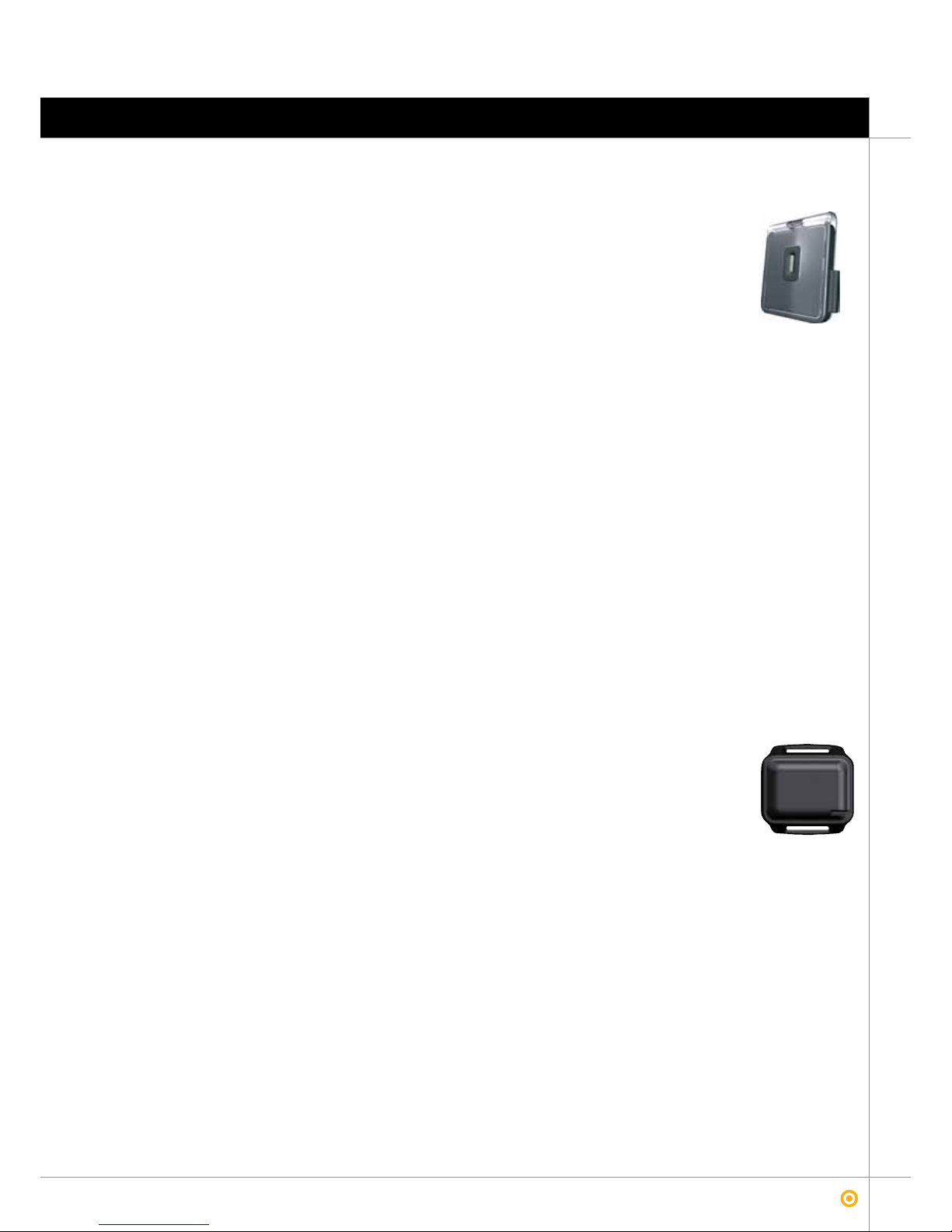

System description 1.1
FreeT(TAG)
FreeTH (TAG)
6
1Introduction
Free
applications manual for Free system
1.1 System description
Free15r - Free30r (TRIGGER)
Free50r - Free50rs (TRIGGER)
Free15r nominal range: 1.5 metres.
Free30r nominal range: 3 metres.
Transmission frequency: 125 KHz.
Power: 12/24Vac/dc.
LED operations indicator.
Button input for channel and/or group programming.
Pre-wired connection.
Operating temperature -20°C a + 55°C.
ABS IP66 plastic case.
Size of Free30r: 205 x 183 x 14 mm.
Size of Free15r: 87 x 78 x 15 mm.
Stand alone (no connections between Free antennas and other devices)
Triggers with activation input
Free50rs nominal range: 5 metres.
Free50rs nominal range: 5 metres. Fitted with an adjustable presence
sensor capable of detecting a moving body from 2.5 to 6.5 metres.
Transmission frequency: 125 KHz.
Power: 230Vac.
LED operations indicator.
Button input for channel and/or group programming.
Pre-wired connection.
Operating temperature -20°C a + 55°C.
ABS IP66 plastic case.
Size of Free50r: 394,4 x 310,5 x 41,6 mm.
Size of Free50rs: 394,4 x 310,5 x 78,7 mm.
Stand alone (no connections between Free antennas and other devices)
These triggers allow a button which permits the programming with a constant pressure of this button. This allows the selec-
tion of the group of the trigger as well as the receiver activation channel. This information will be given by the TAG.
be a step ahead with technology and imagination
jcmtechnologies
7
Introduction 1
Free
applications manual for Free system
Requirements of the normative 1.2
The applicable directives to this system are:
• Radio and Terminal Telecommunications Equipments Directive 1999/5/CEE
•Low voltage Directive 2006/95/EC
•Electromagnetic compatibility Directive 2004/108/EC
Some of the requirements of the applicable harmonized standards are shown below.
In accordance with the European low voltage directive, you are informed of the following requirements:
•For permanently connected equipment, an easily accessible connection device must be incorporated into the cabling.
•This equipment must always be installed in a vertical position and firmly fixed to the structure of the building.
•This equipment can only be handled by a specialist fitter, by maintenance staff or by a suitably trained operator.
•The instructions for use of this equipment must always remain in the possession of the user.
JCM TECHNOLOGIES, S.A. declares herewith that the products FreeT, FreeTH, Free15r, Free30r, Free50r, Free50rs, comply
with the requirements of the 1999/5/CEE R&TTE Directive, 2004/108/EC Directive on electromagnetic compatibility and
2006/95/EC on low voltage, insofar as the product is used correctly.
CE DECLARATION OF CONFORMITY
See website: www.jcm-tech.com
be a step ahead with technology and imagination
jcmtechnologies
8
2Functionning
Free
applications manual for Free system
Hands Free functionning
Free system works as hands free. While entering with FreeT/TH device in the activation area of the Free50r or Free50rs trigger,
it activates itself sending a radio signal to the receiver.
To activate the Tag once inside the activation area, or to get out of it, you could always press the push button of FreeT if it is
needed at any time.
The activation area of the trigger is about 1,5 meters in Free15, 3 meters in Free30 and 5 meters in Free50 version.
The tag range is up to 100 metres in open spaces.
Free50r can be installed both, with or without presence detector. If the choiced option is to install it without presence detector,
to joint the presence cable with the mass cable (see Installation section) is compulsory in order to be transmitting all the time.
When the trigger is connected to a presence detector, either photocell or magnetic detector, they must be connected the pre-
sence cable and the mass cable (see Installation section). In that way, when the detector detects presence, the trigger starts
trasnmitting and the Tag can be activated while entering in the activation area sending its signal to the receiver. By contrary, if
presence is not detected, the trigger do not activates itself not allowing the Tag activation once in the trigger’s activation area.
Free50rs version incorporates a sonar by default, that realizes the presence detector function. This sonar works with a non
audible ultrasound at 42KHz. It can detect small objects a very few meters and big ones in longer distances. To optimize the
detection, the obstacle should be at 90 degrees respect the sonar.
Sonar distances
PEOPLE CARS WALL
3,5 TO 5 METERS IN FRONT 5,0 TO 5,5 METERS - SIDEWAYS 6,0 TO 6,5 METERS 7 METERS
Tag code + Trigger Group +
Activation Channel
Tag code + Trigger Group +
Activation Channel
Tag code + Trigger Group +
Activation Channel
1.5 m - 125 KHz
100 m
3 m - 125 KHz 100 m
100 m
5 m - 125 KHz
be a step ahead with technology and imagination
jcmtechnologies
9
Functionning 2
Free
applications manual for Free system
Groups concept
FreeT is able to manage up to 21 diferent doors while Free TH is able of 28. Ideally for apllications of fast doors and wandering
control.
Manual functionning
While pressing the button, tag works exactly the same as a traditional transmitter. It only sends the TAG code plus Open Group
(Group 0 by default) and channel 1. So every receiver in which this information has been learned will accept the TAG information
and will activate the outputs.
The difference between both ways of functionning of Free system lies on the quantity of information is transmitted by the TAG
to the receiver. While working as hands free, trigger plus tag information are sent, but while working manually, only an open
group plus tag information are sent.
FreeT tag also works though a push button in difference from FreeTH. In this very case, the fuctionning is manual.
Tag code + Trigger Group
+ Activation Channel
Channel 2 - Group 1
Channel 3 - Group 1
Channel 2 - Group 1
Channel 4 - Group 1
Group 1
Channel 1 - Group 0
Channel 2 - Group 2
Channel 3 - Group 2
Channel 4 - Group 2
Group 2
be a step ahead with technology and imagination
jcmtechnologies
10
3Installation
Free
applications manual for Free system

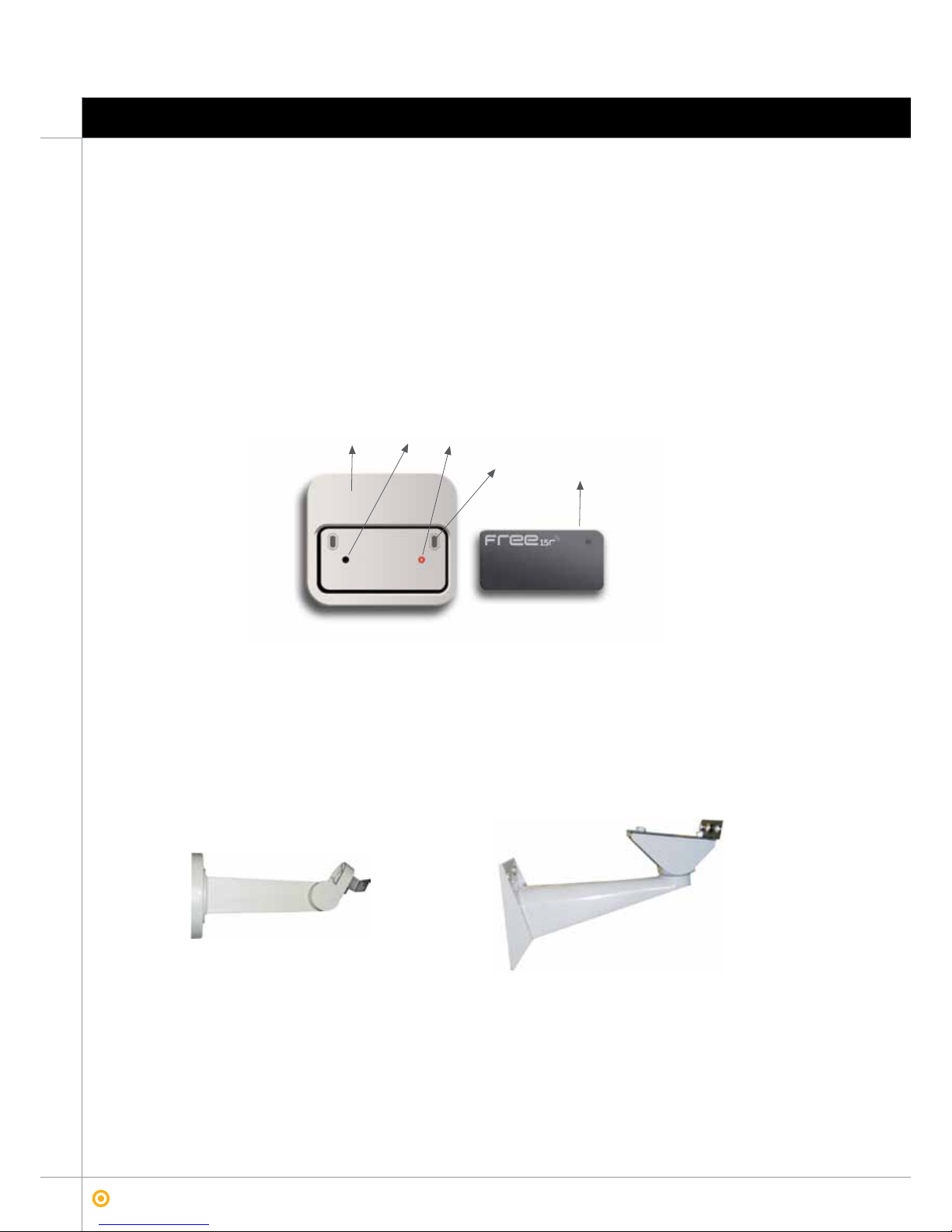

Free system offers to the installer a fast and comfortable way to install the product.
Trigger is made by a compact plastic housing in its front with a cable output in its rear part (1).
A trim sticker (2) is given so that led and programming push are protected.
Free15r has been designed to be installed directly on the wall or built in. Fixation is made with two screws separated among
themselves by 60mm (3).
Trigger push button allows the programation of the groups and channels of activation (4).
Trigger led is visible through the window of the sticker (5).
Triggers dimensions are 87x78x15 mm (Free15r); 205x183x14 mm (Free30r); 394,4x310,5x41,6 mm (Free50r) and
394,4x310,5x78,7 mm (Free50rs ). This allows Free15r to be installed in a standard electric box, either wall mounted as built
in, both interior or exterior of the installation.
To a better adjustment of the activation area, Free30r is supplied together with an orientable wall support. This support is
also compatible with Free15r, but in this very case, it must be acquired as accessory.
Free50r / rs are also delivered with an orientable wall support, but different from the previously mentioned support.
Triggers are completely independant from the receiver. The unique thing they need for work is power.
There are two ways to install the triggers, as individual or collective.
Free50r / Free50rs support.Free15r / Free30r support.
3.1 Installation and connections Free15r, Free30r and Free50r/rs
32
5
4
1
be a step ahead with technology and imagination
jcmtechnologies
