JMC Multi2SDI Bedienungsanleitung

JMC Systems Engineering AB www.jmc.se +46-8-82 82 70

Multi2SDI

Scaling

User Manual

V1.1

JMC Systems Engineering AB www.jmc.se +46-8-82 82 70

Content

Feature ...................................................................................3

Front Panel...............................................................................4

Rear Panel................................................................................4

Top Panel.................................................................................5

Side Panel ................................................................................5

Button/LED Indicate ....................................................................6

Installation ............................................................................. 11

Package Contents ..................................................................... 11

Specifications.......................................................................... 12

Appendix Table A ..................................................................... 13

JMC Systems Engineering AB www.jmc.se +46-8-82 82 70

Feature

SDI Supports HD formats :

720p50 & 60

1080i50 & 60

1080p24, 25, 30, 50 & 60

SDI Support 525i & 625i SD D1 format

Auto 3G/HD/SD-SDI detection

Can be split one 3G-SDI displays simultaneously.

Frame rate conversion(1.000/1.001)

External Button Configuration

Firmware is upgradable in the field using the integrated USB port

The converter is Plug-and-Play

Support DVI-D, DVI-A, Component, CVBS and S-Video Input

JMC Systems Engineering AB www.jmc.se +46-8-82 82 70

Front Panel

Component

Function

SDI Output Port

From your SDI Display Device plug into this ports

Mode Buttons

Select Format/Output Port

Power Jack

The Power adapter plug into here

Rear Panel

Component

Function

Phone Jack

Form you Audio Device plug into this port

Component/CVBS/S-Video

Input Port

From your YPbPr/CVBS/S-Video Device plug

into this port

DVI-D/DVI-A Input Port

From your DVI-D/DIV-A Device plug into this

port

JMC Systems Engineering AB www.jmc.se +46-8-82 82 70

Top Panel

Component

Function

Input Source LED

The LEDs are indicate Input source

Power and Lock LED

The LEDs is indicate power and signal locked.

Main Format LED

The LEDS are indicate output format

Side Panel

Component

Function

USB Port

Upgrade firmware/Control Box From PC

JMC Systems Engineering AB www.jmc.se +46-8-82 82 70

Button/LED Indicate

1. Firmware Mode:

Hold on the 1 and 2 button, the display is showed firmware version on display of

left upper.

FIRMWARE VERSION

0.1.0.1

2. Default Mode:

Push all button (1, 2 and 3) at same time, the box auto reset to default.

3. Audio Mode

Push all button 2 to setting audio Mode..

DVI-D

Embadded Audio (Default)

External Audio

Mute

DVI-A

Mute

YPbPr

Composite

External Audio

SVIdeo

JMC Systems Engineering AB www.jmc.se +46-8-82 82 70

4. Output Format Mode:

Push button 1 change to format mode, frame rate and Fraction by button 2 and 3.

Button 1

Button 2

Button 3

720x480

59.94i

720x576

50i

1280x720

60p

59.94p

50p

30p

25p

1920x1080

60i

59.94i

50i

60p

59.94p

50p

30p

29.97p

25p

24p

23.98p

5. Input Source Mode:

Push button 4 change to input source mode. The button 3 and 4 can be switch

output source.

DVI-D/DVI-A

Pb/CVBS

Y/Y

Pr/C

DVI-D

●

○

DVI-A

●

○

YPbPr

○

●

CVBS

○

●

○

S-VIDEO

○

●

JMC Systems Engineering AB www.jmc.se +46-8-82 82 70

1. DVI-D + L/R Audio:

DVI-D + L/R Audio

2. DVI-A+ L/R Audio:

DVI-A + L/R Audio

JMC Systems Engineering AB www.jmc.se +46-8-82 82 70

3. YPbPr + L/R Audio:

YPbPr + L/R Audio

4. Composite (CVBS) + L/R Audio:

Composite(CVBS) + L/R Audio

5. S-VIDEO + L/R Audio

JMC Systems Engineering AB www.jmc.se +46-8-82 82 70

Composite(CVBS) + L/R Audio

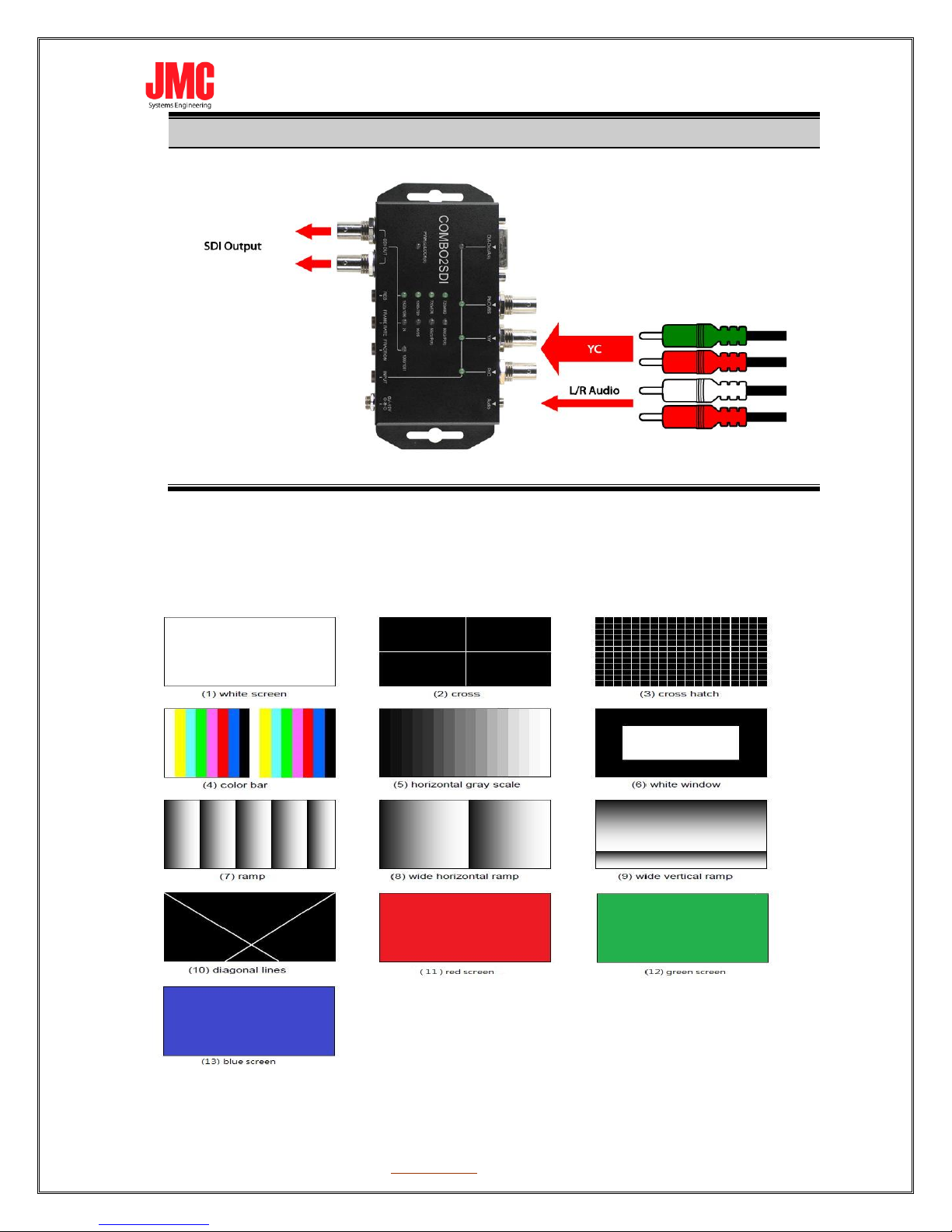

3. Pattern Genertor Mode:

input signal is plug out, the Box auto change to Pattern Genertor mode.

It is proivded the 13 of Mode
