Johnson Controls Autocall MX Indoor Isolated Callpoint Bedienungsanleitung

Cautions, warnings, and regulatory information

READ AND SAVE THESE INSTRUCTIONS Follow the instructions in this

installation manual. These instructions must be followed to avoid damage

to this product and associated equipment. Product operation and reliability

depend upon proper installation.

DO NOT INSTALL ANY AUTOCALL™ PRODUCT THAT APPEARS

DAMAGED Upon unpacking your Autocall product, inspect the

contents of the carton for shipping damage. If damage is apparent,

immediately file a claim with the carrier and notify an authorized

Autocall product supplier.

ELECTRICAL HAZARD Disconnect electrical field power when

making any internal adjustments or repairs. All repairs should be

performed by a representative or an authorized agent of your local

Autocall product supplier.

STATIC HAZARD Static electricity can damage components. Handle

as follows:

• Ground yourself before opening or installing components.

• Prior to installation, keep components wrapped in anti-static

material at all times.

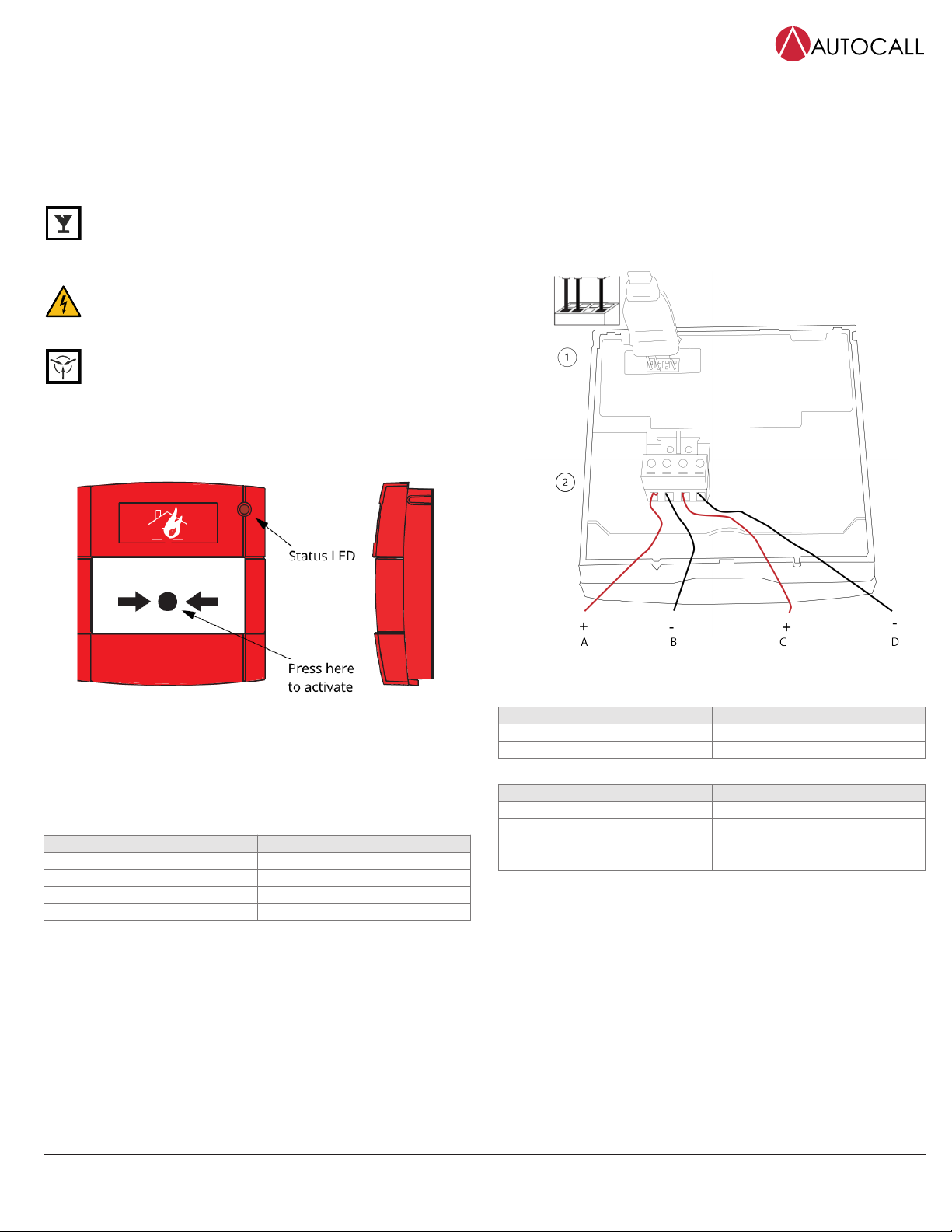

Indoor isolated callpoint

Figure 1: Indoor isolated callpoint

The indoor isolated callpoint is an addressable indoor manual callpoint. The

callpoint signals the condition of a switch contact that activates with a press

of a deformable element. After activation the callpoint can be reset. The unit

features a short-circuit isolator and is UL compliant. For details of the status

LED and activation see Table 4.

Table 1: Ordering information

Item Order number

MCP - Indoor isolator A4099-5208

Resettable element (pack of 1) 515.001.127

Back box A4099-9711

Glass element (pack of 5) 515.001.119

Installating the callpoint

1. Connect an 801AP MX Service Tool or an 850EMT into the programming

port, noting the orientation. Program the unit using the ID defined in the

site configuration.

- To surface mount the callpoint, use the dedicated back box

(A4099-9711) to mount the callpoint to the wall.

- To flush mount the callpoint, use a standard single gang back box. The

back box must be at least 25 mm (0.98 in.) deep with fixing holes at

60.3 mm (2.37 in.) spacing.

3. Route the loop wiring through the back box.

4. Remove the callpoint sliding front plate and deformable element

assembly. This is described in the following section under 'replacing the

glass or deformable element'.

5. Connect the loop wiring to the push-fit connector, see Figure 2.

6. Connect the push-fit connector.

7. Fix the callpoint to the back box using the supplied screws through the

exposed fixing holes.

8. Re-fit the front plate assembly. Slide it into position then push upwards

until it clicks into place.

Figure 2: Installation

Table 2: Installation

Number Part

1 Programming port

2 Push-fit connector

Table 3: Field wiring

Connector Loop connection

A +L

B -L

C +R

D - R

579-1396AC Rev. A

MX Indoor Isolated Callpoint

*05791396ACA*

Operation

Reading the LED status

Table 4: LED status

Status LED

Normal LED OFF

Short circuit LED ON - YELLOW

Activated LED ON - RED

Activating the callpoint

Press the large dot. A spring pushes the plastic element downwards, this

closes a switch and triggers a signal to the control panel.

Testing the callpoint

1. Insert the test/reset key into the slot in the bottom of the unit and pull

the sliding plate downwards.

Note: This may cause an alarm.

2. Remove the key. The deformable element facilitates testing by activating

the callpoint as normal. This is non-destructive.

Resetting the callpoint

1. Insert the test/reset key into the slot in the bottom of the unit and pull

the sliding plate downwards. The element can now snap back to its non-

deformed state.

2. To close the callpoint, push the sliding plate upwards until it snaps into

place. See Figure 3.

Replacing the glass of deformable element

1. Insert the test/reset key into the slot in the bottom of the unit and pull

the sliding plate down until it seperates from the unit.

2. Remove the deformable element, pulling away the bottom first. Fit the

replacement then push the sliding plate upwards until it snaps back into

place.

Figure 3: Resetting the callpoint

Specifications

Table 5: Specifications

Specification Rating

System compatibility Compatible with Simplex 4100ES and 4010ES

Environment Indoor applications only

Operating temperature -10°C to +55°C

Storage temperature -30°C to +70°C

Material Flame retardant ABS

Operating humidity Up to 90% non-condensing

Dimensions (H x W x D) 93 mm x 89 mm x 27.5 mm

(3.7 in. x 3.5 in. x 1.1 in.)

Weight 110 g (3.9 oz.)

Mounting Surface or flush

Standby current @ 40 VDC 0.3 mA

Alarm current @ 40 VDC 2.456 mA

579-1396AC Rev. A

Additional listings may be applicable, contact your local Autocall product supplier for the latest status. Listings and approvals under Tyco Fire & Security GmbH, and the product

names listed in this material are marks and/or registered marks. Unauthorized use is strictly prohibited. NFPA 72 and National Fire Alarm Code are registered trademarks of the

National Fire Protection Association (NFPA).
