M9310 Series Electric Non-Spring Return Actuators Installation

Instructions

Refer to the QuickLIT website for the most up-to-date version of this document.

Applications North American Compliance Information

United States

Canada

IMPORTANT: Use this M9310 Series Electric

Non-Spring Return Actuator only to control

equipment under normal operating conditions.

Where failure or malfunction of the electric actuator

could lead to personal injury or property damage to

the controlled equipment or other property,

additional precautions must be designed into the

control system. Incorporate and maintain other

devices, such as supervisory or alarm systems or

safety or limit controls, intended to warn of or protect

against failure or malfunction of the electric actuator.

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential

installation. This equipment generates, uses and

can radiate radio frequency energy and, if not

installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee

that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which

can be determined by turning the equipment off and

on, the user is encouraged to try to correct the

interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment

and receiver.

• Connect the equipment into an outlet on a circuit

different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV

technician for help.

This Class (B) digital apparatus meets all the

requirements of the Canadian Interference-Causing

Equipment Regulations.

M9310 Series Electric Non-Spring Return Actuators

Installation Instructions

M9310-HGA-2 Part No. 34-636-2448, Rev. C

Issued March 2016

34- 636-2448, Rev. C

M9310 Series Electric Non-Spring Return Actuators Installation Instructions

Installation

Parts Included

• M9310 Series actuator

• anti-rotation bracket

• M3.5 x 9.5 mm long self-tapping crossed recessed

screw

Special Tools Needed

• torque wrench with 12 point 3/8 in. or 5/16 in.

open-end wrench

• 5/16 in. screwdriver

• digital voltmeter or M9000-200 commissioning tool

(when zero and span need adjustment)

Accessories

Mounting

Figure 1: M9310 Actuator

FIG:M9310 Series Actuator

Figure 2: Anti-Rotation Bracket

FIG:Anti-rotation Bracket

Figure 3: Recessed Screw

Figure 3: Self-Tapping Screw

Table 1: Accessories (Order Separately)

Code Number Description

M9000-200 Commissioning Tool That Provides

a Control Signal to Drive 24 V

On/Off, Floating, Proportional, and

Resistive Electric Actuators

M9000-321 Weathershield Kit

M9300-1 Auxiliary Switch Kit (Single-Pole,

Double-Throw)

M9300-2 Auxiliary Switch Kit (Two Single-

Pole, Double-Throw)

M9300-100 Threaded Conduit Adapters for

1/2 in. electrician’s fittings

M9300-140 Feedback Potentiometer 140k

ohms

M9300-151 Remote Mounting Kit, with Crank

Arm and Damper Linkage

M9300-1K Feedback Potentiometer 1k ohms

M9300-2K Feedback Potentiometer 2k ohms

M9300-10K Feedback Potentiometer 10k ohms

Figure 4: Mounting Positions

FIG:Mounting Positions

M9310 Series Electric Non-Spring Return Actuators Installation Instructions

Adjusting the Angular Rotation Stops

Mounting the Actuator

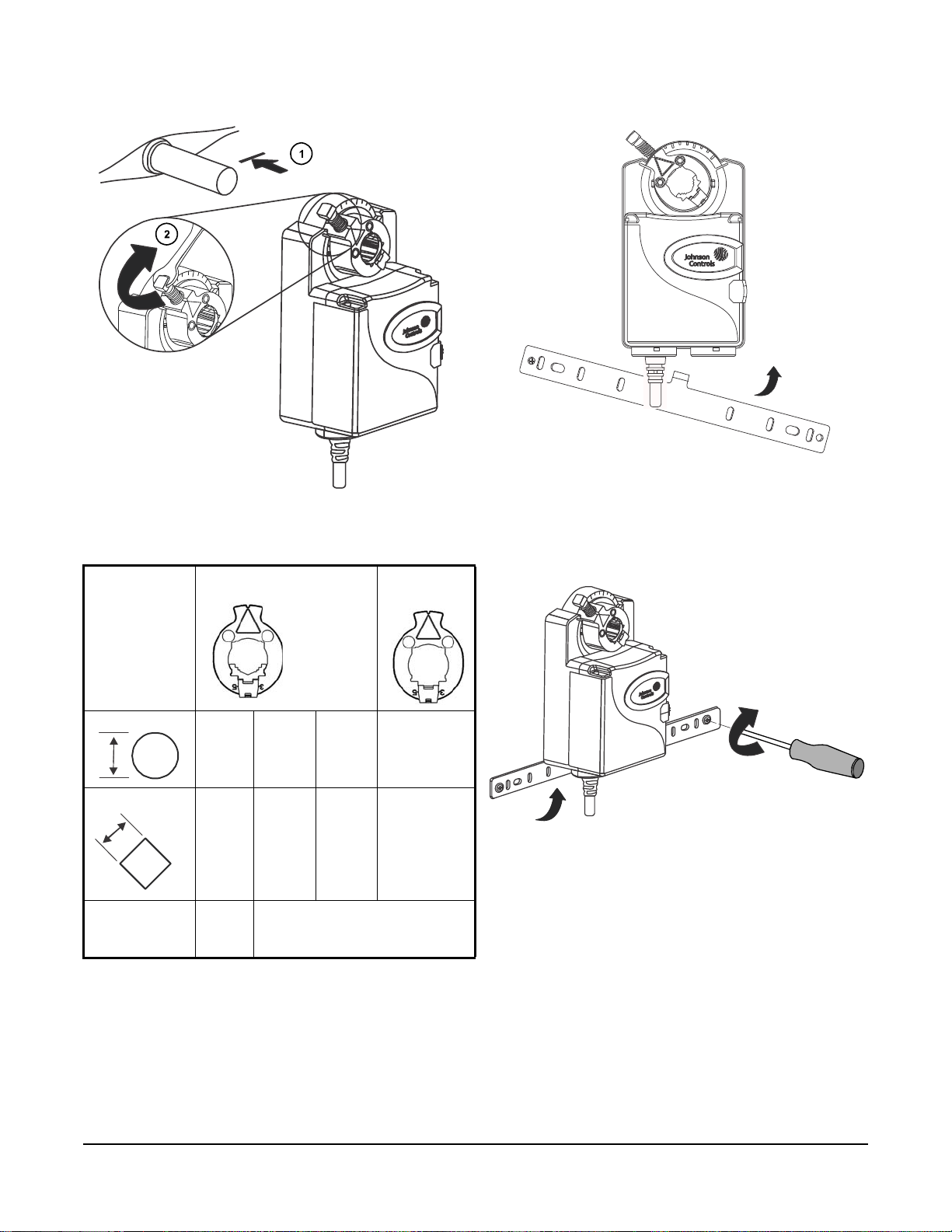

1. Position the damper until it is fully closed. See

Table 2 for shaft diameters and required torques.

2. Bend or cut the anti-rotation bracket to fit the

damper frame or duct.

3. Load the actuator seal by rotating the shaft using

the actuator (about 5 degrees).

Figure 5: Lifting the Tab

FIG:TabLocation

Figure 6: Removing Coupler

FIG:Romiving Coupler

Figure 7: Rotating Coupler

FIG:Rotate Coupler

Figure 8: Installing Coupler

FIG:Reinstalling Coupler

Figure 9: Mounting the Actuator

FIG:Align Damper

Figure 10: Forming the Mounting Bracket

M3.5 Screws (2)

Slot for Bracket

Anti-Rotation Bracket

Damper

Frame

Anti-Rotation

Bracket Tab

FIG:Underneath

M9310 Series Electric Non-Spring Return Actuators Installation Instructions

4. Slip the actuator onto the shaft and fully tighten the

set screw on the coupler according to Table 2. 5. Lightly tighten one side of the anti-rotation bracket

to the mounting surface.

6. Swing the anti-rotation bracket under the actuator

until it reaches the middle of the slot on the bottom

of the actuator.

Table 2: Shaft Diameter and Required Torque

Shaft

Diameter, in.

(mm)

With Insert Without

Insert

3/8

(9.5) 1/2

(12.7) 5/8

(16) 3/4 (19)

5/16

(8) 13/32

(10) 1/2

(12.7) 5/8 (16)

Required

Torque, lb·in

(N·m)

125

(14.1) Half-Turn Past Hand-Tighten

Figure 11: Slipping the Actuator onto the Shaft

FIG:Tighten Actuator

Figure 12: Attaching the Bracket

FIG:Placing Bracket

Figure 13: Securing the Anti-Rotation Bracket to

the Damper Frame

FIG:MountedActuator

M9310 Series Electric Non-Spring Return Actuators Installation Instructions

7. Test the damper.

a. Press and hold the gear release.

b. Rotate the coupler fully closed to fully open to

verify that the damper and actuator rotate

freely throughout the range.

Figure 14: Testing the Damper

FIG:Pushbutton

M9310 Series Electric Non-Spring Return Actuators Installation Instructions

Wiring

M9310-HGA-2 Actuators Wiring Diagrams

Risk of Electric Shock.

Disconnect the power supply before making electrical

connections. Contact with components carrying

hazardous voltage can cause electric shock and may

result in severe personal injury or death.

IMPORTANT: When using the M9310-HGA-2

actuator in floating mode, verify that the DIP switch

is positioned on the 2 to 10 VDC option. This setting

ensures compatibility with the controller’s triac

output exhibiting voltage leakage. See Figure 20 for

DIP switch placement.

Figure 15: Floating 24 V Applications

RED

GRY

BLK

ORN

COM

0 to 10 VDC

(-)

24 V AC/DC

(+)

FIG:Floating 24VApplications

Figure 16: On/Off 24 V Applications (See Table 3

for DIP Switch Placement)

RED

GRY

BLK

ORN

24 V AC/DC

COM

0 to 10 VDC

(-)

(+)

FIG:On/Off 2 4V Application s

Figure 17: Proportional 24 V Applications

RED

GRY

BLK

ORN

24 VAC/DC

0 to 10 VDC

COM

0 to 10 VDC

(-)

(+)

(-)

FIG:Proportional24VApplications

Figure 18: Proportional 24 V Applications - 0 (4) to

20 mA with External Resistor

RED

GRY

BLK

ORN

24 VAC/DC

0 (4) to 20 mA

COM

0 to 10 VDC

(-)

(+)

FIG:Control with External Resistor

500 ohm,

1.4 W

M9310 Series Electric Non-Spring Return Actuators Installation Instructions

Auto Calibration Mode

The actuator enters auto calibration mode and

positions the coupler to the maximum and minimum

end stops to identify the range of travel.

Accessing the DIP Switches and LEDs

Locate the oval cover on the front of the unit and pull

the cover outward.

To complete the auto calibration process, press

Enter/Autocal until all three LEDs are on. See

Figure 20 for viewing the DIP switches and LEDs.

Operation

The valid Offset values are 0 to 10 VDC and the valid

Span values are 2 to 10 VDC. The maximum feedback

voltage of the actuator is 10 VDC.

Figure 19: DIP Switch and LED cover

FIG:LED and DIP Switch Cover

Risk of Property Damage.

Do not apply power to the system before checking all

wiring connections. Short circuited or improperly

connected wires may result in permanent damage to

the equipment.

Figure 20: DIP Switches and LEDs Placement

FIG:LED Location

Span Adj.

Offset Adj.

INC. DA 0-10

RA 2-10

M9310-HGA-2

Figure 21: Graphed Examples of Table 3

Command Signals

Max.

10 VDC

FIG:Example Graph

Min.

20 VDC0 VDC

Stroke

M9310 Series Electric Non-Spring Return Actuators Installation Instructions

Setting the SPAN and OFFSET Proportional

Command Signal to Other Values

1. Set DIP switch one and two before proceeding.

Refer to Figure 20 for DIP switch placement.

2. Connect a digital multimeter between the orange

(feedback) and black (common) wires. See Wiring

for more wiring information.

3. Press Enter/Autocal.

To adjust the span and offset, press but not hold

Enter/Autocal. Holding Enter/Autocal for longer

than three seconds triggers an autocal.

The Offset Adj. LED turns on, and the multimeter

displays the current offset value.

4. Press INC.

The Offset Adj. LED flashes. The voltage reading

on the multimeter increases 0.5 VDC each time

you press the button. Press INC. until you reach

the desired voltage.

If no further action is required, the Offset Adj. LED

stops flashing after 10 seconds. The actuator exits

the program mode and the original offset value

remains unchanged.

5. Press Enter/Autocal.

The Offset Adj. LED turns off indicating that the

desired Offset Adj. value was recorded. The Span

Adj. turns on, and the multimeter displays the

present SPAN value.

6. Press INC.

The Span Adj. LED flashes. The voltage reading

on the multimeter increases by 0.5 VDC each time

you press the button. Press INC. until you reach

the desired voltage.

If no further action is required, the Offset and Adj.

LED stops flashing after 10 seconds. The actuator

exits the program mode and the original offset

value remains unchanged.

7. Press Enter/Autocal.

The Span Adj. LED turns off indicating that the

desired Span Adj. setting is saved, and the

actuator exits the program mode.

Reading the SPAN and OFFSET Proportional

Command Signal Voltage Settings

1. Connect a digital multimeter between the orange

(feedback) and black (common) wires. See Wiring

for more wiring information.

2. Press Enter/Autocal.

The Offset Adj. LED turns on, and the multimeter

displays the current offset value.

3. Press Enter/Autocal.

The Offset Adj. LED turns off, the Span Adj. LED

turns on, and the multimeter displays the present

SPAN value.

4. Press Enter/Autocal.

The Span Adj. LED turns off.

Table 3: DIP Switch Settings

Example Command

Signal Feedback

Signal Settings M9310-HGA

User Interface

10 to 10

VDC Direct

0 to 10

VDC

20 to 10

VDC Reverse

0 to 10

VDC

32 to 10

VDC Direct

2 to 10

VDC

24 VAC –

4Offset = 5

Span = 7 Reverse

10 to 2

VDC

Risk of Electric Shock.

Do not touch any exposed metal parts with anything

other than properly insulated tools or insulated probes

of the digital voltage meter. Failure to use properly

insulated tools and probes may result in severe

personal injury or death.

DA 0-10

RA 2-10

DA 0-10

RA 2-10

DA 0-10

RA 2-10

DA 0-10

RA 2-10

IMPORTANT: Do not press INC. Otherwise your

observed offset voltage setting will change.

IMPORTANT: Do not press INC. Otherwise your

observed SPAN voltage setting will change.

M9310 Series Electric Non-Spring Return Actuators Installation Instructions

Clearing the SPAN and OFFSET Proportional

Command Signal Voltage Setting

Cycle DIP switch two between 2 to 10 and 0 to 10. The

active setting is the final state of DIP switch two.

Installing the Cover over the DIP Switches and

LEDs

Repositioning the Actuator Hub

1. De-energize the actuator.

2. Press the black manual override button on the side

of the housing.

3. Rotate the shaft to the desired position.

Removing the Conduit Connector

You can remove the conduit connector at the bottom of

the unit if the connector is damaged. To remove the

connector:

1. Insert a screwdriver into the slot on the housing.

2. Rotate the conduit connector counterclockwise and

remove it from the actuator.

Repair Information

If the M9310 Series Electric Non-Spring Return

Actuators fail to operate within its specifications,

replace the unit. For a replacement actuator, contact

the nearest Johnson Controls® representative.

IMPORTANT: Once you have verified the DIP

switch placement and LED activity, place the oval

cover back onto the unit before repositioning the

actuator hub.

IMPORTANT: The manual overrideis automatically

released when the button is released.

Figure 22: Repositioning the Actuator Hub

FIG:Pushbutton

Figure 23: Removing the Conduit Connector

FIG:Conduit Connector

M9310 Series Electric Non-Spring Return Actuators Installation Instructions

Technical Specifications

M9310 Series Electric Non-Spring Return Actuator

Product Description M9310-HGA-2: On/Off and floating mode M9310-HGA-2: Proportional mode

Power Requirements 24 VAC (19.2 to 28.8 VAC) at 50/60, Class 2 (North America) or SELV (Europe), 6 VA

running. 24 VDC (21.6 to 28.8 VDC) Class 2 (North America) or SELV (Europe)

Transformer Sizing

requirements <6 VA

Input Signal/Adjustments 19.2 to 28.8 VAC at 50/60 Hz or 24 VDC

±10Class 2 (North America) or SELV

(Europe)

0 (2) to 10 VDC or 0 (4) to 20 mA with field

furnished 500 ohm 1/4 W resistor

Offset: 0 to 10 VDC

SPAN: 2 to 10 VDC

Control Impedance 4.7k ohm 100k ohm

Feedback Signal – 0 (2) to 10 VDC

Running Torque 88 lb·in (10 N·m)

Rotation Range Mechanically limited 35to95±3in 5increments

Rotation Time 90 seconds

Rotation Time Autocalibration 35 seconds

Cycles 100,000 full stroke cycles; 2,500,000 repositions

Audible Noise <35 dBA at 39-13/32 in. (1 m)

Electrical Connections 120 in. (3.05 m) UL 444 type CMP plenum rated cable with 19 AWG cable (0.75 mm²)

conductors and 0.25 in. (6 mm) ferrule ends

Conduit Connections 1/2 in. NPSM (13 mm) threaded conduit connectors with M9300-100 conduit connector

Mechanical Connections Round 3/8 in. to 3/4 in. (centered on 1/2 in.)

Square 3/8 in. to 5/8 in.

Ambient Conditions Operating: -22 to 140F (-30 to 60C), 90% RH, noncondensing

Storage: -40 to 185F (-40 to 85C), 95% RH, noncondensing

Enclosure IP54/NEMA 5

Dimensions 3-3/16 in. (81 mm) wide x 2-1/2 in. (63 mm) high x 5-5/8 in. (143 mm) long

Shipping Weight 2 lb (0.9 kg)

Compliance United States:

UL Listed, CCN XAPX, File E27734; to UL 60730-1: Automatic Electrical Controls for

Household and Similar Use, Part 1; and UL 60730-2-14: Part 2, Particular Requirements

for Electric Actuators. Plenum Rated (UL 2043). Suitable for use in Other Environmental

Air Space (Plenum) in accordance with section 300.22 (c) of the National Electrical Code.

Canada:

UL Listed, CCN XAPX7, File E27734; to CAN/CSA E60730-1:02: Automatic Electrical

Controls for Household and Similar Use, Part 1; and CAN/CSA-E60730-2-14, Particular

Requirements for Electric Actuators.

Europe:

CE Mark – Johnson Controls, Inc. declares that this product is in compliance with the

essential requirements and other relevant provisions of the EMC Directive and Low

Voltage Directive.

IEC 60730-1: Automatic Electrical Controls for Household and Similar Use, Part 1:

General Requirements and IEC 60730-2-14, Automatic Electrical Controls for Household

and Similar Use; Part 2 - Particular Requirements for Electric Actuators

Australia and New Zealand: RCM, Australia/NZ Emissions Compliant

The performance specifications are nominal and conform to acceptable industry standard. For application at conditions beyond these

specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or

misuse of its products.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Johnson Controls Controller Handbücher

Johnson Controls

Johnson Controls VA7820-GG-1 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PENN ACT2 Service-Handbuch

Johnson Controls

Johnson Controls CGM09090 Bedienungsanleitung

Johnson Controls

Johnson Controls BMMS-1P Original Betriebsanleitung

Johnson Controls

Johnson Controls FX-PCV18 Series Bedienungsanleitung

Johnson Controls

Johnson Controls Penn P216 Bedienungsanleitung

Johnson Controls

Johnson Controls DWUNI Bedienungsanleitung

Johnson Controls

Johnson Controls FEC16 Series Bedienungsanleitung

Johnson Controls

Johnson Controls SMART EQUIPMENT VERASYS VEC100 Bedienungsanleitung

Johnson Controls

Johnson Controls FAC2513 Bedienungsanleitung

Johnson Controls

Johnson Controls VA7820-GG-1 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PENN P28 Bedienungsanleitung

Johnson Controls

Johnson Controls EDA-8100 Montageanleitung

Johnson Controls

Johnson Controls T-5800 Series Gebrauchs- und Pflegehandbuch

Johnson Controls

Johnson Controls LP-FX2211T-0 Bedienungsanleitung

Johnson Controls

Johnson Controls Hitachi C4IRK01 Bedienungsanleitung

Johnson Controls

Johnson Controls MR4PMUHV Bedienungsanleitung

Johnson Controls

Johnson Controls P77 Series Bedienungsanleitung

Johnson Controls

Johnson Controls ARC30 Bedienungsanleitung

Johnson Controls

Johnson Controls Joventa BAS1(S) Bedienungsanleitung

Johnson Controls

Johnson Controls VA-9070 Series Service-Handbuch

Johnson Controls

Johnson Controls A25CN Series Leitfaden

Johnson Controls

Johnson Controls M9203-AG-2 Series Bedienungsanleitung

Johnson Controls

Johnson Controls Metasys MS-FEU1610-0U Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
