IQ WiFi 6 QUICK INSTALL GUIDE
SKU: IQWF6
Description: IQWIFI6
Dimensions: 151.4 mm x 150.4 mm x 55.4 mm
Weight: 425g
Usage: For Indoor use only
Compliance: FCC, UL, CE
Processor: Qualcomm IPQ6000
Flash Memory: 512MB NAND
Memory: 512MB DDR3-933MHz
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Relative Humidity: 10% - 90% RH (non-condensing)
Operating Distance: Up to 130ft
Frequency Type:
Wireless IEEE 802.11 b/g/n/ax 2.4GHz
IEEE 802.11 a/n/ac/ax 5GHz
Wired Type:
LAN and WAN Gigabit Ethernet Ports
LED Indicators:
2 color LED (Green and Red): Power/Status
Green LEDs: WAN, SmartHome, LAN
Power Supply:
Input: 100-240VAC, 50-60Hz
Output: 1.5A 18.0W
SPECIFICATIONS
FEATURES & OVERVIEW
This is a quick guide for experienced installers only. Refer to http://qolsys.com
The IQ WiFi 6 is a mesh capable
router that covers every corner of
every room with safe, seamless WiFi.
Features:
•Self optimizing WiFi mesh with
wired and wireless ethernet
backhaul
•WiFi version 6, ax1800
•Supports Dual-band 2.4G/5G
•Supports 7 additional Agents (1
Controller)
•Stand alone or parallel
configuration supported
•Web interface or IQ Panel
configurable
•Main, Guest and Security SSIDs
•Included wall mount enabled
flexible placement
IQ WiFi 6 QUICK INSTALL GUIDE
SUPPORT

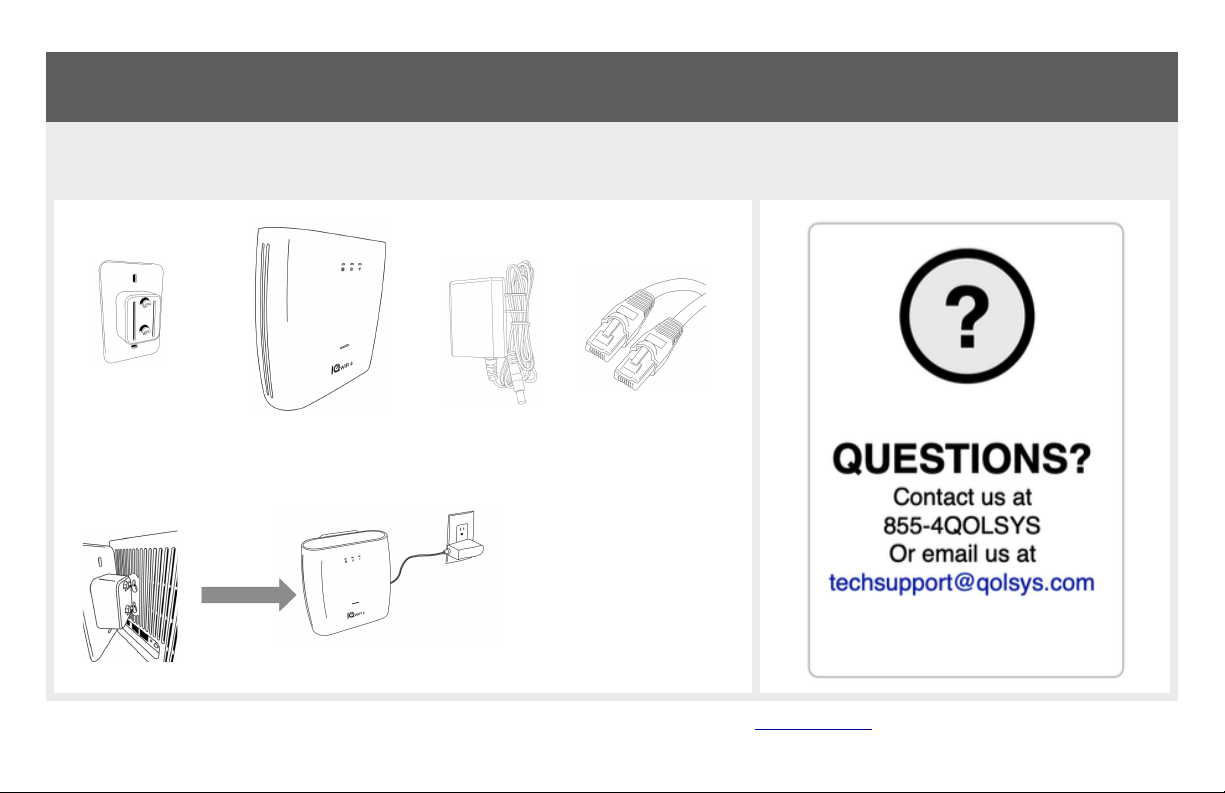

INCLUDED IN THE BOX
This is a quick guide for experienced installers only. Refer to http://qolsys.com
Mounting Bracket
IQ WiFi 6
Power Supply
Ethernet
Cable
Note: The Low-Voltage IQ WiFi Mount is designed to
mount onto a low-voltage single gauge back-box or to be
mounted with drywall anchors. DO NOT MOUNT ON A
HIGH VOLTAGE BOX. If pairing with a low-voltage box
use size 6 screws (M3.5) that are 1 inch (2.54 cm) in length.
CONNECT THE IQ WiFi 6
STEP
3
POWER UP THE IQ WiFi 6
STEP
1
This is a quick guide for experienced installers only. Refer to http://qolsys.com
STEP
2
CONNECT TO THE MODEM OR EXISTING NETWORK
1. Plug the barrel jack end of the
power supply into the “DC-IN” port.
Do not plug in the power supply
into outlet until step 3.
2. Connect the provided ethernet
cable into the “WAN” port.
Connect the opposite end of the provided
ethernet cable into the “ETHERNET” port on the
modem*.
Plug in your power supply to
the wall outlet. Router takes
up to 4 minutes to power up,
the power LED will stop
flashing when ready.
* Note: when powered for the
first time and connected to
internet, LED’s may flash for up
to 5 minutes indicating an auto
update.
*Note: for parallel installs plug the
ethernet cable into an available port
on the customer’s existing router (see
additional considerations)
STEP
4
ADD ALL AGENTS
1. Power up an additional IQ WiFi 6 (see
step 3).
2. Using the supplied ethernet cable,
connect one end into the LAN port of the
Controller
3.Connect the opposite end of the same
ethernet cable into the LAN port of the
Agent.
Note: No additional button press or manual
configuration needed. LET PROCESS
FINISH, COULD TAKE UP TO 10 MINUTES
to auto configure.
MODEM/ROUTER
3
1
2
Controller
Agent
2
3
PAIR CONTROLLER TO IQ PANEL
STEP
6
RENAME YOUR NETWORK (SSID)
STEP
5
This is a quick guide for experienced installers only. Refer to http://qolsys.com
1. Open settings tray from IQ Panel
> Settings > Advance Settings >
type in valid code > touch
Installation > Devices > WiFi
devices > IQ WiFi icon
2.Touch the down arrows to make
edits to the Network Name (SSID’s)
STEP
7
CREATE UNIQUE SSID AND PASSWORD
1. Enter a unique
network name
2.Enter a unique
security key
3. Touch Save
1. Open settings tray,
touch Settings >
Advanced settings >
type valid dealer or
install code > WiFi.
2. Look for the
broadcasting SSID
or network name
and touch it. SSID
will be
IQ_WiFi_XXXXXX
1
3
2
3.Enter password
printed on sticker or
bottom of router.
4.Touch connect
1
2
3
2
*Note: network SSID cannot contain &( ) | < > , ‘ spaces or backslash.
*Note: IQ WiFi 6 will use the same SSID
for both bands 2.4GHz and 5GHz
Document#: IQWIFI6-IM
Revision Date: 2021-11
Johnson Controls proprietary.
Reproduction without permission is not permitted.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation
of the device.
Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer d'interférences et (2) cet appareil doit accepter toute interférence, y compris celles pouvant
causer un mauvais fonctionnement de l'appareil.
CONTACT TECH SUPPORT
GOT QUESTIONS?
TROUBLESHOOTING
ADDITIONAL CONSIDERATIONS
Factory Default:
- Press and hold the physical reset button for at least 10 seconds
then release. Release when LED goes solid.
You can set up the IQ WiFi 6 in either of these ways:
As the only wireless network on the premises:
In parallel with an existing wireless network:
Great for:
-Improving connectivity for ALL WiFi devices on
the network.
-Offering support for the entire network.
Great for:
-Keeping the security and smart-home devices
private/hidden from the rest of the WiFi connected
devices on the network.
-Making online/remote support easier as only
known/authorized devices should be connected.
-Ensuring better connectivity for dealer supported
devices.
LED Status:
