ZFR1831 Pro Series Wireless Router
Installation Guide
Introduction
The ZFR1831 Wireless Router (ZFR1831) is a component of the ZFR183x Pro Series Wireless Field Bus
System which provides BACnet IP connectivity to compatible Johnson Control Field Controllers, VAV
Controllers, Thermostats and Sensors over a wireless mesh network. The ZFR1831 can be used as a
wireless Network Coordinator, a Field Controller Router or Stand-alone Repeater.
Applications
Important: Where failure or malfunction of an ZFR1831 or loss of communications due to
wireless interference could lead to personal injury or property damage to the controlled
equipment or other property, additional precautions must be designed into the control
system. Incorporate and maintain other devices, such as supervisory or alarm systems or
safety or limit controls, intended to warn of or protect against failure or malfunction of a
ZFR1831.
Important: The WRG1830/ZFR183x Series Wireless Field Bus System is not designed or
intended for use in mission-critical or life/safety applications.
North American emissions compliance
United States
Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Warning (Part 15.21)
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Canada
Industry Canada Statement(s)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
(barcode for factory use only)
ZFR1831
Johnson Controls - CONFIDENTIAL
*241146100004-*
Part No. 24-11461-00004 Rev —
2020-05-22
11.0 Alpha
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
1. L'appareil ne doit pas produire de brouillage, et
2. L'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Installation
CAUTION
Risk of Electric Shock
Disconnect the power supply before making electrical connections to avoid electric shock.
ATTENTION
Risque de décharge électrique
Débrancher l’alimentation avant de réaliser tout raccordement électrique afin d’éviter tout risque de
décharge électrique.
Important: Do not insert tools into the housing. Be careful not to damage any components
when pushing the tabs on either side of the sensor.
Important: Do not remove the printed circuit board (PCB). Removing the PCB voids the
product warranty.
Important: The modular phone jack and screw terminal connections cannot be used
simultaneously.
Location Considerations
Follow these guidelines when locating an ZFR1831 within an ZFR183x Pro Series Wireless Field Bus
system:
• The ZFR1831 wireless router can be installed on wall, wall box, conduit, or ceiling grid.
• Do not mount inside metal enclosures or on surfaces that can block RF signals.
• Locate the ZFR1831 so that it is easily accessible.
• For best signal transmission, orient the ZFR1831 with at least 50 mm (2 in.) exposed below
and clear of any pipes, duct work, or other metal obstructions.
• Locate the ZFR1831 in line-of-sight with as many wireless controllers as possible. At a
minimum, two other ZFR1831 Routers.
• Do not mount the ZFR1831 in recessed areas, metal enclosures, or shelving units.
• If feasible, mount the ZFR1831 outside of mechanical rooms, as many mechanical rooms
excessively attenuate the radio signal.
• Position WRZ Series sensors within 15m (50ft) of any ZFR1831 Router with the same PAN
setting.
ZFR1831 Pro Series Wireless Router Installation Guide2
Johnson Controls - CONFIDENTIAL
• Position ZFR1831 Routers within 75m (250ft) of other Routers with the same PAN setting.
• Locate all wireless devices that have the same PAN setting on the same floor (ZFR1831's,
TEC3000's, WRZ's). Communications between floors is typically not advised due to the
attenuation of the signal through the decking.
• Avoid metal obstructions and concrete or brick walls between the ZFR1831 and the associated
wireless devices.
• Avoid configurations where a microwave oven is located between two wireless devices. At a
minimum,ensure no microwave ovens are within 6 m (20 ft) of an ZFR1831 or any wireless
controllers or WRZ Sensor.
Note: For detailed information on location guidelines for an WRG1830/ZFR183x Series system,
and for estimating the number of ZFR1831 Routers needed as repeaters for extending
wireless transmission range, refer to the applicable WRG1830/ZFR183x Series Wireless Field Bus
System Technical Bulletin.
Parts included
Verify that the following parts shipped with the ZFR Pro Router:
• ZFR1831 Wireless Router
• 3m (10ft) wiring cable
•ZFR1831 Pro Series Wireless Installation Guide (Part No. 24-11461-00004)
Note: The ZFR1831 wireless router does include any required hardware for mounting
Materials and special tools needed
A 1.5 mm (1/16 in.) Allen wrench or a Johnson Controls® T-4000-119 Allen-Head Adjustment Tool is
required for tightening or loosening the security screw on the ZFR1831.
Figure 1: ZFR1831 Router front and back view with dimensions
3ZFR1831 Pro Series Wireless Router Installation Guide
Johnson Controls - CONFIDENTIAL

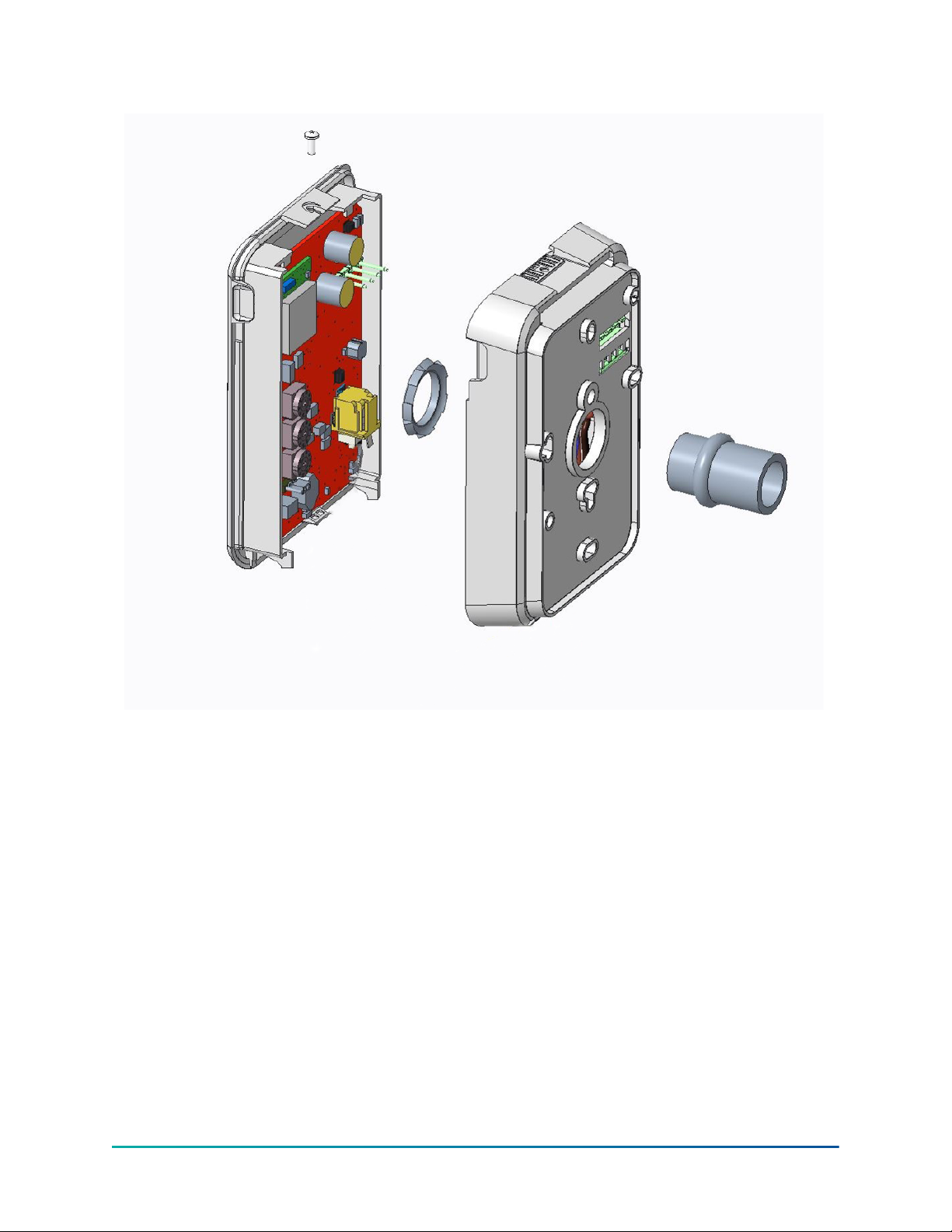

Figure 2: ZFR1831 Router conduit installation mounting view
ZFR1831 Pro Series Wireless Router Installation Guide4
Johnson Controls - CONFIDENTIAL
Figure 3: ZFR1831 Router ceiling grid installation mounting view
Note: Use Grainger item #45DN38 or equivalent. For more information visit https://
www.grainger.com/
Wireless signal transmission considerations
The effective transmission range/distance for indoor applications varies because of wireless signal
absorption and reflection due to metal obstructions, walls (or floors), and furniture found in typical
building interiors.
Transmissions may use up to 30 hops to transmit a message to the coordinator. In a well- designed
system, the layout design should minimize the required hops based on the recommended
transmission ranges and should typically be kept below five. Information on determining the
numbers of hops being used is covered in the WRG1830 Wireless Gateway Users Guide (LIT-12013550).
The WRZ sensors list a lower line of sight range because they transmit at a lower power (10mW)
than the wireless routers (100mW) and are typically mounted in the occupied spaces where there is
more attenuation due to occupants and furnishings.
5ZFR1831 Pro Series Wireless Router Installation Guide
Johnson Controls - CONFIDENTIAL
Table 1: Indoor transmission ranges
Maximum transmission distance
Range type
ZFR Pro
Coordinator
Radio, ZFR Pro
Router/Repeater
TEC3000 Series
Controller WRZ Series Sensor
Typical 75 m (250 ft) 75 m (250 ft) 15 m (50ft)
Maximum line
of sight
1200 m (4000 ft) 1200 m (4000 ft) 30 m (100 ft)
Indoor line-of-sight transmission ranges between products can be less than those in the table
above. The effective transmission distances and signal quality can vary for each application because
of wireless signal absorption and reflection due to metal obstructions, walls, ceilings, floors, and
furniture found in typical building interiors.
Transmission ranges between ZFR183x Pro Series products can be less than the maximum
distances shown in the table above.
Wiring
Wiring considerations and guidelines
Wiring Considerations and Guidelines
Follow these guidelines when wiring a ZFR1831:
• Route the wires at least 50 mm (2 in.) away from the sides of the ZFR1831 housing.
• Provide slack in the wires. Keep wires routed neatly around the ZFR1831 to promote good
ventilation, LED visibility, and ease of service.
Important: Do not connect supply power to the ZFR1831 before finishing wiring and checking
all wiring connections. Short circuits or improperly connected wires may result in permanent
damage to the ZFR1831.
Important: Use copper conductors only. Make all wiring in accordance with local, national,
and regional regulations. The ZFR1831 is a low-voltage (less than 30 VAC) device. Do not
exceed the ZFR1831’s electrical ratings.
Important: Prevent any static electric discharge to the ZFR1831. Static electric discharge can
damage the ZFR1831 and void any warranties.
Important: Do not connect the ZFR1831 to the power supply before setting the PAN OFFSET
rotary switches.
Power input and communication
Using as a Router connected to a Field Controller
1. Follow the mounting instructions above for mounting to either wall, conduit, or ceiling grid.
2. Connect the ZFR1831 to a compatible Field Controller using either the RJ-12 connector
(shown) or the 4 pin FC Bus terminal connection. This connection provides both power and
communication to the ZFR1831.
ZFR1831 Pro Series Wireless Router Installation Guide6
Johnson Controls - CONFIDENTIAL

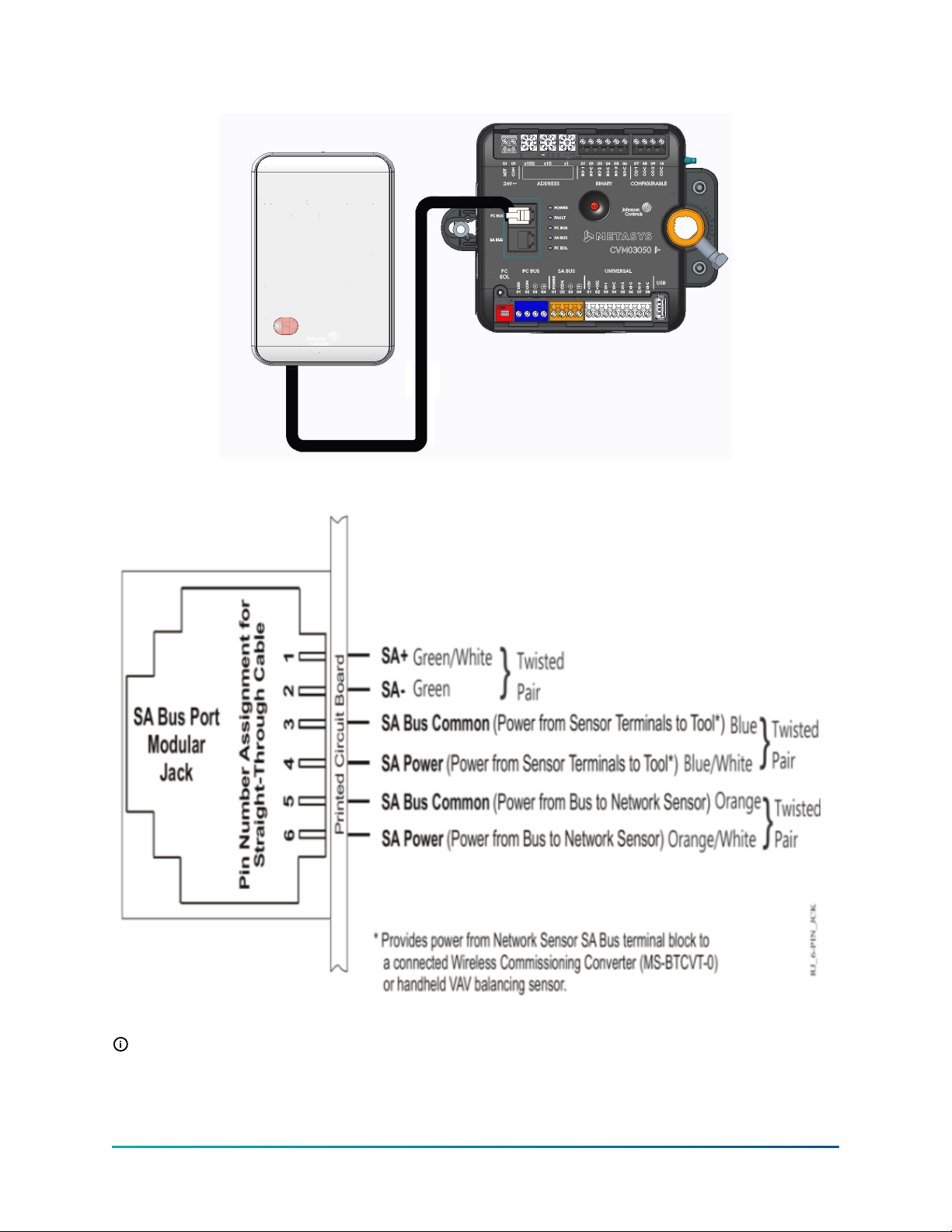

Figure 4: ZFR1831 wired to a Field Controller via RJ12
Figure 5: RJ12 pin out on the controller
Note: See MS/TP Communications Bus Technical Bulletin (LIT-12011034) for more information.
7ZFR1831 Pro Series Wireless Router Installation Guide
Johnson Controls - CONFIDENTIAL
Figure 6: ZFR1831 wired to a field controller via screw terminal
Using as a Repeater (stand-alone mode)
1. Follow the mounting instructions above for mounting to either wall, conduit, or ceiling grid.
2. Connect a 15VDC to 24 VAC source to the wireless router’s screw terminal pin connectors.
Figure 7: ZFR1831 wired as Stand-alone Repeater
Using as a coordinator connected to WRG
1. Follow the mounting instructions above for mounting to either wall, wall box, conduit or
ceiling grid.
ZFR1831 Pro Series Wireless Router Installation Guide8
Johnson Controls - CONFIDENTIAL
2. Connect the ZFR1831 to the WRG1830 using either the RJ-12 connector (shown) or the 4 pin
ZFR Radio terminal connection. This connection provides both power and communication to
the ZFR1831.
Figure 8: ZFR1831 wired to WRG1830 Gateway
Setup and adjustments
Selecting a PAN OFFSET for a Wireless Network
When selecting a PAN OFFSET for a wireless network, keep these points in mind:
• All devices within one wireless mesh network must be set to the same PAN setting.
• Select PAN settings that are unique for the site.
• The AREA rotary switch should be set to 0.
Figure 9: ZFR1831 Router Rotary Switches
9ZFR1831 Pro Series Wireless Router Installation Guide
Johnson Controls - CONFIDENTIAL
Important: To avoid interference, assign a unique PAN setting to each wireless network in a
building. Using a unique PAN setting is particularly important if you have PANs on adjacent
floors of a building. Do not use the same PAN OFFSET on multiple wireless networks in a
building, even if the PANs do not overlap.
Router LEDs Functional Definition
Table 2: Router LEDs Functional Definition
ZFR1831 State Color Description
Blue/Green Powering up
Off Network Blue/Blip Searching for Network to join
On Network - Normal State Green Normal Operation
On Network - Warning State Purple Steady Dim Warning (Lost Coordinator)
Red Blink Open for Joining
Yellow Blink Standby (PB Enabled)
Green Blink Normal
On Network - Commissioning
State
Purple Blink Warning (Lost Coordinator)
White Join PB being pressed (user
feedback)
Miscellaneous
Aqua Firmware Update in progress
Technical specifications
Table 3: ZFR1831 Router (used as Coordinator, Controller, and Repeater)
Product code number ZFR1831-0: Wireless Field Bus Router
Power supply input 15VDC with cable connected to field controller, or 24 VAC (nominal, 20
VAC minimum/30 VAC maximum), 50/60 Hz, power supply Class 2.
Addressing Rotary Switches, Field Adjustable
Wireless band Direct-Sequence Spread-Spectrum, 2.4 GHz ISM Bands
Transmission power 100 mW Maximum (selectable)
Transmission range 75m (250ft) Maximum at 100mW
1200m (4000ft) Maximum Line-of-Sight
Ambient conditions Operating: -40°C to 75°C (-40°F to 167°F), 5% to 95% RH,
Noncondensing
Storage: -40°C to 85°C (-50°F to 185°F), 5% to 95% RH,
Noncondensing
Materials White Plastic Housing with Plenum rating per UL2043, UL94-5VA
Flammability Rating
Terminations RJ-12 plug or 4-pin terminal
Dimensions 127 mm x 85.7 mm x 31.75 mm (5 in. x 3-3/8 in. x 3/4 in.)
Mounting hardware Conduit: 1/2 in. trade size Electrical Mechanical Tubing (EMT)
connector
Wall or Gang Box: Screw mounted
Ceiling Grid: T-Track clip (Grainger Item #45DN38 or equivalent). See
https://www.grainger.com/for more information.
ZFR1831 Pro Series Wireless Router Installation Guide10
Johnson Controls - CONFIDENTIAL
Inhaltsverzeichnis
Andere Johnson Controls Netzwerk-Router Handbücher
Johnson Controls
Johnson Controls IQ WiFi 6 Bedienungsanleitung
Johnson Controls
Johnson Controls IQ WiFi 6 Bedienungsanleitung
Johnson Controls
Johnson Controls WRG1830 Bedienungsanleitung
Johnson Controls
Johnson Controls TL-BRTRP-0 Bedienungsanleitung
Johnson Controls
Johnson Controls Intelligent Fire Integrator ROUTMB Bedienungsanleitung
Johnson Controls
Johnson Controls IQ WiFi 6 Bedienungsanleitung
Johnson Controls
Johnson Controls ZFR1811 Bedienungsanleitung
Johnson Controls
Johnson Controls WT-ROUTER Bedienungsanleitung
Johnson Controls
Johnson Controls ZFR1812 Bedienungsanleitung
Beliebte Netzwerk-Router Handbücher anderer Marken
NETGEAR
NETGEAR FS526T - Switch Bedienungsanleitung
Korenix
Korenix JetNet 5710G Series Bedienungsanleitung
Automated Logic
Automated Logic ZN551 Betriebsanleitung
Cisco
Cisco ASR 1000 Series Bedienerhandbuch
EnGenius
EnGenius ESR-9710 Bedienungsanleitung
Cisco
Cisco 805 Series Bedienungs- und Sicherheitshinweise
