Johnson Controls NEXT CAM PG+ Merkblatt

NEXT CAM PG+ Motion Detector with

Integrated Camera Installation Guide

Installation guidelines

The reference to NEXT CAM PG+ throughout this manual includes the model NEXT CAM P9M0, NEXT

CAM P8M0, and NEXT CAM P8M1.

CAUTION: Only qualified personnel may install this equipment. Place this device in non-

hazardous indoor locations only.

Important: Check the device and the entire alarm system weekly to ensure optimal

performance.

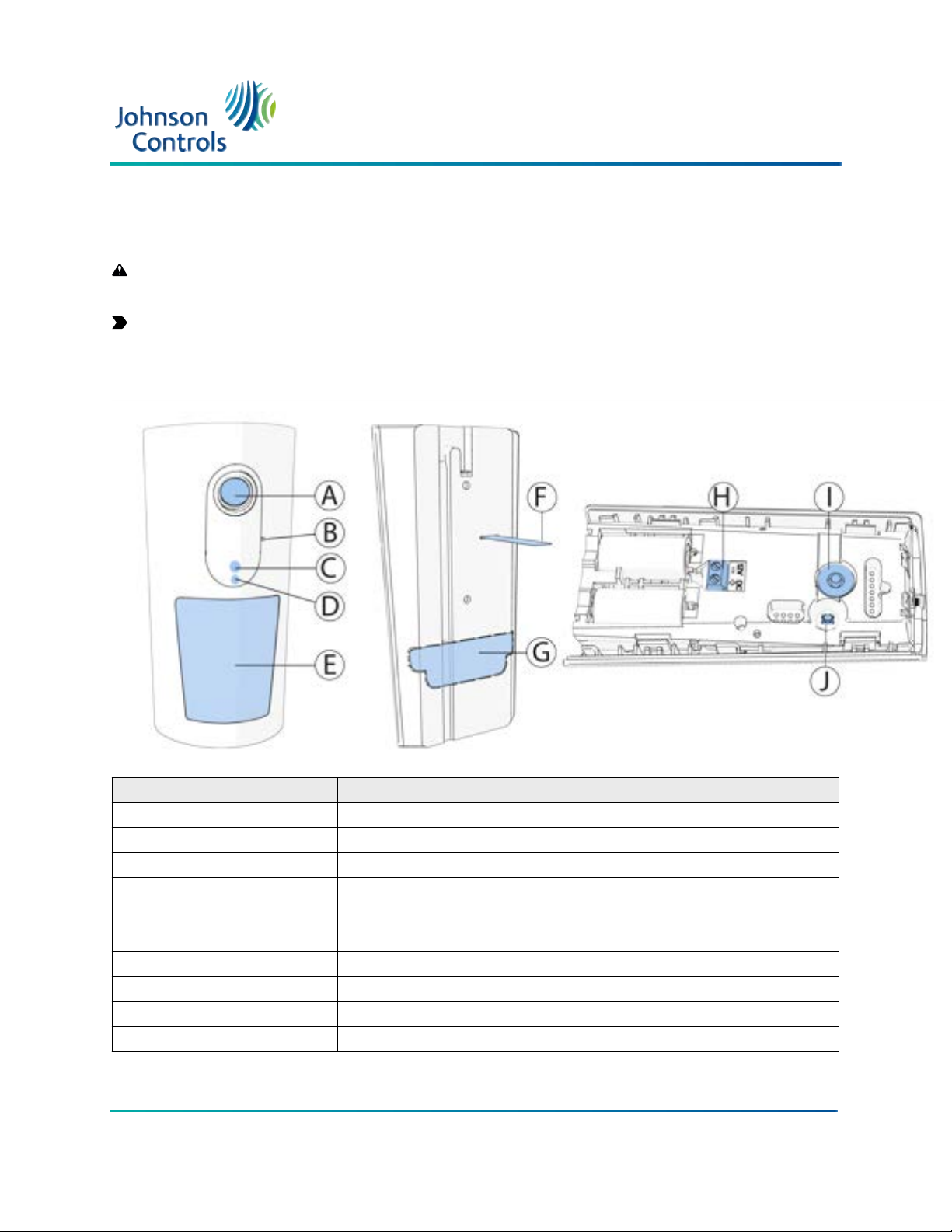

Figure 1: NEXT CAM PG+

Callout Description

A Camera lens

B Microphone

C LED

D Light sensor

E PIR lens

F Battery pull-tab

G Break-away segment

H Terminal block

I Tamper switch

J Enroll button

For more information refer to section About NEXT CAM PG+ .

D-308840

*D-308840*

D-308840 NEXT CAM PG+ Rev. 0

Figure 2: Optimizing detection and avoiding false alarms

1. Do not install near high-voltage electrical lines.

2. Keep away from heat sources.

3. Do not install outdoors.

4. Avoid direct sunlight.

5. Do not expose to air drafts.

6. Do not install behind partitions.

7. Do not mount on an unstable surface.

8. Install on a solid and stable surface at a height of 1.8 m to 2.4 m (6 ft. to 8 ft.).

WARNING: Do not obscure partially or completely the detector's field of view.

Enrolling the device

1. Refer to the control panel installation manual for the complete set of enrollment instructions

and testing procedures.

2. From the Installation menu, enter the Device enrollment menu and select the option to add

a new device.

3. Remove the battery pull-tab to power on the device and begin the auto-enrollment process.

If the battery pull-tab is not available or if the device does not automatically enroll, open the

device cover to trigger the enrollment. Alternatively, press the enroll button until the orange

LED light turns on. See Figure 1.

4. If requested, enter the PIN code printed on the device label.

5. To manually enroll the device:

a. Scan the QR Code on the device box, using the IQ4 camera if available, or see step b.

b. Manually enter the device ID, printed on the product label, in the format ID:145-xxxx.

Note: If the device has been powered up for more than 48 hours it will be identified by

the system only after the device has been reset.

The NEXT CAM PG+ is enrolled with device ID 145-XXXX. In fall back mode it enrolls as NEXT

CAM PG2 with device ID 140-XXXX.

6. Select the desired zone.

7. Configure any device parameters that are required.

8. Mount and test the device. See Local diagnostics test for information on testing the device.

NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide2

D-308840 NEXT CAM PG+ Rev. 0

Configuring the device parameters

Enter the DEVICE SETTINGS menu and select the required configuration as described in the

following table.

Option Action

General configuration options

Alarm LED Define whether the alarm LED indication will be activated.

Optional settings: LED ON (default) and LED OFF.

Event counter Define whether an alarm will be activated upon continued motion (low

sensitivity) or upon a single alarm event (high sensitivity)..

Optional settings: LOW sensitivity (default) and HIGH sensitivity.

Disarm activity Define whether the device is active when the system is disarmed.

Optional settings: NOT Active (default), no delay, 5 s delay, 15 s delay, 30 s

delay, 1 min delay, 2 min delay, 5 min delay, 10 min delay, 20 min delay and

60 min delay.

AC monitoring Determine whether the device is connected to AC power. When enabled, the

device reports power failure and power restore events.

Optional settings: Disabled (default) and Enabled.

AC LED behavior Define whether the LED lights green when connected to AC power.

Optional settings: Always OFF (default) and Match AC.

Temperature

reporting

Define the device temperature reporting mechanism.

Optional settings: Disabled (default). For further configuration options, refer to

the control panel installation guide.

Camera configuration options

Image color Determine whether the image will be in black and white or color.

Optional settings: Black & White (default) and Color.

Alarm image

resolution

Set the resolution of an image taken during an alarm.

Optional settings: VGA: 640 x 480, QVGA: 320 x 240 (default), QQVGA: 160 x 120

On-demand


resolution

Set the resolution of an image taken for an on-demand image request.

Optional settings: HD: 1280 x 720, VGA: 640 x 480, QVGA: 320 x 240 (default),

QQVGA: 160 x 120

Image quality Set the quality of an image taken during an alarm.

Optional settings: Low (default), High.


brightness

Set the brightness of the image. Normal (default) is recommended for most

conditions.

Optional settings: Normal (default), -3 (lowest), -2, -1, +1, +2, and +3 (highest).

Image contrast Set the contrast of the image. Normal (default) is recommended for most

conditions.

Optional settings: Normal (default), -3 lowest), -2, -1, +1, +2, and +3 (highest).

Microphone

settings

Determine whether to activate the microphone. When set to enable, the

microphone records sound only during image capturing.

Optional settings: Disable (default) and Enable.

3NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide

D-308840 NEXT CAM PG+ Rev. 0

Installing the pet mask

Install the pet mask if you require pet immunity. The optimal installation height for pet immunity is

2.1 m (7 ft.), measured from the center of the device. Pet immunity is for pets weighing up to 38 kg

(85 lb).

Note: Pet immunity is not supported at heights of 2.4 m (8 ft.) and above. Do not install the pet

mask if you are mounting the device at this height or above.

Table 1: Required mounting height

Distance to opposite wall Mounting height

8 m (26 ft) or less 1.8 to 2.1 m (6 ft to 7 ft)

8 m to 12 m (26 ft to 39 ft) 2.1 m (7 ft)

1. To open the device cover, use a screwdriver to loosen the cover screw located on the

underside of the device. See A in the following figure. Separate the base from the cover. See B

in the following figure.

Figure 3: Device cover removal

2. To extract the internal assembly, use a screwdriver to open the four clips. See A in the

following figure.

NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide4

D-308840 NEXT CAM PG+ Rev. 0

Figure 4: Extracting the internal assembly

3. Insert the tabs at the base of the pet mask into the bottom holes and align the tabs on the

sides with the holes on both sides. See the following figure.

Figure 5: Inserting the pet mask

4. Press down gently to install the pet mask.

5. Reassemble the internal assembly.

Note: Ensure that the microphone seal is in place. See the following image.

5NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide

D-308840 NEXT CAM PG+ Rev. 0

Figure 6: Microphone seal

6. To close the device cover, clip the cover onto the device base and tighten the cover screw. See

the following figure.

Figure 7: Closing the device cover

NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide6

D-308840 NEXT CAM PG+ Rev. 0

Removing the pet mask

Remove the pet mask if you do not require pet immunity.

1. Open the device cover. See Figure 3.

2. To extract the internal assembly, use a screwdriver to open the four clips. See Figure 4.

3. Gently remove the pet mask. See the following figure.

Figure 8: Removing the pet mask

4. Reassemble the internal assembly.

Note: To maintain the position of the microphone seal when removing the pet mask

make sure that the microphone seal is in place, and replace it if necessary. See Figure 6.

5. Close the device cover. See Figure 7.

Mounting the device using screws

Note: Make sure to fasten the break-away segment to the frame. If the device is forcibly

removed from the wall, this segment will break away from the base, causing the tamper switch

to open.

1. To open the device cover, use a screwdriver to loosen the cover screw located on the

underside of the device. See Figure 3.

2. Identify the holes that match the mounting option, then drill out those holes. See the

following figure for mounting options.

7NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide

D-308840 NEXT CAM PG+ Rev. 0

Figure 9: Mounting options

Callout Description

A Flat wall installation. See the note below the table.

B Right corner installation.

C Left corner installation.

D BR-1/2/3 bracket installation. Use the screw from the BR-1/2/3

installation kit.

Note: For flat wall installation, use two screws diagonally to include the tamper option,

or two screws horizontally to exclude the tamper option. Four screws can also be used.

3. Press the base against the wall at the selected mounting position and mark the drilling points

through the mounting holes.

4. Drill the required holes.

5. Screw the base to the wall.

6. Close the device cover. See Figure 7.

Optional: Mounting the device using a bracket

For more information see the BR-1/2/3 manual (DE1781-).

Important: When mounted using the BR-1, BR-2, or BR-3 bracket, back tamper protection is

not available.

Note: Mounting the device using a bracket is not approved by EN.

1. To mount the device on a flat wall with the option to change the angle of the device, use the

BR-1 bracket. See the following figure for the assembly of the BR-1 bracket on the wall.

NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide8

D-308840 NEXT CAM PG+ Rev. 0

Figure 10: Wall-mount bracket (BR-1) installation

2. To mount the device in the corner with the option to change the angle of the device, use the

BR-2 bracket. See the following figure for the assembly of the BR-2 bracket on the wall.

Figure 11: Corner-mount bracket (BR-2) installation

3. To mount the device on the ceiling with the option to change the angle of the device, use the

BR-3 bracket. See the following figure for the assembly of the BR-3 bracket on the ceiling.

9NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide

D-308840 NEXT CAM PG+ Rev. 0

Figure 12: Ceiling-mount bracket (BR-3) installation

NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide10

D-308840 NEXT CAM PG+ Rev. 0
