Self-Leveling Five-Beam Laser Dot

Model No. 40-6680

Instruction Manual

Congratulations on your choice of this Self-Leveling Five-Beam Laser

Dot. We suggest you read this instruction manual thoroughly before

using the instrument. Save this instruction manual for future use.

This tool emits five laser beams, which projects a series of visible points

on surfaces around the product (i.e. left, right, front, up, and down).

Beam visibility depends upon lighting conditions in the work area.

This is a Class IIIa laser tool and is manufactured to comply with CFR

21, parts 1040 .10 and 1040 .11 as well as international safety rule

IEC 285.

3589H-New_Manuals 7/8/10 9:38 AM Page 1

Table of Contents

1. Kit Contents

2. Features and Functions

3. Safety Instructions

4. Location/Content

of Warning Labels

5. Location of Parts/Components

6. Operating Instructions

7. Using the Product

8. Self-Check & Fine Calibration

9. Technical Specifications

10. Application Demonstrations

11. Care and Handling

12. Product Warranty

13. Warranty Registration

14. Accessories

1. Kit Contents

Description ty.

Self-Leveling Five-Beam Laser Dot 1

Multi-functional Magnetic Base 1

Mounting Strap 1

“AA” Alkaline Batteries 3

Tinted Goggles 1

Magnetic Target 1

Instruction Manual with Warranty Card 1

Soft-sided Carrying Case 1

2. Features and Functions

• Product simultaneously projects five laser beams (up, down,

front, left and right directions).

• Magnetic dampened compensation system.

• Maintains level even when effected by vibration on the job site.

• Laser beam flashes and sounds audible alarm when product is

beyond leveling range.

• Low voltage indication when power indication lamp is flashing.

• Pendulum locking mechanism helps protect units inner mechanisms.

• Multi-functional magnetic base for attaching to tripod or any

metal surface.

• Dust and rain resistant.

3589H-New_Manuals 7/8/10 9:38 AM Page 2

3. Safety Instructions

Please read and understand all of the following instructions, prior

to using this tool. Failure to do so, may void the warranty.

ATTENTION IMPORTANT

• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.

• Do not stare directly at the laser beam.

• Do not project the laser beam directly into the eyes of others.

• Do not set up laser tool at eye level or operate the tool near a reflective surface as

the laser beam could be projected into your eyes or into the eyes of others.

• Do not place the laser tool in a manner that may cause someone to unintentionally

look into the laser beam. Serious eye injury may result.

• Do not operate the tool in explosive environments, i.e. in the presence of gases or

flammable liquids.

• Keep the laser tool out of the reach of children and other untrained persons.

• Do not attempt to view the laser beam through optical tools such as telescopes as

serious eye injury may result.

• Always turn the laser tool off when not in use or left unattended for a period of time.

• Remove the batteries when storing the tool for an extended time (more than 3 months)

to avoid damage to the tool should the batteries deteriorate.

• Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt

to repair this tool, warranty will be void.

• Use only original ohnson®parts and accessories purchased from your ohnson®

authorized dealer. Use of non- ohnson®parts and accessories will void warranty.

DANGER!

Class IIIa Laser Product

Max. Power Output: ≤5mW

Wavelength: 640-660nm

THIS TOOL EMITS LASER RADIATION.

DO NOT STARE INTO BEAM.

AVOID DIRECT EYE EXPOSURE.

3589H-New_Manuals 7/8/10 9:38 AM Page 3

4. Location/Content of Warning Labels

3589H-New_Manuals 7/8/10 9:38 AM Page 4

5. Location of Part/Components

1/4”– 20 Thread

attaches laser to base

Rare Earth

Magnets

Position tab on

base into groove

on laser

Bumpers for setting base

against metal track

Laser Output

Window

On/Off Switch

Battery Door

Power

Indicator Lamp

Laser Output

Window

1/4" – 20 thread

3589H-New_Manuals 7/8/10 9:39 AM Page 5

6. Operating Instructions

IMPORTANT: It is the responsibility of the user to verify the

calibration of the instrument before each use.

Battery Installation

Note: Always check to be sure that the on/off switch is in the off

position before removing and replacing batteries.

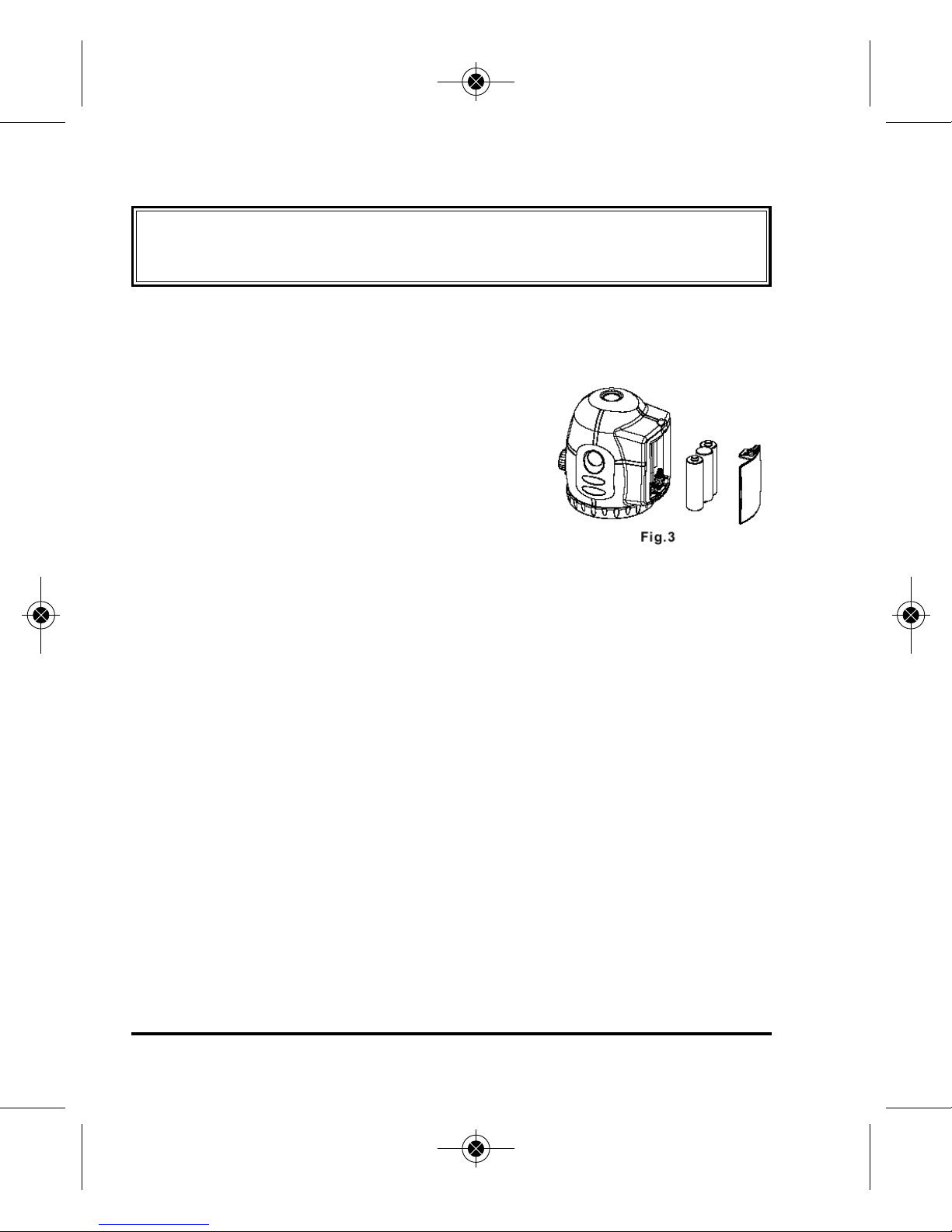

1. As shown in fig. 3, remove battery cover.

2. Put three “AA” alkaline batteries into the

battery compartment noting polarity (as

shown). Note: Remove white sensormatic

tag before installing the batteries.

3. Re-attach the battery cover.

Note: Used (discharged) batteries are hazardous waste and

should be disposed of properly.

Using the Instrument

1. Place product on a relatively smooth, flat, and level surface.

Note: Product must be within ±4.5° of level for self-leveling feature

to function properly. Greater than 4.5° will result in an alarm

condition (flashing laser and intermittent beeping sound).

2. Rotate on/off switch fully clockwise. This will release the self-leveling

locking mechanism and turn unit on.

3. Turn unit off by rotating on/off switch fully counter clockwise. This

will engage the self-leveling locking mechanism and turn unit off,

ensuring that the unit will not get damaged when moved or stored.

3589H-New_Manuals 7/8/10 9:39 AM Page 6

7. Using the Product

This laser level was designed for various mounting applications.

1. Position laser base so laser beam shoots

between the feet of the base for plumb

applications.

2. Base top being rotated to shoot the laser

beam down the back of the base.

3. Position base by rotating top to shoot beam

down the back of the base. Ideal for use

with metal track.

4. Rare earth magnets located on base allows

the base to attach to metal surfaces.

3589H-New_Manuals 7/8/10 9:39 AM Page 7

8. Self-Check & Fine Calibration

IMPORTANT: It is the responsibility of the user to verify the

calibration of the instrument before each use.

Self-Check Calibration

1. With the laser on its base and set on a flat platform inside a room,

turn the laser on.

2. Mark the down beam location and use this as your reference

point.

3. Locate the up beam and mark its point as position A.

4. Rotate the laser (not moving the base) 180º by swiveling the laser

on its base and mark the up beam location as position B.

5. Rotate the laser 90º and mark the up beam location as position C.

6. Rotate the laser 180º and mark the up beam location as

position D.

Note: Do not move the base and always have the down beam in the

same location.

7. Connect the four dots. Connect A to B

and C to D.

8. If the center point (E) is more than

1/8” at 50’ or 1/32” at 12.5’ from

points A, B, C and D, the unit needs to

be recalibrated.

0º (A)

180º (B)

(E)

90º (C)270º (D)

Fig. A

3589H-New_Manuals 7/8/10 9:39 AM Page 8

Fine Calibration

1. Remove plastic screws on front and left of the laser.

2. With the unit on its base on a flat platform, turn the laser on.

3. Return the laser back to its original starting point when

self-checking the laser.

4. Use a 2mm allen wrench to turn the front adjusting screw to

position the laser beam forward and backward.

5. Use the side adjusting screw to position the laser beam left and

right.

6. Move the top beam to the intersection of the 4 dots shown in

Fig. A of self-check calibration.

7. Perform another self-check calibration as described previously to

make sure the laser is calibrated.

8. If the laser is still beyond its accuracy specification, recalibrate the

laser again.

9. If laser is still out of calibration, contact ohnson Level & Tool for

service.

10. Return the plastic screws being careful to not over tighten.

3589H-New_Manuals 7/8/10 9:39 AM Page 9

Self-Checking the 3 Horizontal Beams

1. As shown in Fig. 9.1, set up the instrument on the tripod or flat

platform 50 ft. (9.1m) from an upright wall. Aim the front beam at

the face of the wall. Mark the point projected on the wall by front

beam as A.

2. Turn the instrument

clockwise (Fig. 9.2) to

make the point projected

by right laser beam on

the same exact line as

point A, and then mark

the point as B.

3. Turn the instrument counterclockwise (Fig. 9.3) to make the point

projected by left laser beam on the same exact line as point A,

and then mark the point as C.

4. The vertical distance between points A, B and C should not exceed

0.125" (3.2mm).

5. If laser exceeds 1/8” at 50’, contact ohnson Level & Tool

for service.

Fig. 9.1 Fig. 9.2 Fig. 9.3

3589H-New_Manuals 7/8/10 9:39 AM Page 10
