MX10003 3D Universal Edge Router Quick Start

MX10003 Quick Start Description

This Quick Start contains information you need to install and configure the router quickly.

For complete installation instructions, see the MX10003 3D Universal Edge Router Hardware

Guide at http://www.juniper.net/techpubs/.

WARNING: This Quick Start contains a summary of safety warnings in “Safety

Warnings” on page 22. For a complete list of warnings for this router, including

translations, see the MX10003 3D Universal Edge Router Hardware Guide at

http://www.juniper.net/techpubs/.

The Juniper Networks MX10003 3D Universal Edge Router is an Ethernet-optimized edge

router with 2.4-Tb capacity that provides both switching and carrier-class Ethernet

routing. The MX10003 router runs Junos operating system (Junos OS), enabling a wide

range of business and residential applications and services, including high-speed transport

and virtual private network (VPN) services, next-generation broadband multiplay services,

and high-volume Internet data center internetworking. Each router provides full duplex,

high-density Ethernet interfaces and high-capacity switching throughput and uses the

Junos Trio chipset for increased scalability of Layer 2 and Layer 3 packet forwarding,

buffering, and queuing.

The MX10003 router is compact and three rack units (3U) tall. Several routers can be

stacked in a single floor-to-ceiling rack for increased port density per unit of floor space.

The router provides two dedicated line card slots for Modular Port Concentrators (MPCs).

MPCs install into the line-card slots. The router supports two redundant Routing and

Control Board (RCB). The RCBs house the Routing Engines (see Figure 1 on page 4).

The router is powered by six dedicated AC or DC power modules. Cooling is handled by

four fan modules. The RCBs and MPCs install into the front of the chassis, whereas the

power and fan modules install into the rear of the chassis.

The MX10003 line card has six built in QSFP+ optics ports and one slot for a MIC. For a

list of MPCs and MICs supported on the MX10003 router, see MX Series Interface Module

Reference.

MX10003 Quick Start Description

Figure 1: Front View of the MX10003 Router

3—1— MIC installed in MPC1

Routing and Control Board (RCB)

4—2— MIC installed in MPC0

MPCs

Step 1: Prepare the Site for MX10003 Installation

•Router Rack Requirements on page 4

•Router Clearance Requirements on page 5

•Router Cooling and Airflow Requirements on page 5

•Tools Required to Prepare the MX10003 Router for Installation on page 6

Router Rack Requirements

•You can install the router in a four-post rack or cabinet or an open-frame rack.

•The rack must be strong enough to support the weight of the fully configured router:

up to 157.4 lb (71.4 kg) for AC-powered chassis, and up to 163.4 lb (74.1 kg) for

DC-powered chassis.

•Material handling systems (such as levers, slings, lifts, and so on) must be used to lift

any equipment weighing more than 121.2 lb (55 kg). In installation sites where using a

lift is not practical, specially trained persons or systems must be used (riggers or

movers).

•The rack rails must be spaced widely enough to accommodate the external dimension

of the chassis: 5.21 in. (13.23 cm) high, 30 in. (76.2 cm) deep, and 17.3 in. (43.9 cm)

wide. The outer edges of the mounting brackets extend the width to 19 in. (48.3 cm).

•Ensure that the cabinet allows the hot exhaust air of the chassis to exit from the cabinet

without recirculating into the router.

•The router must be installed in a rack that is secured to the building structure.

•Mount the router at the bottom of the rack if it is the only unit in the rack.

•When mounting the router in a partially filled rack, load the rack from the bottom to

the top with the heaviest component at the bottom of the rack.

MX10003 3D Universal Edge Router Quick Start

Router Clearance Requirements

For the cooling system to function properly, the airflow around the chassis must be

unrestricted. You must allow sufficient clearance around the installed chassis for cooling

and maintenance. See Figure 2 on page 5.

If you are mounting an MX10003 in a rack with other equipment, ensure that the exhaust

from the other equipment does not blow into the intake vents of the MX10003 chassis.

Figure 2: Clearance Requirements for Airflow and Hardware Maintenance

for the MX10003

Router Cooling and Airflow Requirements

•The router has front-to-back or airflow out (AFO) cooling system. Air is pulled through

the front of the chassis toward the fan tray, from where it is exhausted out of the

system. The power supplies are self-cooling and are located in the rear of the router.

See Figure 3 on page 6.

•For the cooling system to function properly, the airflow around the chassis must be

unrestricted. Allow at least 6 in. (15.2 cm) of clearance between side-cooled routers.

Allow 2.8 in. (7 cm) between the side of the chassis and any non-heat-producing

surface such as a wall.

•For service personnel to remove and install hardware components, there must be

adequate space at the front and back of the router. Allow at least 30 in. (76.2 cm) in

front of the router and 24 in. (61 cm) behind the router.

•The rack or cabinet must have an adequate supply of cooling air.

Router Clearance Requirements

Figure 3: Airflow Through the MX10003 Router

Tools Required to Prepare the MX10003 Router for Installation

•Blank panels to cover any slots not occupied by a component

•Mounting brackets, supplied with the router

•Eight screws for securing the mounting brackets to the chassis, supplied with the router

•Phillips (+) screwdriver, number 2, not supplied

•Four mounting screws, supplied with the router

•Cable management bracket, supplied with the router

•Two screws for securing the cable management bracket, supplied with the router

Step 2: Install the MX10003 Chassis in the Rack

To install the router in a rack or cabinet:

1. Position the router in front of the rack or cabinet.

2. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist and to a

site ESD point.

3. Using a Phillips (+) number 2 screwdriver, remove the screw on each side of the chassis

that holds the rear-mounting brackets, and slide the brackets out of the chassis (see

Figure 4 on page 7). Keep the brackets safely to be used in later stage.

The rear-mounting brackets on each side of the chassis are movable. You can adjust

the brackets according to the depth of the rack. However, the front-mounting brackets

on each side of the chassis are fixed to the chassis.

MX10003 3D Universal Edge Router Quick Start

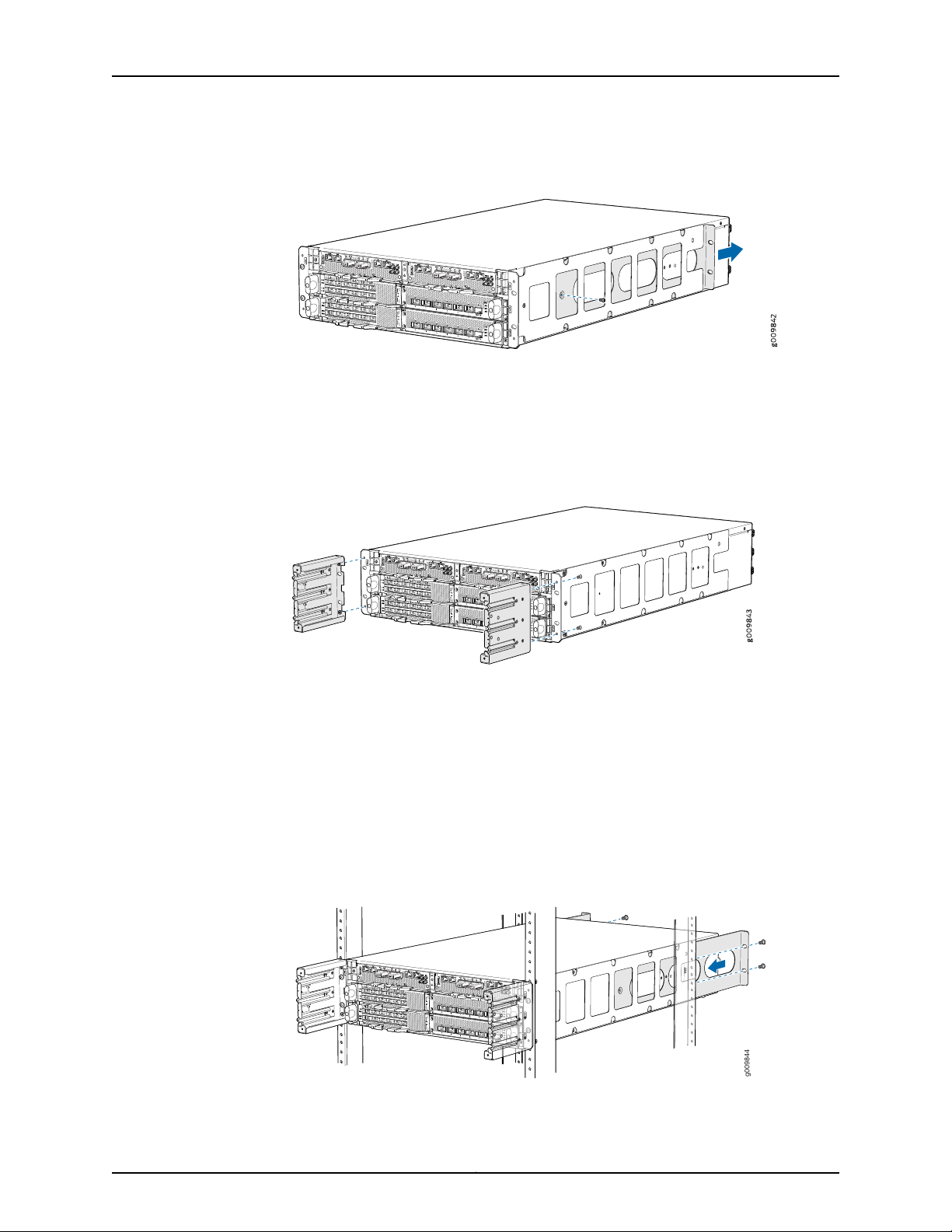

Figure 4: Removing the Rear-Mounting Brackets

4. Install the cable management brackets on each side of the front of the chassis, and

secure each bracket with screws at the bottom and top of the bracket (see

Figure 5 on page 7).

Figure 5: Installing the Cable Management Brackets

5. With one person on each side, hold on to the bottom of the chassis and carefully lift

it so that the mounting brackets contact the rack rails.

6. Carefully slide the router onto the mounting brackets until the front-mounting brackets

attached to the chassis contact the rack rails (see Figure 6 on page 7). The mounting

brackets ensure that the holes in the front-mounting brackets attached to the chassis

align with the holes in the rack rails.

Figure 6: Installing the Router in a Four-Post Rack

g009844

Step 2: Install the MX10003 Chassis in the Rack

7. Install mounting screws into each of the open front-mounting holes aligned with the

rack, starting from the bottom, and secure them tightly.

8. On the rear of the chassis, slide the rear-mounting brackets on either side of the chassis

until the rear-mounting brackets contact the rack rails.

9. Install mounting screws into each of the open rear-mounting holes aligned with the

rack, starting from the bottom, and secure them tightly.

10. Visually inspect the alignment of the chassis. If the chassis is installed properly in the

rack, all the mounting screws on one side of the rack are aligned with the mounting

screws on the opposite side and the router is level. Figure 7 on page 8 shows the

router fully secured and installed in a four-post rack.

Figure 7: Router Installed in the Rack

g009845

MX10003 3D Universal Edge Router Quick Start

Step 3: Connect the Grounding Cable

To meet safety and electromagnetic interference (EMI) requirements and to ensure

proper operation, the router must be adequately grounded before power is connected.

A protective earthing terminal bracket is required for connecting the chassis to earth

ground. This two-holed bracket attaches on the side of the chassis through the mounting

rail and provides a protective earthing terminal for the switch. The grounding points are

in the form of studs sized for M5 Pan Head screws. The M5 Pan Head screws with

integrated washers are provided in the accessory kit. The grounding points are spaced

at 0.75-in. (19.1-mm) centers.

You ground the router by connecting a grounding cable to earth ground and then attaching

it to the chassis grounding points by using two M5 Pan Head screws. You must provide

the grounding cables (the cable lugs are supplied with the router).

NOTE: The grounding lug required is a Panduit LCD10-14B-L or equivalent

(not provided). The grounding lug accommodates 14–10 AWG (2–5.3 mm²)

stranded wire. The grounding cable that you provide for the chassis must be

the same size or heavier than the input wire of each power supply. Minimum

recommendations are 14–10 AWG (2–5.3 mm²) stranded wire, 60° C wire,

or as permitted by local code.

To ground the MX10003 router:

1. Verify that a licensed electrician has attached the cable lug provided with the router

to the grounding cable.

2. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect

the strap to an approved site ESD grounding point. See the instructions for your site.

3. Ensure that all grounding surfaces are clean and brought to a bright finish before

grounding connections are made.

4. Connect the grounding cable to a proper earth ground.

5. Detach the ESD grounding strap from the site ESD grounding point.

6. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the

ESD points on the chassis.

7. Place the grounding cable lug over the grounding points on the side of the chassis

(see Figure 8 on page 10).

Step 3: Connect the Grounding Cable

8. Secure the grounding cable lug with the screws. The holes are sized to accommodate

M5 Pan Head screws.

9. Dress the grounding cable and verify that it does not touch or block access to router

components, and that it does not drape where people could trip on it.

Figure 8: Grounding the MX10003 Router

Step 4: Connect External Devices and Cables

Figure 9 on page 11 shows the front panel of the MX10003 RCB. All the connections to

the router are made through the RCBs. The external devices are connected through the

RCBs.

MX10003 3D Universal Edge Router Quick Start

Andere Handbücher für MX10003

Inhaltsverzeichnis

Andere Juniper Netzwerk-Router Handbücher

Juniper

Juniper M40e Montageanleitung

Juniper

Juniper MX240 Montageanleitung

Juniper

Juniper T1600 Installations- und Betriebshandbuch

Juniper

Juniper PTX3000 Bedienungsanleitung

Juniper

Juniper MX10008 Montageanleitung

Juniper

Juniper MX2008 Montageanleitung

Juniper

Juniper J2300 Bedienungsanleitung

Juniper

Juniper V10000 Bedienungsanleitung

Juniper

Juniper ACX7348 Montageanleitung

Juniper

Juniper E SERIES BROADBAND SERVICES ROUTERS - E SERIES END-OF-LIFE MODULE GUIDE... Bedienungsanleitung

Juniper

Juniper JRR200 Montageanleitung

Juniper

Juniper EX4500 Series Montageanleitung

Juniper

Juniper MX240 Montageanleitung

Juniper

Juniper ERX - RELEASE 11.1.X HARDWARE GUIDE... Montageanleitung

Juniper

Juniper J4350 Bedienungsanleitung

Juniper

Juniper MX150 Montageanleitung

Juniper

Juniper E120 - RELEASE 11.1.X HARDWARE GUIDE... Montageanleitung

Juniper

Juniper T320 Bedienungsanleitung

Juniper

Juniper OCX1100 Montageanleitung

Juniper

Juniper PTX10008 Bedienungsanleitung

Juniper

Juniper TX MATRIX Montageanleitung

Juniper

Juniper J-Series Bedienungsanleitung

Juniper

Juniper CTP2000 Series Bedienerhandbuch

Juniper

Juniper MX204 Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
