Juniper PTX10004 Bedienungsanleitung
PTX10004
Published
2023-09-12
RELEASE
Table of Contents
Step 1: Begin
Meet the PTX10004 | 1
Install the PTX10004 in a Rack | 1
What’s in the Crate? | 2
What Else Do I Need? | 2
Assemble the Rack Mount Kit | 2
Mount the PTX10004 on a the Rack and Ground the Chassis | 3
Power On | 5
Step 2: Up and Running
Connect to the Router | 7
Set a Root Password and an Oponal Hostname | 8
Congure the Default Gateway and Ethernet Interface | 9
Congure Oponal Routes, Services, and Commit the Conguraon | 9
Step 3: Keep Going
What’s Next? | 11
General Informaon | 11
Learn With Videos | 12
ii
Step 1: Begin
IN THIS SECTION
Meet the PTX10004 | 1
Install the PTX10004 in a Rack | 1
Power On | 5
In this guide, we provide a simple, three-step path, to quickly get you up and running with your new AC-
powered router. We've simplied and shortened the installaon and conguraon steps, and included
how-to videos. You'll learn how to install the PTX10004 in a rack, power it up, and congure basic
sengs.
Meet the PTX10004
The Juniper Networks® PTX10004 modular router is the ultra-compact, ultra-high-density router for
today’s space-and power-constrained facilies. The PTX10004 supports 400GbE architectures with
inline Media Access Control Security (MACsec) on all ports for uncompromised security. The compact 7-
U design and the ability to scale from 19.2 Tbps to 57.6 Tbps makes the PTX10004 perfectly opmized
for data center and colocaon racks.
Install the PTX10004 in a Rack
IN THIS SECTION
What’s in the Crate? | 2
What Else Do I Need? | 2
Assemble the Rack Mount Kit | 2
Mount the PTX10004 on a the Rack and Ground the Chassis | 3
1
Before you begin the installaon, review General Safety Guidelines and Warnings.
What’s in the Crate?
Along with your PTX10004, you’ll also nd:
• A rack mount kit with:
• Twelve Phillips 8-32 x .375 in. at-head screws
• Two rear rails
• A mounng tray
• A rear safety restraint
• The front door kit
• An accessory kit with:
• RJ-45 Ethernet cable
• RJ-45 to DB9 rollover cable
•Electrostac discharge (ESD) wrist strap with cable
• Media kit (ash drives, PCMCIA card adapter)
• Ground chassis lug, 2-hole, 10-32, 4 AWG
• Power cord retainer clips, two for each power supply
What Else Do I Need?
• A mechanical li rated for 250 lb (113.4 kg). You can mount a PTX10004 manually or by using a
mechanical li. Because of the router's size and weight, we strongly recommend that you use a
mechanical li to mount the PTX10004. In this guide, we show you how to mount the router using a
mechanical li.
• 4 AWG (21.1 mm²) stranded wire grounding cable rated 75° C or per local electrical code
• A Phillips (+) screwdriver, number 2 or number 3, depending on the size of your rack mount screws
• A number 3 Pozidriv or Phillips (+) screwdriver for the grounding screws
• Twenty eight rack mount screws appropriate for your rack to secure the mounng blades, mounng
tray, chassis, and safety restraint to the rack
Assemble the Rack Mount Kit
2
1. Aach the mounng blades to the front rack posts using six rack mount screws.
2. From the rear of the rack, slide the mounng tray into the rear posts of the rack such that the
mounng blades align below the anges on either sides of the mounng tray.
3. Aach the tray to the rear rack posts using eight rack mount screws.
4. Aach the tray to the mounng blades in the rack using the 12 at-head screws.
Mount the PTX10004 on a the Rack and Ground the Chassis
1. Wrap and fasten one end of the electrostac discharge (ESD) grounding strap around your bare
wrist, and connect the other end to a site ESD point.

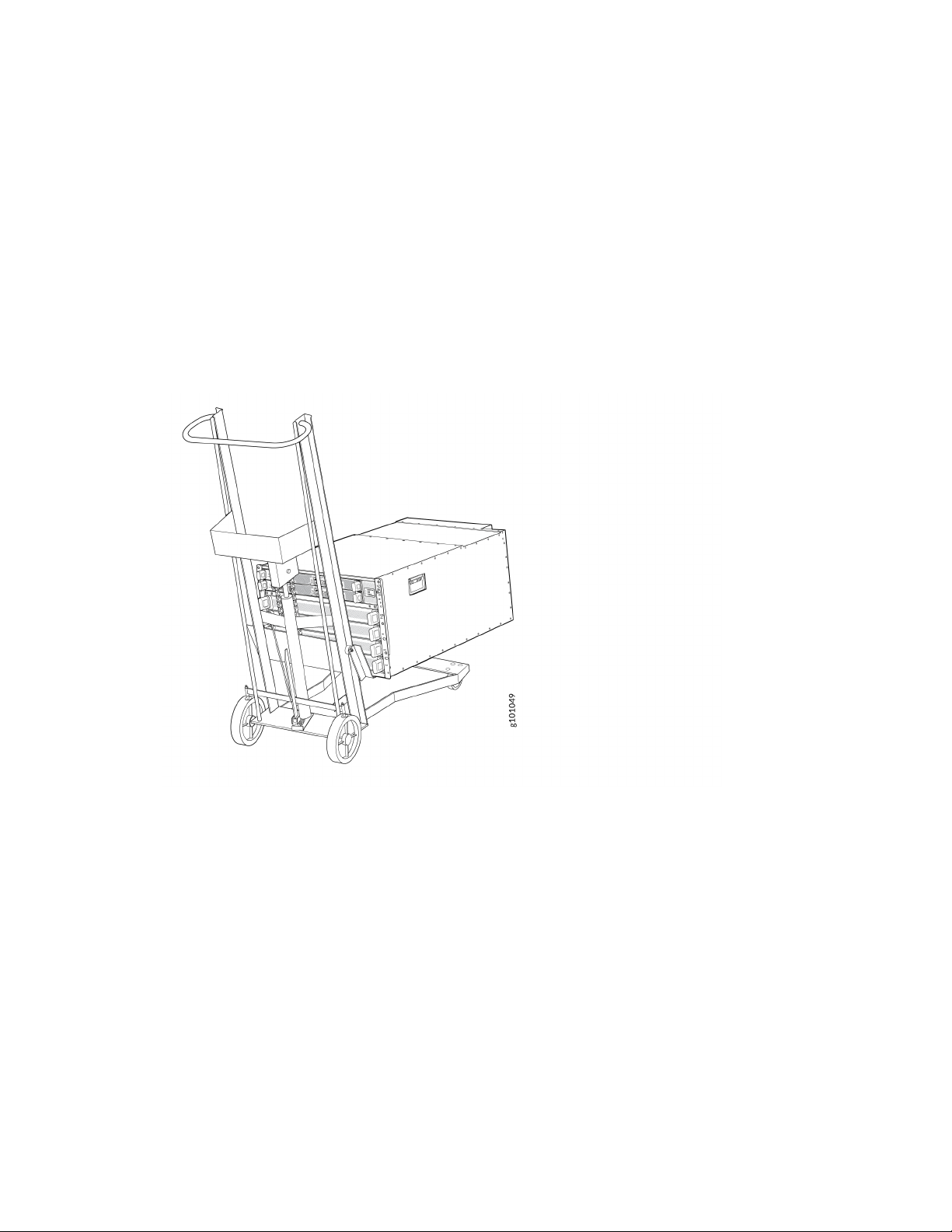

2. Load the router onto the li, making sure it rests securely on the li plaorm.

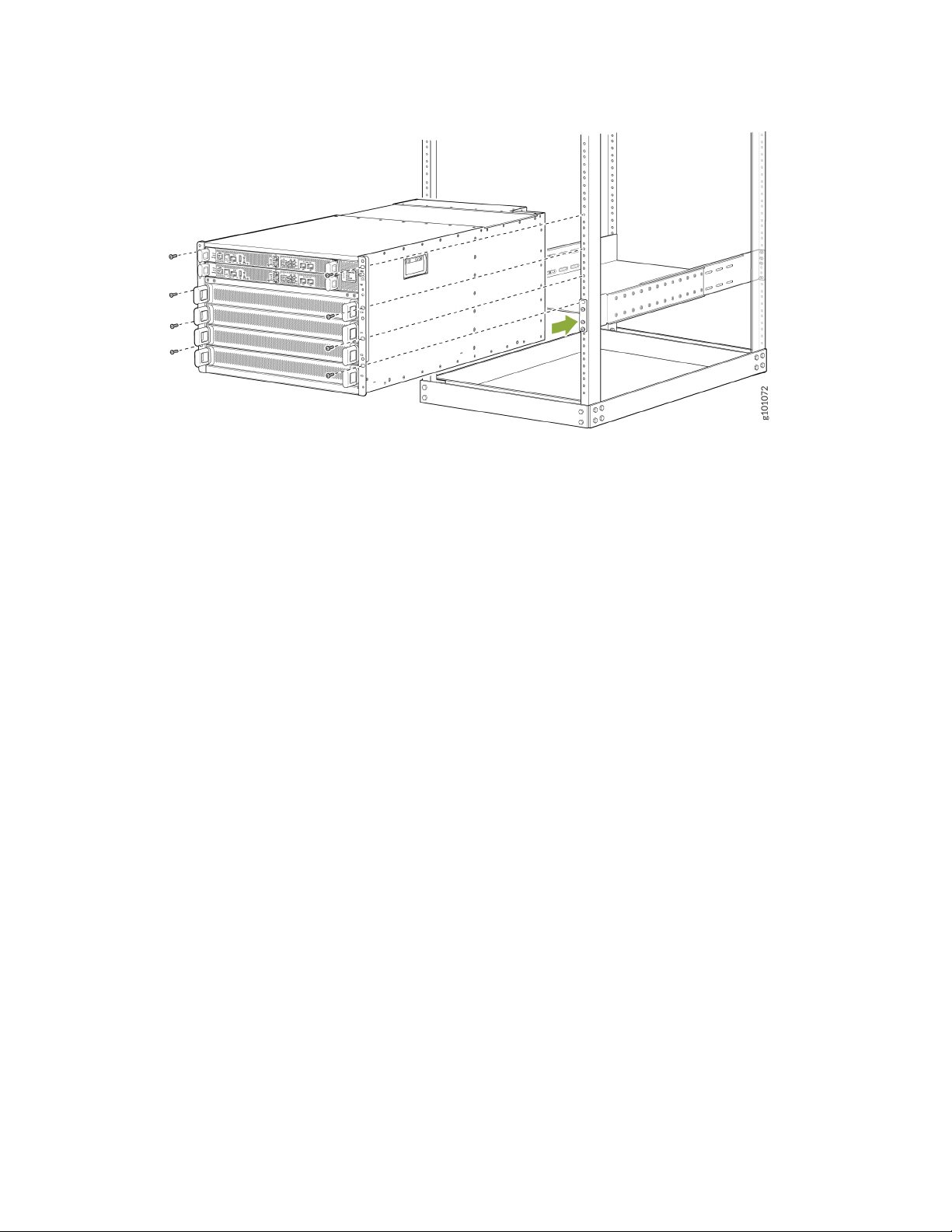

3. Align the router in front of the rack, centering it in front of the mounng tray.
4. Li the chassis approximately 0.75 in. (1.9 cm) above the surface of the mounng tray. Align the
chassis as close as possible to the mounng tray.
5. Carefully slide the chassis onto the shelf unl the chassis anges contact the rack rails.
6. Starng at the boom, aach the chassis to the rack by inserng eight rack mount screws through
each open ange hole and rack hole.
3
7. Move the li away from the rack.
8. Check the alignment of the router. The rack mount screws on each side of the rack should line up,
and the router should be level. Tighten the screws.
9. Insert the safety restraint between the rear posts of the rack. It should rest on the top of the
chassis and align with the holes in the rack.
10. Aach the restraint to the rack by inserng six mounng screws through each ange hole and rack
hole and ghtening the screws.
11. Install the line cards:
a. Remove the line card cover by grasping the handles and pulling straight out to expose the slot
for the line card. Save the cover.
b. Slide the line card all the way into the slot unl the handle holes line up.
c. Rotate the handles simultaneously into the chassis unl the card is fully seated and the handles
are vercal.
12. Install the opcs and oponal cable management system.
13. Li the front door and line up the capve screws in the door with the holes in the chassis ange.
Aach the door to the chassis and rack using the capve screws. Turn the screws unl they are
nger ght.
14. Have a licensed electrician aach the cable lug (provided in the accessory kit) to the grounding
cable.
15. Remove the two M6 screws with aached washers below the boom power supply using a
Pozidriv or Phillips screwdriver.
16. Place the chassis grounding lug and cable over the screw holes with the cable connecon poinng
to the le. Place the two screws with aached washers over the grounding lug and grounding
cable. Tighten the two M6 screws using a Pozidriv or Phillips screwdriver.
4
Power On
Now that you’ve installed your PTX10004 in the rack and grounded the chassis, you’re ready to connect
it to power.
The PTX10004 supports AC, DC, high-voltage alternang current (HVAC), and high-voltage direct
current (HVDC). In this guide, we show you how to connect AC power. See the PTX10004 hardware
guide for informaon on other power opons.
1. Wrap and fasten one end of the electrostac discharge (ESD) grounding strap around your bare wrist,
and connect the other end to a site ESD point.
2. If the AC power source outlet has a power switch, turn it o.
NOTE: If you need power source redundancy, you can aach each power cable to separate
power sources.
3. Turn o the power switch on the power supply.
4. Aach each power supply to a dedicated power source.
5. Set the three DIP switches on the power supply to indicate whether one or both power feeds are
used, and to indicate the amperage of the feeds. Together, these switches determine if the chassis
operates at 3,000 W, 5,000 W, or 5,500 W.
If you're using both power feeds, set switch 1 and switch 2 to the on (|) posion. Power is shared. If
you’re not using power source redundancy, set the unused source to the o (O) posion. The LED
turns red and indicates an error if a power source input is not in use and the DIP switch is on (|).
5
Switch State Descripon
1 On INP0 is present.
O INP0 is not present.
2 On INP1 is present.
O INP1 is not present.
3 On Enabled for 30-A feed; 5,000 W for single feed, 5,500 W for dual feeds.
O Enabled for 20-A feed; power supply capacity is 3,000 W.
6. Plug the AC power cord into the power outlet.
7. If the AC power source outlet has a power switch, turn it on.
8. Turn on the power switch on the power supply.
9. If you’re using two power feeds, verify that the 1 and 2 LEDs on the power supply faceplates are
steadily lit. These LEDs correspond to INP0 and INP1.
Step 2: Up and Running
IN THIS SECTION
Connect to the Router | 7
Set a Root Password and an Oponal Hostname | 8
Congure the Default Gateway and Ethernet Interface | 9
Congure Oponal Routes, Services, and Commit the Conguraon | 9
Now that the PTX10004 is powered on, let’s do some inial conguraon to get the router up and
running on the network. It’s simple to provision and manage the PTX10004 on your network.
6
The PTX10004 supports zero-touch provisioning (ZTP) which autoinstalls a soware image and device-
specic conguraon le when you connect the PTX10004 and other devices on your network. To use
ZTP, you’ll need to congure sengs on a DHCP server. For more informaon, see Zero Touch
Provisioning Using DHCP Opons.
Connect to the Router

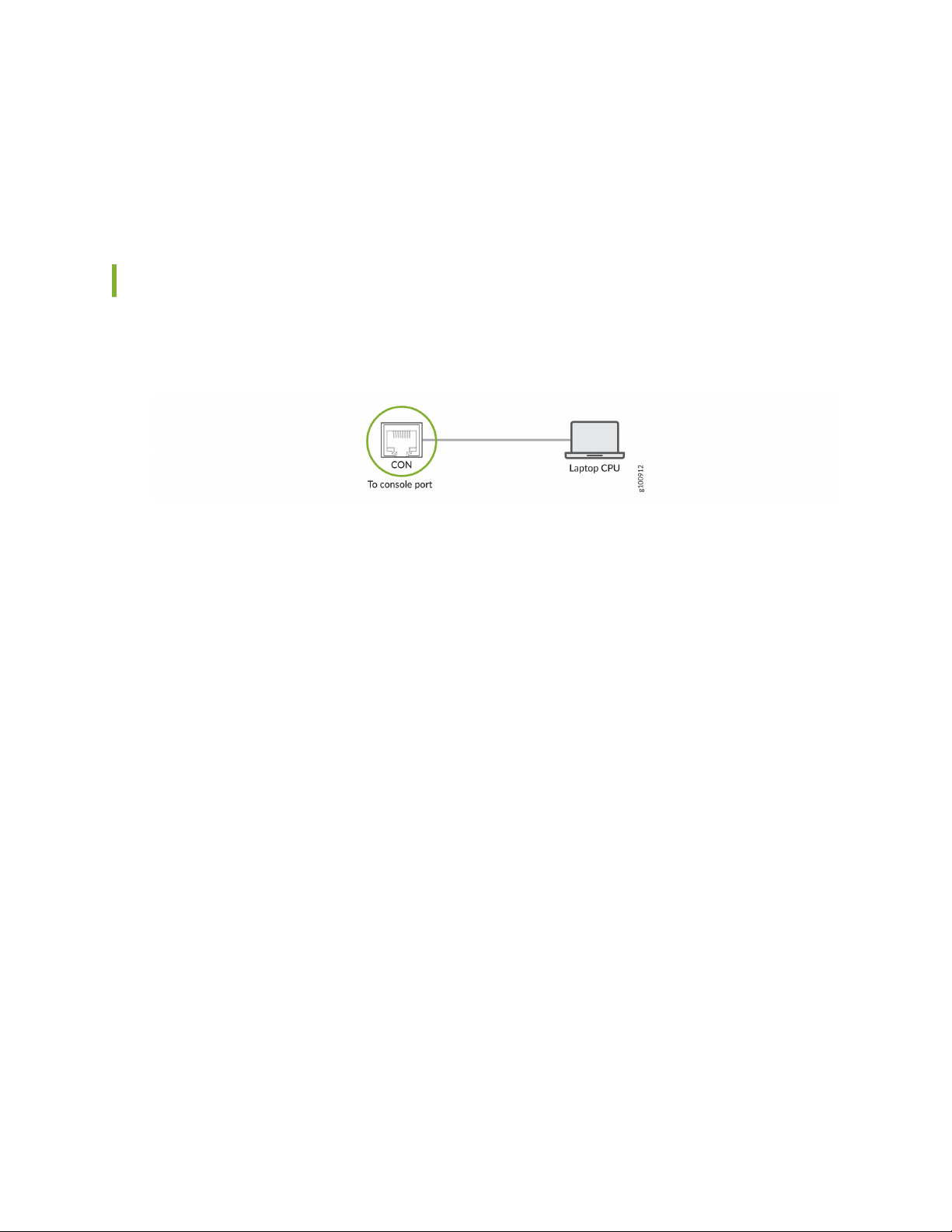

1. Connect the console port to a laptop or PC using the supplied RJ-45 cable and RJ-45 to DB-9
adapter. The console (CONSOLE) port is located on the Roung and Control Board (RCB).
2. Verify that your laptop or PC has the following default values:
• Baud Rate—9600
• Flow Control—None
• Data—8
• Parity—None
• Stop Bits—1
• DCD State—Disregard
3. Have the following informaon ready before you start to congure the PTX10004:
• The password you’ll set for the root user
• The name on the system that the PTX10004 will be known as (hostname)
• The IP address and prex of the default gateway router
• The IP address and prex length informaon for the management Ethernet interface
• The IP address and prex length of remote prexes
7
4. Log in as root. There is no password. If the soware boots before you connect to the console port,
you might need to press the Enter key for the prompt to appear.
Amnesiac <ttyd0>
login: root
5. Start the CLI.
root@% cli
Set a Root Password and an Oponal Hostname
1. Add a password to the root administraon user account.
[edit]
root@# set system root-authentication plain-text-password
New password:
password
Retype new password:
password
2. (Oponal) Congure the name of the router. If the name includes spaces, enclose the name in
quotaon marks (“ ”).
[edit]
root@# set system host-name
host-name
3. (Oponal) Create a user account.
[edit]
root# set system login user
user-name
authentication plain-text-password
New password:
password
Retype new password:
password
4. (Oponal) Set the user account class to super-user.
[edit]
root# set system login user
user-name
class super-user
8
